1002909 Pendant Light

INSTRUCTION MANUAL PART

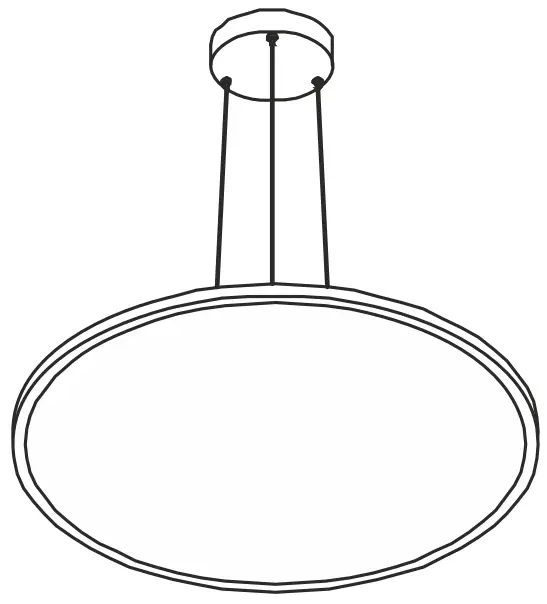

Pendant Light

1003044
…45 …46 …47

The installation requires expert knowledge and may be carried out only by an approved electrician under consideration of local and national regulations!

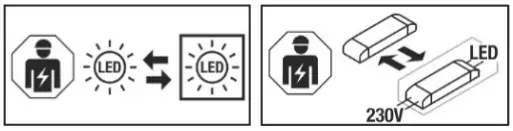

The light source is only exchangeable by a professional. The separate control unit is only exchangeable by a professional.
Disposal (European Union)
Do not dispose of the product with regular household waste! Products marked with this sign must be disposed of according to the directive (WEEE) on electrical and electronic devices at local collection points for such devices!

Operating Manual PART B

Pendant Light
1003044 …45 …46 …47

Read the manual carefully and keep it for further use!
Safety advise for installation and operation.
Disregarding may lead to the danger of life, burning, or fire!
Any work on the electrical connection only by the electrician.
Do not alter or modify the product.
Do not fasten anything on the product.
Do not cover the product.
Take out of service when suspecting a defect or malfunction and contact your dealer or a qualified electrician.
Take measures that children get not harmed by the product.
Do not stare into the active light source.
Additional safety advice =

Use as directed

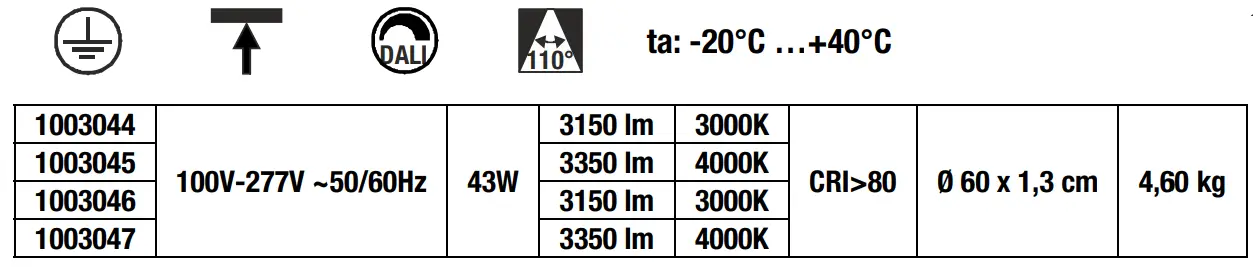

Safety class I () – Connection with protective conductor.
Operate only firmly fixed on an even surface.
Operate only on normal or not inflammable surfaces.
Operate only in a dry indoor area.
Do not strain mechanically or expose to strong dirt contamination.
Admissible ambient temperature(ta): -20°C …+40°C.

Light Source

The light source of this luminaire may only be replaced by the manufacturer, an authorized service technician or a comparable qualified person.
SLV 1003044 …46
This product contains a light source of the energy efficiency class E.
SLV 1003045 …47
This product contains light sources of the energy efficiency class F.

Care / Storage

Disconnect the product from the mains and let it cool down.
Clean external surfaces regularly with a slightly moistened (water) cloth.
Store dry and clean.

Installation

Switch off mains / fixed connection cable!

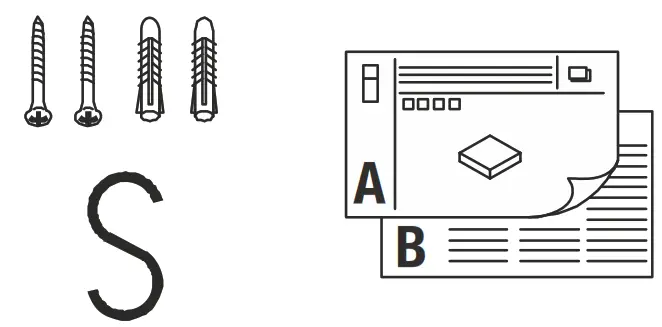

Use only described accessories.
Use only suitable fastening materials.
Only suited for ceiling surface mounting.

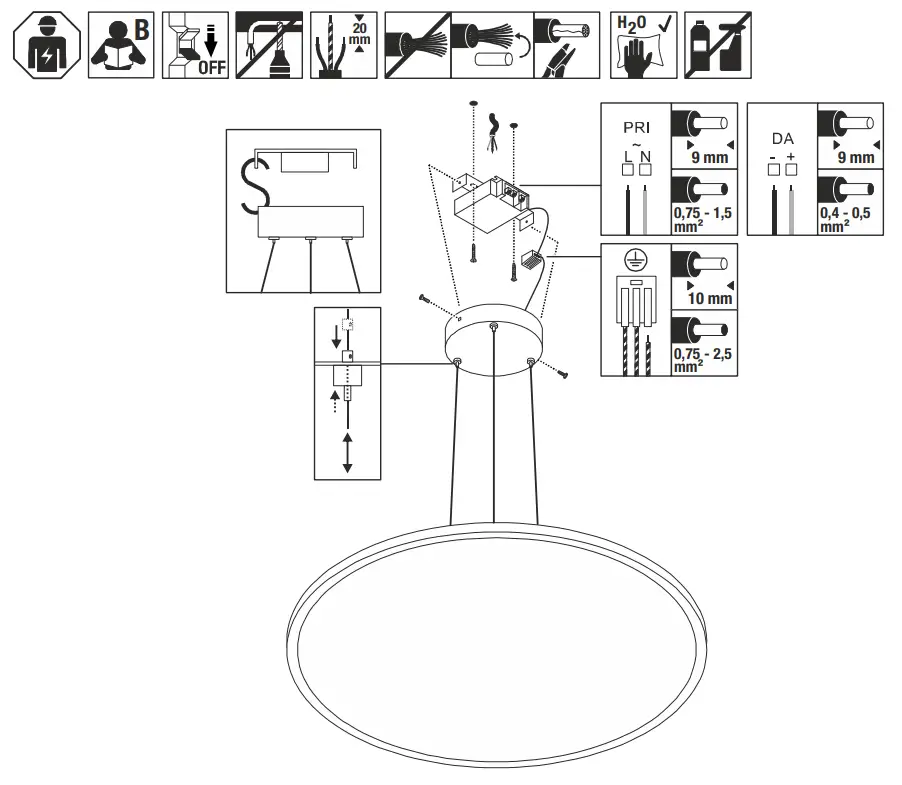

Install as shown in the figure.
Suitable Dimmer: DALI dimmer / light control. Note the manufacturer`s instructions.

Electrical connection

Equip flexible wire ends with suitable wire ferrules!
Live conductor → Terminal L
Neutral conductor → Terminal N
Protective conductor → Earth terminal
Check secure fixation and proper function!
