InFocus Ultra-Long Life Natice Full HD and WUXGA Laser Projectors User Manual
INL3100 Series
Bright, long-lasting laser projectors, ideal for large venues, education, museums and houses of worship with requirements up to 24/7 operation
Parts #: INL3148HD, INL3149WU
Key Features:
- Quantum Color Engine for vivid, ultra-long-lasting images
- Amazing 30,000-hour light source life
- Green, mercury-free technology
- 5,500 lumens and full 1920 x 1080 HD or WUXGA resolution
- HDR image performance with Dynamic Blacks
- HDBaseT connectivity for video and audio over a single RJ45 cable
- Superior built-in dual 10W speakers with pass-through for external speakers
Quantum Color Engine
The INL3100 Series is powered by the InFocus Quantum Color Engine for exceptional image quality over years of continuous operation. The Quantum Color Engine is based on solid-state illumination technology, which utilizes blue laser diodes instead of traditional lamps to illuminate the DLP chip, and is tested for over 200 unique color parameters to ensure the most vivid images possible. A massive color gamut, up to 40% bigger than leading competitors, and high color luminosity ratios bring your screen to life. With virtually no color decay, you can enjoy remarkable images for over 3 years of 24/7 operation or over 10 years of business hour operation.
Outstanding Images
An amazing 5,500 lumens and 500,000:1 contrast ratio mean bright, sharp images in any light plus darker blacks and whiter whites. DPL technology with InFocus BrilliantColorTM implementation ensures trueto-
life colors every time.
Greener Technology, Greater ROI
Solid-state technology means your projector will last an amazing 30,000 hours, with an environmentally friendly mercury-free design. No lamps to replace means less hassle and fewer
added expenses over time.
Laser for Every Business Setting
Versatile throw ratio and giant 1.6x zoom, plus manual vertical lens shift, make INL3100 Series projectors ideal for a variety of rooms and meeting spaces.
Specifications*
| INL3148HD | INL3149WU | |
| Native Resolution | 1080p (1920×1080) | WUXGA (1920×1200) |
| Illumination Technology | InFocus Laser Quantum Color Engine | |
| Display Technology | DLP® DDP4422HV 1080p S600 .65” | DLP® DDP4422HV WUXGA S600 .67” |
| Preset Color Temp | Bright = Native, PC = 7500K, Movie = 6500K | |
| Phosphor Wheel | 3 segment (Blue-Green-Yellow) | |
| Color Wheel | 4 segment (Blue-Green-Yellow-Light Yellow) | |
| Brightness | 5,500 lumens (Fully Adjustable in 5% increments 5,500 lumens to 2,500) | |
| Constrast Ratio Sequential | 500,000:1 | |
| Uniformity | 85% | |
| Native Aspect Ratio | 16:9 | 16:10 |
| Supported Aspect Ratios | 1:1, 2:1, 13:9, 15:9, 16:9, 16:10, 4:3, 5:4, 2.35:1 | |
| Optical Focal Length | 2.5(wide)~3.26cm(tele)@60”image size | |
| Focus | Manual | |

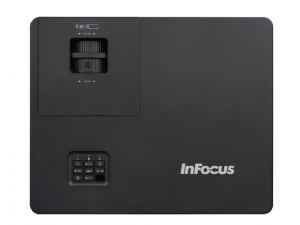

| Lens | Manual Zoom, Focus & Vertical Shift | |
| Displayable Colors | 1073.7 million | |
| Image Presets | Nine Presets: Presentation, Bright, HDR SIM, Cinema, Game, sRGB, DICOM SIM, User, 3D | |
| Wall Color Presets | Six Presets: Off, Blackboard, Light Yellow, Light Green, Light Blue, Pink, Gray | |
| Zoom Ratio | 1.6x | |
| Throw Ratio | 1.4-2.24 | |
| Screen Size – Diagonal | 0.72m ~ 7.62m (28.2” ~ 300”) | |
| Native Offset | 113% | 102% |
| Vertical Lens Shift | 103% ~ 118% | -95% ~ 107% |
| Throw Distance (focus range) | 3.28’ – 32.81’ (1m – 10m) | |
| Keystone Vertical | +/-30% Auto or Manual | |
| Keystone Horizontal | +/-30% Auto or Manual | |

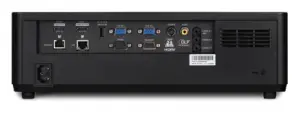

| Input | 1 x HDMI 2.0 (4K), 1 x HDMI 1.4, 2x VGA, 1x Composite, 1 x S-Video, 2 x 3.5mm Audio in (1 for MIC), 1xHDBaseT | |
| Output | 1x VGA/Monitor Out, 1 x 3.5mm Audio out, USB-A (Service / 5V 1.5A) | |
| Control Input | RS232, RJ45 | |
| Basic PC Compatibility | VGA (640×480) to 4K60 (4096×2160@60Hz) on HDMI 1 (HDMI 2.0); VGA (640×480) to 4K24 (4096×2160@24Hz) on HDMI 2 (HDMI 1.4a); VGA (640×480) to WUXGA (1920×1200@60Hz) on VGA; VGA (640×480) to 4K30 (4096×2160@30) on HDBaseT | |
| H~Synch Range | 15K ~102K Hz | |
| V~Synch Range | 23 ~120 Hz | |
| Video Compatibility | NTSC, PAL, SECAM | |
| 3D Compatibility | Top/Bottom, Side-by-Side, Frame Sequential, HDMI 1.4a | |
| Control Compatibility | AMX, PJLink, InFocus ProjectorNet, HDMI CEC | |
| Laser Life | 30,000 Hours | |
| Standby Power | <0.5W low power standby, <2W networked standby | |
| Power Consumption | Power supply 100V ~ 240V ± 10%, 50-60Hz; Power consumption (standby) <0.5W; Power consumption (standby network on) <2.0W; Power consumption (min) 190W; Power consumption (max) 341W | |
| Noise | 27dB | |
| Power Supply Range | 100V – 240V @ 50~60 Hz | |
| Operating Temp. / Altitude | 0C min / 40C max / 0-7.5k @40c / 7.5k -10k ft @ 35C | |
| Store Temp. / Operating Humidity | -20°~60° / 10~85% RH Without Condensation | |
| Operating Pitch/Roll | Table Top/Ceiling/Portrait/Full 360 degree pitch | |
| OSD Languages | English, French, German, Polish, Spanish, Russian, Dutch, Norwegian/Danish, Swedish, Czech, Arabic, Polish, Finnish, Turkish, Portuguese, Greek, Hungarian, Romanian, Italian, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Indonesia, Thai, Japanese, Korean, Slovakian | |
| Users Guide Languages | Arabic, Traditional Chinese, Simplified Chinese, Dutch, English, French, German, Bahasa Indonesia, Italian, Korean, Norwegian, Portuguese, Russian, Spanish, Swedish | |
| Certification (Must have all certs per destination countries tab) | UL and c-UL (US/Canada), FCC (US/Canada), CE (Europe), KCC (Korea), NOM (Mexico), PSB (Singapore), SABS (South Africa), CB, Nemco/GS | |
| Speaker | 10W Speaker X 2 | |
| Product Dimensions | 374 X 302 X 107mm (w/o feet), 374 X 302 X 117mm (with feet) | |
| Product Weight | 5.5kg (12.1lbs) | |
| Ceiling Mount | PRJ-MNT-UNIV | |
| Shipping Dimensions | 563 X 468 X 255mm | |
| Shipping Weight | 7.7 kg (17lbs) | |
| Remote Control | HW-NAVIGATOR-5 | |
| Standard Accessories | User Manual (CD), Quick Start Guide, Warranty Card, HDMI Cable (1.8m), Remote Control (without batteries) | |
| Security | Security bar, Kensington Lock, Password protected interface | |
| Other Features | 3D ready (DLPLink), Dynamic Black, IP5x, Adjustable brightness, 5 steps of laser adjustments, HDR-Image performance, 360 degree projection, 4 corner geometric adjustment, Electronic Image shift, Closed caption, Image freeze, Direct power on, Signal power on, Auto power off, Digital zoom, Edge masking, 24/7 operation | |
Optional Accessories
Universal Ceiling Mount (PRJ-MNT-UNIV)
LiteShow 4 DB+ Dual Band Wireless Adapter (INLITESHOW4DB+)
LiteShow Mount (PRJ-MNT-LS3)
SimpleShare Wireless Presentation Solutions (INA-SIMS1, INA-SIMPS1, INA-SIMINT1)
DLP Link 3D Glasses (X103-EDUX3-R1)
Extended Warranties (EPW-PJV1, EPW-PJV2
