Vortex 2WD OV 3500 Pool Cleaning Robot
User Guide

Contents hide

1 Vortex 2WD OV 3500 Pool Cleaning Robot

Vortex 2WD OV 3500 Pool Cleaning Robot

*according to model

WARNING – For anything other than the routine cleaning and maintenance described in this guide, this product must be serviced by a qualified professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in the product’s complete installation and operations manual can be followed exactly. All safety instructions must be followed explicitly in order to prevent injury hazards. Improper installation and/or operation will void the warranty. Never turn the cleaner on unless it is fully submerged in the water. Doing so will void the warranty and may cause severe damage to the cleaner motors.

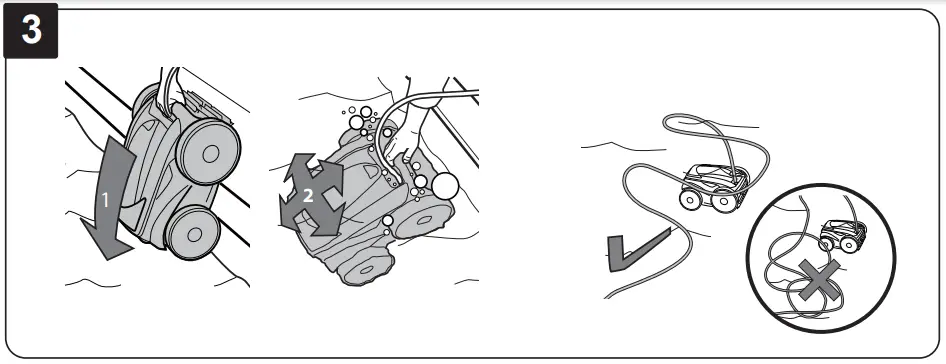

> Submerge in pool.

> Wait for bubbles to stop completely, then let the cleaner sink to the bottom of the pool.
> Start cleaning.

> Control box has different functions depending on cleaner model. All available functions are shown below (1-4).
1. Surface


— Floor Only	— Floor, Walls, Waterline	— Waterline Only

2. Cleaning Time Adjustment


— Low Intensity	— Intensive

+/- 0.5 h
3. Pool Shape


— Flat Bottomed Rectangular	— Other Shapes, Other Bottoms

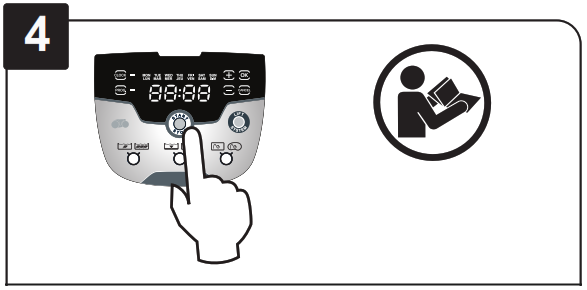

4. > Start cleaning.

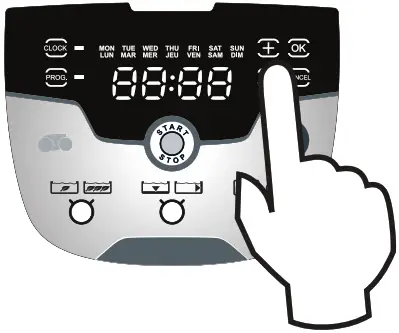

5. > Set Programming


Time	Cycle

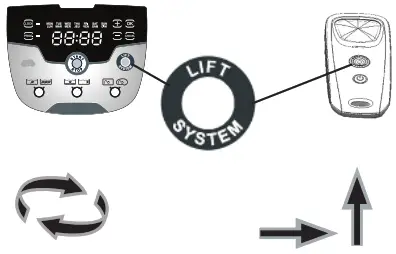

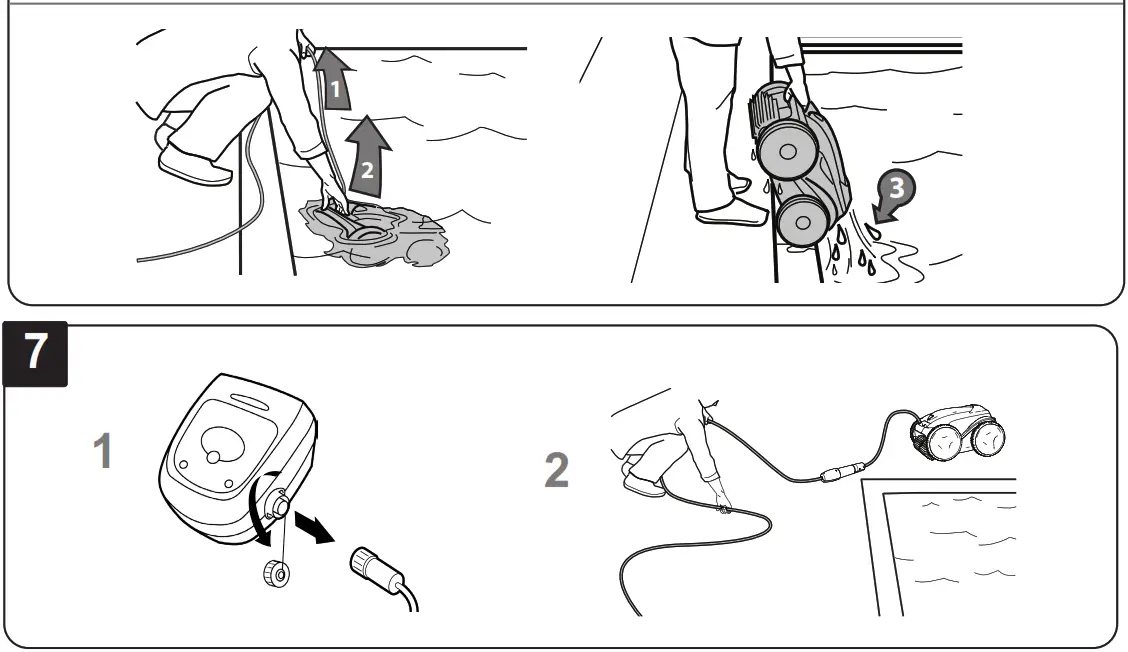

6. > Take the cleaner out of the water using Lift System.


> Press and Hold, OR	> Forward

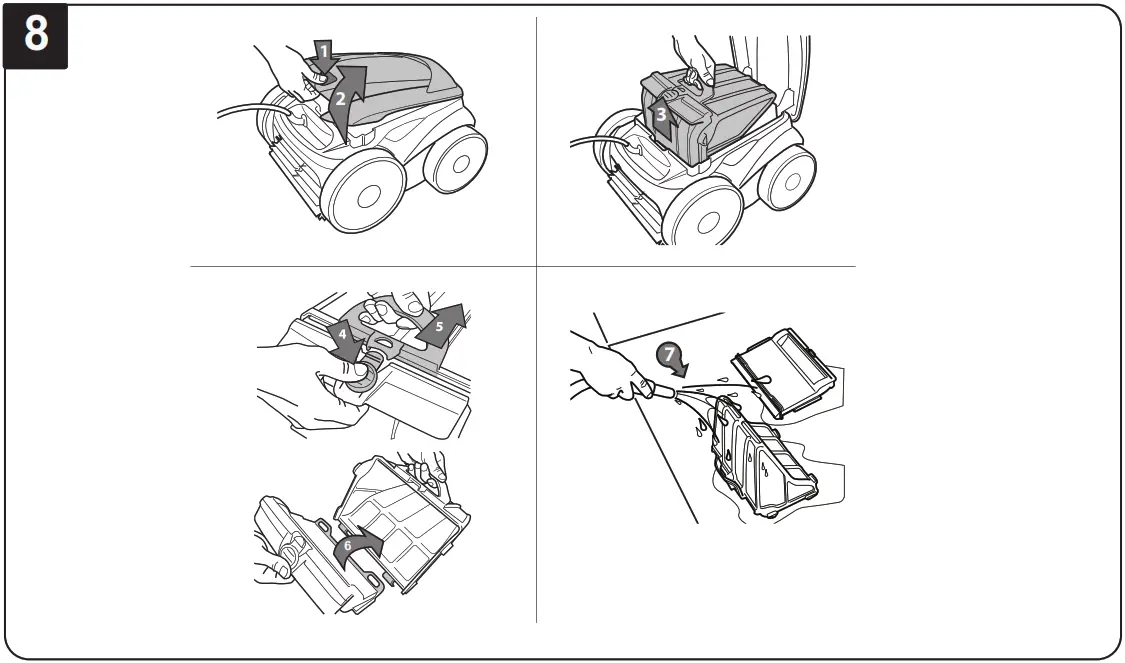

8. > Clean the filter

> This manual contains essential installation and startup instructions. Read the online manual and all safety warnings before commencing installation.Visit www.zodiac.com for additional operating and troubleshooting instructions.
©2020 Zodiac Pool Systems LLC. All rights reserved. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license. All other trademarks referenced are the property of their respective owners.
H0532100 RevG
