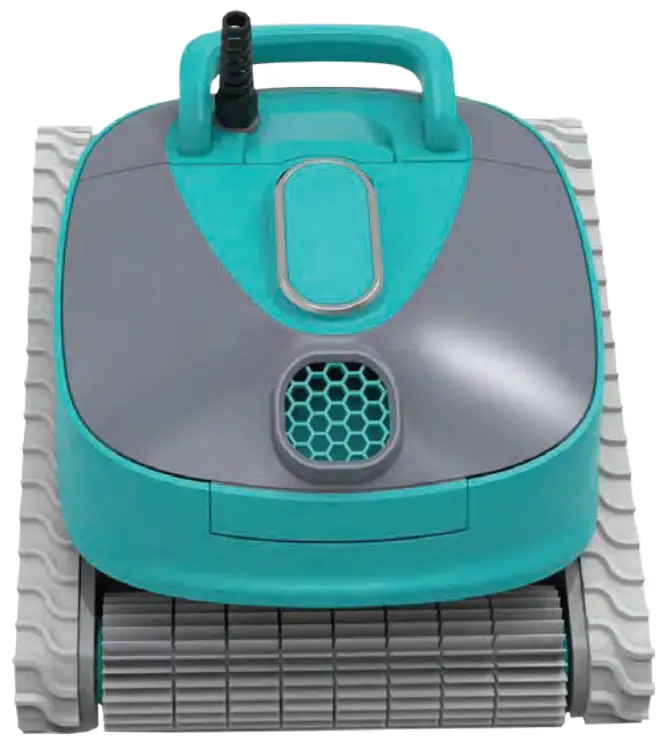

SLPORBT36 Automatic Robotic Pool Cleaner

Please read this User Manual in its entirety to ensure proper operation and care of your SLPORBT36 Automatic Robotic Pool Cleaner.
IMPORTANT: PLEASE READ BEFORE OPERATING THE CLEANER

Product Introduction

Human beings have liberated their hands because they walked upright.
Even in modern society with advanced technology, liberated hands are still the unremitting pursuit of human beings. The SereneLife Automatic Robotic Pool Cleaner is developed for this purpose. The Robotic Pool Cleaner is a kind of underwater cleaner, it is fully automatic. It is mainly used to clean the dirt and debris such as hair, leaves, and sand from the pool floor; pool wall, and waterline. As long as you put it into the pool after the initial program setting, the Robotic Pool Cleaner can automatically measure the size of the pool, automatically design the working route, and clean the pool by itself.

WARNING AND CAUTIONS

WARNING: Do not operate the robotic pool cleaner when there are people swimming in the pool. Communication cables can trip or entangle swimmers which could result in drowning.
WARNING: Keep the robotic pool cleaner out of reach of children. Keep the robotic pool cleaner out of reach of persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, without proper supervision and understanding of the instructions.
WARNING: DO NOT switch on the pool cleaner if it is not immersed in the water.
Operating the cleaner out of the water may cause severe damage and will result in a loss of warranty.
WARNING: Shut oﬀ and unplug the power supply every time you remove the cleaner from the water.
WARNING: DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE, USE THE HANDLE.
WARNING: Only use this cleaner when the water temperature is 10-35°C or 50-95°F and the pool depth is 0.5m-3m. The cleaner is designed for a 100m² surface area.
WARNING: Keep the controller box in a dry place that is out of direct sunlight and is 3.5m away from your pool.

GETTING STARTED

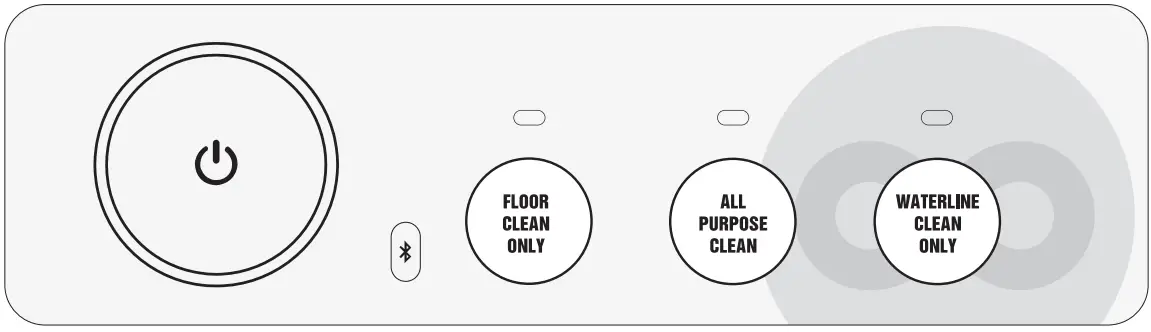

: Turn power supply ON/OFF, error alarm.
FLOOR CLEAN ONLY: To clean the pool floor only. It will increase the cleaning efficiency
ALL PURPOSE CLEAN: All-around cleaning, including pool floor, pool wall, and waterline.
RUNNING TIME (set the cleaning time): Set the preferred running hours (2/3/5 hours, press the button to set the cleaning time, red light means the cleaner will work for 2 hours, green light for 3 hours, and blue for 5 hours), before you start the cleaning. The cleaner will stop automatically after working.

OPERATION INSTRUCTIONS

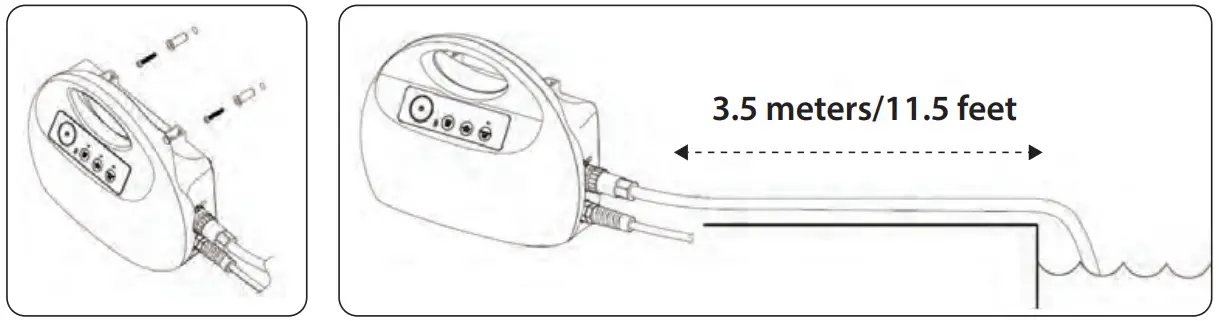

Place the power supply (transformer) at least 3.5 meters/11.5 feet from the pool and at least 12 cm/4 Inch above the surface. The transformer will supply low voltage to the cleaner.

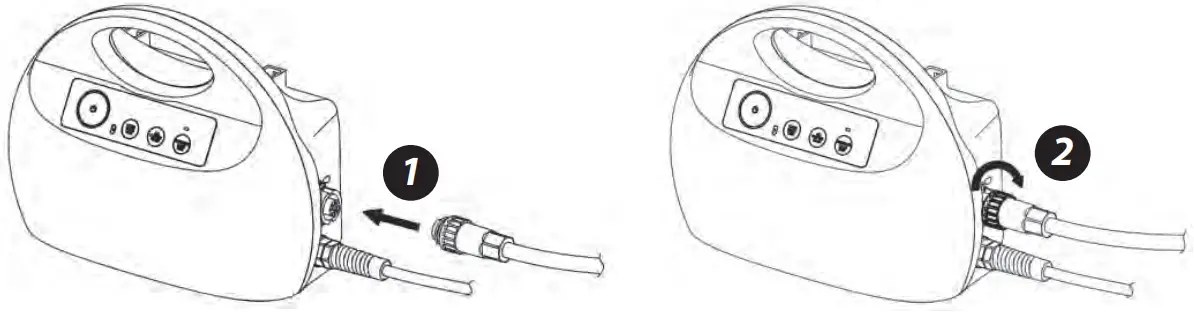

Connect the floating power cord.
Place the unit in the water. Release the Pool Cleaner and let it sink to the floor of the pool. Make sure that the floating cable is free of any obstructions.
Start: Turn the power supply ON (115V AC 60HZ). One of the three modes of light will be on. Press the button for the mode and time you want to run, then press the button and the Pool Cleaner will now operate.
Mode switching: Press the button, choose the mode, and press the button to start the cleaner.

Indicator Lights:

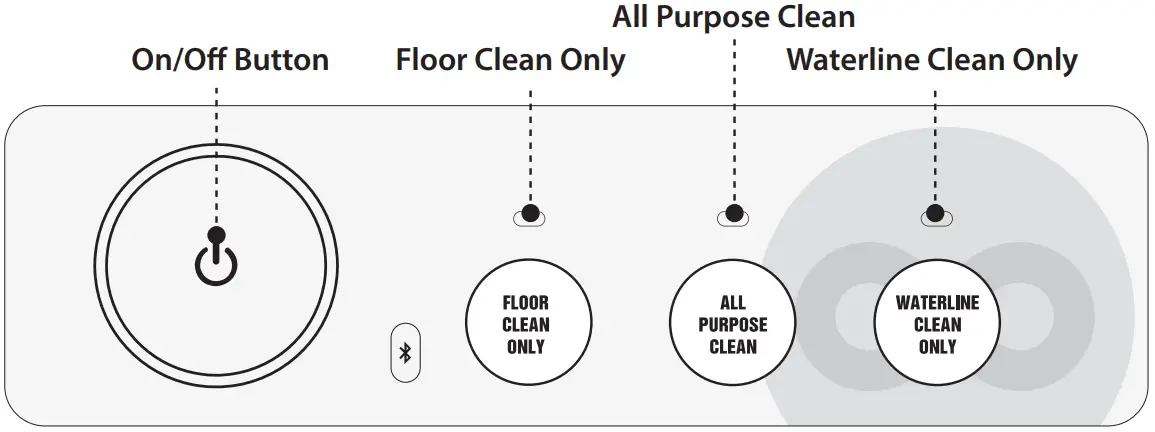

SereneLife SLPORBT36 Automatic Robotic Pool Cleaner - FIG 5

LED Light	Status	Indication
White	On	Robotic Pool Cleaner Normal operation
White	Blinking twice	Work reversely after meeting obstacles
White	Always blinking	Wireless BT communication with the pool cleaner or standby status
Red	On	Overload or No-load protection Let the cleaner sink to the floor of the pool, and press on/oﬀ to start again.

ROUTINE MAINTENANCE

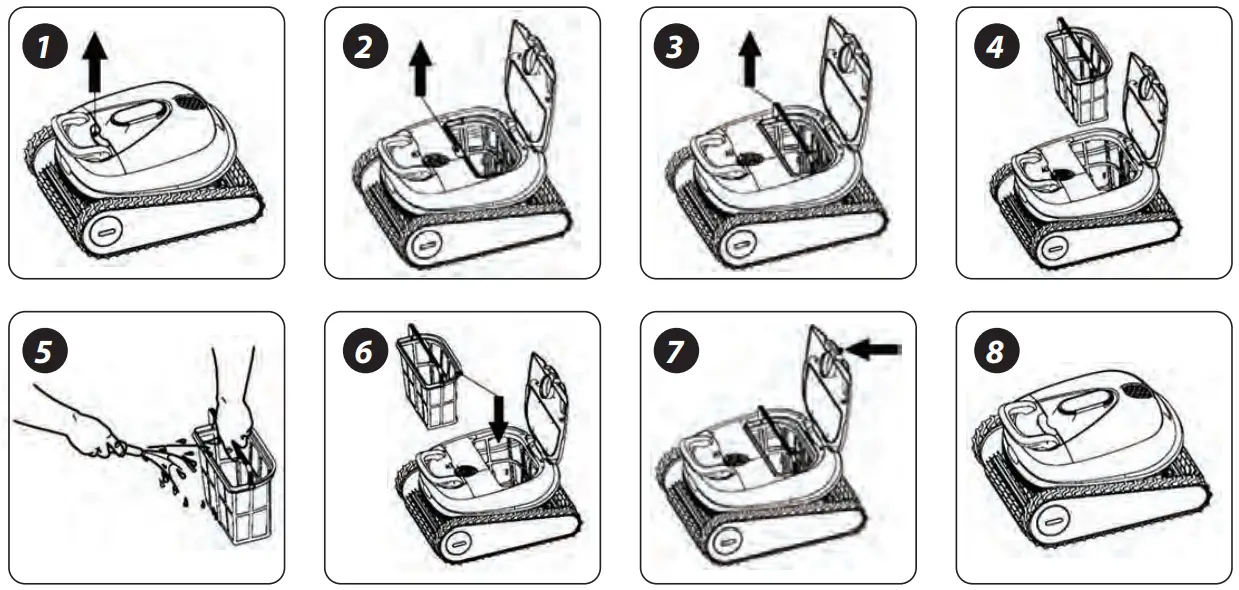

Clean the Filter Basket
Cut oﬀ the power supply (light goes out) Turn oﬀ the Pool cleaner.
Open the filter cover. Clean the filter basket with a hose. Insert the clean filter basket and close the filter cover. Make sure the power supply is switched OFF and unplugged.
It is highly recommended to clean the filter basket after each cleaning cycle.

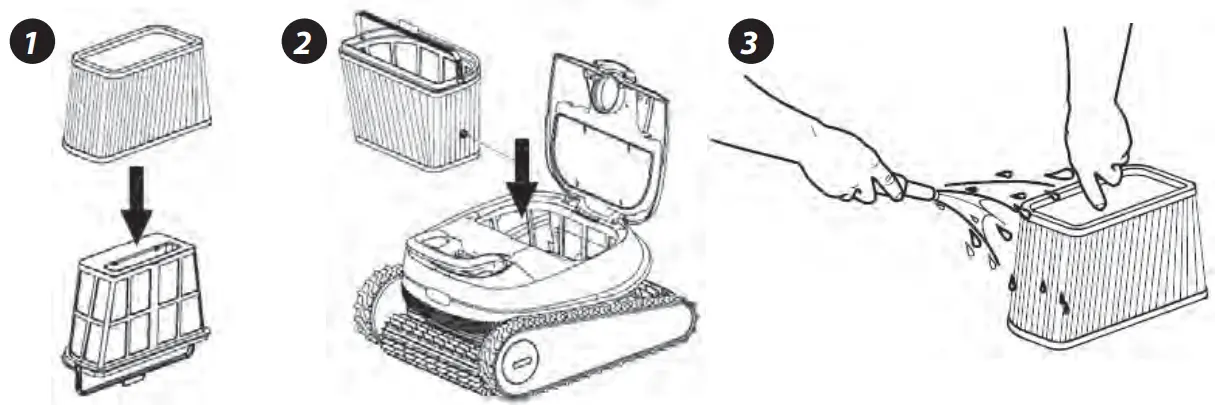

Use of filter paper coreThe filter paper core is a fragile part, which can filter particles below 100µm, and its service life is less than 72 hours. (The filter paper core can be used without aﬀecting the performance of the robot, and it is strongly recommended that the filter paper core be not used in the dirty swimming pool.)
Floating Cable Routine Maintenance
The floating cable may get intertwined after 8 hours of working which needs to be sorted out manually. It highly recommends sorting the cable out after each cleaning.

TROUBLESHOOTING

Symptom	Possible Reason	Solution
The pool cleaner moves but does not clean the pool	Clogged filter basket	Clean the filter basket
The pool cleaner does not move	• The impeller gets blocked. • The drive belt gets blocked	Unplug the power supply. Open the impeller cover and check that nothing is trapped in the impeller. Verify that nothing blocks the tracks or wheels.
Debris out from the outlet	• Filter basket is broken • Filter basket is full	• Replace the filter basket • Clean the filter basket
Intertwined oating cable	Long working hours, over8 hours.	Untwist the heating cable before re-start.
Stop Working	Overload or no-load protection	Let the cleaner sink to the door of the pool, and press to start again.
