CLEANERS
W3RC9740WCCUB XL Robotic Pool Cleaner
SharkVac Series
ROBOTIC POOL CLEANERS
When it comes to clean, these sharks are smart.
The SharkVac series by Hayward® offers two powerful ways to hunt down pool debris. Built with the highest-quality components and proven technology, SharkVac cleaners create reliable, consistent results while maximizing energy efficiency. Whether cleaning the pool floor and coves with SharkVac or covering the floor, coves, walls, and waterline with SharkVac XL,™ the cleaners’ robust, low-profile design and top-access filters give them an added bite. Running independently of the pool’s filtration system with no extra pumps or hoses, they couldn’t be simpler to use. Discover the cleaners with an insatiable appetite for results—the SharkVac series by Hayward.

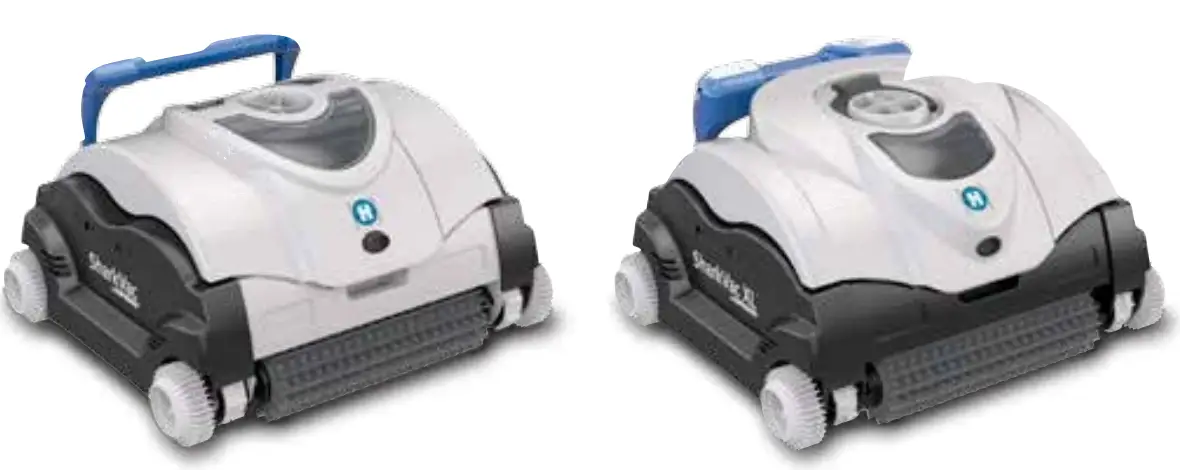

Two fierce options. One razor-sharp clean.
Equipped with intelligent steering technology, SharkVac, and SharkVac XL™ by Hayward ® clean the pool faster and more efficiently than other cleaners. Their simple design makes them easier to set up, while their top filter access makes for effortless maintenance.
Enjoy shorter cleaning cycles and longer cleaner life.
- Exclusive smart technology steers SharkVac cleaners along the most efficient cleaning path possible, creating complete results faster than ever.
- SharkVac is dedicated to cleaning the pool floor only, while SharkVac XL is designed to deliver a fast, totally clean, scouring of the floor, walls, coves, and waterline in just three hours.
- Out-of-water and beach-entry sensors stop SharkVac XL from running out of water while cleaning the waterline, protecting the motor and extending cleaner life.
Save time, money, and hassle.
- SharkVac cleaners are energy efficient and incredibly easy to use — no hoses, hookups, or extra pumps required.
- Top-access filters with two fine-porosity filter elements allow for quick debris removal and easy cleanup—just remove the filter cartridge and rinse with a garden hose.
- SharkVac cleaners run separately from the pool’s filtration system, reducing the frequency of filter backwash cycles and saving both time and money.
| Specifications | SharkVac by Hayward® | SharkVac XL™ by Hayward® |
| Part Number | RC9740CUB | RC9740WCCUB |
| RC9742CUBY (with caddy cart) | RC9742WCCUBY (with caddy cart) | |
| Pool Coverage | Pool floor, coves | Pool floor, walls, coves, waterline |
| Cleaning Cycle | 2 hours | 3 hours |
| Pool Size | up to 20′ x 40′ | up to 20′ x 40′ |
| Pool Surface | Gunite, Vinyl, Fiberglass, Pebble, and Tile* | Gunite, Vinyl, Fiberglass, Pebble, and Tile* |
| Cord Length | 50′ | 60′ |
| Power Supply Input Voltage | 115 VAC 60 Hz | 115 VAC 60 Hz |
| Power Supply Output Voltage | 24 V DC | 24 V DC |
| Weight | 21.5 lbs | 21.5 lbs |
| Warranty | 1 year | 2 years |
* Tile may require foam roller option. Foam roller part number: RCX26011WCE
Optional Accessories (sold separately)

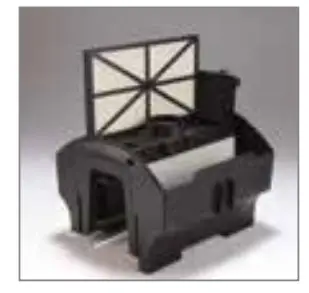

 | Filter removes easily from filter frame |
 | SharkVac Caddy Cart Model: RC97385D Included with SharkVac (Model: RC9742CUBY) and SharkVac XL (Model: RC9742WCCUBY) |
 | Spring clean-up Filter Element Model: RCX70103PAK2 for larger debris |
To take a closer look at SharkVac Series or other Hayward products, go to hayward.com or call 1-888-HAYWARD.
Hayward, Hayward Energy Solutions, and SharkVac by Hayward are registered trademarks and SharkVac XL is a trademark of Hayward Industries, Inc. © 2015 Hayward Industries, Inc.
LITSHVACSER16
