Toyz Mercedes W166 Battery Operated Ride On Car User Manual

MERCEDES W166
Battery Operated Ride On Car
User Manual

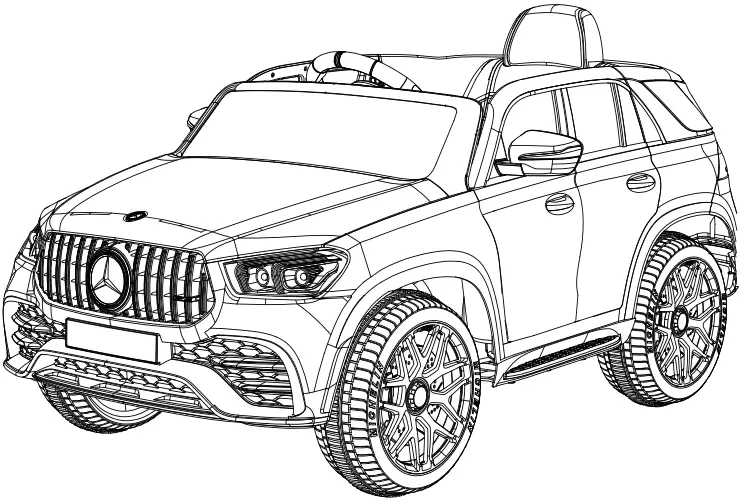

MERCEDES W166 Battery Operated Ride On Car

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

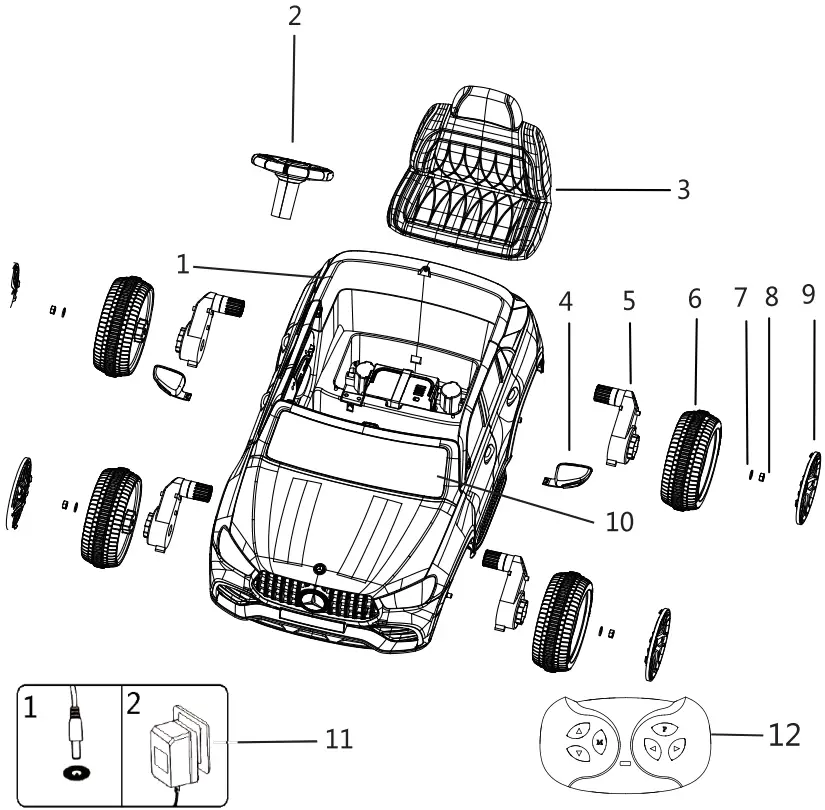

LIST OF PARTS

WARNING: Before assembling the car, check that all the parts listed are in the box.

TECHNICAL DATA

INSTRUCTIONS FOR USE

WARNINGS: Product may only be assembled by an adult. The product is not suitable for children under 3 years of age. Before the first use, be sure to fully charge the batteries (about 10-12 hours), otherwise the batteries may be irreparably damaged.
The vehicle should always be used under adult supervision. The product contains small parts, The vehicle must not be used in the dark. If a child encounters unexpected obstacles, it may cause an accident. The vehicle should only be used during the day or in well-lit areas. Driving on wet surfaces or slopes greater than 15 degrees is not recommended. Do not use your vehicle outdoors in rain or snowfall. The vehicle must be brought to a complete stop before changing direction from forward / reverse. Regularly check all connections of cables and batteries. Check all vehicle components for damage. If any part of the vehicle is damaged, stop using the vehicle and contact your dealer. If you are not using the vehicle for a long time, disconnect the cables from the batteries. The safe working life of the product is 3 years.

ASSEMBLY INSTRUCTIONS

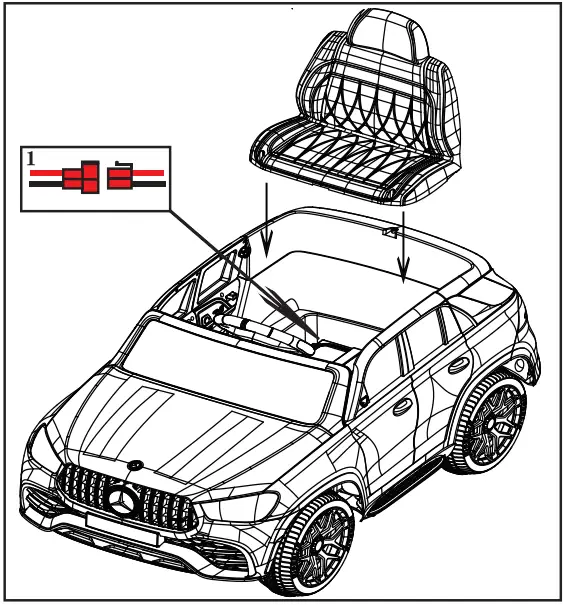

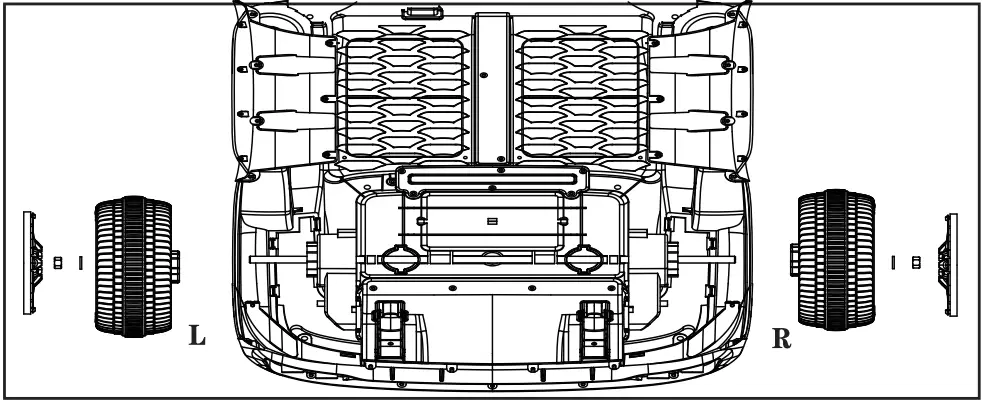

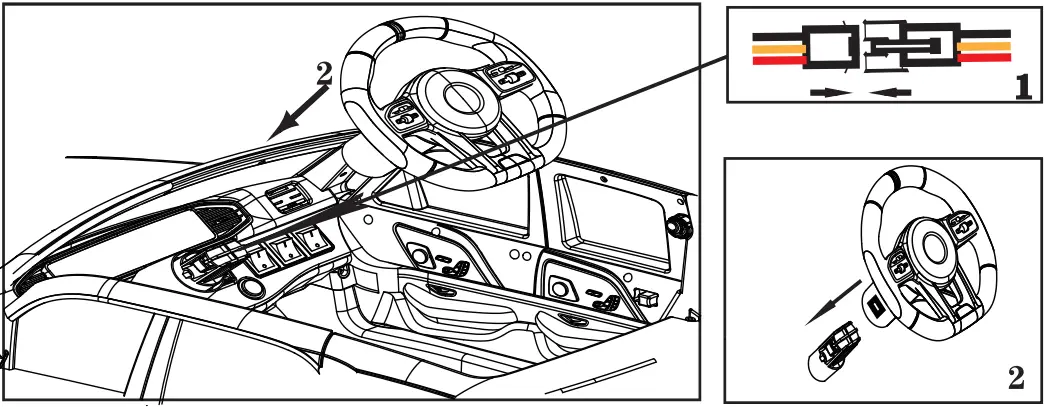

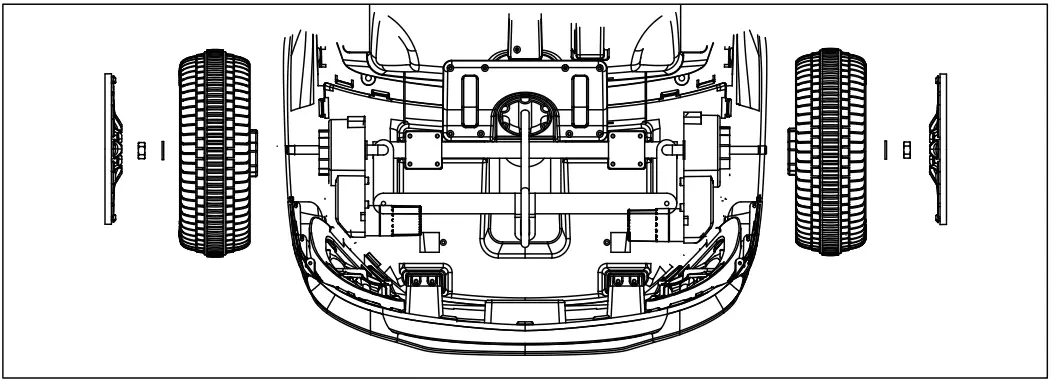

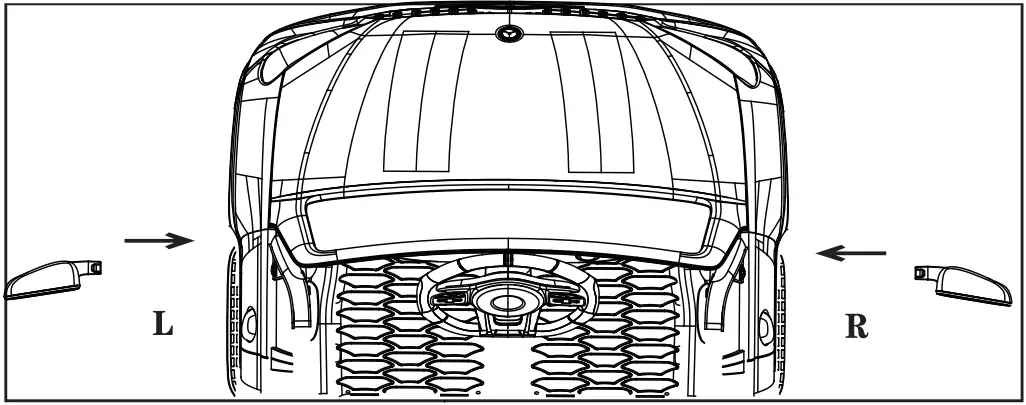

Turn the vehicle upside down. On the rear axle with the engine mounted, put the following in sequence: wheel, washer, screw on the nut and fasten the cap. Repeat the application of the elements to the axis on the other side.Turn the vehicle upside down. On the front axle with the engine installed, put the following in sequence: wheel, washer, screw on the nut and fasten the cap. Repeat the application of the elements to the axis on the other side.Turn the vehicle over to the starting position. Connect the handlebar wires to the wires coming out of the body. Fix the steering wheel to the column protruding from the bodywork.Attach the mirrors to the sides of the vehicle in the corresponding holes in the bodywork.Connect the power cables located in the compartment under the seat in the body. Place the seat in the car body and fasten the seat with the two included screws.

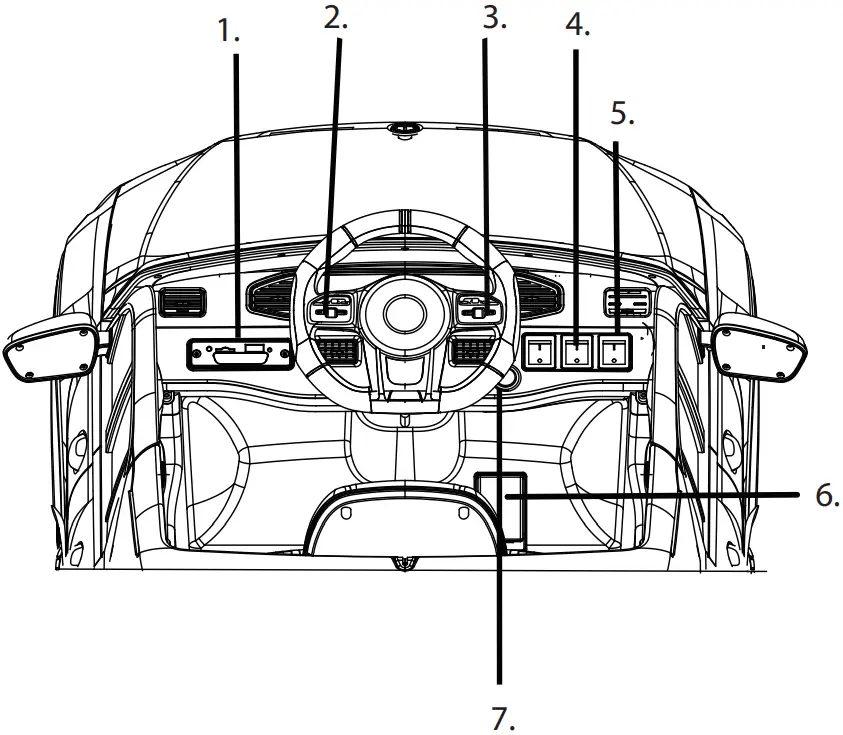

VEHICLE FUNCTIONS

1. Multimedia panel
2. Melody change button
3. Horn
4. Light switch
5. Driving direction change button
6. Accelerator pedal
7. Vehicle switch

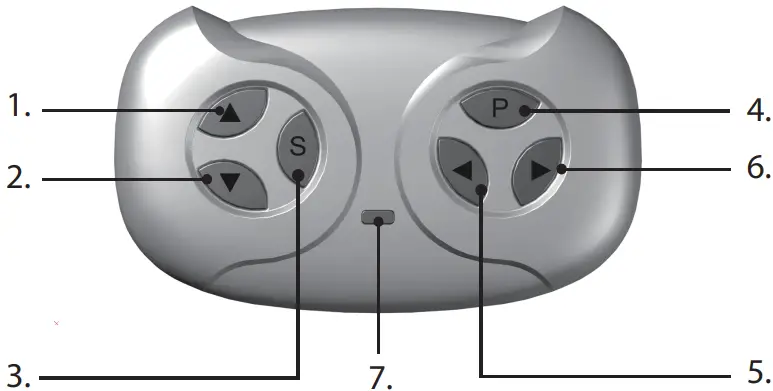

REMOTE FUNCTIONS

1. Drive forward
2. Reverse driving
3. Speed change button
4. Press stop
5. Turn left
6. Right turn
7. LED indicator

PAIRING THE REMOTE CONTROL WITH THE VEHICLE
Place two AAA batteries in the remote control.
Make sure the vehicle is turned OFF.
Hold the forward and reverse buttons simultaneously for 3 seconds. When the LED indicator on the remote control flashes, turn on the vehicle using the n button on the dashboard.
When the LED indicator stops flashing, the remote control will be paired with the vehicle.

TROUBLESHOOTING

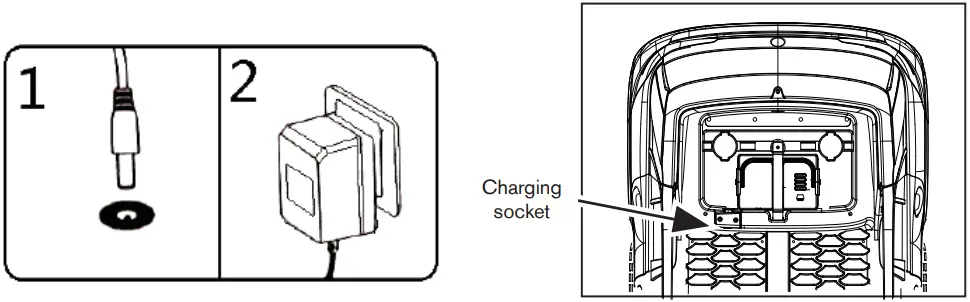

BATTERY CHARGING

BATTERY CHARGING NOTES

• Before first use of the car, charge the batteries up fully. Always insert the adapter’s tip into the socket in the car first and then put the plug into the socket (the charging process should be always carried out by an adult, never allow your child to use the AC adapter).
• When the car begins to lose power (moves much slower than usual), charge the batteries before they become completely depleted.
  Battery charging should last about 10-12 hours. Do not charge the batteries for a period longer than 20 hour.
• It is typical, that the adapter and the batteries become hot during the charging process (max 60°C).
• Never turn the car ON while charging the batteries. The POWER SWITCH must be turned in OFF position when charging.
• Always use the AC adapter included with the car. Never use other batteries than those supplied with the car.
• The batteries need to be charged at least once a month, even when the car is not being used. This is to prevent from fully discharging and potential damaging the batteries.
• Never short-circuit the power layout.
• PREVENT FIRE AND ELECTRIC SHOCK:
• Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger my cause a fire or explosion.
• Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
• NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or explosion or my permanently damage the system.
• Do not allow direct contact between battery terminals. Fire or explosion can occur.
• Do not allow any type of liquid on the battery or its components.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.

DISPOSAL OF BATTERY

• Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner.
• Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
• Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.
• Return an exhausted battery to your local approved lead-acid battery recycle, such as a local seller of automotive batteries.
• Contact your local waste management officials for other information regarding the environmentally sound recycling and disposal of lead-acid batteries.
• The battery must be charged only by adult. Please charge the product before using!

http://www.toyz.pl
Learn more about brand Toyz by Caretero.
DISTRIBUTOR:
IKS 2 – Children’s Goods Distribution Centre
9 Rybnicka Street, 43-190 Mikolow, Poland
+48 32 226 06 06
e-mail: [email protected], www.toyz.pl
