Toyz Tank Battery Operated Ride On Car User Manual

Product complies with: EN71, EN62115.
USER MANUAL
BATTERY OPERATED RIDE-ON CAR
TANK

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

TANK Battery Operated Ride On Car

Thank you for choosing the Toyz by Caretero Tank battery operated ride-on car. You bought a modern, high quality product.
We are sure it will help your child in safe, harmonious growth.
We encourage you to learn about our full offer on our website: www.toyz.pl
Should you have any remarks about this product, feel free to share them with us.
Toyz by Caretero TEAM.

www.toyz.pl 🙂

PACKAGE PARTS LIST

WARNING: Before assembling the vehicle, please check that all the parts listed are present included in the set.

ASSEMBLY INSTRUCTIONS

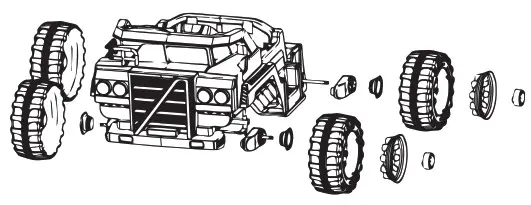

Put the following on the axle rod: engine, sleeve, wheel, cap, screw the nut and hide the tip by hooking the end cap. Repeat on each wheel.

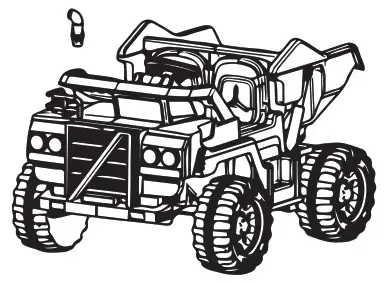

Place the chimney in the bodywork in the matching hole.

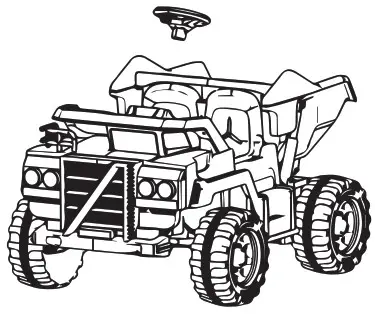

Connect the handlebar cables to the matching cables extending from the body. Place the steering wheel on the protruding steering column tucking excess cable into the steering column, the steering wheel should lock into place.

Open the battery box in the compartment under the seat. Remove the plastic battery cap and color match the cables.

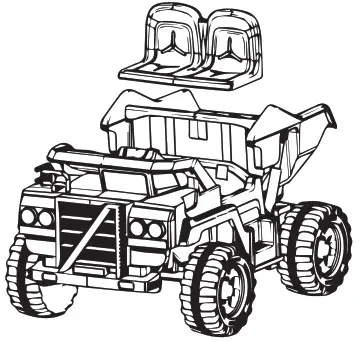

Install the seat first by aligning the protruding elements of the back of the seat with the corresponding recesses in the bodywork. Secure the seat with the two screws included in the kit.

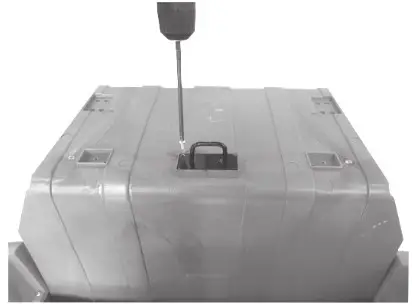

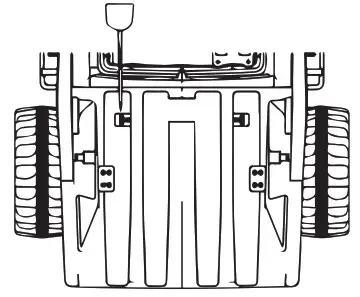

Screw the latch to the bottom of the tipper in a suitable place marked with a recess.

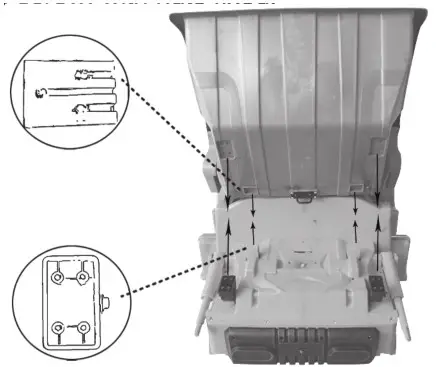

Place the tipper on the vehicle so that the latch fits into its recess and the recesses match the elements protruding from the body.

Screw the tipper to the body with screws in the indicated places.

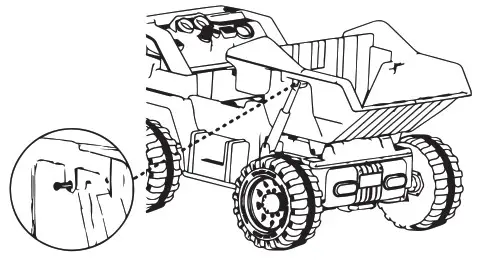

Place the hydraulic fittings in the matching tipper sockets. Secure them with screws.

TECHNICAL DATA

USING INSTRUCTIONS

WARNINGS: This product must be assembled by an adult. This product is not suitable for children under 3 years of age. Before the first use, make sure to charge the batteries fully (about 10-12 hours of charging), otherwise the batteries may become damaged beyond repair. The product contains small parts, which are for adult assembly only. Keep small children away when assembling.
This car must be used under adult supervision at all times. Do not use the car in the vicinity of stairs/public roads/cars and other dangerous areas.
Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicle only in the daytime or a well-lit area.
This car may only be used by one child at a time. The maximum weight of the user is 35 kg. During the usage of the car, the child must sit on the seat at all times.
Never allow the child to stand up while the car is moving.
While riding the car, never use the front/rear direction movement lever suddenly. Use it only, when the car is halted. Regularly check all the cable  connections. Check whether any parts of the care became damaged. If any part of the car becomes damaged, stop using the car immediately and contact the distributor. If the car is not being used over a longer period of time, please disconnect all the cables from the batteries. The safe product usage period is 3 years.

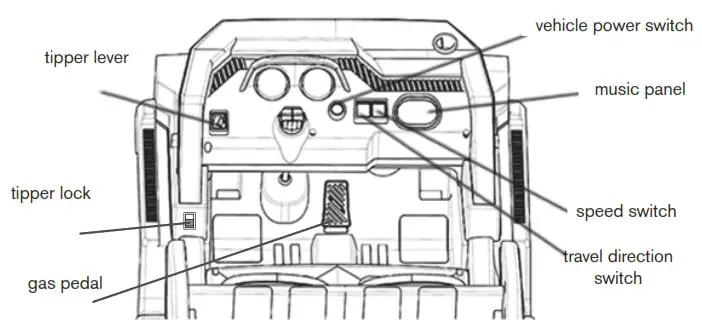

CAR FUNCTIONS

To start the vehicle, the vehicle start button must be toggled.
The vehicle will make sounds of the engine starting.
Driving forward is done by setting the forward direction switch and pressing it accelerator pedal. The vehicle has the so-called slow start – it accelerates gradually, so you should wait a few seconds until it gains speed.
To drive backward, set the travel direction switch to the “backward” position.
The car will stop automatically when you release the accelerator pedal.
The vehicle can be controlled by the parent using the remote control.
To lower the tipper, unlock the lock on the left side and pull the tipper lever towards yourself. Lifting the tipper works similarly, point the tipper lever towards the front of the vehicle and make sure that the lock is engaged after full substitution.

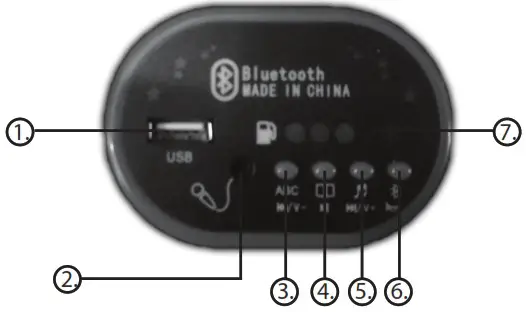

PLAYER FUNCTIONS

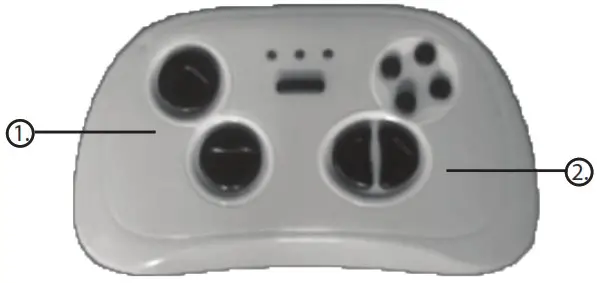

REMOTE CONTROLLER FUNCTIONS

1. The buttons on the left side of the remote control are used to control the forward/backward movement of the car.
2. Buttons on the right side of the remote control for turning left/right.

The vehicle will stop when there is no communication with the pilot.
NOTE: Regular batteries cannot be recharged.
Remove exhausted batteries from the remote control.
Rechargeable batteries (rechargeable batteries) are only charged under adult supervision.
Rechargeable batteries (rechargeable batteries) must be removed from the remote control before charging.

WARNING!
While charging, all vehicle functions must be turned off

CONNECTING THE CHARGER

1. Locate the power socket located in the center under the seat.
2. Plug the charger into a power outlet.
3. Plug the charger plug into a wall socket. The battery will start charging.

BATTERY CHARGING NOTES

• Before first use of the car, charge the batteries up fully. Always insert the adapter’s tip into the socket in the car first and then put the plug into the socket (the charging process should be always carried out by an adult, never allow your child to use the AC adapter).
• When the car begins to lose power (moves much slower than usual), charge the batteries before they become completely depleted.
  Battery charging should last about 10-12 hours. Do not charge the batteries for a period longer than 20 hour.
• It is typical, that the adapter and the batteries become hot during the charging process (max 60°C).
• Never turn the car ON while charging the batteries. The POWER SWITCH must be turned in OFF position when charging.
• Always use the AC adapter included with the car. Never use other batteries than those supplied with the car.
• The batteries need to be charged at least once a month, even when the car is not being used. This is to prevent from fully discharging and potential damaging the batteries.
• Never short-circuit the power layout.
• PREVENT FIRE AND ELECTRIC SHOCK:
• Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger my cause a fire or explosion.
• Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
• NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or explosion or my permanently damage the system.
• Do not allow direct contact between battery terminals. Fire or explosion can occur.
• Do not allow any type of liquid on the battery or its components.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.

DISPOSAL OF BATTERY

• Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner.
• Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
• Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.
• Return an exhausted battery to your local approved lead-acid battery recycle, such as a local seller of automotive batteries.
• Contact your local waste management officials for other information regarding the environmentally sound recycling and disposal of lead-acid batteries.
• The battery must be charged only by adult. Please charge the product before using!

TROUBLESHOOTING

Learn more about brand Toyz by Caretero.

DISTRIBUTOR:
IKS 2 – Children’s Goods Distribution Centre 9 Rybnicka Street, 43-190 Mikolow, Poland
+48 32 226 06 06
e-mail: [email protected], www.toyz.pl

www.facebook.com/ToyzBrand • www.youtube.com/ToyzChannel
