PET-7000/ET-7000
Quick Start
V1.4, March 2018
Contents hide
Supported Products
- ET-7000 Series
- ET-7000-UT Series
- PET-7000 Series
Technical Support
PET-7000 / ET-7000 User Manual http://ftp.icpdas.com/pub/cd/6000cd/napdos/et7000_et7200/document/
What’s in the Box?
Factory Default Settings
| Network Connection | Default | Authentication | Default |
| IP Address: | 192.168.255.1 | User name: | Admin |
| Subnet Mask: | 255.255.0.0 | Password: | Admin |
| Gateway: | 192.168.0.1 |

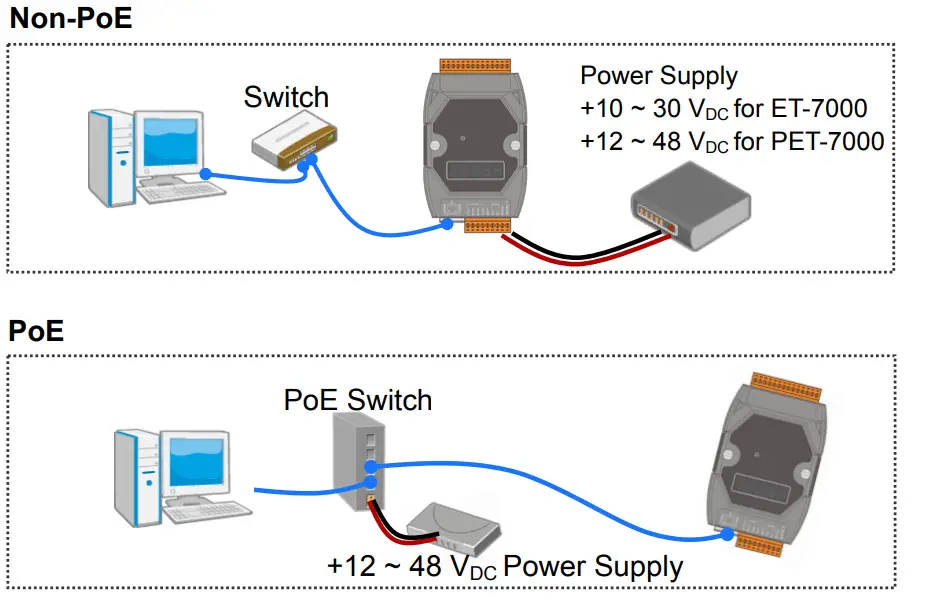

Connecting to Network, Computer, and Power
Assigning a Valid IP Address – Method 1
- Install eSearch from

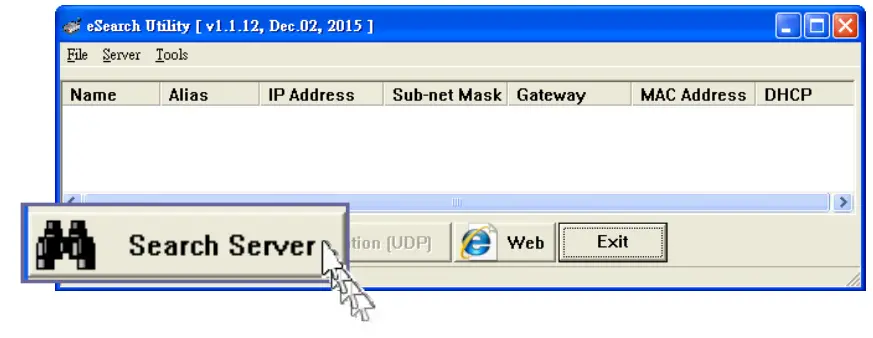

http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/esearch/ - Launch search and click “Search Server”
- Double-click the name for your module on the list

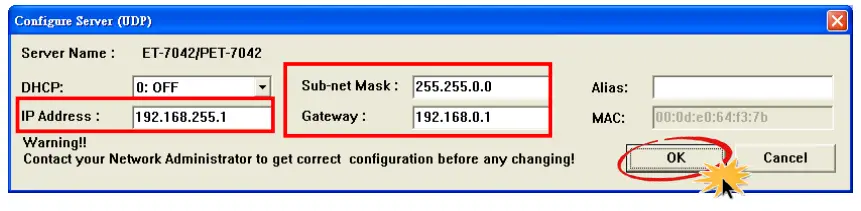

- Enter the network configuration and click “OK”
- Repeat Step 2. to search the module again
To make sure your modifications take effect.
3-2 Assigning a Valid IP Address – Method 2
Set the IP configuration on your computer
The ET-7000 module comes with the default IP address of 192.168.255.1, you must choose an IP address for the computer in the range of 192.168.255.2 – 192.168.255.253 that is not in use.- Launch your web browser to go to the ET-7000 web interface

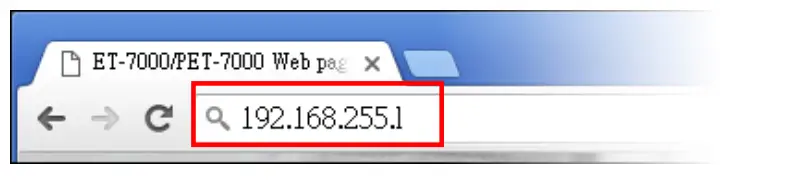

Enter the factory default IP address 192.168.255.1 for the ET-7000 as the URL in the browser and press Enter.
- Fill out the User name and Password
Fill out the factory default user name and password “Admin” and then click “OK”. - Assign a valid IP address for your ET-7000 module

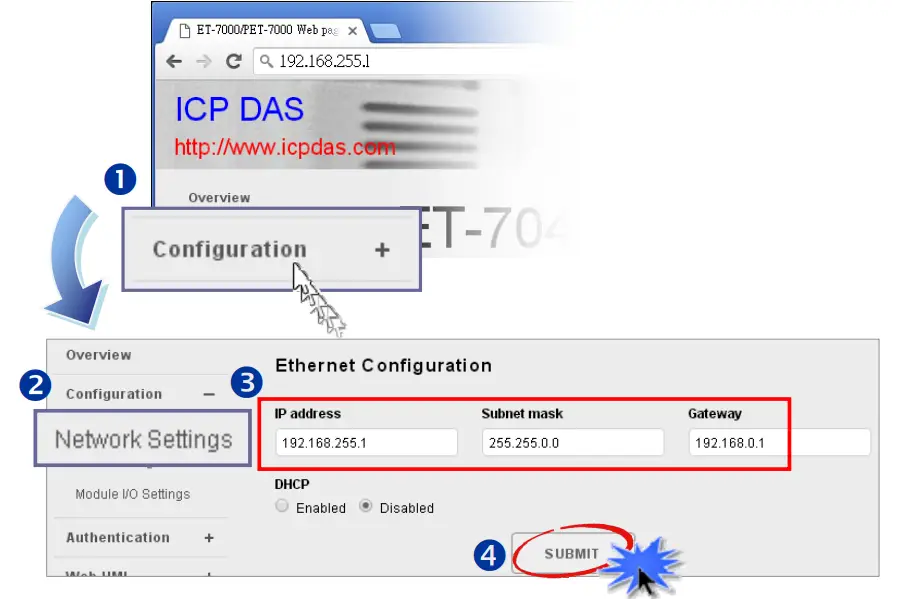

1. Click “Configuration”
2. Click “Network Settings” in the sub-menu
3. Enter a valid IP address for your ET-7000 module.
4. Click the “SUBMIT” button.
- Restore the original IP address to your computer
Logging in to the ET-7000 Module
- Enter the new IP for the ET-7000 as the URL in the browser
- Fill out the User name and Password “Admin” again
- Welcome to the ET-7000 website
Technical Support: [email protected]
ftp.icpdas.com - /pub/cd/6000cd/napdos/et7000_et7200/document/
