QXD-SY52 RGBW Outdoor String Lights
User Manual

Software overview

Overview

• The Magic Lantern is a mobile APP program that is compatible with Apple or Android systems to control LED string lights.
• The APP control replaces traditional infrared, 433, 2.4G, and other old remote control methods, which are convenient, fast, powerful, and extensible!
• The color, brightness, and color temperature of the LED string light can be intelligently controlled through the APP to display various flashing modes and the string light can jump with the rhythm of the music. Just open the Intelligent APP control software. APP can connect one or more LED string lights via Bluetooth to regulate various settings and control. The operation is very simple, easy to learn and use!

Function

• Adjust LED string light with 60,000 colors to change color and brightness. When light displays single color, you can only adjust brightness and color temperature.
• Playing mobile phone music or turning on an audio playback device can make the light change its color and brightness with the rhythm of the music, and the effect of light fluctuation is beautiful.
• Long-distance control without distance limitation, and group to group control mode.
• Led string lights will automatically connect to your Bluetooth next time once successfully connected.

Performance

• Magic Lantern APP is easy to use as well as great compatibility for all kinds of smartphones. The test verification of hundreds of mobile phones has proved that APP can be compatible with more than 95% of the mobile phones on the market. APP is small and convenient to use. It occupies fewer system resources and has low requirements for the configuration of mobile phones. Control delay is small, the operation feels good, the light control is very smooth with people’s visual sense.

Operating environment

This APP requires a mobile phone system is Android 4.3 and iOS 8.0 or higher. No limitation on the configuration of mobile phones.

How to use

Note: The Android system and iOS system are basically the same for downloading and operating. Here, the Android system is used as an example for explanation.

APP download

Both iOS and Android systems can download the Magic Lantern by scanning the QR code.

http://www.easytrack.net.cn/download_Mgc/222LIANGRUI
After the software is successfully downloaded and installed, click APK to install. After the installation is complete, the following program icons will appear on the desktop:

Magic Lantern

Software operation

1. CD Click the Magic Lantern APP, enter the APP page:

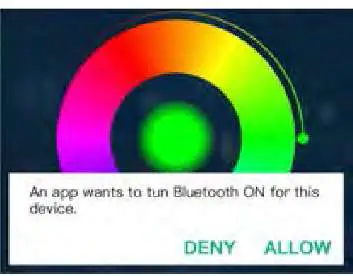

2. After entering the APP interface, if Bluetooth is not enabled, it will pop up " An application wants to turn on the Bluetooth function of this device" Click [ Allow]:

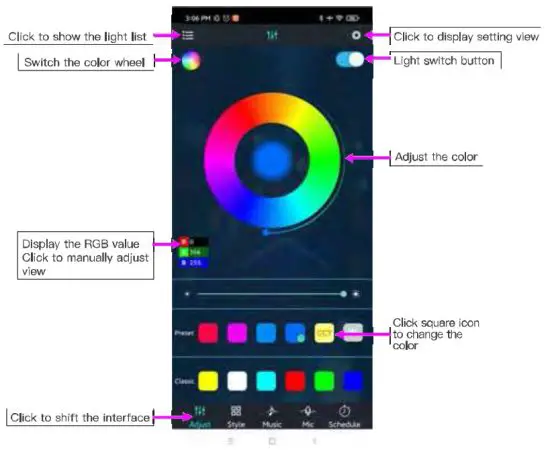

3. Switch to color and brightness interface:

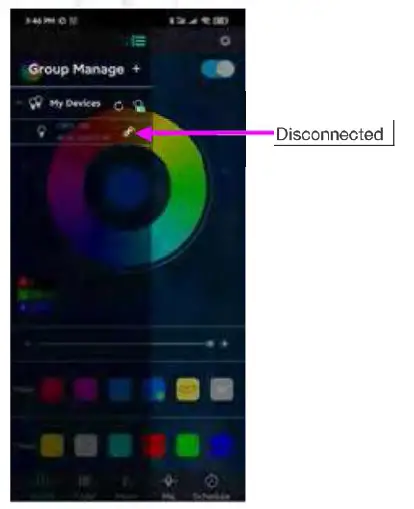

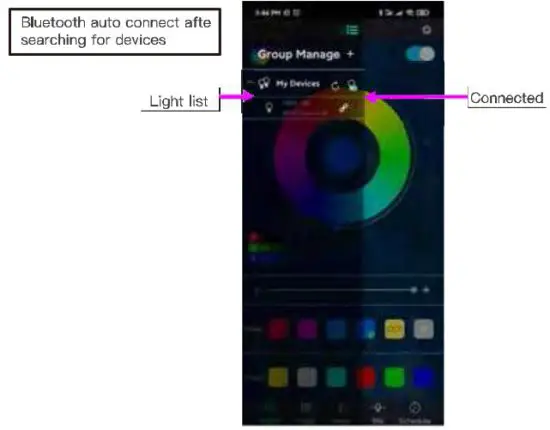

4. Click to show the light list, view light list:

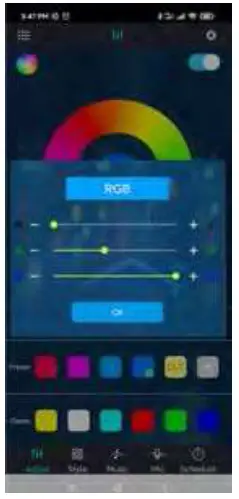

5. Click to RGB manual adjustment view:

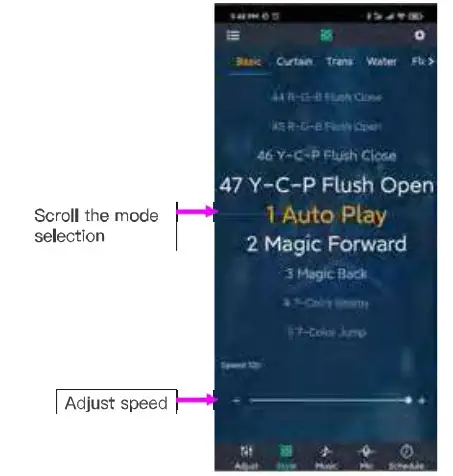

6. Switch to the select modes:

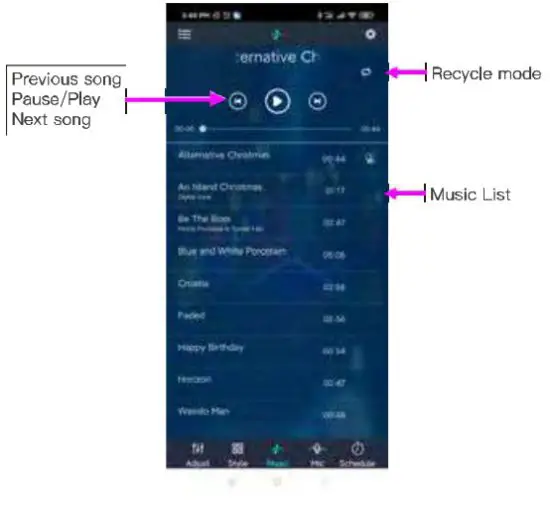

7. Switch to the music rhythm interface:

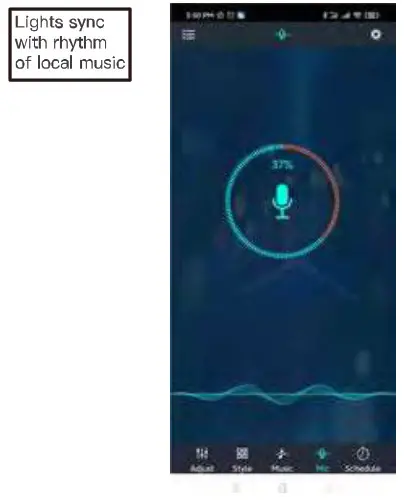

8. Lights sync with the rhythm of external music

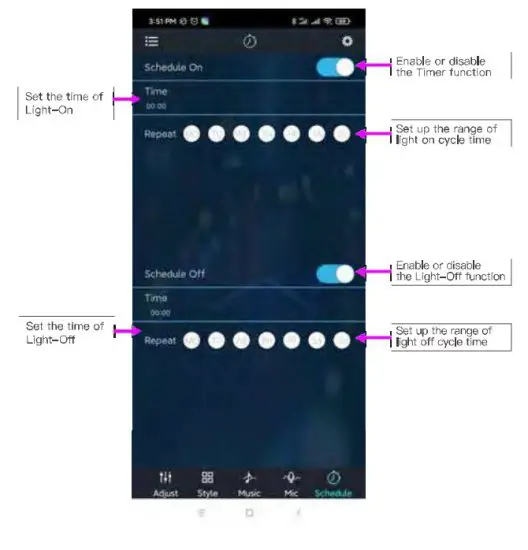

9. Switch to the schedule interface:


Product Basic Parameters

NO.	Specifications	Parameters(Unit)	Picture:
1	Model No	OXD-SY52
2	Diameter	25 heads 16.4M
3	Lamp Weight	1 kg
4	Color	Black
5	Base Type	C35
	Housing—Material	PVC
	Lens—Material Power	PS
8	Box—Material	PC	Diameter: (Unit mm)
7	Dimmable	Yes / No
8	Control Distance	Vilthfn 20m
9	Output power	10W
10	Output voltage.	AC85V-265V 25pcs.5050RG8
11	LED	LED 0.2W 3OmA testing
12	Lifetime	25000H(Te=25°C)
13	IP Rating	1P66
14	Color Temp	2700k-6000k
15	Lumen	5LM each
16	Work Temp	-204C-E4Ot
17	Work Humidity	10%-65%
18	Storage Temp	-30t-+70t
19	Storage Humidity	10%-90%
20	Lights Function Control	APP Control & Remote Control

Instructions for Remote Control

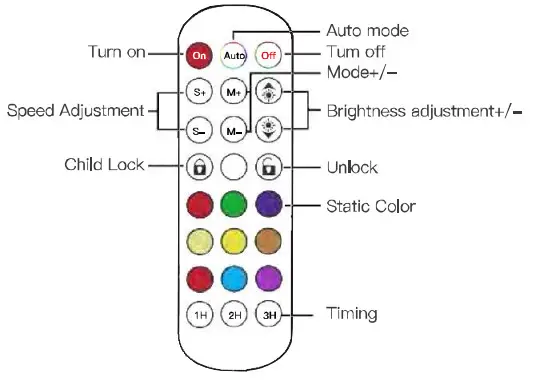

Remote Control function:

Caution:

1- Warranty:
Do not use the chemical liquid as volatile alcohol, gasoline or other corrosive liquids to clean the products, these will make damage to the product, thus affecting the lifetime of the product.
2.-Warning:

1. When using this product, please pay attention to high voltage safety, make sure the AC is cut off when wiring.
2. Check all circuits after the product is completely assembled, make sure there is nothing wrong with the circuit before connecting with power supplies.
3. Maintenance of lamps must be operated by professional technicians, Please don’t disassemble it if you are not a professional technician.
4. If the product is used in a non-airtight environment, it cannot be covered with any insulation material.
5. Long time exposure to sunlight or UV can cause the gum to discolor.
6. Please do not use it together with the materials containing sulfur.
7. Please do not use it in conditions of high moisture or oxidizing gas such as CL, H2S, NH3, S02, NOX, etc

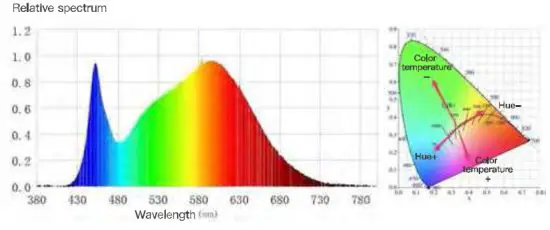

Spectrum
Data for Single Bulb:

Color Parameter:
Chromaticity Coordinates:
X=0.2571 y=0.2505/u’=0.1872 v’=0.4105
Correlated Color Temperature:
CCT=23397K(Chromatic Aberration Duv=-0.0043)
Dominant Wavelength:
Xd=475.3nm Color Purity:
Purity=33.9% Color Ratio: R=25.6% G=61.2% B=13.1%
Peak WavelengthAp=463.6nm
Half peak bandwidth: FWHM=18.4nm
Color Rendering Index:
Ra=34.3 CRI=30.7 Avgr=28.6 R1=8 R2=43 R3=69 R4=31 R5=33 R6=41 R7=50 R8=0 R9=0 R10=0 R1 1=19 R12=47 R13=13 R14=77 R15=0 Photometric Parameters: Luminous Flux: (1)=4.4191m Light Effect:1.22 1m/W Radiant Flux: cl)e=20.19mW Electrical Parameters:
Voltage V=120.01v Current 1=0.06514 A Power P=3.621
Power Factor PF=0.4632
Grade: OUT White Light Classification: OUT
Instrument Status: T=4737ms Ip=16000(24&)

Customer Quality Assurance

The warranty period of this product is six months. During the warranty period, if it is not artificially damaged but the product does not work, we will replace it or refund it. Just contact us by Email, we will be here to serve you. We try our best to ensure that your products are of excellent quality and meet the highest standards. You can expect every product to have outstanding quality and durability.
Important: You may be asked to provide proof of purchase, such as a screenshot of the order number or order details. If you can attach a video or photo to describe the problem, we would appreciate it.

RGBW Outdoor String Lights
ATTENTIONS:

1. Outdoor string lights must be powered under 24V
2. The remote control must be aligned to the infrared receive
3. The RGBW String Lights must be connected correctly according

Manufacturer: Shenzhen quanxunda Technology Co., Ltd
Address: Room 101 Building 3 Longbi Industrial, No.27 Dafa Road Bantian, Longgang District, Shenzhen, China

MADE IN CHINA

Federal  Communications Commission notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
