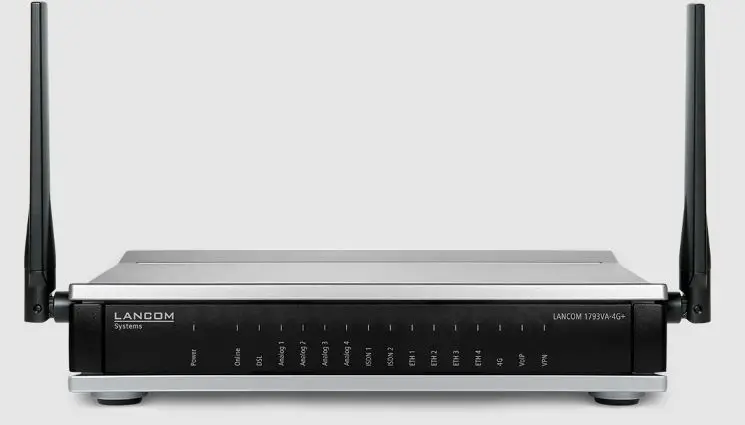

LANCOM Systems 1793VA-4G+ Integrated VDSL Supervectoring Modem

LANCOM-Systems-1793VA-4G+Integrated-VDSL-Supervectoring-Modem-

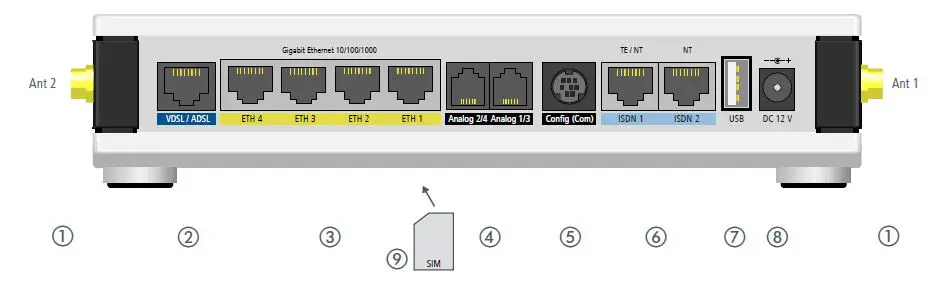

INSTALLATION

LANCOM-Systems-1793VA-4G+Integrated-VDSL-Supervectoring-Modem-fig-1

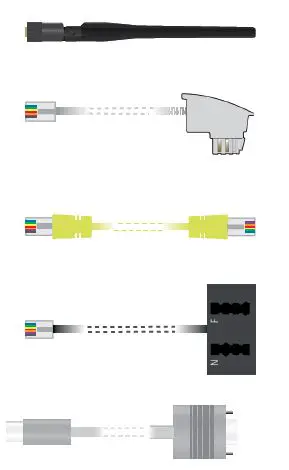

  1. LTE / 4G antennas
    Connect the two supplied cellular antennas to the connectors Ant 1 and Ant 2.
  2. VDSL / ADSL interface
    Use the supplied DSL cable for the IP-based line to connect the VDSL interface and the provider’s telephone socket. For more information, please contact your Internet service provider.
  3. Ethernet interfaces
    Use an Ethernet cable to connect one of the interfaces ETH 1 to ETH 4 to your PC or a LAN switch.
  4. Analog interfaces
    Connect analog terminal devices to the analog interfaces either directly via RJ11, or with the help of the enclosed TAE adapters. Further adapters are optionally available.
  5. Configuration interface
    Use a serial configuration cable to connect the serial interface (COM) to the serial interface of the device you want to use for configuring / monitoring (separately available).LANCOM-Systems-1793VA-4G+Integrated-VDSL-Supervectoring-Modem-fig-2
  6. f ISDN interfaces
    ISDN 1: Internal (NT) or external (TE) ISDN bus. This feature is controlled by LCOS.
    ISDN 2: Internal (NT) ISDN bus.
    A 100-Ohm resistor for line termination is switchable in LCOS.

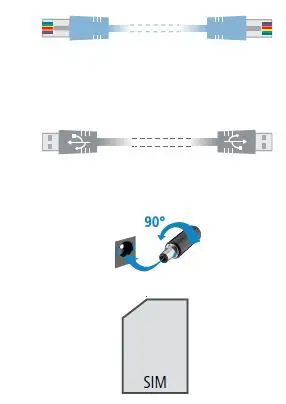

  7. USB interface
    You can use the USB interface to connect a USB printer or a USB memory stick.
  8. Power
    After connecting the cable to the device, turn the bayonet connector 90° clockwise until it clicks into place.
    Use only the supplied power adapter.
  9. SIM card slot (device bottom)
    Release the SIM-card holder and lever it upwards. Slide the SIM card into the guide slot of the SIM-card holder. Press the holder down until it clicks into place. LANCOM-Systems-1793VA-4G+Integrated-VDSL-Supervectoring-Modem-fig-3

Please observe the following when setting up the device

  • Do not rest any objects on top of the device
  • For devices to be operated on the desktop, please attach the adhesive rubber footpads
  • In case of wall mounting, use the drilling template as suppliedLANCOM-Systems-1793VA-4G+Integrated-VDSL-Supervectoring-Modem-fig-4
  • Keep the ventilation slots of the device clear of obstruction
  • Rack installation with the optional LANCOM Rack Mount (separately available)LANCOM-Systems-1793VA-4G+Integrated-VDSL-Supervectoring-Modem-fig-5

Before initial startup, please make sure to take notice of the information regarding the intended use in the enclosed installation guide!Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.

DESCRIPTIONS

 Power
OffDevice switched off
Green, permanently*





Device operational, resp. device paired / claimed and LANCOM Management Cloud (LMC) accessible
Red / green blinkingConfiguration password not set. Without a configuration password, the configuration data in the device is unprotected.
 Red blinking                  Charge or time limit reached
1x green inverse blinking*Connection to the LMC active, pairing OK, device not claimed
2x green inverse blinking*Pairing error, resp. LMC activation code not available
3x green inverse blinking*LMC not accessible, resp. communication error
Online
 Off                            WAN connection inactive
Green, blinkingWAN connection is established (e.g. PPP negotiation)
 Green, permanently       WAN connection active
Red, permanentlyWAN connection error
DSL
OffInterface deactivated
Green, permanentlyDSL connection active
Green, flickeringDSL data transfer
 Red, flickering               DSL transfer error
Red / orange, blinkingDSL hardware error
 Orange, blinking            DSL training
 Orange, permanently      DSL sync
Green, blinkingDSL connecting
Analog
OffInterface deactivated
Green, permanentlyInterface activated
Orange, blinkingIncoming call
Green, blinkingConnection active
ISDN
OffInterface deactivated
Green, permanentlyD-channel active
Green, flickeringISDN data transfer
 Red, flickering               ISDN transfer error
Red / orange, blinkingISDN hardware error
ETH
 Off                             No networking device attached
Green, permanentlyConnection to network device operational, no data traffic
Green, flickeringData transmission
4G
OffCellular interface disabled
 Green, permanently       Connection to cellular network active
Green, flickeringCellular data transfer
 Orange, permanently       Logon to cellular network successful
 Orange, blinking             Logging on to cellular network
 Red, permanently          Hardware error / module unavailable
Red / green, blinkingSIM card error (PIN)
Red / orange, blinkingUploading module firmware
 VoIP
OffNo SIP accounts defined or VCM is off
Green, permanentlyAll defined and active SIP accounts

                                   (outgoing) were successfully registered

Red, permanentlyNot all defined and active SIP accounts were

                                   registered (possibly still in process)

Red or green, inverse flashingNumber of currently used lines (connecting or connected)
 VPN
 Off                             VPN connection inactive
Green, permanentlyVPN connection active
Green, flashingVPN connecting
Reset
Reset buttonOperated e.g. with a paper clip a short press: Restart the device a long press: Reset the device
 Hardware
Power supply12 V DC, external power adapter (230 V); bayonet connector to secure against disconnection
Power consumptionMax. ca. 18 W
EnvironmentTemperature range 0–40 °C; humidity 0–95 %; non-condensing
HousingRobust synthetic housing, rear connectors, ready for wall mounting, Kensington lock; measures 210 x 45 x 140 mm (W x H x D)
Number of fans1 quiet fan
 Interfaces
WAN: VDSL2a VDSL2 as per ITU G.993.2; profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b

a VDSL Supervectoring as per ITU G.993.2 (Annex Q)

a VDSL2 vectoring as per ITU G.993.5 (G.Vector)

a Compatible to VDSL2 from Deutsche Telekom

a Compatible to U-R2 from Deutsche Telekom (1TR112)

a  ADSL2+ over ISDN as per ITU G.992.5 Annex B/J with DPBO, ITU G.992.3, and ITU G.992.1   a ADSL2+ over POTS as per ITU G.992.5 Annex A/M with DPBO, ITU G.992.3, and ITU.G.992.1  a Supports just one virtual connection at a time in ATM (VPI-VCI pair)

ETH4 individual ports, 10 / 100 / 1000 Mbps Gigabit Ethernet, by default set to switch mode.

Up to 3 ports can be operated as additional WAN ports. Ethernet ports can be electrically disabled in

                                  the  LCOS configuration.

4G: Ant 1, Ant 2Two SMA connectors for the supplied dipole rod antennas (LTE, UMTS), compatible LANCOM AirLancer antennas for 4G or 3G, or from other manufacturers. Please respect the restrictions which apply in your country when setting up an antenna system (in particular the antenna gain and transmission power).
USBUSB 2.0 hi-speed host port for connecting USB printers (USB print server), serial devices (COM-port server) or USB drives (FAT file system)
ISDN 1 / ISDN 2ISDN 1: Internal (NT) or external (TE) ISDN bus. This feature is controlled by LCOS. According to the settings, connect an ISDN cable either to the NTBA or the ISDN terminal device.

ISDN 2: Internal (NT) ISDN bus. Use an ISDN cable to connect the ISDN device to the ISDN interface.

Analog 1 / Analog 3

 Analog 2 / Analog 4

Use the cable of your analog devices to connect them with the analog interfaces. If necessary use the adapters from the LANCOM Analog Adapter Set.
Config (Com) / V.24Serial configuration interface/COM-port (8-pin mini-DIN): 9,600 – 115,200 baud, suitable for optional connection of analog/GPRS modems. Supports internal COM-port server and provides transparent asynchronous serial-data transfer via TCP.
 WAN protocols
VDSL, ADSL, EthernetPPPoE, PPPoA, IPoA, Multi-PPPoE, ML-PPP, PPTP (PAC or PNS) and IPoE (with or without DHCP), RIP-1, RIP-2, VLAN
ISDNDSS1 (Euro-ISDN), PPP, X75, HDLC, ML-PPP, V.110/GSM/HSCSD
 Declaration  of Conformity
Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in compliance with Directives 2014/30/EU, 2014/53/EU, 2014/35/EU, 2011/65/EU, and Regulation (EC) No. 1907/2006. The full text of the EU Declaration of Conformity is available at the following Internet address: www.lancom-systems.com/doc
 Package content
ManualQuick Reference Guide (DE/EN); Installation Guide (DE/EN)
Cable1 DSL cable for an IP-based line, 4.25 m
Adapters2 TAE adapters (RJ11 – TAE)
Antennas2 LTE / 4G antennas
Power adapterExternal power supply adapter (230 V) 12 V / 2 A DC/S; barrel / bayonet (EU), LANCOM item no. 111303 (not for WW devices)

This product contains separate open-source software components which are subject to their own licenses, in particular the General Public License (GPL). The license information for the device firmware (LCOS) is available on the device‘s WEBconfig interface under “Extras > License information“. If the respective license demands, the source files for the corresponding software components will be made available on a download server upon request.
