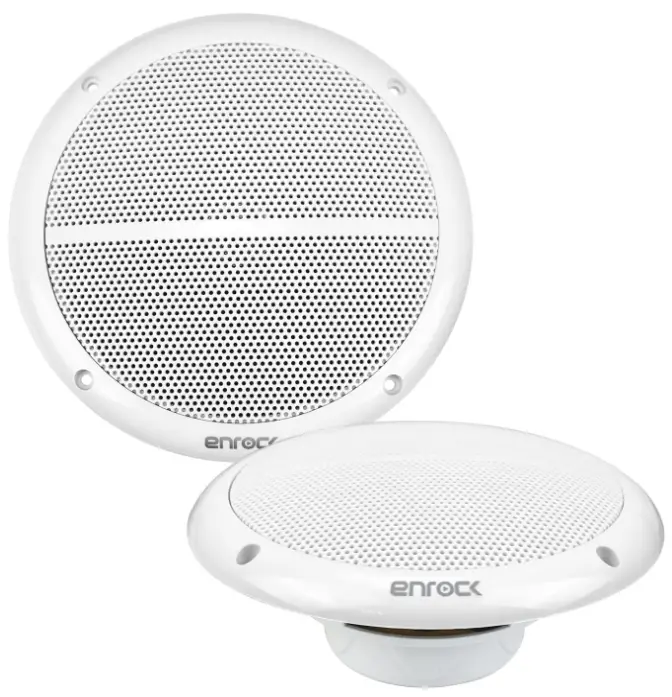

Enrock EM602W Weather Resistant Full Range Marine Speaker
Enrock EM602W Weather Resistant Full Range Marine Speaker PACKAGE CONTENTS
- Pair 2-Way Speakers
- Screws
- User manual / Warranty
Please familiarize yourself with the manual before starting your installation.
PREPARATION
- Disconnect the negative battery terminal.
- Use caution when drilling holes to avoid tampering with fuel lines, hydraulic lines or existing wiring.
- If additional wiring is needed, it is recommended to run all wires before mounting the speakers in place.
- Use the highest quality connectors for a proper installation and to reduce signal and power loss.
- Use rubber grommets to protect any wires routed through metal. Avoid running them over, near, or through sharp edged surfaces.
INSTALLATION PROVISIONS
- Decide where you will be mounting your speakers. Check the surrounding area to be large enough to mount the speakers evenly and deep enough for it to ï¬t properly.
- Using a utility knife, cut a 5.13 diameter mounting hole.
- Use the speaker as a template to outline the locations for the mounting screws. Route speaker wires and connect to speakers, noting speaker polarity.
- Install speaker into opening and fasten with a power drill.

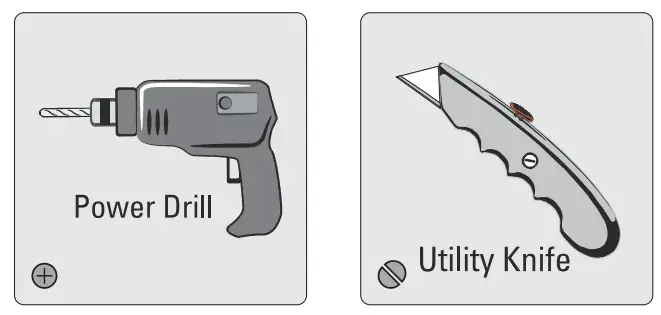

TOO$L REQUIRED

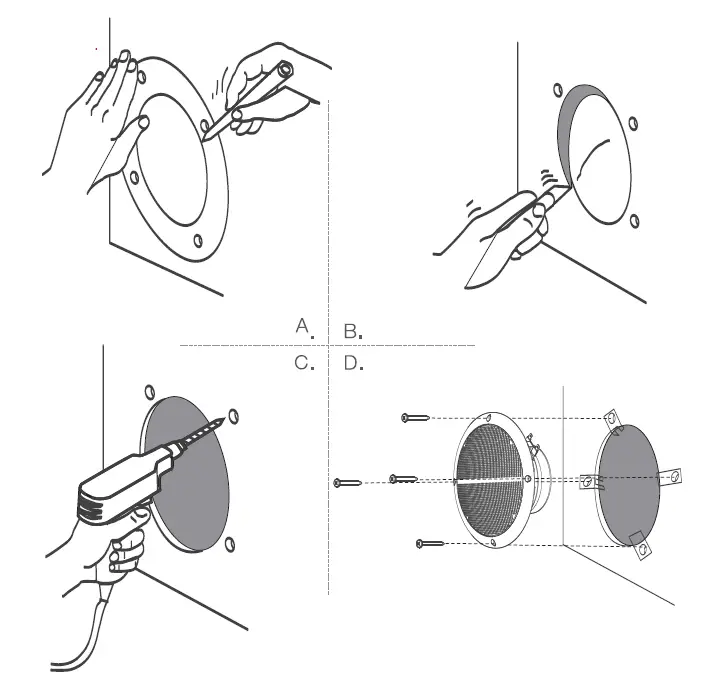

INSTALLATION STEPS

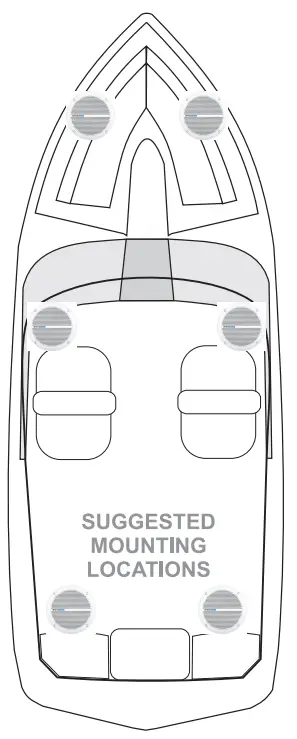

SUGGESTED MOUNTING POSITIONS
The EM602W can be mounted in three different configurations: Always double check for mounting depth limitations Never cut before you check
TROUBLESHOOTING GUIDE
| TROUBLE | CAUSE | SOLUTION |
| No Sound is heard | Volume is low/muted | Press the volume level up |
| No sound is heard | Device is paused or muted | Check your devices playing/volume status |
| No Sound is heard | Blown Speaker | Replace faulty speaker |
| Unit has become unresponsive | Power glitch or interference | Disconnect Power for 10 Seconds to reset |
SPECIFICATIONS
SPEAKER GENERAL SPECS
- Speaker Type Full Range
- Configuration 2-Way
- RMS Power 30Watts
- Peak Power 250 Watts
- Frequency Response 88 – 20k Hz
- Sensitivity 85dB (1W/1M)
- Impedance 4Ohms
- Sensitivity (1W/1M) 88dB
- Mounting Depth15Inch
CAUTION!!
Modification or changes of this device may result in hazardous radiation exposure.
LIMITED WARRANTY
Enrock warrants this product to be free from defects in material and workmanship for a period of 90 days from purchase. The Enrock product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subject to negligence or misuse, abuse, alteration, accident, or an act of GOD. This warranty does not apply to product which has water or physically damaged by accident or which has been misused, disassembled or altered. The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective within the warranty period, return the product with proof of purchase to Enrock. Enrock, at its option, will replace or repair the product free of charge and return the product. In no event shall Enrock be responsible for claims beyond the replacement value of the defective products or in any way be liable or responsible for consequential or incidental damages. No implied warranties, whether for fitness or any particular use or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Enrock. Enrock cannot be held responsible for discrepancies/inconsistencies that may occur due to automotive manufacturing changes or option.
FAQs
What qualities should an Enrock EM602W marine speaker have?
For marine applications, you need a speaker system that sounds well at high volume. Consider making an investment in speakers for ships that have superior sensitivity, durability, and power handling.
Enrock EM602W coaxial marine speakers: what are they?
Two-way, or coaxial, speakers contain a second tweeter located inside the woofer in order to handle the high frequencies and accurately recreate the sound range of your music. Three-way, or triaxial, speakers combine a midrange driver with a separate woofer and tweeter for increased depth and realism.
Are Enrock EM602W marine speakers amplified?
Amplification is a common feature of marine stereos, some of which are very potent. It is definitely possible to produce good sound without an external amplifier. The majority of the time, you can test your stereo without an amplifier first because you can almost always install one later.
What makes an Enrock EM602W marine speaker unique?
The speakers that are best suited for usage in water are known as marine speakers. They are frequently water-resistant in addition to being more robust. The different exposures to moisture, climate, and weather are what marine speakers are made to withstand.
Can maritime speakers from Enrock EM602W get wet?
Marine surroundings can withstand products that are Marine Rated or Marine Grade. Marine grade parts can be exposed to rain, wind, and the sun (although not necessarily submersion). When a little water is splashed on them, they won’t burn because they can survive high ambient temperatures.
How durable are the Enrock EM602W marine speakers?
Speakers called “marine” are designed specifically for use aboard boats. They will survive the elements thanks to careful testing.
What is the construction of Enrock EM602W maritime speakers?
Sea speakers are built with sturdy materials to ensure their durability in the more demanding marine environment. They are comprised of special plastic and stainless steel components to endure the elements and to withstand unexpected temperature changes.
What is a two-way maritime Enrock EM602W speaker?
Two-way, or coaxial, speakers contain a second tweeter located inside the woofer in order to handle the high frequencies and accurately recreate the sound range of your music. Three-way, or triaxial, speakers combine a midrange driver with a separate woofer and tweeter for increased depth and realism.
Enrock EM602W maritime speakers: where do they go?
You should always install your full range speakers as high as possible for the best sound quality. Do not mount them underneath seats or close to your feet. On larger vessels and other places where it is feasible, you should consider putting speakers over your head. Subwoofers, on the other hand, are the complete opposite.
What are the applications of Enrock EM602W marine speakers?
The marine audio system, which is used to play music on boats, consists of a number of speakers, amplifiers, and other gadgets.
Are the Enrock EM602W maritime speakers bass-friendly?
Between 80 Hz and 20 kHz, the marine speaker produces a strong full-range sound and has acceptable bass performance.
How reliable are Enrock EM602W Marine Speakers?
The majority of marine speakers are highly durable and strong. Make sure the speakers you buy are of excellent quality, resistant to rust and corrosion, and well-built. Look for speakers with plastic cones, such as those with polypropylene and neoprene rubber surrounds, for effective weather protection.
How long should I let my Enrock EM602W boat speaker charge?
A battery may be charged from empty to fully charged in around 4 hours.
