Moman Bg5off140 Power 140 Rechargeable Li-ion V Mount Battery User Manual

MOMAN BG5OFF140 Power 140 Rechargeable Li-ion V Mount Battery

Caring For Your MOMAN Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, impact of external force.
• Do not attempt to disassemble the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
• Failure to follow all the instructions may result in mechanics damage.
• Warranty does not apply to human errors

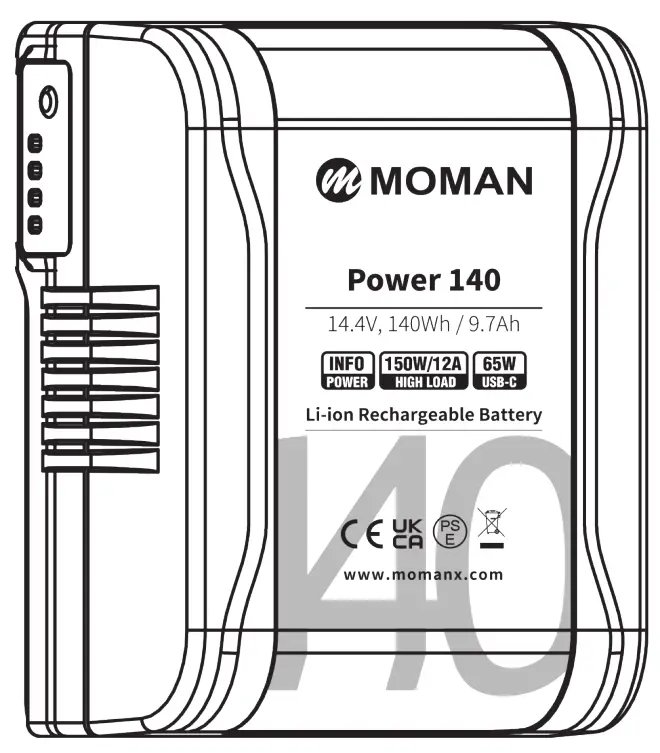

Appearance

① Indicator button
② V-mount lock
③ TYPE-C
④ D-TAP
⑤ Power indicator light
⑥ BP Interface
⑦ USB-A

Attention

• It is normal for batteries to get hot during charging and use.
• Keep the pole of the battery clean to ensure a better use experience.
• Keep the battery in a cool and dry place for long-term storage. It is recommended to keep the battery level above 50%.
• After ten days, the battery will enter sleep mode automatically and the output will be turned off. Press the indicator light button to restore the output.

Product feature

• One both-way Type-c interface, can supply power to mobile device or be charged with Type-c charger.
• One both-way D-TAP interface, can supply power to other device or be charged with this interface.
• One USB-A interface, can supply power to other device.
• Four level LED show the life and percentage of the battery capacity,
• Built-in multiple control circuit, with temperature, voltage, current all-round protection.

Charging Instruction

• During the charging process, the LED light shows the percentage of remaining battery(25%,50%,75%,90%).
• Batteries can be charged in the temperature range of 0~40° C, but we recommend charging in the temperature range of 10~30° C to ensure optimal battery performance.

Discharging Instruction

• At low temperatures, the internal resistance of the battery increases, and the discharge time is shortened. When the load is heavy, the battery may be automatically cut off.
• USB and D-TAP interface overload will cause output shutdown, press the button to restore.
• Please put on the rubber cover immediately after use to avoid dust.
• The battery can discharge in-20℃ ~50℃ ;The battery performs best when used in the temperature range of-10 ~40℃ .

Indicator Light

• TheLEDindiCiltorfromEtoFrespectivelyrepresentstheperamtageofeledricqua tity.25%-500!,, 75%..90%.


  Capacity percentage
  ≥90%
  75%~90%
  50%~75%
  25%–50%
  <25%

Troubleshoot

	The battery runs out or is protected. Wait for a period ohime and check the indicator status. if the indicator status is recovered, it indicates that the battery is exhausted. Charge the battery as soon as possible.
	Overcurrent, overtemperature or overvoltage of charge. Please remove the battery and wait for the battery to recover by itself. Overcharging please put the battery in the shade, after a few minutes of cooling, the battery will automatically recover; Remove the battery and discharge it to reduce the battery voltage.
	The battery cannot be charged or discharged. Please put the battery in a cool place and wait for the core temperature to decrease (recommended> 30 minutes). Then hang the battery on the charger and try to charge. If the battery is charged normally, the battery will return to normal.

Specification

Moman (UK) Limited
Unit 25 Basepoint Business Centre, Aviation Park, West Christchurch,
United Kingdom BH23 6NX
www.momanmic.com www.momanx.com www.momanx.co.uk
 @MomanGlobal
 https://moman.co/youtube
