LB-SF65C Rechargeable Li-ion Battery
User Manual
Rechargeable Li-ion Battery
LB-SF65C
Ver: A
USER MANUAL
SWIT Electronics Co., Ltd.
Thank you for choosing SWIT products, please read this user manual before using and keep it properly for future reference.
Warning
Remember the following precautions to avoid fire and other safety hazards!
- Do not use the battery in a place where there is fire or heat to prevent overheating and rupture.
- Do not Pierce the battery case or attempt to open the case or disassemble the battery.
- Please use and store the battery within the specified temperature range.
- Do not charge the battery in the car or in direct sunlight.
- Do not attempt to use the damaged battery.
- Do not squeeze the shell to cause physical impact.
- Ensure that the power of the electrical device meets the battery specifications.
- Please use the SWIT charger or SWIT recommended charger to prevent overheating, rupture, and other dangers.
- Keep out of reach of children.
Attention
- If the power indicator light cannot be turned on, the battery may be in the protected state, connect the charger or rest the battery to try to recover.
- It is normal for batteries to get hot during charging and use.
- Keep the pole of the battery clean to ensure a better user experience
- Keep the battery in a cool and dry place for long-term storage. It is recommended to keep the battery power above 50%.
Product feature
- One both-way Type-c interface, can supply power to a mobile device or be charged with a Type-c charger.
- One D-TAP output interface can supply power to another device.
- Four-level LED shows the percentage of the battery ca pa city.
- Built-in multiple protective circuits, with temperature, voltage, and current all-around protection.

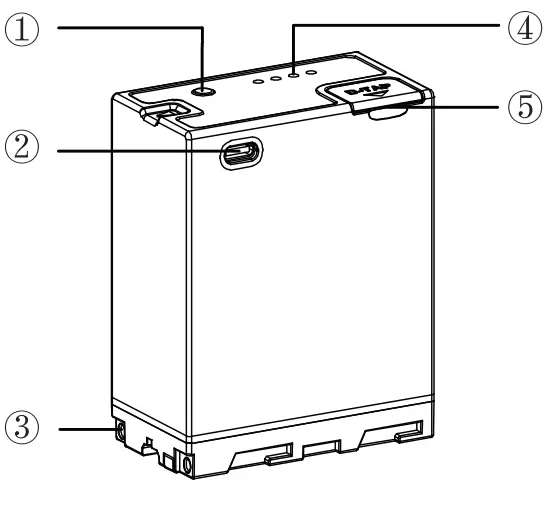

Appearance
- Indicator button
- TYPE-C input/output
- Electric pole
- 4-level indicator light
- D-TAP output
Charging Instruction
- Supports using the universal TYPE-C charger, SWIT LC-D421F, and SWIT S-3602 charger to charge.
- When the TYPE-C interface is used to charge the battery, the LED light shows the percentage of the remaining battery {25%,50%,75%,100%} and the D-TAP interface cannot supply power to another device.
- Batteries can be charged in the temperature range of O ~ 40 ° C, but we recommend charging in the temperature range of 10 ~ 30 ° C to ensure optimal battery performance.
Discharging Instruction
- TYPE-C interface and D-TAP interface cannot be used at the same time.
- Please put on the rubber cover immediately after use to avoid dust.
- The battery can discharge in -20C- 50C; The battery performs best when used in the temperature range of -10-40C
Indicator light
The LED indicator represents the percentage of electric quantity: 259%6.506. 75%,100%.
| Capacity percentage | LED status |
| 100% |  |
| 759%–99% |  |
| 50%-75% |  |
| 25%50% | |
| <25% | |
When the TYPE-C interface is not used to charge the battery,the LED indicator represents the percentage of electric quantity: 25%,509%,75%, 100%.
| Capacity percentage | LED status |
| 759%-100% | |
| 50%-75% | |
| 25%–50% | |
| 10%–25% | |
| <10% | |
Specification
| Model | LB-SF65C | ||
| Nominal voltage | 7.2v | ||
| Capacity | 65Wh/9.02Ah | ||
| performance parameter | Electric | Output | 30W/4A |
| Input | 8.4¥–2A | ||
| TYPE-CXI | Output | 25W(Ma9), 5V– 3A.9V–2.8A.12V–2.1A4,15V– 17A.20V– 1.34 Protocol: 1.BC1.2, I0S#SAMSUNG 2.002.0,3.0 3.FCP, SCP 4.P02.0,3.0 | |
| Input | 25W/Max),5V-3A,9V–2.8A, 12V–2.1A,15V-L.7A,20V-1.3A | ||
| DTAPX1 | Output | 20W,12V-17A | |
| Total output power | 30W/4A | ||
| Dimension | 70.2X38.4X76.00mm | ||
| Dimension(With carton) | 76.2X44,1×83.3mm | ||
| Net weight | 345.0g | ||
| Net weight(with carton) | 359.0g | ||
| Charging temperature | 0–40C (suggest 10–30C) | ||
| Discharging temperature | 20C–50C(suggest -10–40C) | ||
| Storage temperature | 20C–50¢ | ||
