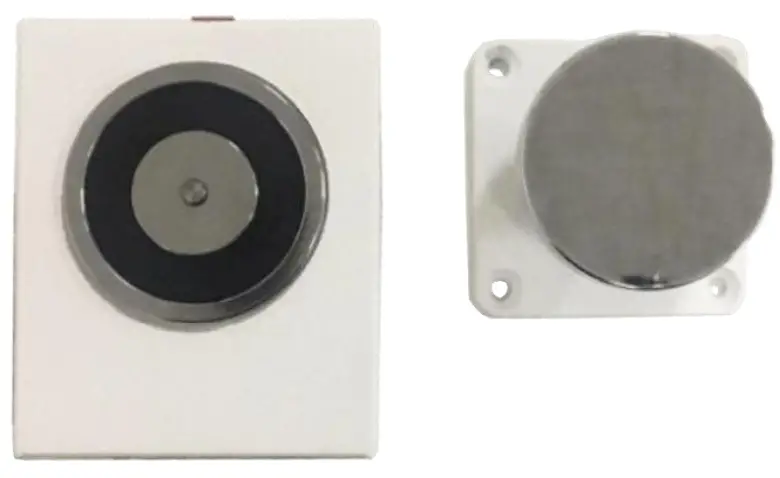

ISO 560943 Wall Mount Door Holder

Basic Instruction

• 12VDC
• Emergency Release Button/Test Button
• Wall Mounting Direction
• Low Current Consumption
• Reliable Fail-Safe Mechanism
• Durable and Silence Operation

Specifications

• Size: 70Lx40Wx85H(mm)
• Voltage: 12VDC
• Current Draw: 70mA
• Optional: Manual door release button
• Surface Temp: ≤+20°C
• Operating Temp: 0 ~ +55°C(14- 131F)
• Weight: 0.9kg
• Holding Force: 50kg(110lbs)
• Suitable for: All Kinds of Single(Double) Smokeproof Doors
• Suitable Humidity: 0-95%
• Finishes for Shell: High-Temperature Paint Environmental Protection Zinc
• Finishes for Armature: Chromium

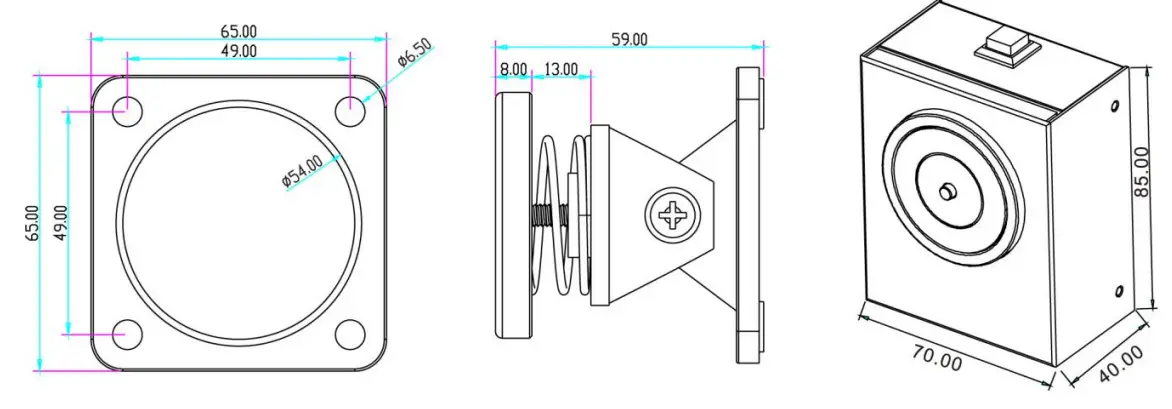

Dimension

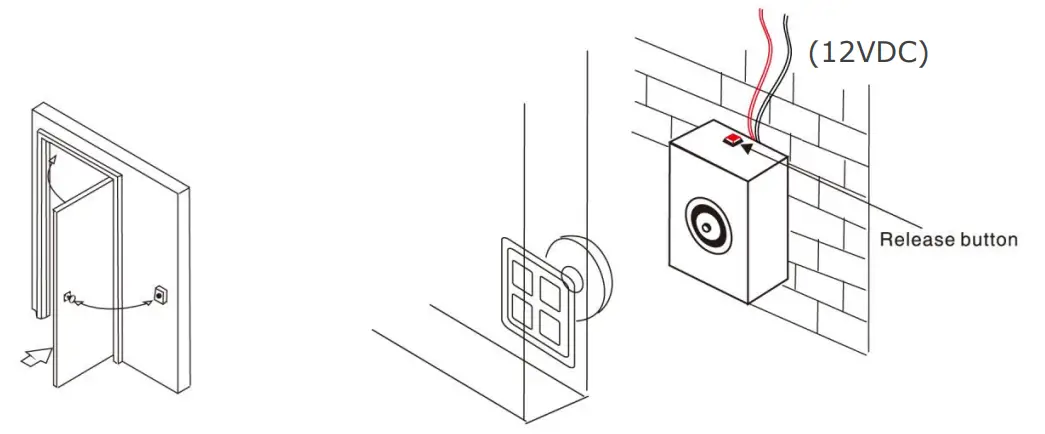

Installation

Remarks:

1. The default setting is 12VDC.
2. Red wire is+, black wire is-.
3. Release the red button by hand in an emergency.
