Dometic Rvvo2 Perfect View Installation Guide

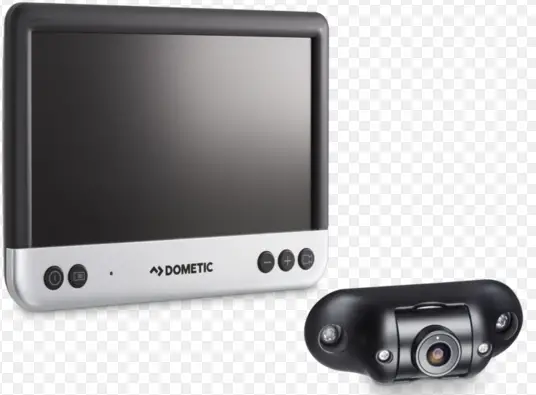

DOMETIC RVVO2 Perfect View

Overview

CAM

   1        2        3            4
Cam_active          A8     A14    A24      A11
Video_Sig            Pin1   A4    A3         A2
Video_GND       Pin2   A18   A17     A16

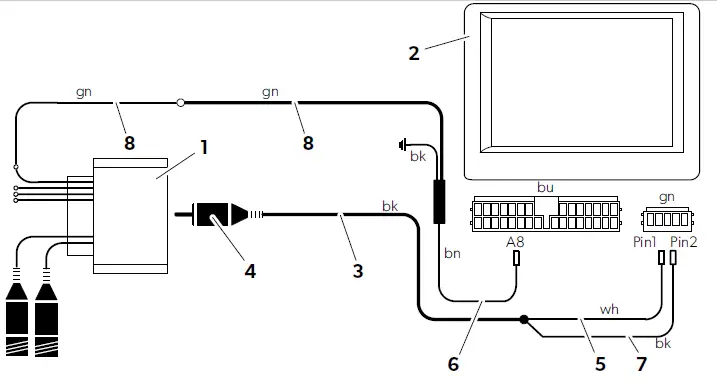

Key

bk = black; bn = brown; bu = blue; gn = green; wh = white

1. Control box
2. Monitor
3. Video cable
4. Cinch plug
5. Video signal
6. Camera active signal
7. Video GND
8. Reverse trigger cable (control box)

The video input for the multimedia system must be enabled by the vehicle manufacturer.
