DOMETIC RVMAN16W Installation Guide
Key | |

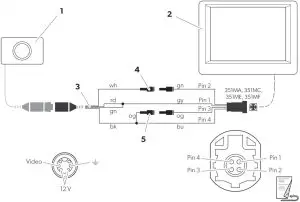

bk = black; bu = blue; gn = green; gy = grey; og = orange; rd = red; wh = white | |
1 | Camera |
| 2 | Monitor |

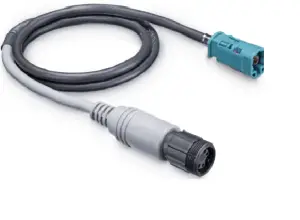

3 | Adapter Cable |
| 4 | Socket Video signal |
5 | Socket Video GND |
| Pin 1 | Power Supply (12 V) |
Pin 2 | Video Signal |
| Pin 3 | Ground |
Pin 4 | Video GND |
The video input for the multimedia system must be enabled by the vehicle manufacturer.
- Connect socket 4 with pin 2 and socket 5 with pin 3. If the monitor does not show an image, connect socket 4 with pin 3 and socket 5 with pin 2.
