OPTO-EDU (BEIJING) CO.,LTD
A11.1521
Student Microscope
Catalog
STUDENT MICROSCOPE
Outward Quadruple Nosepiece With Inner Ball Bearing Locating
Sturdy Metal Framework Body
Brightness Adjustable Bottom LED
A11.1521 is a kind of professional student microscope. monocular head, binocular head, and trinocular head are available. The left eyepiece tube of the binocular head and trinocular head can adjust the diopter. The bottom LED is brightness adjustable Achromatic 4x, 10x, 40x(s). 100x(s. oil) objective enable utmost 1000X optical magnification. which can clearly observe biological slices. biological cells, bacteria and living tissue culture etc
Parameter:
| 411.1521 Biological Microscope | M | B | T | ||
| Head | Monocular Head. 45′ Inclined 360′ Rotatable. Interpupillary 54-75mm | o | |||
| Binocular Head 30′ Inclined 360′ Rotatable Interpupillary 54-75mm Left Eyepiece Tube Dopler Adjustable | o | ||||
| Tnnocular Head 30° Inclined. 360′ Rotatable Interpupillary 54-75mm Left Eyepiece Tube ()looter Adjustable | o | ||||
| Eyepece | WF10x116mm | ||||
| Nosepiece | Quadruple Nosepiece Outward Ball Bearing Inner Locating | ||||
| Objective | Achromatic 4x 10x 40xis) 100x(s oil) | ||||
| Working Stage | Double Layer Mechanical Stage 110x125mm Moving Range 18x65mm | ||||
| Focusing | Coaxial Coarse & Fine Focus Knob Coarse Focusing Range 28mm | ||||
| Condenser | Abbe Condenser N A.1.25 Ins Diaphragm. With Fitter Holder | ||||
| Light Source | LED Bnghtness Adjustable | ||||
| A11.1521 Laboratory Biological Microscope Optional Accessories | |||||
| Eyepece | WF16x 1 A511502-16 | ||||
PRODUCT DISPLAY

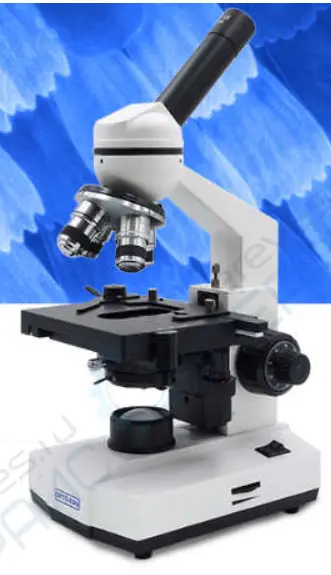

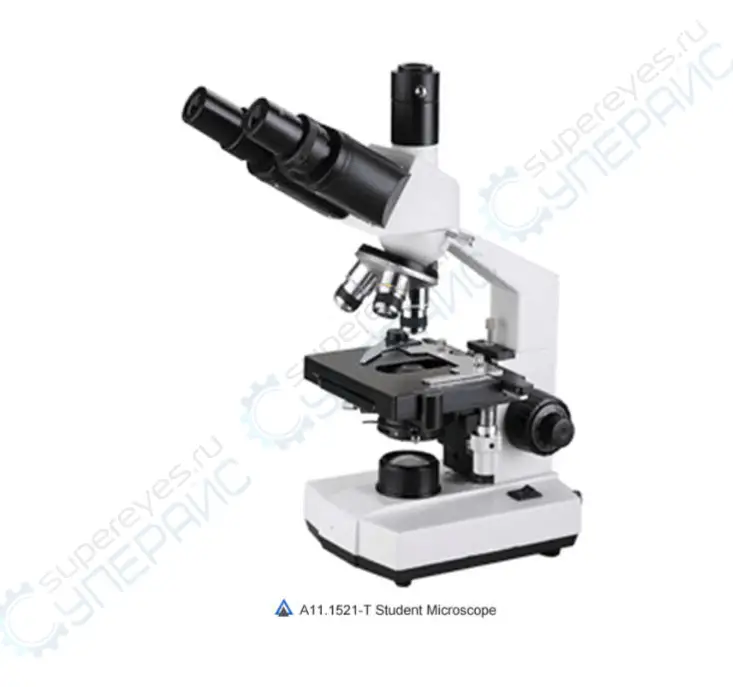

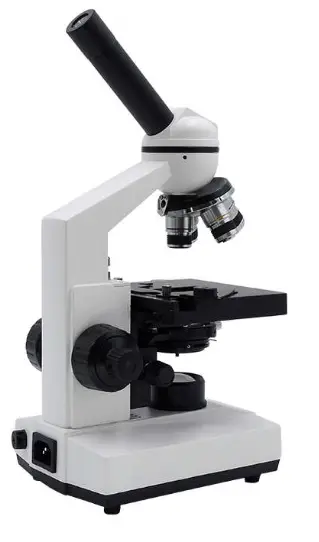

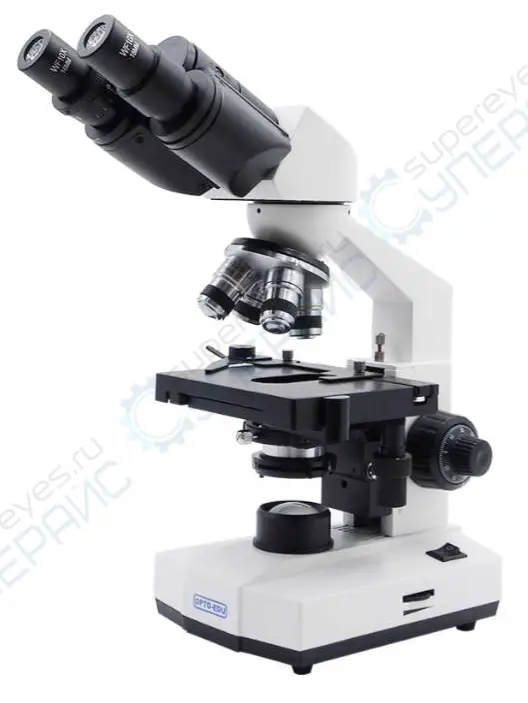

Ai1.1521-M Student Microscope Ai1.1521-B Student Microscope | A11.1521-T Student Microscope

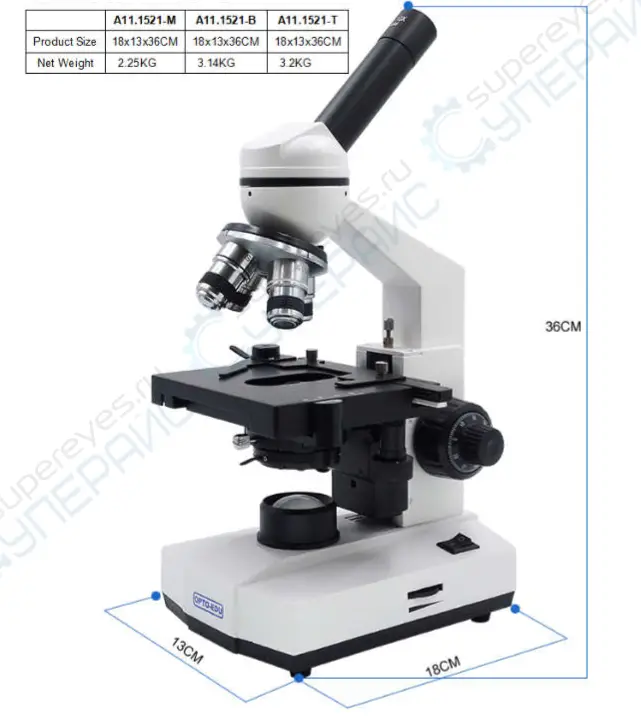

SIZE AND WEIGHT _
 |  |
 |  |

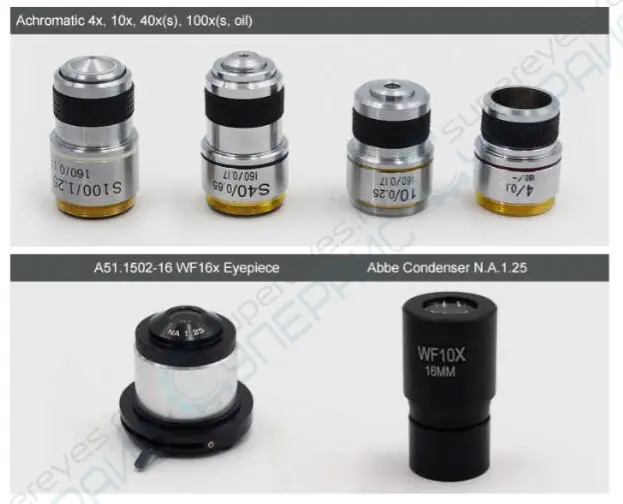

Accessories:
PRODUCT DETAILS.
- HEAD
Binocular head, 30° inclined. 360° rotatable, interpupillary $4-75mm, left eyepiece tube diopter adjustable - NOSEPIECE

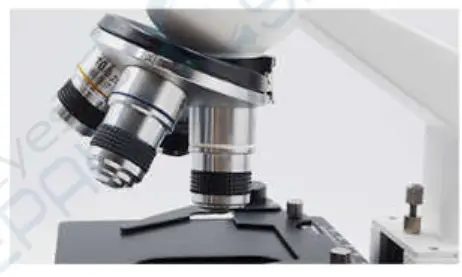

Outward quadruple nosepiece. bail bearing inner locating, equipped with achromatic 4x. 10x. 40x(s), 100x(s. ol)

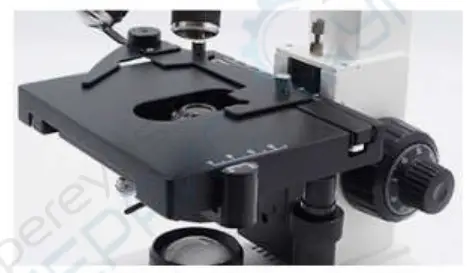

- WORKING STAGE
Double layer mechanical stage 110x125mm. moving range 18x65mm

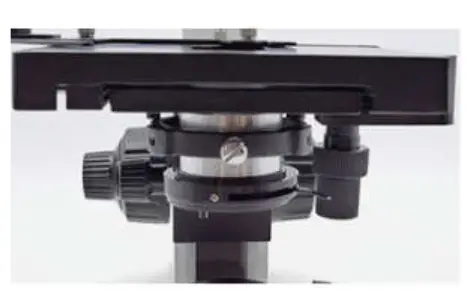

- CONDENSER
Abbe condenser N A 4 25. ins diaphragm. with filter holder

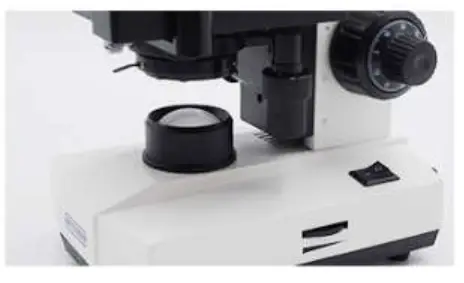

- ILLUMINATION
Brightness adjustable bottom LED light with adjustment knob

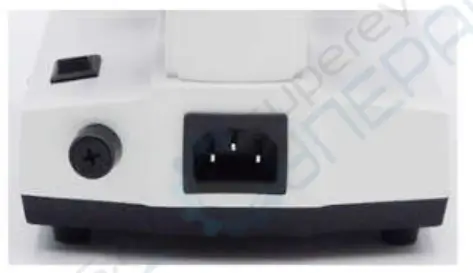

- POWER SUPPLY
Power cord detachable, power range 100~240V
www.cnoec.com.cn
Date 2017-08-28
We Remain Right To Change Technical Data Without Notice Due To Upgrade.
F-1501 Wanda Plaza, No.18 Shijingshan Road, Beijing 100043, China
Tel:+8610 88696020
Fax:+8610 88696085
