Ground wires – min. 10 AWG (5 mm ) and max. length: 1 m. As a safety precaution ground the airFiber radio to grounded masts, poles, towers, or grounding bars.
WARNING: Failure to properly ground your airFiber radio will void your warranty.
(Recommended) 2 Outdoor Gigabit PoE surge protectors
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes.
Outdoor, shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired Ethernet connections.

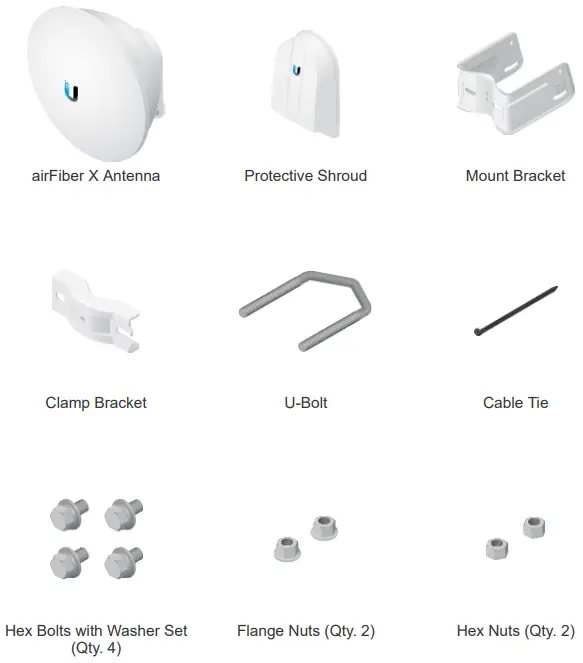

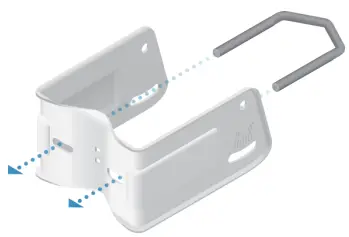

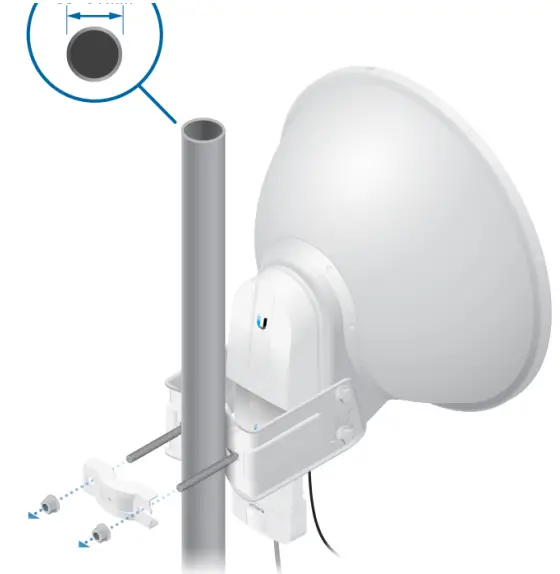

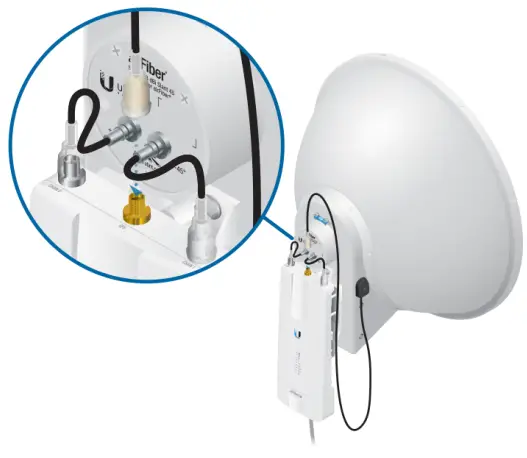

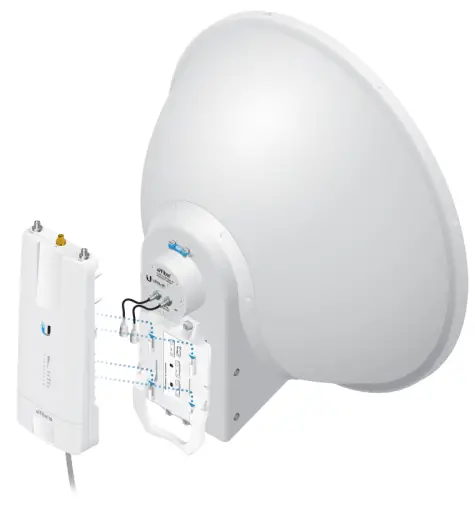

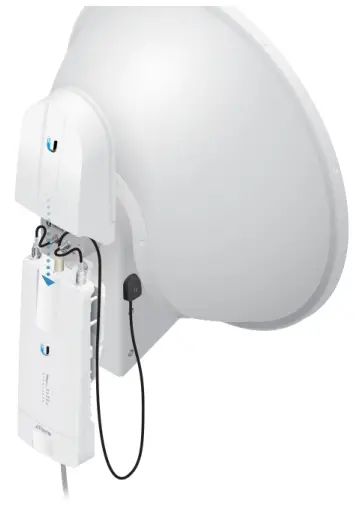

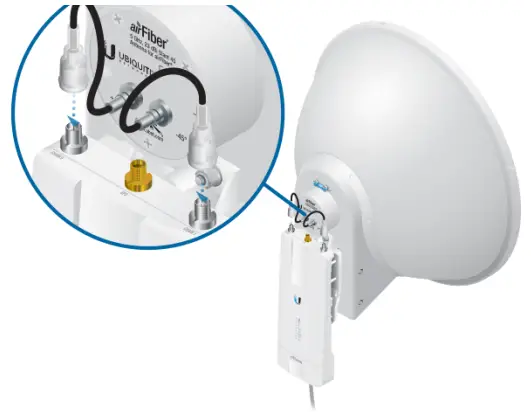

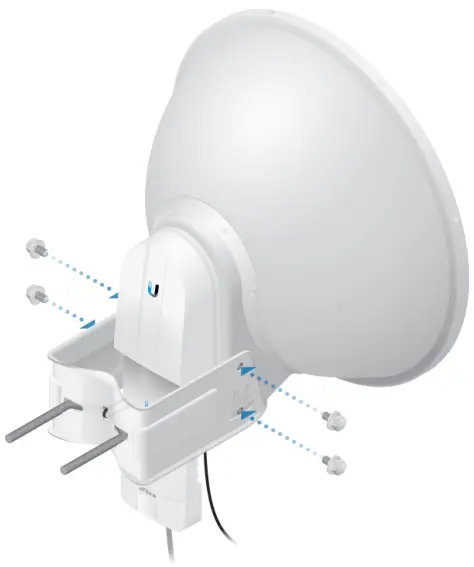

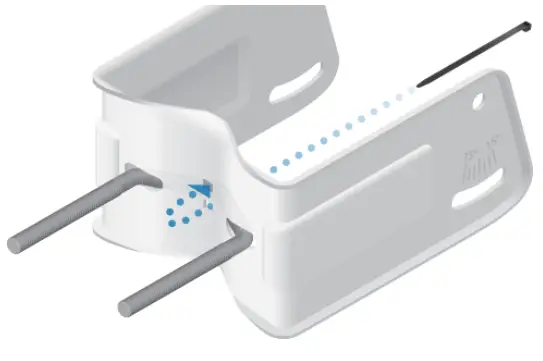

Hardware Installation

IMPORTANT: Handle the antenna with care. Deformations in its reflector may reduce the antenna’s effectiveness.

1

2

3

Note: The GPS antenna is included with the airFiber radio.
4

5

6

7

8

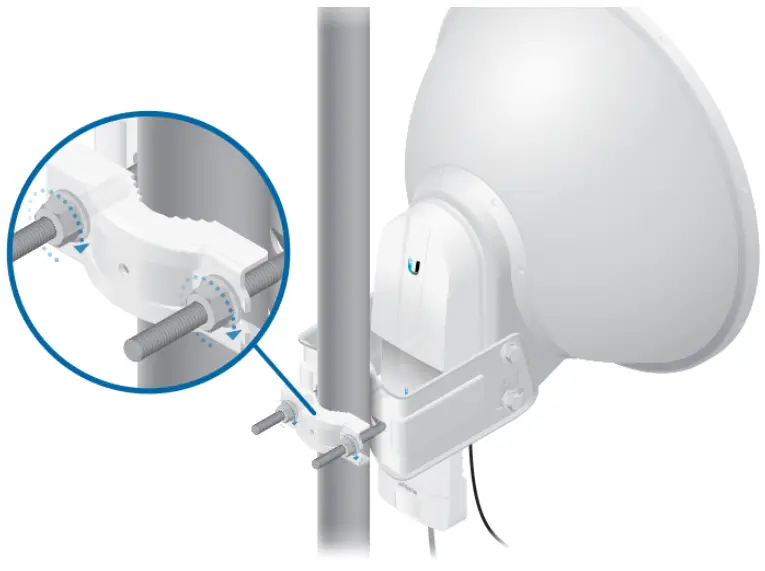

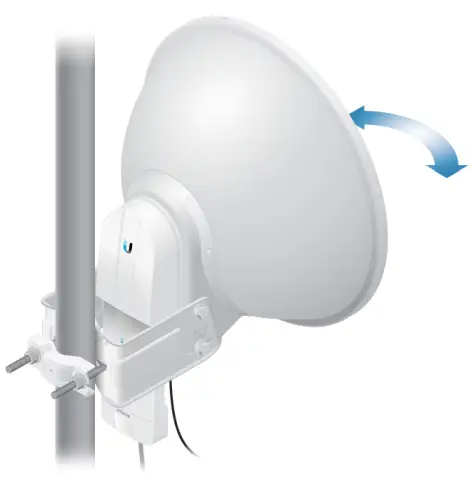

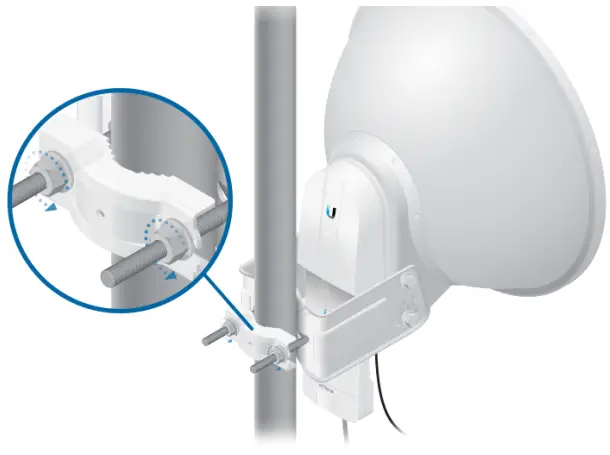

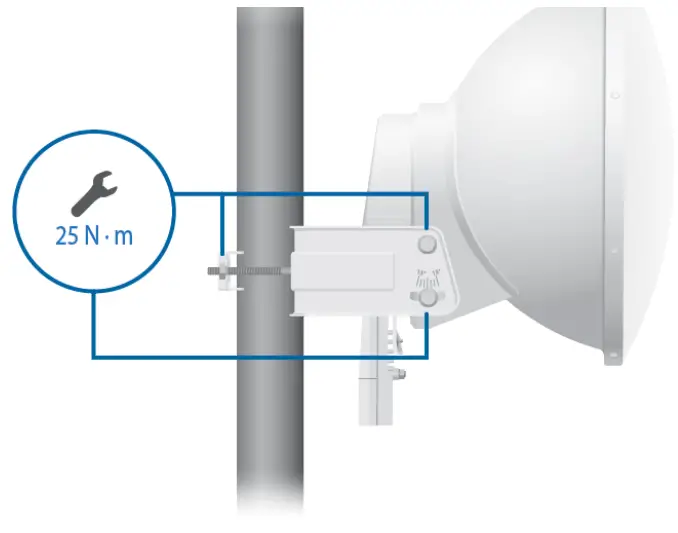

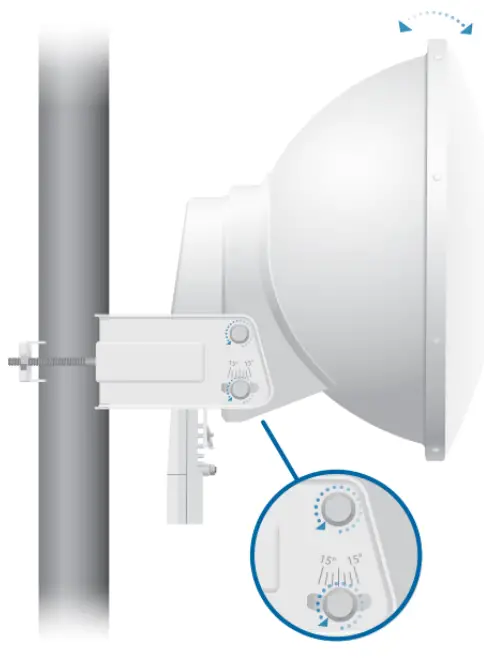

Aligning the Antenna

Optimize the airFiber link by adjusting one end of the link at a time. Refer to the airFiber X radio Quick Start Guide for additional details.
Note: Repeat steps 1 and 2 as needed to optimize the link.

1

2

3

4

5

6

Specifications

AF-5G23-S45
Dimensions	378 x 378 x 290 mm (14.88 x 14.88 x 11.42″)
Weight	3.4 kg (7.5 lb) (Mount Included)
Frequency	5.1 – 5.9 GHz
Gain	23 dBi
Max. VSWR	1.5:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	190 N @ 200 km/h (43 lbs @ 125 mph)
Polarization	Dual Linear
F/B Ratio	33 dB
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount for Ø 38 – 64 mm (Ø 1.5 – 2.5″) Poles

Safety Notices

Read, follow, and keep these instructions.
Heed all warnings.
Only use attachments/accessories specified by the manufacturer.

WARNING: Do not use this product in a location that can be submerged in water.
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment, or pose a fire hazard if the limitations are not followed.
There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.

Limited Warranty

ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

RF Exposure Warning

transmitter. For the specific separation distance, refer to the Quick Start Guide for your Rocket device (transmitter).
WEEE Compliance Statement
Declaration of Conformity
