FMB122
Dual-SIM tracker with
external GNSS antenna
Quick Manual v1.6

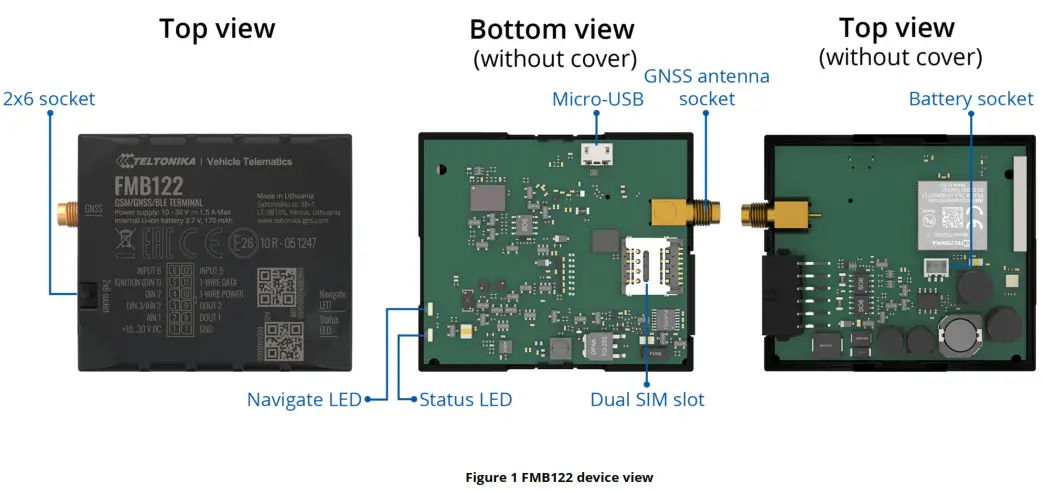

Know your device

Pinout

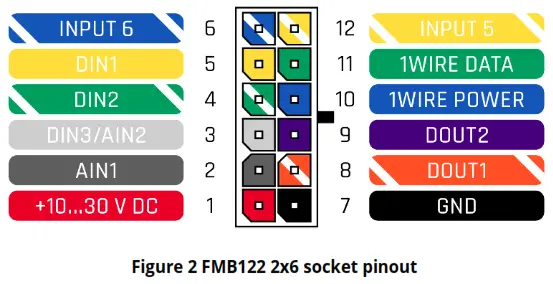

Table 1 FMB122 2×6 socket pinout

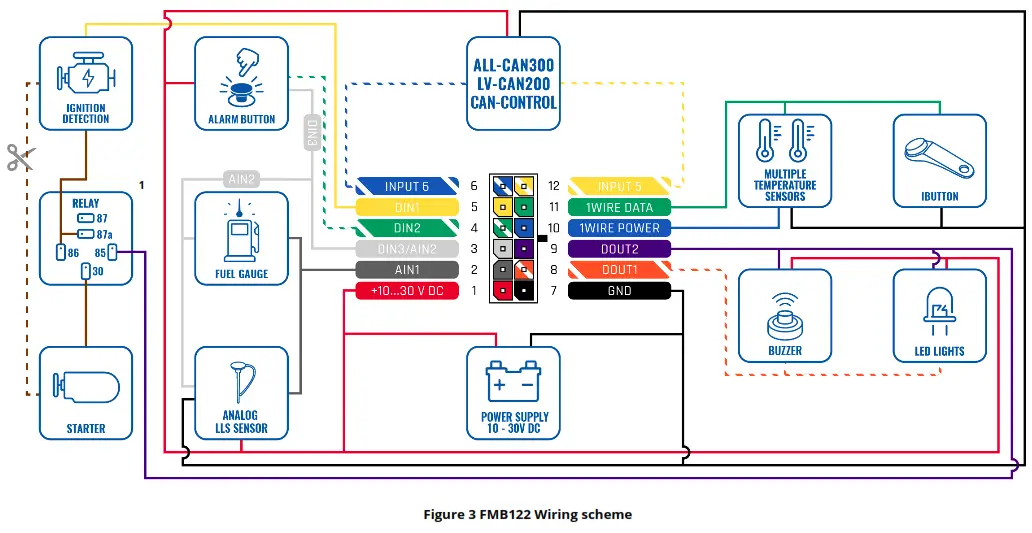

Wiring scheme

Set up your device

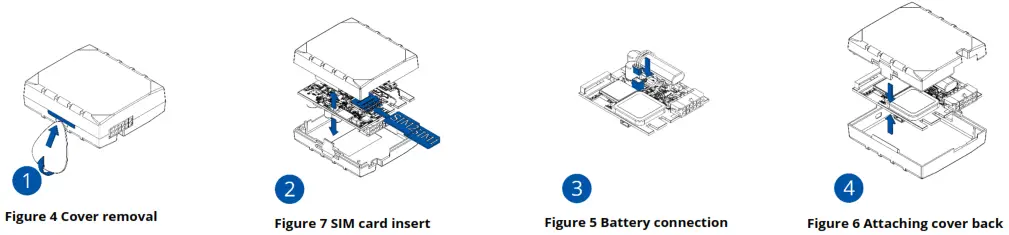

How to insert SIM card and connect the battery

1. Gently remove the FMB122 cover using a plastic pry tool from both sides.
2. Insert SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Teltonka Configurator. Make sure that the SIM card cut-off corner is pointing outward from the slot. SIM slot 1 is closer to PCB, SIM slot 2 is the top one.
3. Connect battery as shown to a device. Position the battery in a place where it does not obstruct other components.
4. After configuration, see “PC Connection (Windows)”, attach the device cover back.

PC Connection (Windows)

1. Power-up FMB122 with DC voltage (10 – 30 V) power supply using supplied power cable. LEDs should start blinking, see “LED indications”.
2. Connect the device to the computer using a Micro-USB cable or Bluetooth connection:
   • Using Micro-USB cable
   ▬ You will need to install USB drivers, see “How to install USB drivers (Windows)”
   • Using Bluetooth
   ▬ FMB122 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or another device> Bluetooth. Choose your device named – “FMBxxx_last_7_imei_digits”, without LE in the end.
   Enter default password 5555, press Connect, and then select Done.
3. You are now ready to use the device on your computer.

How to install USB drivers (Windows)

1. Please download COM port drivers from here.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in the driver installation window.
4. In the following window click the Install button.

Setup will continue installing the driver and eventually, the confirmation window will appear. Click Finish to complete the setup.

Configuration (Windows)

At first FMB122 device will have the default factory settings set. These settings should be changed according to the user’s needs. The main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here. Configurator operates on Microsoft Windows OS and uses the prerequisite MS .NET Framework. Make sure you have the correct version installed.

Table 2 MS .NET requirements
MS .NET REQUIREMENTS

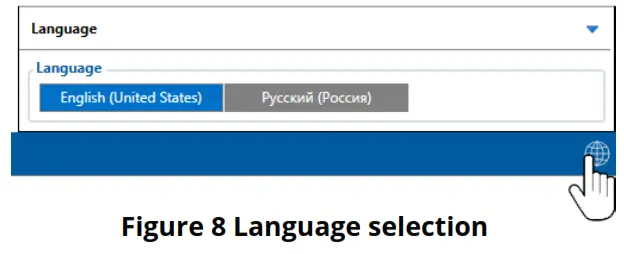

Downloaded Configurator will be in a compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking in the right bottom corner (Figure 8 Language selection).

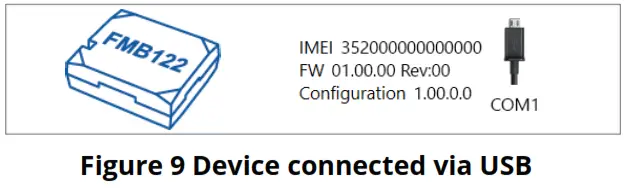

The configuration process begins by pressing on a connected device (Figure 9 Device connected via USB).

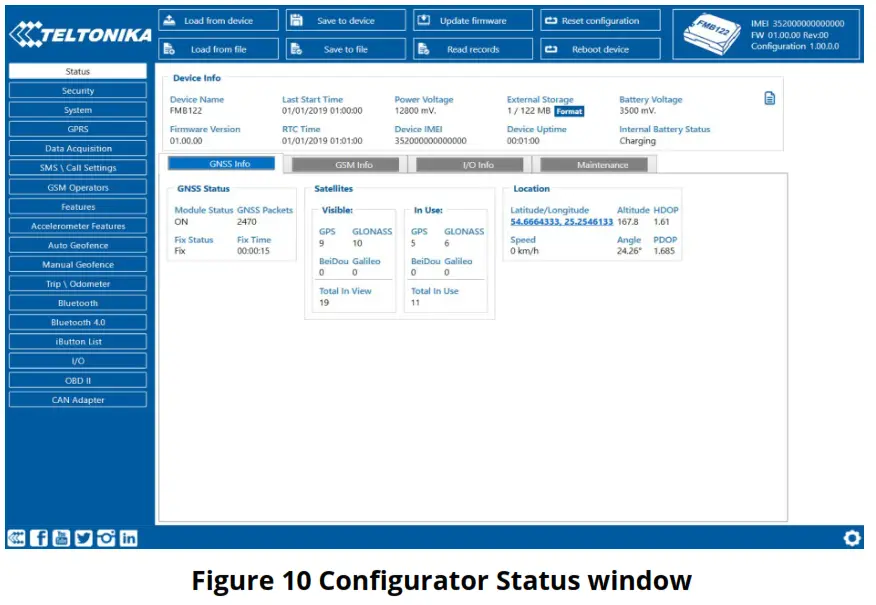

After connection to Configurator Status window will be displayed (Figure 10 Configurator Status window).

Various Status window tabs display information about GNSS, GSM, I/O, Maintenance and etc. FMB122 has one user-editable profile, which can be loaded and saved to the device. After any modification of configuration, the changes need to be saved to the device using Save to devise button. Main buttons offer the following functionality:

1		Load from the device – loads configuration from the device.
2		Save to device – saves the configuration to the device.
3		Load from file – loads configuration from file.
4		Save to file – saves the configuration to file.
5		Update firmware – updates the firmware on the device.
6		Read records – reads records from the device.
7		Reboot device – restarts the device.
8		Reset configuration – sets device configuration to

The most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured.
More details about FMB122 configuration using Configurator can be found in our Wiki.

Quick SMS configuration

The default configuration has optimal parameters present to ensure the best performance of track quality and data usage.

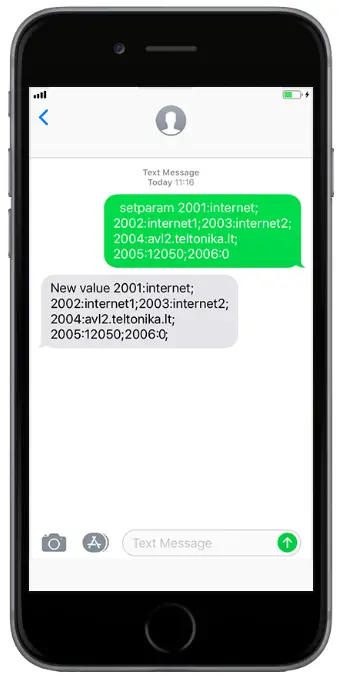

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

• 2001 – APR
• 2002 – APN username (if there are no APN username, empty the field should be left)
• 2003 – APN password (if there are no APN password, empty the field should be left)

Server settings:

• 2004 – Domain
• 2005 – Port
• 2006 – Data sending protocol (0 – TCP, 1 – UDP)

Default configuration settings

Movement and ignition detection:

	Vehicle movement will be detected by the accelerometer
	Ignition will be detected by the vehicle power voltage between 13,2 – 30 V

The device makes a record On Moving if one of these events happen:

	300 seconds pass
	The vehicle drives 100 meters
	The vehicle turns 10 degrees
	The speed difference between the last coordinate and current position is greater than 10 km/h

Device makes a record On Stop if:

1-hour passes while the vehicle is stationary and ignition is off

Records sent to the server:

If the device has made a record it is sent to the server every 120 seconds

After successful SMS configuration, the FMB122 device will synchronize time and update records to configured server.
Time intervals and default I/O elements can be changed by using
Teltonika Configurator or SMS parameters.

Mounting recommendations

• Connecting wires
  ▬ Wires should be connected while the module is not plugged in.
  ▬ Wires should be fastened to stable wires or other nonmoving parts. Any heat-emitting and/or moving objects should be kept away from the wires.
  ▬There should be no exposed wires. If factory isolation was removed while connecting the wires, the isolation material should be applied.
  ▬ If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied and the wires should not be loose.
  ▬ Wires cannot be connected to the board computers or control units.
• Connecting power source
  ▬ Be sure that after the car computer goes to sleep mode, power might be still available on the power wires. Depending on the car model, this may happen in a 5 to 30 minutes period.
  ▬ When the module is connected, measure the voltage again to make sure it did not decrease.
  ▬ It is recommended to connect to the main power cable in the fuse box.
  ▬ 3 A, 125 V external fuse shall be used.
• Connecting ignition wire
  ▬ Be sure to check if it is a real ignition wire i. e. power does not disappear after starting the engine.
  ▬ Check if this is not an ACC wire (when the key is in the first position, most of the vehicle electronics are available).
  ▬ Check if power is still available when you turn off any of the vehicles’ devices.
  ▬ Ignition is connected to the ignition relay output. As an alternative, any other relay, which has power output when the ignition is on, may be chosen.
• Connecting ground wire
  ▬ The ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
  ▬ If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
  ▬ For better contact scrub paint from the spot where the loop is going to be connected.

LED indications

Table 3 Navigation LED indications

Table 4 Status LED indications

Characteristics Basic characteristics

Table 5 Basic characteristics

Electrical characteristics

Table 6 Electrical characteristics

Safety information

This message contains information on how to operate FMB122 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!

• The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +10…+30 V DC.
• To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible. They show the status of the device’s operation.
• When connecting the 2×6 connector wires to the vehicle, the appropriate jumpers of the vehicle power supply should be disconnected.
• Before unmounting the device from the vehicle, the 2×6 connector must be disconnected. The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 62368-1 standard. The device FMB122 is not designed as a navigational device for boats.

Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.

	All wireless data transferring devices produce interference that may affect other devices which are placed nearby.
	The device must be connected only by qualified personnel.
	The device must be firmly fastened in a predefined location.
	The programming must be performed using a PC with an autonomic power supply.
	Installation and/or handling during a lightning storm is prohibited.
	The device is susceptible to water and humidity.
	Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
	Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose of them to a battery recycle bin found in stores.
