Teltonika Fmb150 Bluetooth Tracker User Guide (+ PDF)

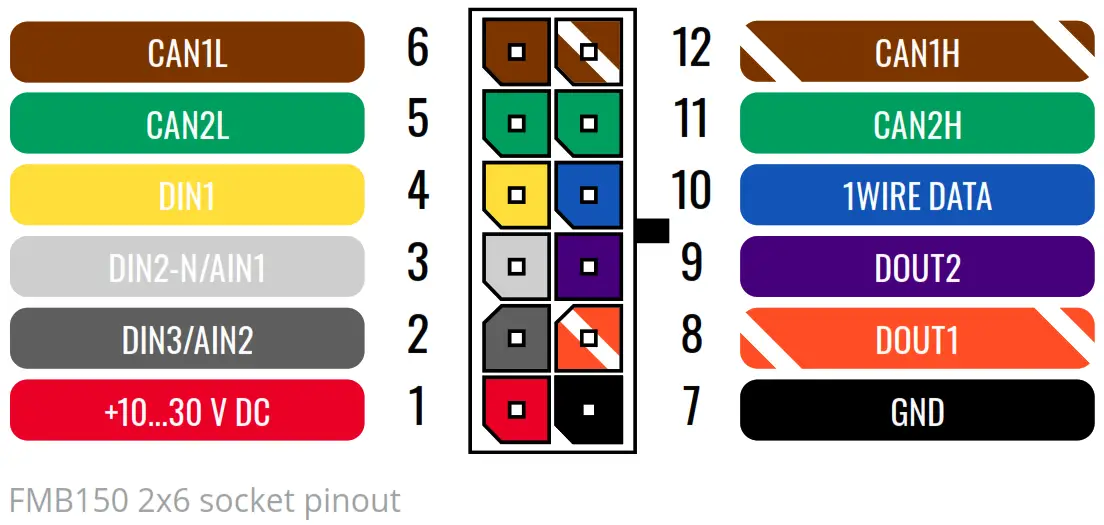

Pin number	Pin name	Description
1	VCC (10-30) V DC (+)	Power supply (+10-30 V DC).
2	DIN 3 / AIN 2	Ana-log input, channel 2. Input range: 0-30 V DC / Digital input, channel 3.
3	DIN2-N / AIN1	Digital input, channel 2 / Analog input, channel 2. Input range: 0-30 V DC /GND Sense Input
4	DIN1	Digital input, channel 1.
5	CAN2L	CAN LOW, 2nd line
6	CAN1L	CAN LOW, 1st line
7	GND (-)	Ground pin. (10-30)V DC (—)
8	DOUT 1	Digital output, channel 1. Open collector output. Max. 0,5 A DC.
9	DOUT 2	Digital output, channel 2. Open collector output. Max. 0,5 A DC.
10	1WIRE DATA	Data for 1-Wire devices.
11	CAN2H	CAN HIGH, 2nd line
12	CAN1H	CAN HIGH, 1st line

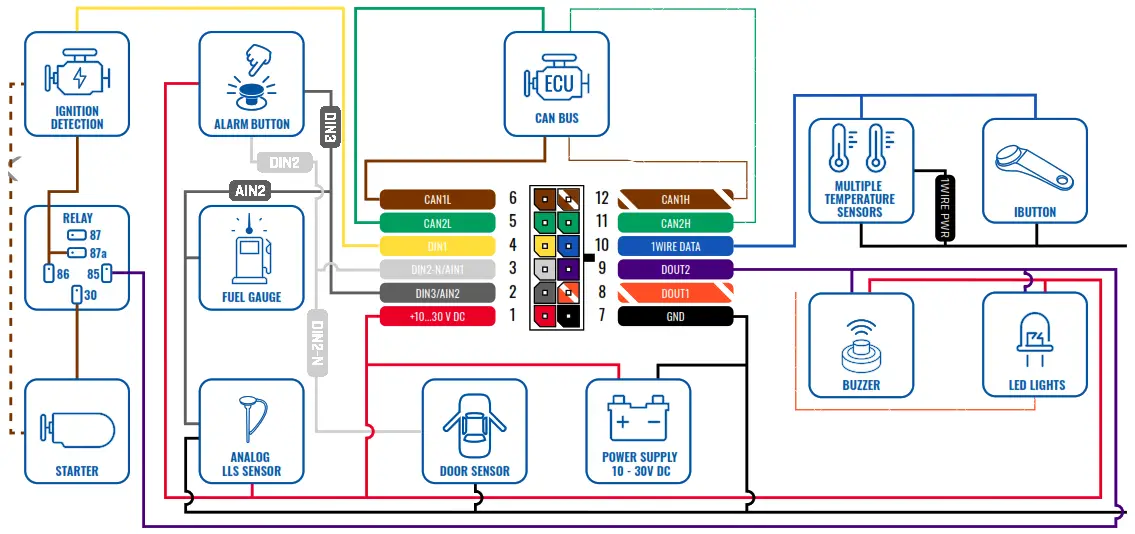

WIRING SCHEME

SET UP YOUR DEVICE

HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY


1. COVER REMOVAL Gently remove FMB150 cover using plastic pry tool from both sides.	2. MICRO-SIM CARD INSERT Insert Micro-SIM card as shown with PIN request disabled or read our Wiki¹ how to enter it later in Teltonika Configurator² . Make sure that MicroSIM card cut-off corner is pointing forward to slot. ¹ wiki.teltonika-gps.com/index.php?title=FMB140_Security_info ² wiki.teltonika-gps.com/view/Teltonika_Configurator	3. BATTERY CONNECTION Connect battery as shown to device. Position the battery in place where it does not obstruct other components.	4. ATTACHING COVER BACK After configuration, see “PC Connection (Windows)”, attach device cover back.

PC CONNECTION (WINDOWS)

Power-up FMB150 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED indications¹”.
Connect device to computer using Micro-USB cable or Bluetooth connection:
• Using Micro-USB cable
• You will need to install USB drivers, see “How to install USB drivers (Windows)²”
• Using Bluetooth
• FMB150 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device > Bluetooth. Choose your device named – “FMB150_last_7_imei_digits”, without LE in the end. Enter default password 5555, press Connect and then select Done.
You are now ready to use the device on your computer.

¹ wiki.teltonika-gps.com/view/FMB150_LED_status
² Page 7, “How to install USB drivers”

HOW TO INSTALL USB DRIVERS (WINDOWS)

Please download COM port drivers from here ¹.
Extract and run TeltonikaCOMDriver.exe.
Click Next in driver installation window.
In the following window click Install button.
Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup.

¹ teltonika-gps.com/downloads/en/fmb140/TeltonikaCOMDriver.zip

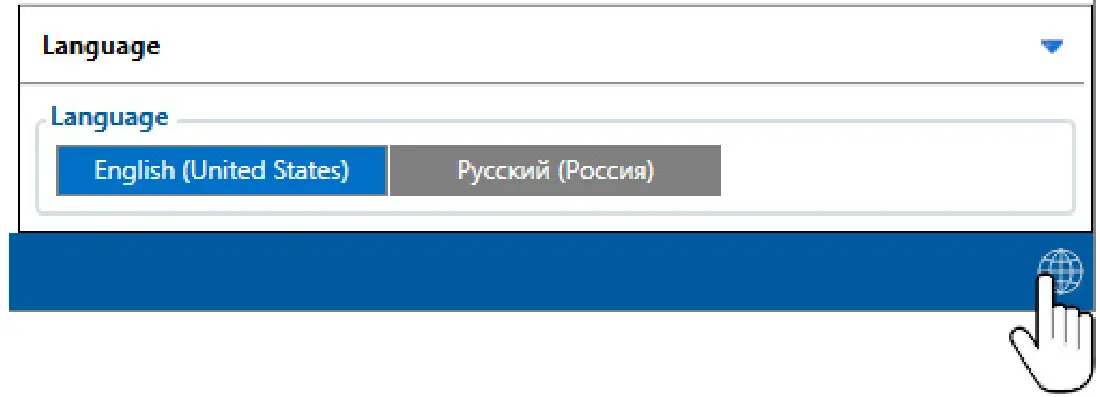

CONFIGURATION (WINDOWS)

At first FMB150 device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator¹ software. Get the latest Configurator version from here² . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
¹ wiki.teltonika-gps.com/view/Teltonika_Configurator
² wiki.teltonika-gps.com/view/Teltonika_Configurator_versions

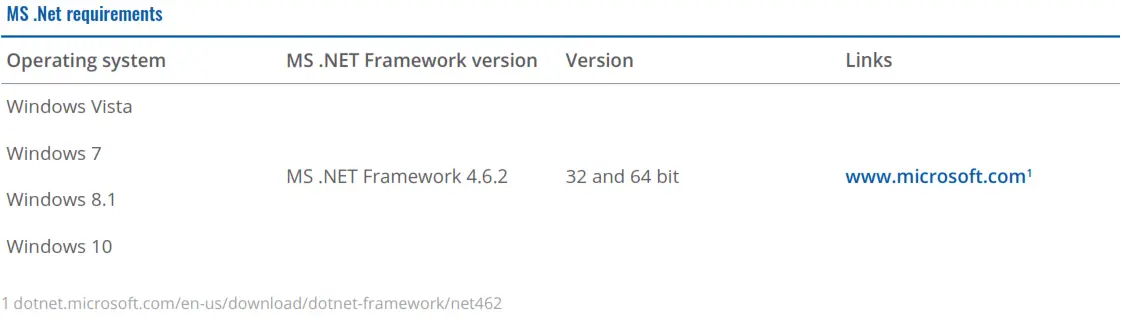

www.microsoft.com¹

Downloaded Configuration will be in compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking in the right bottom corner.

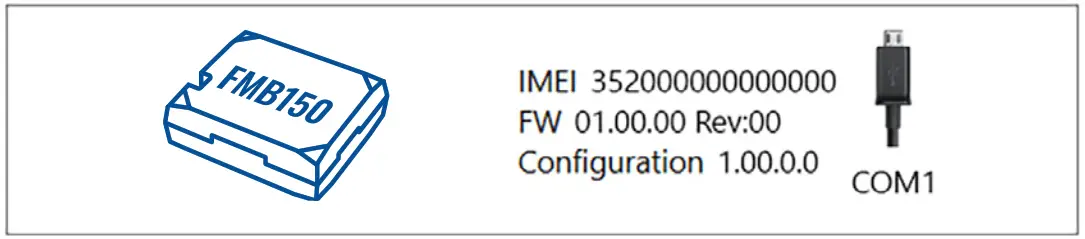

Configuration process begins by pressing on connected device.

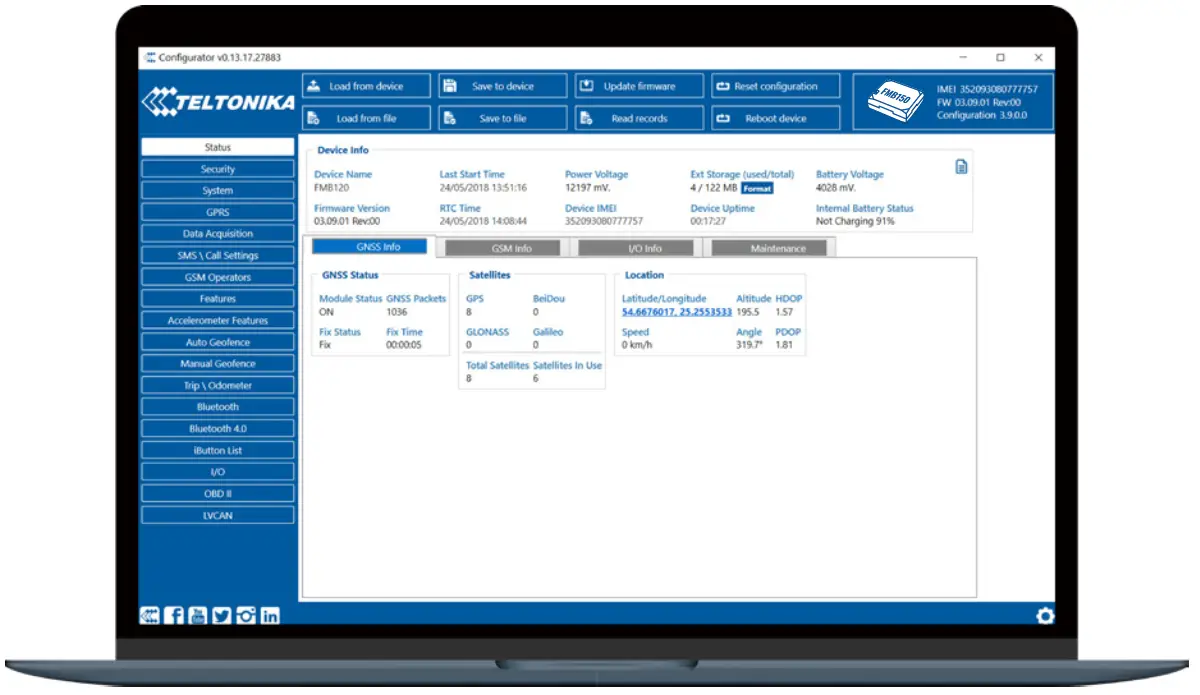

After connection to Confiscator Status window will be displayed.
Various Status window¹ tabs display information about GNSS² , GSM³, I/O⁴ , Maintenance⁵ and etc. FMB150 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality:

	Load from device – loads configuration from device.
	Save to device – saves configuration to device.
	Load from file – loads configuration from file.
	Save to file – saves configuration to file.
	Update firmware – updates firmware on device.
	Read records – reads records from the device.
	Reboot device – restarts device.
	Reset configuration – sets device configuration to default.

Most important configuration section is GPRS – where all your server and GPRS settings⁶ can be configured and Data Acquisition⁷ – where data acquiring parameters can be configured. More details about FMB150 configuration using Confiscator can be found in our Wiki⁸ .

1 wiki.teltonika-gps.com/view/FMB150_Status_info
2 wiki.teltonika-gps.com/view/FMB150_Status_info#GNSS_Info
3 wiki.teltonika-gps.com/view/FMB1501_Status_info#GSM_Info
4 wiki.teltonika-gps.com/view/FMB150_Status_info#I.2FO_Info
5 wiki.teltonika-gps.com/view/FMB150_Status_info#Maintenance
6 wiki.teltonika-gps.com/index.php?title=FMB150_GPRS_settings
7 wiki.teltonika-gps.com/index.php?title=FMB150_Data_acquisition_settings
⁸ wiki.teltonika-gps.com/index.php?title=FMB150_Configuration

QUICK SMS CONFIGURATION

Default configuration has optimal parameters present to ensure best performance of track quality and data usage.

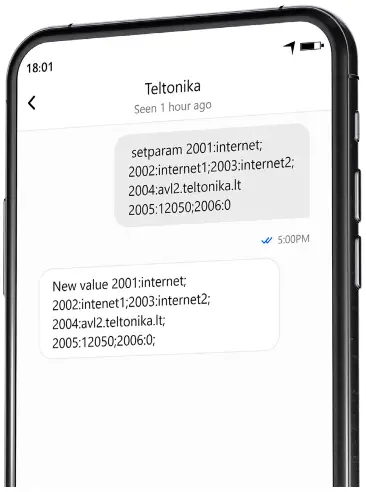

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

2001 – APN
2002 – APN username (if there are no APN username, empty field should be left)
2003 – APN password (if there are no APN password, empty field should be left)
SERVER SETTINGS:
2004 – Domain
2005 – Port
2006 – Data sending protocol (0 – TCP, 1 – UDP)

DEFAULT CONFIGURATION SETTINGS
MOVEMENT AND IGNITION DETECTION:

	VEHICLE MOVEMENT will be detected by accelerator
	IGNITION will be detected by vehicle power voltage between 13,2 – 30 V

DEVICE MAKES A RECORD ON MOVING IF ONE OF THESE EVENTS HAPPEN:

	PASSES 300 seconds
	VEHICLE DRIVES 100 meters
	VEHICLE TURNS 10 degrees
	SPEED DIFFERENCE between last coordinate and current position is greater than 10 km/h

DEVICE MAKES A RECORD ON STOP IF:	RECORDS SENDING TO SERVER:

1 HOUR PASSES while vehicle is stationary and ignition is off	EVERY 120 SECOND it is sent to the server If device has made a record

After successful SMS configuration, FMB150 device will synchronize time and update records to configured server. Time intervals
and default I/O elements can be changed by using Teltonika Configurator¹ or SMS parameters².
¹ wiki.teltonika-gps.com/view/Teltonika_Configurator
² wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list

MOUNTING RECOMMENDATIONS

CONNECTING WIRES

Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires.
The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again.
If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied.
Wires cannot be connected to the board computers or control units.

CONNECTING POWER SOURCE

Be sure that after the car computer falls asleep, power is still available on chosen wire. Depending on car, this may happen in 5 to 30 minutes period.
When module is connected, measure voltage again to make sure it did not decrease.
It is recommended to connect to the main power cable in the fuse box.
Use 3A, 125V external fuse.

CONNECTING IGNITION WIRE

Be sure to check if it is a real ignition wire i. e. power does not disappear after starting the engine.
Check if this is not an ACC wire (when key is in the first position, most of the vehicle electronics are available).
Check if power is still available when you turn off any of vehicles devices.
Ignition is connected to the ignition relay output. As alternative, any other relay, which has power output when ignition is on, may be chosen.

CONNECTING GROUND WIRE

Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
For better contact scrub paint from the spot where loop is going to be connected.

LED INDICATIONS

NAVIGATION LED INDICATIONS

Behaviour	Meaning
Permanently switched on	GNSS signal is not received
Blinking every second	Normal mode, GNSS is working
Off	GNSS is turned off because: Device is not working or Device is in sleep mode
Blinking fast constantly	Device firmware is being flashed

STATUS LED INDICATIONS

Behaviour	Meaning
Blinking every second	Normal mode
Blinking every two seconds	Sleep mode
Blinking fast for a short time	Modem activity
Off	Device is not working or Device is in boot mode

CAN STATUS LED INDICATIONS

Behaviour	Meaning
Blinking fast constantly	Reading CAN data from vehicle
Permanently switched on	Wrong program number or wrong wire connection
Off	Wrong connection or CAN processor in sleep mode

BASIC CHARACTERISTICS

Module
Name	Teltonika TM2500
Technology	GSM, GPRS, GNSS, BLUETOOTH
GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver	Tracking: 33
Tracking sensitivity	-165 dBM
Accuracy	< 3 m
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s

Cellular
Technology	GSM
2G bands	Quad-band 850/900/1800/1900 MHz
Transmit power	32.84 dBm (GSM900) 29.75 dBm (GSM 1800) 4.65 dBm (BT)
Data support	SMS (text/data)
Power
Input voltage range	10-30 V DC with over voltage protection
Back-up battery	170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Internal fuse	3 A, 125 V
Power Consumption	At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Deep Sleep) At 12V < 20 mA (GPS Sleep)¹ At 12V < 35 mA (nominal with no load) At 12V < 250 mA Max. (with full Load/ Peak)
Bluetooth
Specification	4.0 + LE

¹ wiki.teltonika-gps.com/view/FMB150_Sleep_modes#GPS_Sleep_mode

Supported peripherals
Temperature and Humidity sensor ², Headset ³, Incarnate Bar code Scanner, Universal BLE sensors support

Interface
Digital Inputs	3
Negative Inputs	1 (Digital input 2)
Digital Outputs	2
Analog Inputs	2
CAN interfaces	2
1-Wire	1 (1-Wire data)
GNSS antenna	Internal High Gain
GSM antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	3 status LED lights
SIM	Micro-SIM + eSIM
Memory	128MB internal flash memory
Physical Specification
Dimensions	65 x 56.6 x 20.6 mm (L x W x H)
Weight	55 g

² teltonika.lt/product/bluetooth-sensor/
³ wiki.teltonika.lt/view/How_to_connect_Blue-tooth_Hands_Free_adapter_to_FMB_device

Operating temperature (without battery)	-40 °C to +85 °C
Storage temperature (without battery)	-40 °C to +85 °C
Operating temperature (with battery)	-20 °C to +40 °C
Storage temperature (with battery)	-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP41
Battery charge temperature	0 °C to +45 °C
Battery storage temperature	-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months
Features
CAN Data	Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip ⁴
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep ⁵
Configuration and firmware update	FOTA Web ⁶, FOTA ⁷, Teltonika Confiscator ⁸ (USB, Bluetooth), FMBT mobile application ⁹ (Configuration)
SMS	Configuration, Events, DOUT control, Debug
GPRS commands	Configuration, DOUT control, Debug
Time Synchronization	GPS, NITZ, NTP
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine

⁴wiki.teltonika-gps.com/view/FMB150_Accelerometer_Features_settings
⁵wiki.teltonika-gps.com/view/FMB150_Sleep_modes
⁶wiki.teltonika.lt/view/FOTA_WEB
⁷wiki.teltonika.lt/view/FOTA
⁸wiki.teltonika.lt/view/Teltonika_Configurator
⁹teltonika.lt/product/fmbt-mobile-application/

ELECTRICAL CHARACTERISTICS

Characteristic description	Value
Supply voltage	Min.	Typ.	Max.	Unit
Supply Voltage (Recommended Operating Conditions)	+10		+30	V
Digital output (open drain grade)
Drain current (Digital Output OFF)		pA	120
Drain current (Digital Output ON, Recommended Operating Conditions)		0.1	0.5	A
Static Drain-Source resistance (Digital Output ON)		400	600	mO
Digital input
Input resistance (DIN1) 47				kfi
Input resistance (DIN2) 38.45				kfi
Input resistance (DIN3) 150				kfi

Characteristic description	Value
Supply voltage	Min.	Typ.	Max.	Unit
Input voltage (Recommended Operating Conditions)	0		Supply voltage	V
Input Voltage threshold (DIN1)	1	7.5		V
Input Voltage threshold (DIN2)	1	2.5		V
Input Voltage threshold (DIN3)	1	2.5		V
Output Supply Voltage 1-Wire
Supply voltage	4.5		4.7	V
Output inner resistance		7		Ω
Output current (Uout > 3.0 V)		30		mA
Short circuit current (Uout = 0)		75		mA
Negative input
Supply voltage	4.5		4.7	V
Output inner resistance	1	7		Ω
Output current (Uout > 3.0 V)	1	30		mA
Short circuit current (Uout = 0)	1	75		mA
Negative input
Input resistance	38.45			kΩ
Input voltage (Recommended Operating Conditions)	0		Supply voltage	V
Input voltage threshold		0.5		V
Sink current			180	nA
CAN Interface
Internal terminal resistors CAN bus (no internal termination resistors)	1			Ω
Differential input resistance	19	30	52	kΩ
Recessive output voltage	2	2.5	3	V
Differential receiver threshold voltage	0.5	0.7	0.9	V
Common mode input voltage	-30		30	V

SAFETY INFORMATION

This message contains information on how to operate FMB150 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!

The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +10…+30 V DC.
To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible. They show the status of device operation.
When connecting the 2×6 connector wires to the vehicle, the appropriate jumpers of the vehicle power supply should be disconnected.
Before unmounting the device from the vehicle, the 2×6 connector must be disconnected. The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 62368-1 standard. The device FMB150 is not designed as a navigational device for boats.

	Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.
	All wireless data transferring devices produce interference that may affect other devices which are placed nearby.
	The device must be connected only by qualified personnel.
	The device must be firmly fastened in a predefined location.
	The programming must be performed using a PC with autonomic power supply.
	Installation and/or handling during a lightning storm is prohibited.
	The device is susceptible to water and humidity.
	CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
	Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose them to battery recycle bin found in stores.

CERTIFICATION AND APPROVALS

This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki ¹.
¹ wiki.teltonika-gps.com/index.php?title=FMB150

This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
CHECK ALL CERTIFICATES
All newest certificates may be found in our Wiki ².
²wiki.teltonika-gps.com/view/FMB150_Certification_%26_Approvals

WARRANTY

TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager.
Contact us teltonika-gps.com/about-us/contacts
All batteries carry a reduced 6 month warranty period.
If a product should fail within this specific warranty time, the product can be:

Repaired
Replaced with a new product
Replaced with an equivalent repaired product fulfilling the same functionality
TELTONIKA can also repair products that are out of warranty at an agreed cost.

WARRANTY DISCLAIMER
TELTONIKA PRODUCTS ARE INTENDED TO BE USED BY PERSONS WITH TRAINING AND EXPERIENCE. ANY OTHER USE RENDERS THE LIMITED WARRANTIES EXPRESSED HEREIN AND ALL IMPLIED WARRANTIES NULL AND VOID AND SAME ARE HEREBY EXCLUDED.
ALSO EXCLUDED FROM THIS LIMITED WARRANTY ARE ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO, LOSS OF USE OR REVENUE, LOSS OF TIME, INCONVENIENCE OR ANY OTHER ECONOMIC LOSS.
More information can be found at teltonika-gps.com/warranty-repair

Quick Manual v1.6 // FMB150

Teltonika Fmb150 Bluetooth Tracker User Guide

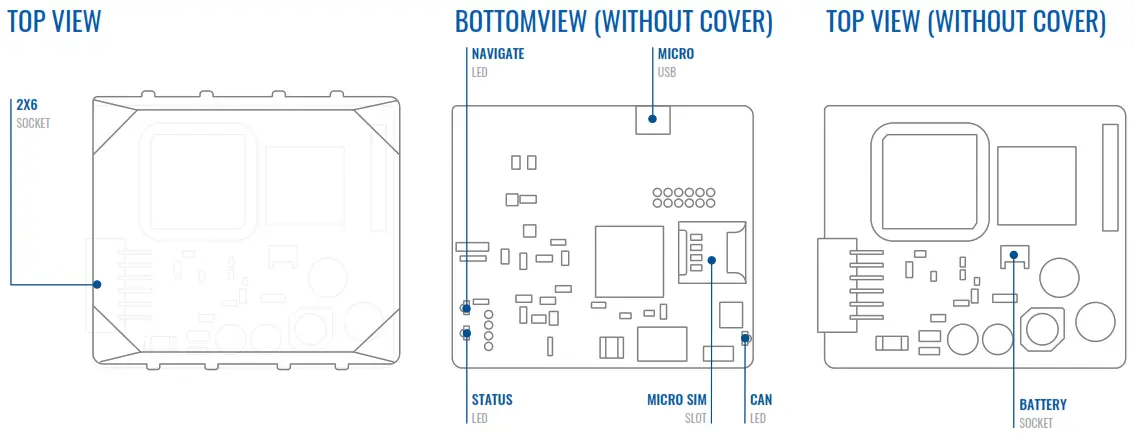

KNOW YOUR DEVICE

PINOUT
