Teltonika Fmb010 2g Bluetooth Obd Gps Tracker User Manual

FMB010
Easy OBDII tracker
Quick Manual
v1.3

Know your device

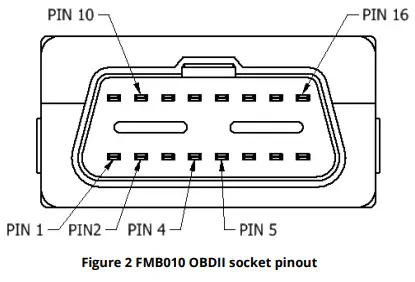

Pinout

Table 1 OBDII pinout

Set up your device

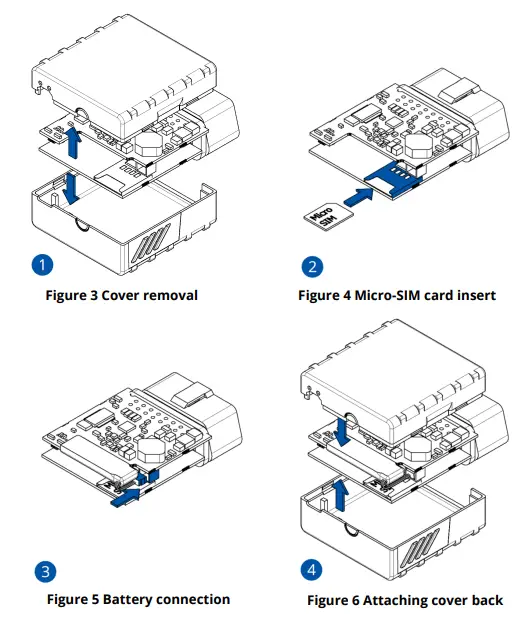

How to insert Micro-SIM card and connect the battery

1. Gently remove the FMB010 cover using a plastic pry tool from both sides.
2. Insert Micro-SIM card as shown with PIN request disabled read our Wiki how to enter it later in TeltonikaConfigurato Make sure that Micro-SIM card cut-off corner is pointing forward to the slot.
3. Connect battery as shown to the device. Position the battery in a place where it does not obstruct other components.
4. Attach device cover back.
   The device is ready to be connected.

PC Connection (Windows)

1. Power-up FMB010 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED indications”
2. Connect the device to the computer using a Micro-USB cable or Bluetooth connection:
   • Using Micro-USB cable
   ▬ You will need to install USB drivers, see “How to install
   USB drivers (Windows)”
   • Using Bluetooth
   ▬ FMB010 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or another device> Bluetooth. Choose your device named –“FMBxxx_last_7_imei_digits”, without LE in the end.
   Enter default password 5555, press Connect, and then select Done.
3. You are now ready to use the device on your computer.

How to install USB drivers (Windows)

1. Please download COM port drivers from here.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in the driver installation window.
4. In the following window click the Install button.

Setup will continue installing the driver and eventually, the confirmation window will appear. Click Finish to complete the setup.

Configuration (Windows)

At first FMB010 device will have the default factory settings set. These settings should be changed according to the user’s needs. The main
configuration can be performed via TeltonikaConfigurator software. Get the latest Configurator version from here. Configurator operates on Microsoft Windows OS and uses the prerequisite MS .NET Framework. Make sure you have the correct version installed.

Table 2 MS .NET requirements

Downloaded Configurator will be in a compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking in the right bottom corner (Figure7 Language selection).

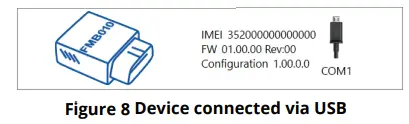

The configuration process begins by pressing on a connected device (Figure 8 Device connected via USB).

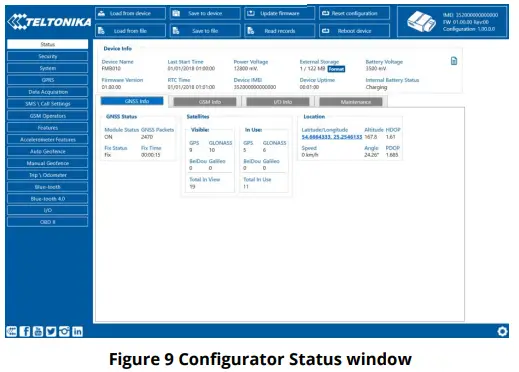

After connection to Configurator Status window will be displayed (Figure 9 Configurator Status window).

Various Status window tabs display information about GNSS, GSM, I/O, Maintenance and etc. FMB010 has one user-editable profile, which can be loaded and saved to the device. After any modification of configuration, the changes need to be saved to the device using Save to devise button. Main buttons offer the following functionality:

1. Load from the device – loads configuration from the device.
2. Save to device – saves the configuration to the device.
3. Load from file – loads configuration from file.
4. Save to file – saves the configuration to file.
5. Update firmware – updates the firmware on the device.
6. Read records – reads records from the device.
7. Reboot device – restarts the device.
8. Reset configuration – sets device configuration to default.

The most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMB010 configuration using Configurator can be found in our Wiki.

Quick SMS configuration

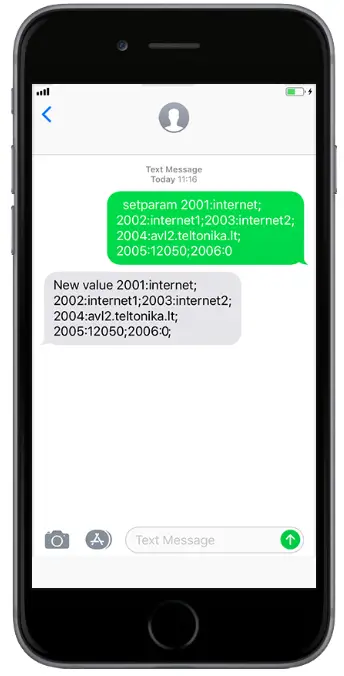

The default configuration has optimal parameters present to ensure the best performance of track quality and data usage. Quickly set up your device by sending this SMS command to it: ” set param 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0″

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

• 2001 – APR
• 2002 – APN username (if there are no APN username, empty a field should be left)
• 2003 – APN password (if there are no APN password, empty the field should be left)

Server settings:

• 2004 – Domain
• 2005 – Port
• 2006 – Data sending protocol
  (0 – TCP, 1 – UDP)

Default configuration settings
Movement and ignition detection:

Vehicle movement will be detected by the accelerometer
The device makes a record On Moving if one of these events happen:
Ignition will be detected by the vehicle power voltage between 13,2 – 30 V

	300 seconds pass		The vehicle turns 10 degrees
	Vehicle drives 100 meters		Speed difference between the last coordinate and current position is greater than 10 km/h

The device makes a record On Stop if:
1-hour passes while the vehicle is stationary and ignition is off
Records sent to the server:
If the device has made a record it is sent to the server every 120 seconds
After successful SMS configuration, the FMB010 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator or SMS parameters.

LED indications

Table 3 Navigation LED indications

Table 4 Status LED indications

Basic characteristics

Table 5 Basic characteristics

Safety information

This message contains information on how to operate FMB010 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!

• The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +10…+30 V DC.
• To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible. They show the status of the device’s operation.
• Before unmounting the device from the vehicle, the ignition MUST be OFF.

Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.
All wireless data transferring devices produce interference that may affect other devices which are placed nearby.
Please consult representatives of your vehicle model regarding the OBDII location on your vehicle. In case you are not sure about proper connection, please consult qualified personnel.
The programming must be performed using a PC with an autonomic power supply.
Installation and/or handling during a lightning storm is prohibited.
The device is susceptible to water and humidity.
Teltonika is not responsible for any harm caused by wrong cables used for connection between PC and FMB010
WARNING! Do not use the FMB010 device if it distracts the driver or causes inconvenience due to OBDII placement. The device must not interfere with the driver.
Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose of them in a battery recycle bin found in stores.

Certification and Approvals

• FMB010 ANATEL
• FMB010 CE / RED
• FMB010 E-Mark
• FMB010 EAC
• FMB010 RoHS
• FMB010 REACH
• FMB010 Declaration of IMEI assignment

This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki.
This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.

Hereby, Teltonika declares under our sole responsibility that the above-described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED).

For more information, see the ANATEL website www.anatel.gov.br
This equipment is not entitled to protection against harmful interference and must not cause interference in duly authorized systems.

Warranty

TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. In addition to the agreement we can agree on a different warranty period, for more detailed information please contact our sales manager.
Contact us teltonika.lt/company/contacts

All batteries carry a reduced 6 month warranty period.
If a product should fail within this specific warranty time, the product can be:

• Repaired
• Replaced with a new product
• Replaced with an equivalent repaired product fulfilling the same functionality
• TELTONIKA can also repair products that are out of warranty at an agreed cost.

Warranty Disclaimer

TELTONIKA PRODUCTS ARE INTENDED TO BE USED BY PERSONS WITH TRAINING AND EXPERIENCE. ANY OTHER USE RENDERS THE LIMITED WARRANTIES EXPRESSED HEREIN AND ALL IMPLIED WARRANTIES NULL AND VOID AND THE SAME ARE HEREBY EXCLUDED. ALSO EXCLUDED FROM THIS LIMITED WARRANTY ARE ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO, LOSS OF USE OR REVENUE, LOSS OF TIME, INCONVENIENCE, OR ANY OTHER ECONOMIC LOSS.

More information can be found at teltonika.lt/warranty-repair
