FMB910
Track & trace device
Quick Manual
v1.1

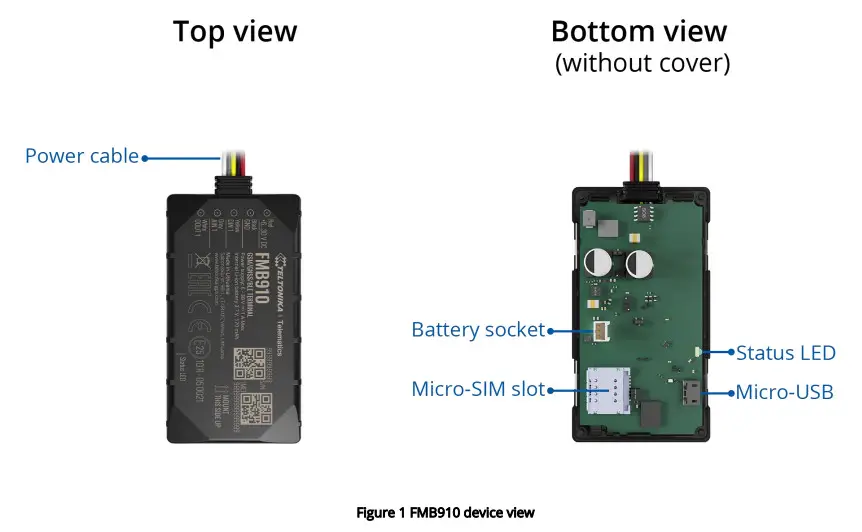

Know your device

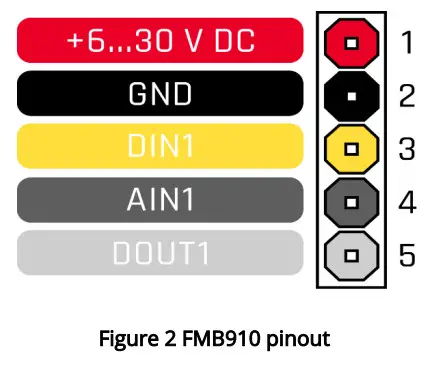

Pinout

Table 1 FMB910 pinout

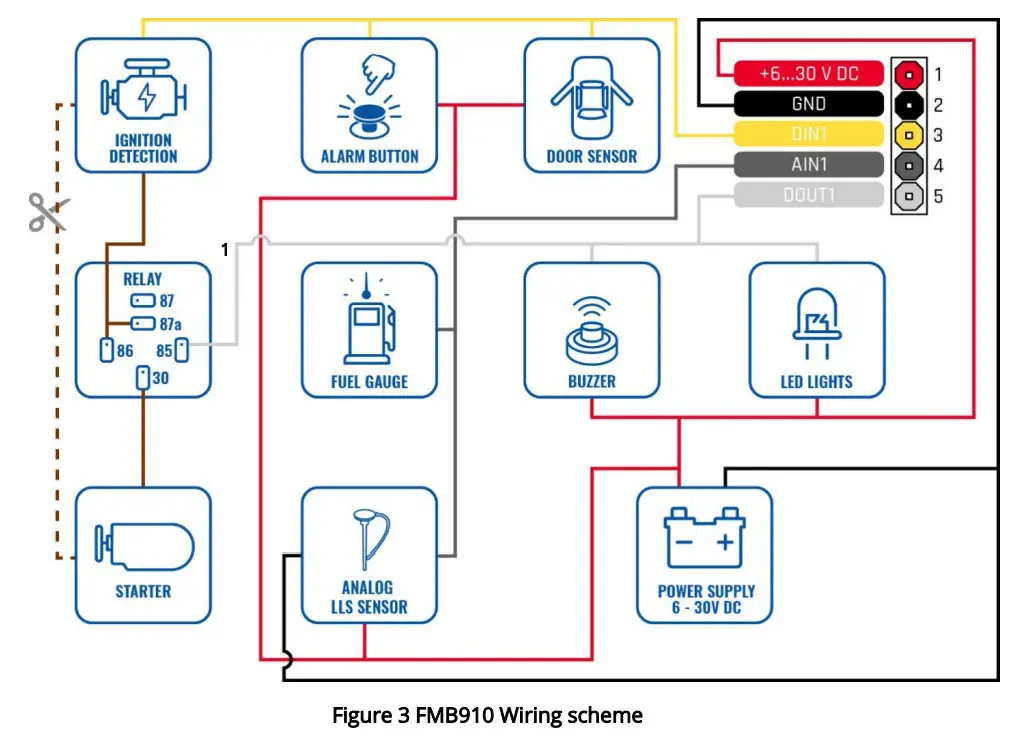

Wiring scheme

Set up your device

How to insert Micro SIM card and connect the battery

1. Gently remove the FMB910 cover using a plastic pry tool from both sides.
2. Separate PCB from plastic cover and connect power supply cable.
3. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later configurator. Make sure that the Micro-SIM card cut-off the corner is pointing forward to slot.
4. Connect the internal backup battery.
5. Attach device cover back. (Do not forget to configure the device before reassembling the device!)
6. Device ready to use!

PC Connection (Windows)

1. Power-up FMB910 with DC voltage 6-30 V power supply using the power cable. LEDs should start blinking, see “LED indications”.
2. Connect the device to the computer using a Micro-USB cable or Bluetooth connection:
   • Using Micro-USB cable
   You will need to install USB drivers, see “How to install USB drivers (Windows)”
   • Using Bluetooth
3. FMB910 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or another device> Bluetooth. Choose your device named – “FMB910_last_7_imei_digits”, without LE in the end. Enter default password 5555, press Connect, and then select Done.
4.  You are now ready to use the device on your computer.

How to install USB drivers (Windows)

1. Please download COM port drivers from here.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in the driver installation window.
4. In the following window click the Install button.
5. Setup will continue installing the driver and eventually, the confirmation window will appear. Click Finish to complete the setup.

Configuration (Windows)

At first FMB910 device will have the default factory settings set. These settings should be changed according to the user’s needs. The main configuration can be performed via Teltonika  Configurator software. Get the latest FMB910 Configurator version from here. Configurator operates on Microsoft Windows OS and uses the prerequisite MS .NET  Framework. Make sure you have the correct version installed.

Table 2 MS .NET requirements
MS .NET REQUIREMENTS

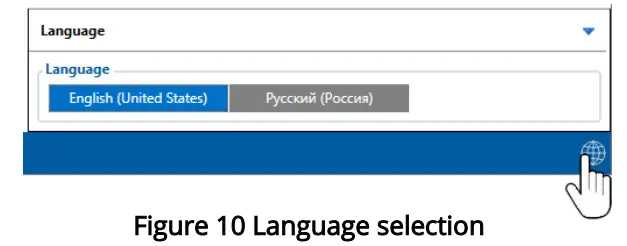

Downloaded Configurator will be in a compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking in the right bottom corner (Figure 10 Language selection).

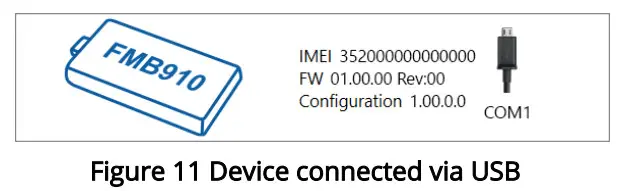

The configuration process begins by pressing on the connected device (Figure 11 Device connected via USB).

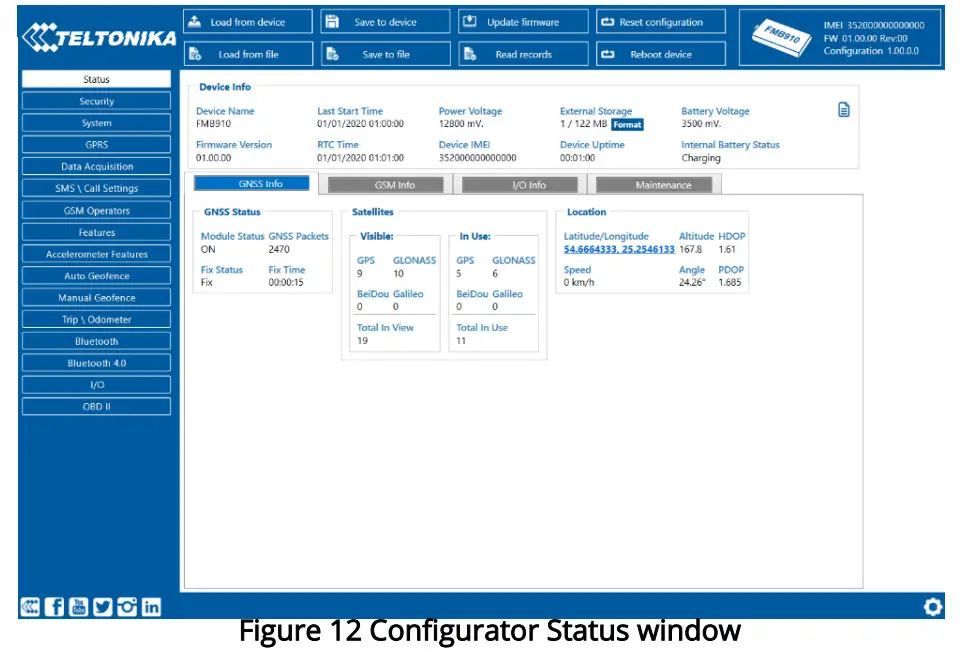

After connection to Configurator Status window will be displayed (Figure 12 Configurator Status window).

Various Status window tabs display information about GNSS, GSM, I/O, Maintenance and etc. FMB910 has one user-editable profile, which can be loaded and saved to the device. After any modification of configuration, the changes need to be saved to the device using Save to devise button. Main buttons offer the following functionality:

	Load from the device – loads configuration from the device.
	Save to device – saves the configuration to the device.
	Load from file – loads configuration from file.
	Save to file – saves the configuration to file.
	Update firmware – updates the firmware on the device.
	Read records – reads records from the device.
	Reboot device – restarts the device.
	Reset configuration – sets device configuration to default.

The most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured.
More details about FMB910 configuration using Configurator can be found in our Wiki.

Quick SMS configuration

The default configuration has optimal parameters present to ensure best performance of track quality and data usage.

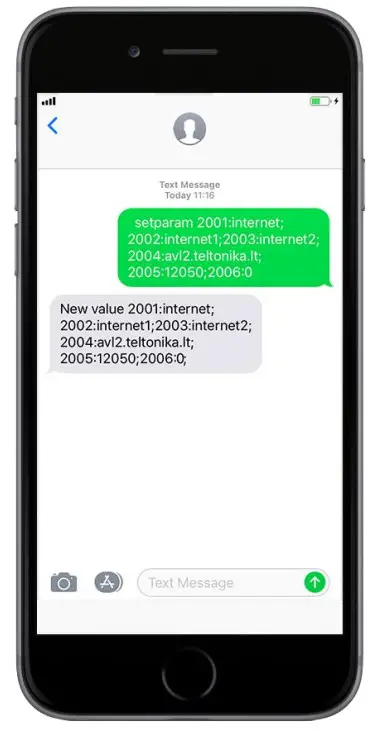

Quickly set up your device by sending this SMS command to it: ” set param 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0;”

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

• 2001 – APN
• 2002 – APN username (if there are no APN username, empty the field should be left)
• 2003 – APN password (if there are no APN password, empty the field should be left)

Server settings:

• 2004 – Domain
• 2005 – Port
• 2006 – Data sending protocol (0 – TCP, 1 – UDP)

Default configuration settings
Movement and ignition detection:

Vehicle movement will be detected by the accelerometer

Ignition will be detected by the vehicle power voltage between 13,2 – 30 V

Device makes a record On Moving if one of these events happen:

	300 seconds pass		The vehicle turns 10 degrees
	The vehicle drives 100 meters		The speed difference between last coordinate and  current position is greater than 10 km/h

Device makes a record On Stop if:

1-hour passes while the vehicle is stationary and ignition is off

Records sending to server:

If the device has made a record it is sent to the server  every 120 seconds

Mounting recommendations

• Connecting wires

• Wires should be fastened to the other wires or non-moving parts. Try to avoid heat-emitting and moving objects near the wires.
• The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again.
• If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied.
• Wires cannot be connected to the board computers or control units.

Connecting power source

• Be sure that after the car computer falls asleep, power is still available on the chosen wire. Depending on the car, this may happen in 5 to 30 minutes period.
• When the module is connected, measure the voltage again to make sure it did not decrease.
• It is recommended to connect to the main power cable in the fuse box.
• 3 A, 125 V external fuse shall be used.

Connecting ignition wire

• Be sure to check if it is a real ignition wire i.e. power does not disappear after starting the engine.
• Check if this is not an ACC wire (when the key is in the first position, most of the vehicle electronics are available).
• Check if power is still available when you turn off any of the vehicles’ devices.
• Ignition is connected to the ignition relay output. As an alternative, any other relay, which has power output when the ignition is on, may be chosen.

Connecting ground wire

• The ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
• If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
• For better contact scrub paint from the spot where the loop is going to be connected.

LED indications

Table 3 Status LED indications

Characteristics

Basic characteristics
Table 4 Basic characteristics

Electrical characteristics

Table 5 Electrical characteristics

Safety information

Analog Input error margin can increase if temperature varies.

This message contains information on how to operate FMB910 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!

• The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +6 …+30 V DC.
• To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible.  They show the status of the device’s operation.
• When connecting the (1×5) cables to the vehicle, the appropriate jumpers of the vehicle power supply should be disconnected.
• Before dismounting the device from the vehicle, the 1×5 connection must be disconnected.
• The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 60950-1 standard.
• The device FMB910 is not designed as a navigational device for boats.

	Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.
	Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.
	The device must be connected only by qualified personnel.
	The device must be firmly fastened in a predefined location.
	The programming must be performed using a PC with an autonomic power supply.
	Installation and/or handling during a lightning storm is prohibited.
	The device is susceptible to water and humidity.
	Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
	Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose of them to the battery recycle bin found in stores.

Certification and Approvals

	This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. The full User‘s Manual version can be found in our Wiki.
	This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
	Hereby, Teltonika declares under our sole responsibility that the above-described product is in conformity with the relevant Community harmonization: European Directive 014/53/EU (RED).

Warranty

TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With the additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager.
Contact us teltonika.lt/company/contacts All batteries carry a reduced 6 month warranty period.
If a product should fail within this specific warranty time, the product can be:

• Repaired
• Replaced with a new product
• Replaced with an equivalent repaired product fulfilling the same functionality
• TELTONIKA can also repair products that are out of warranty at an agreed cost.

Warranty Disclaimer

TELTONIKA PRODUCTS ARE INTENDED TO BE USED BY PERSONS WITH TRAINING AND EXPERIENCE. ANY OTHER USE RENDERS THE LIMITED  WARRANTIES EXPRESSED HEREIN AND ALL IMPLIED WARRANTIES NULL AND VOID AND THE SAME ARE HEREBY EXCLUDED. ALSO EXCLUDED  FROM THIS LIMITED WARRANTY ARE ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO, LOSS OF  USE OR REVENUE, LOSS OF TIME, INCONVENIENCE OR ANY OTHER ECONOMIC LOSS.
More information can be found at teltonika.lt/warranty-repair
