Micodus Mv66 2g Mini Obd Ii Gnss Tracker User Manual (+ PDF)

Charge the MiCODUS Tracker backup battery before use.
Insert a SIM card into the tracker.
Install the tracker in your vehicle.
Turn on the tracker by pressing the ON/OFF button.
The tracker will start real-time tracking and record historical routes.
To set up alarms, use the following commands:
- Engine On/Off Alarm: #EOA#ON# or #EOA#OFF#
- Shift Alarm: #SA#ON# or #SA#OFF#
- Vibration Alarm: #VA#ON# or #VA#OFF#
- Geo-fence Alarm: #GF#ON# or #GF#OFF#
- Plug Out Alarm: #POA#ON# or #POA#OFF#
- Low Voltage Voice Monitor Alarm: #LVMA#ON# or #LVMA#OFF#
To view historical routes and overspeed playback, use the following command: #HIS#password#

Note: Replace ‘password’ in the above command with your tracker password.

Specifications

Device Information

Model: MV66
Weight: N/A
Dimensions: N/A
Backup Battery: Yes

Working Parameters

Working Voltage: N/A
Working Current: N/A
Sleep Current: N/A
Working Temperature: N/A
Working Humidity: N/A

Communication Module

Cellular Specifications: N/A
SIM Card: Yes
Celluar Antenna: Yes
Working Frequencies: N/A

GNSS Specifications

Satellite Channels: N/A
GPS Frequencies: Yes
BDS Frequencies: Yes
Hot/warm/cold Start: Yes
Tracking sensitivity: Yes
GNSS Antenna: Yes
Positioning Type: N/A
Accurancy GNSS Accuracy: <10M @ Open Sky
LBS Accuracy: 100-2000m
(Depend on density of base stations)

Activate Device

First Step： Prepare and Install SIM Card

If using your local SIM card, please make sure the SIM card already enabled SMS, internet data traffic, call and caller ID displaying functions;

If use our spionlink SIM card, then please recharge it via this website www.spionlink.com to get data plan firstly.

MiCODUS MV66 2G Mini OBD II GNSS Tracker 2

LED	Event	State
POWER LED (RED)	Charging	Solid
	Charger inserted and battery has been fully charged	Dark
	Charger has not been inserted	Dark
CELL LED (YELLOW)	Searching for network	Flash every 1 second
CELL LED (YELLOW)	Network has been registered	Solid
GPS LED (BLUE)	GPS is in fixing	Flash every 1 second
GPS LED (BLUE)	GPS has fixed	Solid
ALL LED	Device is working but stopped more than 5min	ALL LED TURN OFF
	Device has not been turn on
	Device ran out of battery

Second Step: Configure APN

Please get the exact correct APN name from local SIM card provider.Take the tracker to a good signal place for operation and configure the APN for it as below:

SMS Command Format	Reply	Example	Note
apn,apn content, apnuser,apnpasswd#	apn ok	apn,orange, orange,orange#	If there has APN user and APN apnpassword, then please use this command for configuration
apn,apn content#	apn ok	apn,internet#	If there doesn’t have APN user and APN password, then please use this command for configuration

Note: The APN information is very important, it must 100% correct to match with the sim card of the tracker, if you configured wrong APN, the tracker also will reply “SET APN ok” but it will can’t get online!

Package Content

MV66 OBD Tracker x 1
User Guide x 1
Packing Box x 1
OBD Extension Cable（optional） x 1

Functions Explanation

Voice Monitor
Please get the exact correct APN name from local SIM card provider.Take the tracker to a good signal place for operation and configure the APN for it as below: Second Step: Configure APN
Step 1: Set up a center number for the device: CENTER,A,CENTER NUMBER#

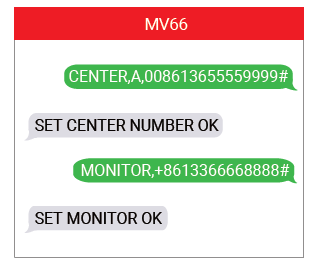

For example, if your cellphone number is 008613655559999, then you can set up the center number like this: CENTER,A,+8613655559999#Note: Please add country code as prefix with your cellphone number!
Step 2: Use the center number to set up a number for the tracker to call back: MONITOR,number for monitor#
For example: MONITOR,+8613366668888# The tracker will make a call to this number +8613366668888 and this number can pick up the call to monitor the voice around it.
Set Data Upload Interval
TIMER,T1,T2#
T1 ranges 0/5~18000 or 0(seconds), upload interval when ACC ON, 0 means no upload, default is 10;
T2 ranges 0/5~18000 (seconds), upload interval when ACC OFF, 0 means no upload, default is 10;

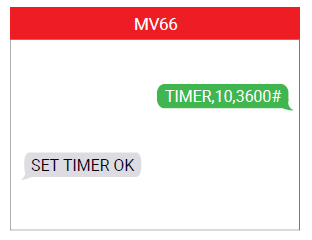

For example: TIMER,10,3600# This command means the tracker will upload every 10 seconds when it engine is on, and every 3600 seconds when engine is off.
Vibration Alarm
Step 1: Set up a center number for the device: CENTER,A,CENTER NUMBER#
For example: if you want to set up this number as center number:+8613366668888, the command should be sent like this: CENTER,A,+8613366668888#
Note: Please put the country code as prefix with the center number
Step 2: Set up SOS contact numbers:
SOS,A,SOS1,SOS2,SOS3#
For example: SOS,A,+8613366667777,+8613366667778,+8613366667779#
Note: You can set up 3 SOS alarm numbers for the device at the same time.
Step 3: Set up the vibration alarm way: SENALM,A,M#
A=ON/OFF, default: OFF;
M=0/1/2, way of alarming, 0 : Server only, 1: SMS+Server,
2 : SMS+Server+Call, default:2
For example: SENALM,ON,1#
This means the vibration alarm message will be sent out via server and SMS

Installation Recomendation

Area A: VW、Ford、 Toyota 、Hyundai 、Citroen、BMW、 etc./Most cars.
Area B: Honda,Lexus,etc.
Area C: Dongfeng Citronen,etc.
Area D/E: A few cars…

Trouble shooting

Type	Use
Unable to connect to tracking platform	Check the APN and settings. Check whrther the data service of SIM card is enabled. Check the balance of SIM card.
Tracker shows offline	Check whether external power is still connected. Check if the vehicle entered netword blind area. Check the balance of SIM card.
Unable to locate	Make sure the top side facing upward without metallic things shielded. Make sure it’s not in area with no satellite coverage.
Location drift	In area with poor GNSS signal (tall building around or basement), drifting may happen. Check whether vibration happens around to trigger the accelerator.
No command reply	Make sure command format is correct. Vehicle may be in network blind area. Make sure SIM card is well inserted and has SMS servi.

Full SMS Commands List

Query Commands

Functions	Command Format	Explanation
Version Inquiry	VERSION#	Device Reply Example: ID:7201074948 IMEI:354188046912460 ICCID:898602A51314F1298017 VERSION:MV66_V2.0.2 BUILD:OCT 19 2016 16:31:00
Map URL Inquiry	URL#	http://map.google.com/?q=22.557868,113. 935090 <0.0km/h 0.0> <2023-01-06 17:32:13> IMEI:354188047752402
Check IMEI	IMEI#	DEVICE IMEI No. : 354188046912458

Functions	Command Format	Explanation
Address Inquiry	POSITION#	NOTE: Reply message’s language is determined by device’s language setting, if get position content failed, device will reply Google Map location link.
Parameter Inquiry	PARAM#	ID: ID number of the tracker IMEI: IMEI number of the APN:APN name,APN user,APN password, IP:Domain name and port number or IP address, port pumber TIMER:Moving upload interval; Static upload interval SPEEDLIMIT: The overspeed threshold ANGLERPT: Data uploading angle CENTER: Center number of the tracker SOS: SOS1,SOS2,SOS3 GMT:Time zone
Status Inquiry	STATUS#	GPRS: CLOSED (No Network) FAILED (Connecting Network or Failure) SUCCESS (Connected to Network） GSM: NONE (No celluar Signal), HIGH / MED/ LOW (Signal Strength) , 18(Signal value) GPS: CLOSED (GPS Module Closed); FIXED,N (Positioned and satellite number); UNFIX,0 (Not Positioned yet) SPEED: 30KM/H ACC: ON / OFF (ACC on or off) POWER: CONNECTED / DISCONNECTED (Power Connected or Disconnected), 12.5V (Vehicle battery voltage) SENSOR: ON/OFF (Sensor on or off), LEVEL: 3 (Sensitivity level 1-9) STATE: ARM (Arm or Disarm)
Alarms Parameters	ALARM#	ID: 19172012644 (ID number of device) STATE: ARM(DISARM)(Defense status of device) SPEED: ON/OFF(alarm status); 30km/h(alarm value); alarm way SHIFT: ON/OFF(alarm status); 300m(alarm value); alarm way VIBRATE: ON/OFF(alarm status);3(sensitivity level); alarm way ACC: ON/OFF(alarm status); 0/1/2(0: ACC ON, 1: ACC OFF; 2: ACC ON&OFF) (alarm situation); alarm way ; POWER DOWN: ON/OFF(alarm status);alarm way LOW VOLTAGE: ON/OFF(alarm status);alarm way NOTE: Alarm Ways: Server Only, Server+SMS, Server+SMS+Call
Latitude&Longitude Inquiry	WHERE#	LAT:N23.02930,LON:E114.32180,COURSE: 0.00,S PEED:0.00KM/H,DATETIME: 2023-01-06 17:39:11

Setting Commands

Functions	Command Format	Explanation
Change IMEI	IMEICHG, 354188046912460#	NEW IMEI No. : 354188046912460
Restore factory settings	FACTORY#	RESTORE FACTORY SETTINGS OK
Restart device	RESTART#	RESTARTING…1 MINUTE WILL BE OK
APN Setting	APN,Network name [,name,password]#	APN,CMNET# (if no name & Password) APN,internet,internet,internet# (if with name & Password)
Server Setting	If set with Domain Name: SERVER,1,Domain,Port#	SERVER,1,d.micodus.net,7700#
Server Setting	If set with IP: SERVER,0,IP,Port#	SERVER,0,47.254.77.28,7700#
Internet Traffic Switch	TRAFFIC,ON#	OPEN TRAFFIC OK
Internet Traffic Switch	TRAFFIC,OFF#	CLOSE TRAFFIC OK
Time Zone Setting	GMT,Time zone orientation,Whole Time Zone [,Half Time Zone]#	GMT,E,8# (if no half time zone) GMT,W,9,30# (if has half time zone) NOTE: Parameter : E / W；0 ~ 12; 0/15/30/45
Set the angle upload	ANGLEREP,X,A,B#	Example: ANGLEREP,ON,30,3# ( Means the tracker will send a data supplement when the angle change exceeds 30 degrees and lasts for 3 seconds) X=ON/OFF, default: ON; A=5～180 degrees, diversion angle degree, default： 30 degrees； B=2～5 seconds, detecting time, default：3 seconds,
Set the angle upload	ANGLEREP,OFF#	CANCEL UPLOAD ANGLE OK
Mileage Statistics	MILEAGE,A,B#	Example: MILEAGE,ON,5000# (Means the initial mileage value is 5000KM) A=ON/OFF, On/Off mileage calculation, default: Off B=0～999999，Mileage initial value , unit：km ; default: 0, mileage return to zero
Mileage Statistics	MIELEAGE#	Query current mileage
Add SOS Administrator Number	SOS,A,1st number, 2nd number, 3rd number#	Set 3 numbers at a time: SOS,A,13800138000,1380013800 1,13800138002# Set the first numberseparately: SOS,A,13800138000# Set the second number separately: SOS,A,,13800138001# Means to set 3rd number separately: SOS,A,,,13800138002#

Functions	Command Format	Explanation
Delete SOS Administrator Number	SOS,D,1st number,2nd number,3rd number# or SOS,D,1,2,3#	Directly delete the number: SOS,D,13800138000# Delete 1st number: SOS,D,1# Delete 2nd number: SOS,D,2# Delete the 2nd and 3rd number: SOS,D,2,3#
Add Center Number	CENTER,A,center number#	CENTER,A,+8613800138000# NOTE: Please remember to add the country code as prefix with the cellphone number!
Delete Center Number	CENTER,D#	DEL CENTER OK
Data Upload Time Interval	TIMER,T1,T2#	Example: TIMER,5,3600# T1 ranges 0/5~18000 or 0(seconds), upload interval when ACC ON, 0 means no upload, default is 10; T2 ranges 0/5~18000 (seconds), upload interval when ACC OFF, default is 10;
Heartbeat Packet Upload	HBT,time#	Example: HBT,3# ( Means the tracker will send hearbeat data package to server very 3min to keep the network connected ) Time: 1-60min, default 3min
Sensor Sensitivity	LEVEL,A#	Example: SENLEVEL,4# ( Means shake sensor level is set to 4 ) A=1-9 NOTE: 1-9 is from week to strong vibration
Arm manually	DISARM#	Set the device into arm mode
Disarm manually	ARM#	Set the device out of arm mode
Auto Arm By ACC	ACCARM,ON,M#	Example: ACCARM,ON,60# (Means the tracker will enter into arm status automatically when the ACC off more than 60 seconds) Arm Time: M=5-1800s, default: 60s
Auto Arm By ACC	ACCARM,OFF#	Close auto arm function
Voice Monitor	MONITOR, +8613428768257#	Example: MONITOR,+8613366669999# (Means the tracker will make call to this number +8613366669999,then this number +8613366669999 can pick up the call to monitor the voice) N: Number for Voice Monitoring NOTE: 1.Please send this monitor command via the center number; 2. Any number can be set up to monitor the voice, the tracker will make a call to the number N and it will can pick up the call to monitor voice

Alarm Setting Commands

Functions

Command Format

Explanation

Overspeed Alarm Setting

SPEED,A,B,M#

Example: SPEED,ON,120,1# ( Means the speed limit is 120km/h and the alarm way is via SMS and Server ) A=ON/OFF, open or close over speed alarm,

default: OFF

B=1～255(km/h), speed limit, default：100(km/h);

M=0/1/2, way of alarm, 0 : SERVER only, 1: SERVER+

SMS, 2: SERVER+SMS+CALL; default: 1

Vibration Alarm Setting

SENALM,A,M#

Example: SENALM,ON,2# ( Means the vibration alarm already been enabled and the alarm message will be sent via Server, SMS and Call )

A=ON/OFF, default: OFF;

M=0/1/2, way of alarming, 0 :GPRS only, 1: SMS+GPRS, 2: GPRS+SMS+phone call, default:1

SENALM,OFF#

CANEL VIBRATE ALARM OK

Shift Alarm Setting

SHIFT,A,B,M#

Example: SHIFT,ON,100,1# ( Means Setting 100 meters shift alarm range, when the ignition turned off, vehicle’s 100 meters’ shift will trigger the alarm.) A=ON/OFF; default:ON

B=Shift Distance (Range: 100-9999m)

M=0/1/2; way of alarm, 0 : GPRS only,

1: SMS+GPRS, 2: GPRS+SMS+CALL, default:1

SHIFT,OFF#

CANCEL SHIFT ALARM OK

ACC Status Change Alarm

ACCALM,A,B,M#

Example: ACCALM,ON,0,2# (Means the tracker will send alarm message out via Server, SMS and Call when the engine is start)

A=ON/OFF, Default: ON;

B: 0/1/2; 0: ACC ON Alarm; 1: ACC OFF

Alarm; 2: ACC ON&OFF Alarm; Default:2

M: 0/1/2 (way of alarm): 0 : Server only,

1: SMS+Server, 2: SMS+Server+Call, Default:1;

ACCALM,OFF#

Cancel ACC alarm function

Power Disconnect Alarm

PWRALM,A,M#

Example: PWRALM,ON,2# (Means if the external power disconnect the tracker will send alarm message out

via Server, SMS and Call)

A=ON/OFF, default ON;

M=0/1/2, ways of alarming, 0: Serveronly,

1: SMS+Server, 2 : SMS+Server+Call, default:2；

PWRALM,OFF#

Close power disconnect alarm

Functions

Command Format

Explanation

Low Voltage Alarm Setting

LVALM,A,B,M#

Example: LVALM,ON,13,2# (Means when the voltage of the car battery is lower than 13V, the tracker

will send alarm message via Server, SMS and Call )

A=ON/OFF, default：ON;

B=9-95V (Low Voltage Limit Value)

M=0/1/2, way of alarming, 0: GPRS only,

1: SMS+GPRS, 2: SMS+GPRS+Call,default:1；

LVALM,OFF#

CANCEL LOW VOLTAGE ALARM OK
