T-MARK T1-6 GNSS Tracker
The T1-6 GNSS Tracker is a device that allows you to track the location and behavior of your vehicle. It has a range of features that make it a valuable tool for fleet management and personal use.
Features
- Fuel supply control
- Driving behavior analysis
- Multi-GNSS
- ACC detection
- Location data re-upload
- Smart power saving
- Anomaly alert (vibration, over-speed, power-off, etc.)
PRODUCT Operating Environment
- Operating voltage: 12-90VDC
- Internal backup battery: 3.7V/80mAH battery
- Operating current: 22mA @12V
- Standby current: 3mA @12V
- Operating temperature: -20 to 70
- Storage temperature: -40 to +85
- Positioning accuracy
Product Usage Instructions
- Read the user manual carefully before using the device.
- Install the device in your vehicle according to the instructions provided.
- Activate the device online to start tracking your vehicle.
- The device will provide data on fuel supply control, driving behavior analysis, and location data through its multi-GNSS capabilities.
- The device will detect ACC and provide anomaly alerts for vibrations, over-speeding, and power-off.
- The device has smart power saving features that help to conserve battery life.
- Store the device in a safe and dry location when not in use.
By following these instructions, you can effectively use the T1-6 GNSS Tracker to track and monitor your vehicle’s location and behavior.
Please read the manuals carefully before you use it, so as to get the correct installation and quick online activation. If the appearance and color of the product are changed, the object will prevail.
Introduction
Features
- Fuel supply control
- Driving behavior analysis
- Multi-GNSS
- ACC detection
- Location data re-upload
- Smart power saving
- Anomaly alert (vibration, over-speed, power-off, etc.)
Operating Environment
- Operating voltage: 12-90VDC
- Internal backup battery: 3.7V/80mAH battery
- Operating current: 22mA @12V
- Standby current: 3mA @12V
- Operating temperature: -20℃ to 70℃
- Storage temperature: -40℃ to +85℃
- Positioning accuracy: <10m
- Location modes: GPS, BDS, AGPS, and LBS
Frequency Bands
- GSM: B2/B3/B5/B8
Overview

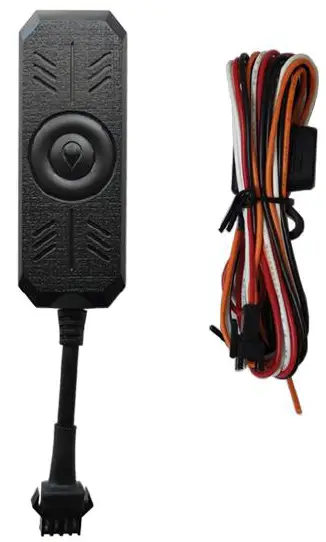

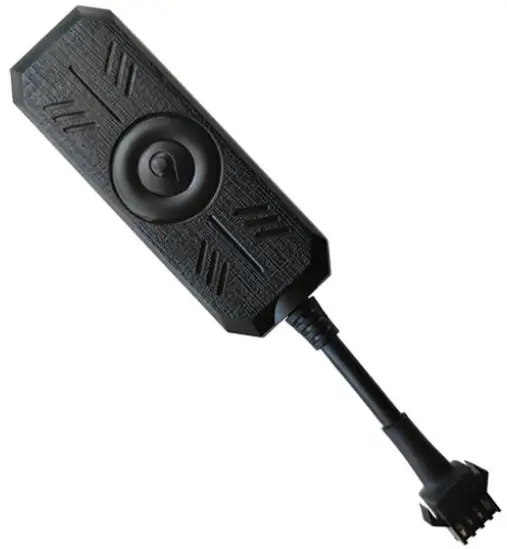

Appearance
Connotations of Indicators
Indicator (Red)
- Keep on: Power is connected, GPS is positioned, GSM is working
- Fast flashing: Power not connected, GPS positioned, GSM working
- Normal flashing: Power is connected, GPS is not positioned, GSM is working
- Slow flashing: Power is connected, GPS is positioned, GSM is not working
- Off: Power is not connected, GPS is not positioned, GSM is not working
Note: By default, when the device is stationary for 3 minutes, the LED will automatically turn off and wake up after a vibration.
Installation
Inserting the SIM Card

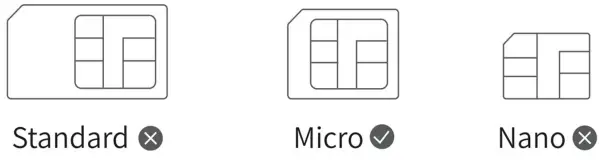

Step 1 Prepare a proper SIM card;

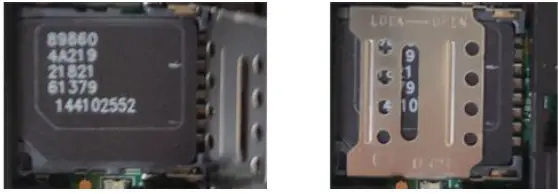

Step 2 Insert the SIM
- After the SIM card is inserted, the device powers on using the backup battery. If the device fails to power on due to low battery, you can connect the device to the external power.
Note: The SIM card must be inserted correctly, has GPRS services activated, and is not in arrears. If the SIM is identified and requires a PIN, please disable the PIN request.
Installing the Device

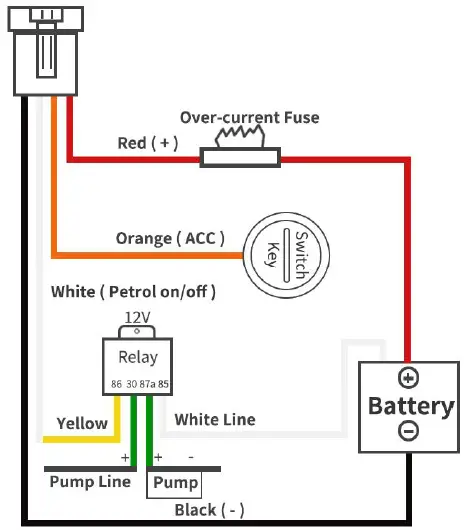

Product wiring diagram
- Use a multimeter to find out the positive and negative terminals of the vehicle battery and the ACC line.
- Connect the red wire (positive)of the device configuration power cable to the positive terminal of the vehicle battery.
- Plug in the connector as shown in the figure below.
Device wiring

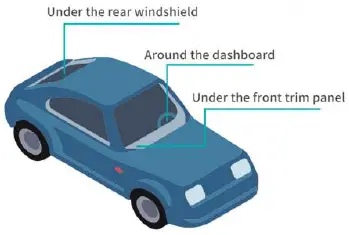

Car mounting position

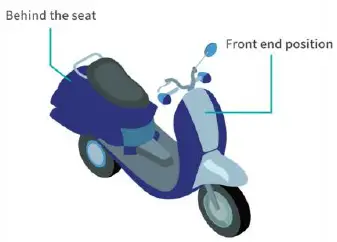

Electric car installation location

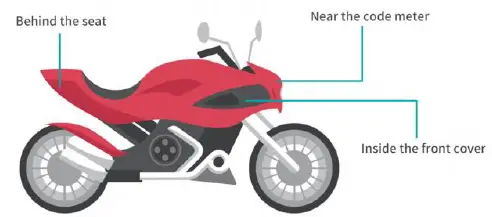

Motorcycle installation position
Product Features
| Content | Function | Description |
|
Positioning function | Timed tracking | Transmit back the positioning information such as latitude and longitude according to the set interval time. |
| Street map | 360-degree high-definition map | |
| Speeding alarm | When driving over speed, the locator will send alarm to your cell phone | |
| Vibration alarm | Built-in vibration sensor, continuous vibration of the vehicle, the device will immediately send alarm alerts | |
| Electronic fence | When the car driving range exceeds the specified area, the platform will send alarm information | |
| History track | Can play back 90 days of the track, playback the speed, direction, stay time and other content | |
| Displacement alarm | When the vehicle encounters illegal operation or theft, the fuel and electricity can be cut off remotely by computer or cell phone APP | |
| Fleet management | 1 cell phone can manage multiple devices, or 1 device multiple cell phone management |
Analysis of common problems
| Failure phenomenon | Failure analysis | Treatment method |
|
GPS is not positioned | Determine whether to use the terminal in areas with poor GPS signals, such as near tall buildings or underground parking lots | Move the vehicle to a location with a good signal Use the terminal |
| Determine whether the front windshield of the vehicle has metal heat insulation film affecting the signal reception | If there is a film, the equipment will be changed to other vehicles to test whether the blue light is always on, such as in other vehicles without film to test no problem, then the vehicle is caused by the film | |
| Determine whether there is a shield or signal jammer on or around the car | If there is a shield or source of interference, remove the shield or source of interference and try to reinstall | |
|
GSM is not working | Determine whether the SIM card is installed properly | Check whether the SIM card is installed in place |
| Determine if there is dirt or poor contact on the metal surface of the SIM card | Wipe the metal chip surface with a clean cloth or repeatedly insert and remove the card several times | |
| Determine if the vehicle is in a place with no mobile network, such as an underground parking lot. | Please drive the vehicle to a place with good network signal and try to reinstall it. | |
| Determine whether the server background is normal | Ask if the server of the background management platform is normal | |
| Determine whether the SIM card status is normal or not | Check whether the status of the SIM card is normal through the SIM card inquiry platform | |
| Determine whether there is a shield or signal interferer on the car or around | If there is a shield or source of interference, remove the shield or source of interference and try to reinstall |
