NAVIGATION RADIO
User Manual
Model Name: LANR21 / LANR22
Overview and Specifications
(1) Overview
1) The Infotainment system provides infotainment in a car, using the latest technology. See your dealer have the system or software updated and upgraded.
2) The radio can be easily used by registering up to 36 AM, FM, or DAB with the PRESET button.
3) The Infotainment system can play the USB storage device or iPhone products.
4) The Bluetooth phone connection function allows for the use of wireless hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
(2) Product Specifications
Item | Categories | Specifications |
| Specification | Product Name | RECEIVER-NAVIGATION RADIO |
| Model | LANR21 LANR22 | |
| Dimensions | Refer to image | |
| Weight | LANR21: 0.9kg LANR22: 0.885kg | |
| Power source | DC 12V | |
| Operational temperature range | -40 °C – 80 °C |
LANR21
Platform Overview
| System | CPU RAM Storage OS MICOM | SA81 50P LPDDR4x 8GB UFS 128GB Android 10 Infineon |
| Audio/Radio | DSP | NXP MERCURY |
| Display | Interface | GMSL2 with Touch |
Main Features
Broadcast – Dual Tuner with TMC (RDS), DAB
Media
– USB
Connectivity
– Bluetooth ver5.0+EDR/LE, WiFi (IEEE 802.11 a/b/g/n/ac)
– CarPlay, Android Auto
In-Vehicle Network
– CAN
Ethernet Network
– CGW (Central GateWay)
– TCU (Telecommunication Control Unit)
– OMC (Occupant Monitoring Camera)
Rear View Camera (Analog)
– CVBS
Rear View Camera (Digital) / Around View Monitor
– GMSL1
AR Navigation Camera
– GMSL1
Audio
– Internal AMP or External AMP
Navigation
– Google Map
LANR22
Platform Overview
| System | CPU RAM Storage OS MICOM | SA81 50P LPDDR4x 8GB UFS 128GB Android 10 Infineon |
| Audio/Radio | DSP | NXP MERCURY |
| Display | Interface | GMSL2 with Touch |
Main Features
Broadcast
– Dual Tuner with TMC (RDS), DAB
Media
– USB
Connectivity
– Bluetooth ver5.0+EDR/LE, WIR (IEEE 802.11 a/b/g/n/ac) – CarPlay, Android Auto
In-Vehicle Network
– CAN
Ethernet Network – CGW (Central GateVVay)
– TCU (Telecommunication Control Unit)
Rear View Camera (Analog)
– CVBS
Audio
– Internal AMP

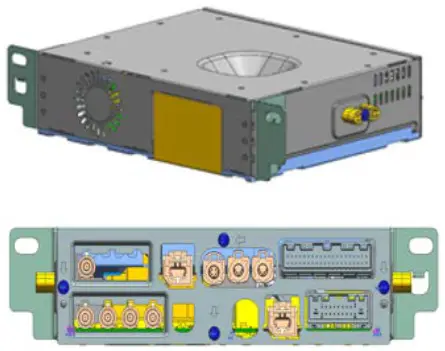

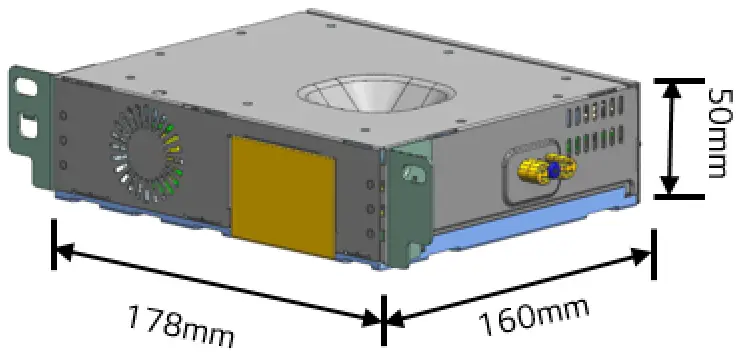

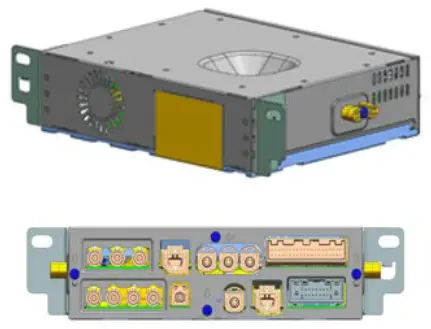

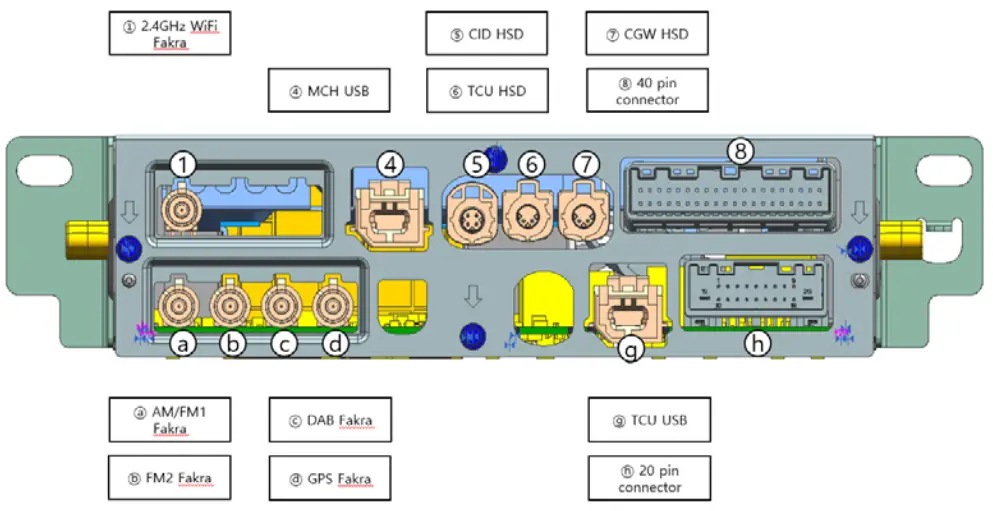

(3) Dimension & Rear connector information
LANR21
LANR22
(4) RF specifications
Radio
| Item | Frequency range | Unit |
| FM | 87.5 ~ 108.0 | MHz |
| AM | 522 ~ 1611 (MW) 149 ~ 283 (LW) | kHz |
| DAB | 174.928 ~ 239.200 | MHz |
GNSS
| Item | Frequency range | Unit |
| GPS | 1575.42 | MHz |
| GLONASS | 1598 ~ 1610 | MHz |
| GALILEO | 1575.42 | MHz |
Bluetooth
| Item | Specification | Unit |
| Frequency | 2402 ~ 2480 | MHz |
| Modulation Type | GFSK, π/4 DQPSK, 8 DPSK | |
| BT Power | 1(BT Class 2) | dBm |
| Data rate | 1 ~ 3 | Mbps |
| Channel spacing | 1 ~ 2 | MHz |
| BT version | Ver 5.0+EDR/LE |
Wifi
| Item | Specification | Unit | |||
| Standard | IEEE 802.11 a/b/g/n/ac | ||||
| Frequency | 2.4G | 2412 – 2472 | MHz | ||
| 5G | 5725 – 5875 | MHz | |||
| Bandwidth | 20 /40 / 80 | MHz | |||
| Data rate | 2.4G | 802.11 b | 20M | 1, 2, 5.5, 11 | Mbps |
| 802.11 g | 20M | 6, 9, 12, 18, 24, 36, 48, 54 | Mbps | ||
| 802.11 n | 20M | 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2 | Mbps | ||
| 5G | 802.11 a | 20M | 6,9,12,18,24,36,48,54 | Mbps | |
| 802.11 n | 20M | 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2 | Mbps | ||
| 802.11 n | 40M | 15, 30, 45, 60, 90, 120, 135, 150 | Mbps | ||
| 802.11 ac | 20M | (.2, 14.4, 21.7, 28.:6.473.3, 57.8, 65, 72.2, | Mbps | ||
| 802.11 ac | 40M | 15, 30, 45, 60, 90, 120, 135, 150, 180, 200 | Mbps | ||
| 802.11 ac | 80M | 32. 5 65, 97 .5, 130, 195, 260, 292 .5, 325 390, 433.3 | Mbps | ||
| Modulation | DSSS, CCK, OFDM(64-QAM, 256-QAM) | ||||
| Mode | AP, Station | ||||
| Item | Max. RF Power | Unit | |
| Power Setting | 2.4 GHz | 20 | dBm |
| 5 GHz | 14 | ||
* Only CE Certified Country
Precautions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
1) Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while driving and always be fully aware of all driving conditions.
Do not change settings or any functions. Pullover in a safe and legal manner before attempting such operations. To promote safety, certain functions are disabled unless the parking brake is on.
2) To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this product to dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit low enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at any time.
6) The driver should not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, [LG Electronics Inc.] declares that IR12PT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc#
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times. This device must not be collocated or operating in conjunction with any other antenna or transmitter.
Postal Address:
10, Magokjungang 10-ro, Gangseo-gu, Seoul, 07796, Korea
The use of the 5150 ~ 5350 MHz band is restricted to indoor use only. This restriction will be applied in all member states.
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions :
(1) This device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital devices, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
