Montezuma Bkm722016tc 72" X 20" Tool Chest And Cabinet Owner's Manual

72″ X 20″ TOOL
CHEST AND CABINET
M722010CH/M722016TC
www.montezumastorage.com
Owner’s Manual

BKM722016TC 72″ X 20″ Tool Chest And Cabinet

LIFE ORGANIZED
Montezuma is committed to helping you succeed in both your work and personal life by being organized, prepared and equipped with the right tools, gear and home supplies at your finger tips.
We are here to ensure that your life is organized.
Thank you for your purchase of this Montezuma Tool Chest and Cabinet.

ATTENTION
TO REDUCE THE RISK OF INJURY, THE USER MUST READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING THIS PRODUCT FOR THE FIRST TIME. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fill in the following information and retain this owner’s manual for future reference:

MODEL(S):………..
DATE OF PURCHASE:………….
PLACE OF PURCHASE:…………..
RECEIPT NO:…….

SPECIFICATIONS

MAXIMUM PRODUCT WEIGHT (INCLUDING CONTENTS): 3,300 lb (1,497 kg)
MAXIMUM DRAWER WEIGHT: 150 lb (68 kg)
POWER STRIP
MODEL: LTS-04C/CH-04F
SURGE PROTECTIVE DEVICES
RATING: 120 V AC 15 A 60 Hz 1875 W
USB: TOTAL 2.1 A – Check your device for compatibility
USB O/P: IT EQUIPMENT ONLY
VPR: 500-1000 V (L-N) TYPE 3 SPD
CONFORMS TO UL STD. NO 1363 AND ANSI/UL STD. NO. 1449
CERTIFIED TO CSA STD. C22.2 NO. 308&8

72″ x 20″ 10-DRAWER TOOL CHES
M722010CH
OVERALL DIMENSIONS:
72-5/8″ W x 20-1/8″ D x 25″ H
(184.6 cm W x 51 cm D x 63.5 cm H)
NET WEIGHT: 233.69 lb (106 kg)
INSIDE TILL/DRAWER DIMENSIONS:

72″ x 20″ 16-DRAWER TOOL CABINET
M722016TC

OVERALL DIMENSIONS:
72-5/8″ W x 20-1/8″ D x 41-1/8″ H
(184.6 cm W x 51 cm D x 104.5 cm H)
NET WEIGHT: 425.49 lb (193 kg)

* Dimensions do not include side handles.

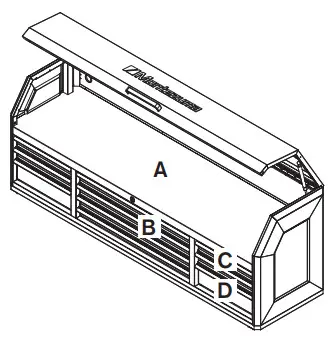

CHEST PARTS LIST

The keys are taped to the top storage area of the chest.

To order replacement parts, email [email protected] or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.

CABINET PARTS LIST

They keys are taped to the top of the caster carton, which is placed in the bottom right drawer of the cabinet.

To order replacement parts, email [email protected] or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.

HANDLE INSTALLATION

NOTE: Assemble the handles first to make it easier to move the cabinet.
Position the handles over the holes in the abinet and attach with the M6 x 12 mm Phillips head bolts provided. Tighten securely using a 10 mm socket.CORD WRAP INSTALLATION
Position the cord wrap over the holes in the cabinet. Attach with the M6 x 12 mm Phillips head bolts provided. Tighten securely.

POWER STRIP INSTALLATION

Cut the black strip holding the cord, then pull the white strip to get the plug out of the cabinet and through the grommet. Tighten the grommet.

CHEST AND CABINET CONNECTION

CAUTION: Two or more people may be required to complete this step.
NOTE: It is not required to remove the worktop attached to the cabinet. If you do want to remove the worktop, first remove the drawers, then unbolt the worktop.
Place the chest on the cabinet. Attach the connectors to the chest, making sure the hook head snaps in the square hole on the back of the chest. Fasten the M6 x 12 mm hex bolts to the cabinet.

RAISE AND RELEASE DRAWER FRONTS

These units are equipped with raise and release drawer fronts. To open, lift up on the drawer front while pulling towards you. To close, shut the drawer firmly until the latch engages.
If the drawer does not stay closed, the hook may be bent, or it may be rubbing against the drawer slides. To fix this problem, lightly bend the hook until the drawer will engage in the slide.

DRAWER REMOVAL

Pull the drawer out so that it’s almost fully extended. Push up on the black release lever on one side, while pushing down on the black release lever on the other side. While holding the levers in these positions, pull the drawer outward until it is released from the drawer slide.

ONE SIDE – PUSH UP

ONE SIDE – PUSH UP	OTHER SIDE – PUSH DOWN

DRAWER REPLACEMENT

Extend the drawer slides from the unit. Insert the brackets on each side of the drawer into the slots in the slides, being careful that they are properly positioned. Once properly inserted, completely close the drawer to set the slides in position.

MAINTENANCE

Periodically clean the drawer fronts, trim, and other surfaces with mild detergent and water.
Lubricate the casters with high quality bearing grease (annually/yearly).
Lubricate the slides (twice a year) with a product like WD40 or other quality lubricant. This is especially important in low temperatures, which can cause the bearing to become stiff.
Grease and oil can be removed with most standard cleaning fluids. For safety, use a nonflammable cleaning fluid.

SAFETY

RISK OF ELECTRIC SHOCK. To reduce the risk of electric shock, use indoors in a dry location only. Do not plug the power strip into another power strip. Not for use for a permanent installation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Close the cover and lock the drawers before moving this product. The drawers could come open and make the product unstable and tip, which may cause personal injury or product damage.
Do not attempt to lift the unit by its side handles using chains, ropes or other lifting devices. The side handle could fail, which may cause personal injury or damage to the product.
DO NOT stand on this product or lean on the drawers or work surface.
WEAR SAFETY GLASSES when removing or repositioning the slides. The tool could slip, which may cause personal injury.
When moving this product, do not pull it. Push the product to prevent personal injury.
USE THE BRAKES when not moving this product. This will prevent the product from rolling, which may cause personal injury or product damage.
BE CAREFUL when opening more than one drawer. The product could become unstable and tip, which may cause personal injury or product damage.
DO NOT mount this product on a truck bed or any other moving object. This may cause personal injury or product damage, and will void the warranty.
Secure this product properly before moving it with a forklift.
DO NOT tow with power equipment. The product could tip, which may cause personal injury or product damage.
Keep the product on level surfaces. The product could become unstable and tip if stored or moved on an uneven surface, which may cause personal injury or product damage.

This product is warranted to be free from defects in materials and workmanship for a period of five (5) years from the date of original purchase.
If this product is defective, email [email protected] or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). If the product is defective, we will replace the defective part at no cost to you.
Please do not ship your product back to the store or to us unless we send you written instructions for return.
In the event it becomes necessary for your product to be returned, we will notify you how to proceed.
A copy of your original purchase receipt must accompany the returned product.

WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Manufactured by:
QUALITY CRAFT
Romeoville, IL, USA 60446
[email protected]
1-800-459-4409
(Monday to Friday, 8:00 am–4:30 pm, CST)
Made in China
M722010CH/M722016TC_05/20
www.montezumastorage.com
