EcoBell 100 pLuG
Carillon sans fil & sans pile
Already programmed and ready to us

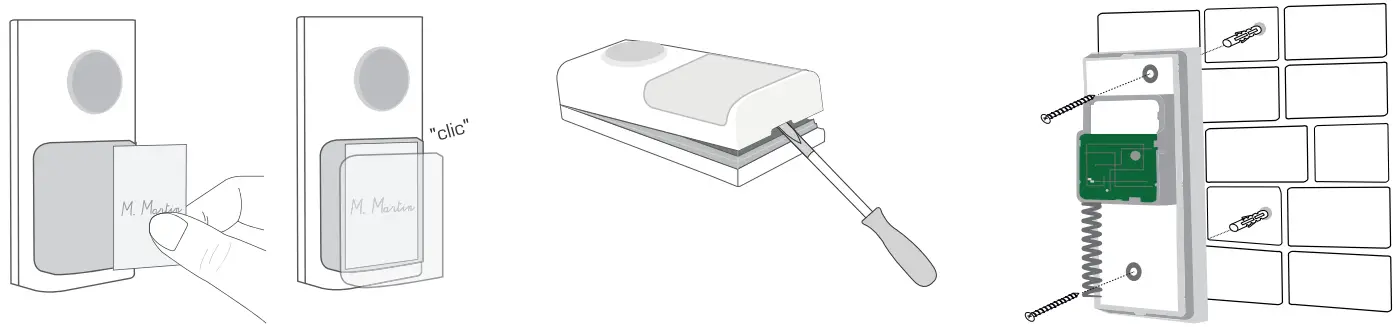

INSTALLATION
- Push button
- Chime
Free-field range
 | free-field |
| wood,glass | |
| plasterboard | |
| stone | |
| concrete | |
| metal |
SETTINGS

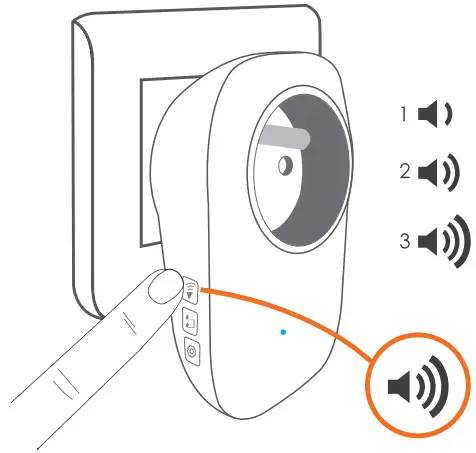

Volume adjusment

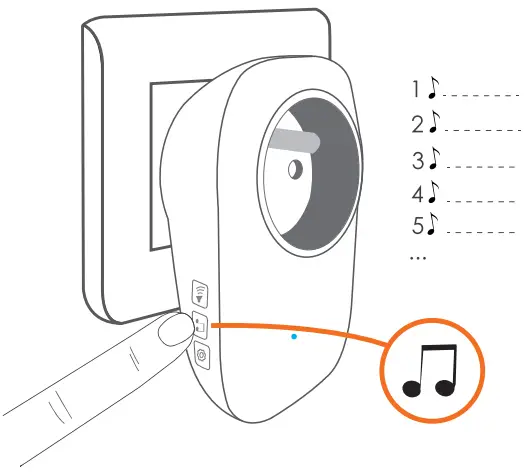

Set the ring melody

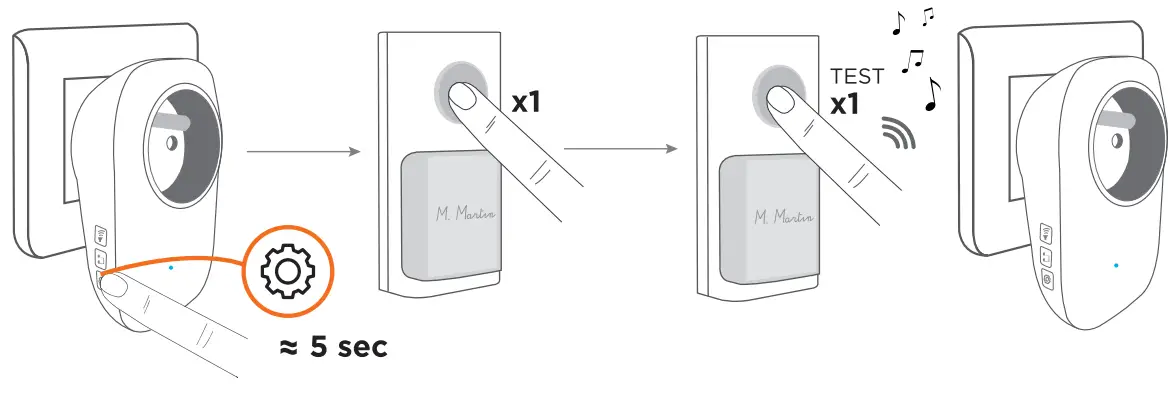

REPROGRAMMING(IF NECESSARY)
Place the chim close to the push button
Press and maintain the button.
Appuyer x1
Press 1 to test

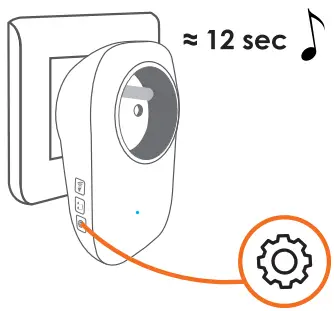

Reset
Press and maitain button approx. 12 seconds on the chime until the melodyrings (ai the push buttons are deleted)
 |
 |
 |
To youe werranty in accordance with French regulation. It s mperative to keep a proof of purchase during the whole warranty period.
For an individual answer, use our online
chat on our welbsite www.scs-sentinel.com
This manual is an integral part of your product. Keep it in a safe place for future reference. Use the equipment only for its intended purpose. The appliance should not be exposed to splashing water or near a heat source (radiator). Do not clean the appliance with abrasive or corrosive substances . Only use a soft cloth. Do not let children play with the product or with the packaging.
Don’t throw out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the en-vironment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
Alternating current
Model class II
The chime is for indoor use only
The outdoor unit is protected against harmful dust deposits and water jets from any direction
V.032023 – IndG
CSE0093
