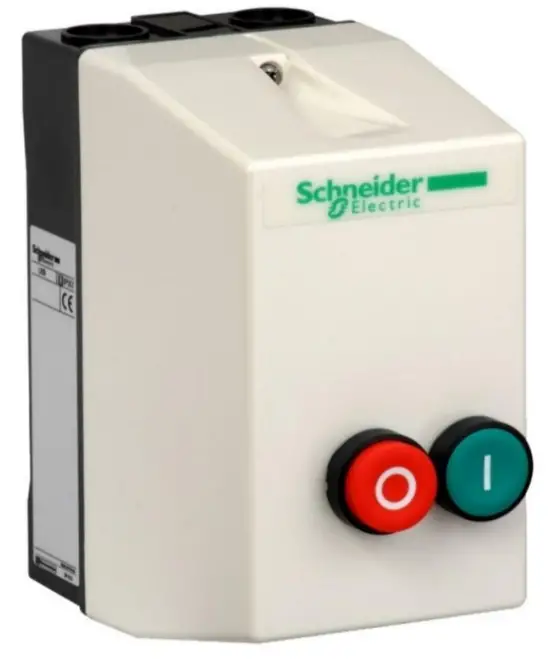

Schneider Electric TeSys LE Enclosed DOL Starter
Product Information
The TeSys LE enclosed DOL starter is a product manufactured by Schneider Electric Industries SAS. The main function of the product is to isolate a circuit, protect and/or control a motor. The product reference is LE1D09P7 and the total representative product mass is 920 g. The product dimensions are 88mm x 166mm x 128.5mm.
The product contains plastic parts made of PC, ABS-PC, PA, PA6, HDPE, and SAN with brominated flame retardants. The weight of these plastic parts is 20.81 g and 0.51 g. The product should be disposed of according to the legislation of the country as it falls within the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
Product Usage Instructions
The TeSys LE enclosed DOL starter is designed to isolate a circuit, protect and/or control a motor. To use the product, follow the steps below:
- Ensure that the product is properly installed in the circuit.
- Connect the motor to the starter according to the wiring diagram provided in the product manual.
- Turn on the power supply to the starter.
- If necessary, adjust the settings on the starter to control the motor.
When the product reaches its end of life, it should be disposed of according to the legislation of the country as it falls within the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
End of Life Instructions
| Recommendation | Number on drawing | Component / Material | Weight (in g) | Comment |
| To be depolluted | 1,3,4 | Other plastic parts with brominates flame retardants | 20.81 | plastic parts with brominated FR |
| To be depolluted | 2 | PC, ABS-PC, PA, PA6, HDPE, SAN with brominates flame retardants | 0.51 | plastic parts with brominated FR |
Product description
| Product description | ||
| Manufacturer identification | Schneider Electric Industries SAS | |
| Brand name | Schneider Electric | |
| Product function | The main purpose of the product is to isolate a circuit, to protect and/or to control a motor. | |
| Product reference | LE1D09P7 | |
| Total representative product mass | 920 g | |
| Representative product dimensions | 88mm x 166mm x 128.5mm | |
| Date of information release | 08/2022 | |
Additional information
| Additional information | |||
|
Legal information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product. | ||
| In case of special transportation: transportation method | No | ||
| Recyclability potential | 34% | Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). | |
Schneider Electric Industries SAS
Country Customer Care Center
http://www.schneider-electric.com/contac35,rueJosephMonier
CS 30323
F- 92506 Rueil Malmaison Cedex
RCS Nanterre 954 503 439
Capital social 896 313 776 €
www.schneider-electric.com
ENVEOLI2107010_V1
