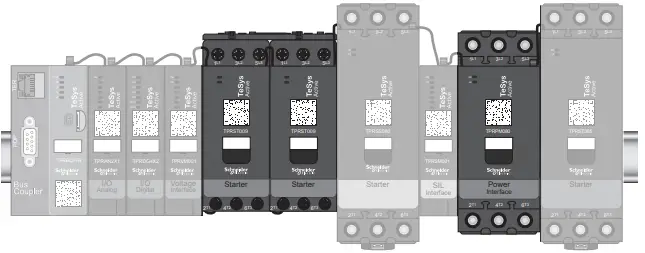

Schneider Electric TPRS-009 TeSys Island Starters and Power Interface Modulesa
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
- Read and understand this document and the documents listed on page 3 before installing, operating, or maintaining your TeSys Active.
- This equipment must only be installed and serviced by qualified electrical personnel.
- Turn off all power supplying this equipment before mounting, cabling, or wiring this equipment.
- Use only the specified voltage when operating this equipment and any associated products.
- Power line circuits must be wired and protected in compliance with local and national regulatory requirements.
- Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices per local and national regulatory requirements.
- Failure to follow these instructions will result in death or serious injury.
WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
WARNING
HAZARD OF FIRE
- Use only the specified wire gauge with the equipment and comply with the specified wire termination requirements.
- Tighten the power line connections to the specified torque values.
- Failure to follow these instructions can result in death, serious injury, or equipment damage.
WARNING
UNINTENDED EQUIPMENT OPERATION
- Do not disassemble, repair, or modify this equipment. There are no user serviceable parts.
- Install and operate this equipment in an enclosure appropriately rated for its intended environment.
- Always route communication wiring and power wiring separately.
- For complete instructions about the functional safety modules, refer to the Functional Safety Guide, 8536IB1904
- Failure to follow these instructions can result in death,serious injury, or equipment damage.
PLEASE NOTE
p Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. p No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.
Documentation
- 8536IB1901, System Guide
- 8536IB1902, Installation Guide
- 8536IB1903, Operating Guide
- 8536IB1904, Functional Safety Guide
Available at www.se.com.
Functional Safety Compliance
TPRSS•••: EN/ISO 13849-1, EN/IEC 62061 Ed 1, IEC 61508 Ed 2, IEC 61511 Ed 2

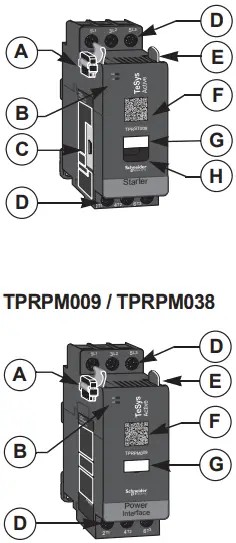

Features
- A. Flat cable
- B. LED status indicators
- C. Accessory attachment connection
- D. Power connections
- E. Flat cable connection
- F. QR code
- G. Name tag
- H. Mobile bridge

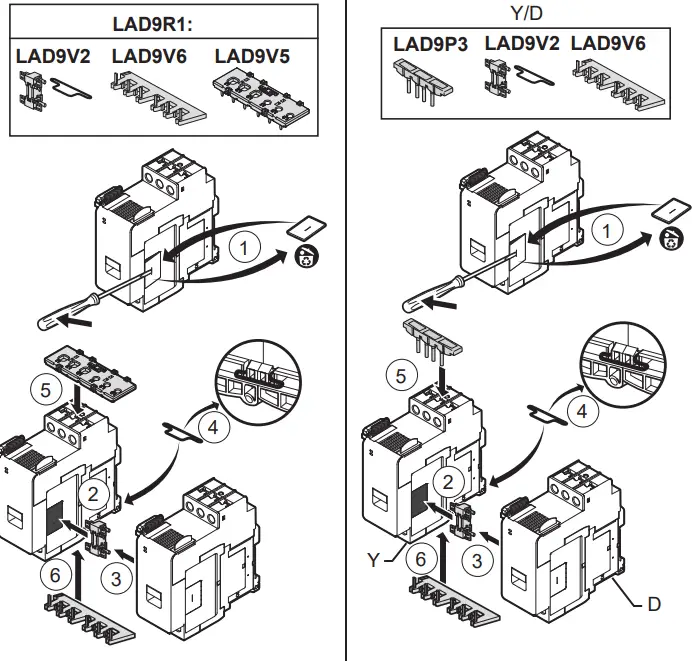

Coupling Starters
For 2 direction, 2 speed, and wye-delta (Y/D) avatars. See Installation Guide, 8536IB1902, for applications.
Disassembly

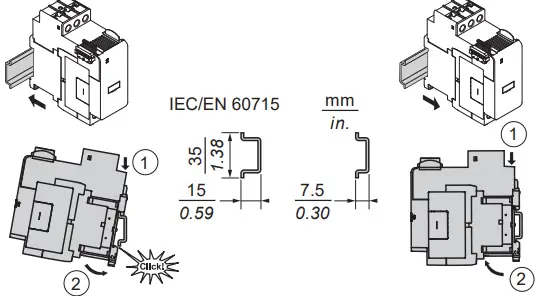

Mounting
Mounting
- mm
- in.
- N•m
- lb-in
- mm2
- AWG

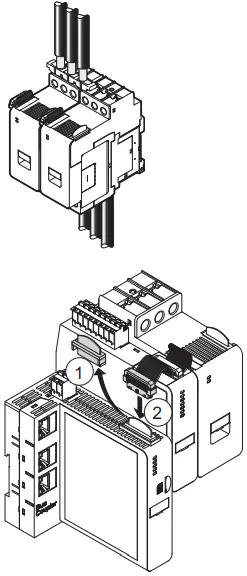

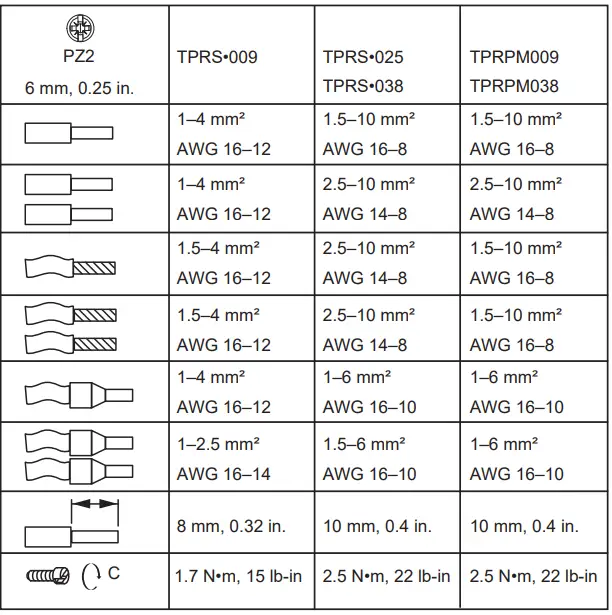

Cabling
- mm
- in.
- N•m
- lb-in
- mm2
- AWG
GroupMotorShort-CircuitRatings
| Circuit Protection / Protection des circuits
| kA | ||
|
TPRS•009 | GV2P14 or / ou / o / oder / o / ou / ya da / 或 / или GV2P14 + GV1G09 | 480 V | 50 |
| GV2P14 or / ou / o / oder / o / ou / ya da / 或 / или GV2P14 + GV1G09 | 600 V | 30 | |
|
TPRS•025 | GV2P22 or / ou / o / oder / o / ou / ya da / 或 / или GV2P22 + GV1G09 | 480 V | 50 |
| GV2P22 + Maximum 600 A Circuit Breaker1 or / ou / o / oder / o / ou / ya da / 或 / или GV2P22 + GV1G09 + Maximum 600 A Circuit Breaker1 | 600 V | 18 | |
| TPRS•038 | GV3P40 | 480 Y / 277 V | 50 |
| GV3P40 | 600 Y / 347 V | 25 |
Maximum 600 A Circuit Breaker / Disjoncteur 600 A maximum
