Hand Sweep Sensor Switch

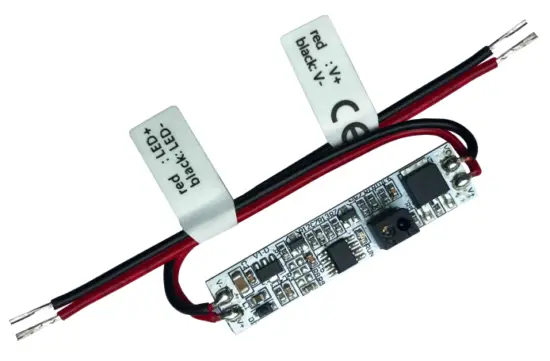

Model No.: E1-B
Hand sweep sensor/DC12-24V/4A output/Aluminum profile installation
Features
- Hand sweep sensor switch, connected directly to the low voltage LED strip.
- When hand swept, the strip turns on gradually.
When the hand sweep again, the strip turns off gradually. - Max 4A output current, max output power 96W@24V.
- Generally installed in the aluminum lamp strip housing.
- 3M paste in the bottom of the PCBA makes easy installation and security.
- Low cost and high stability.
- Widely used in table lamps, bedroom lamps, wardrobe lights, etc.
Technical Parameters
Input and Output
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output power | Max. 48W@12V Max. 96W@24V |
Sensor data
| Detective distance | ⩽8cm |
| Detective angle | 15-30 |
Environment
| Operation temperature | Ta: -30 ºC ~ +55 ºC |
Safety and EMC
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certification | CE,EMC,LVD |
Warranty and Protection
| Warranty | 5 years |
| Protection | Reverse Polarity |

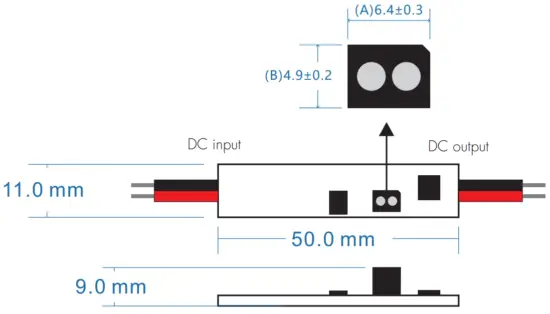

Dimension
Installation attention

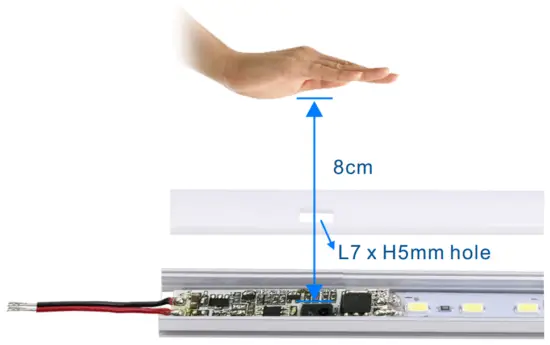

- Cut a hole in size L7 x H5mm on the PC cover.
- Put mini sensor switch into profiles when power is off, put the detector head to the hole.
- Pay attention to power input and LED output polarity.
Wiring Diagram
E1-B Hand Sweep Sensor Switch
