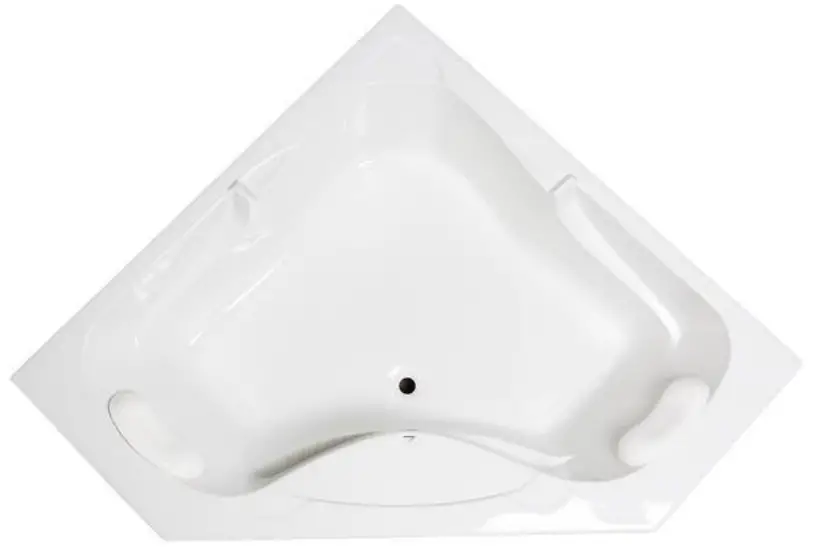

6060MT064 Markham 60 Inch x 60 Inch Drop-In Acrylic Corner Soaker
Instruction Manual

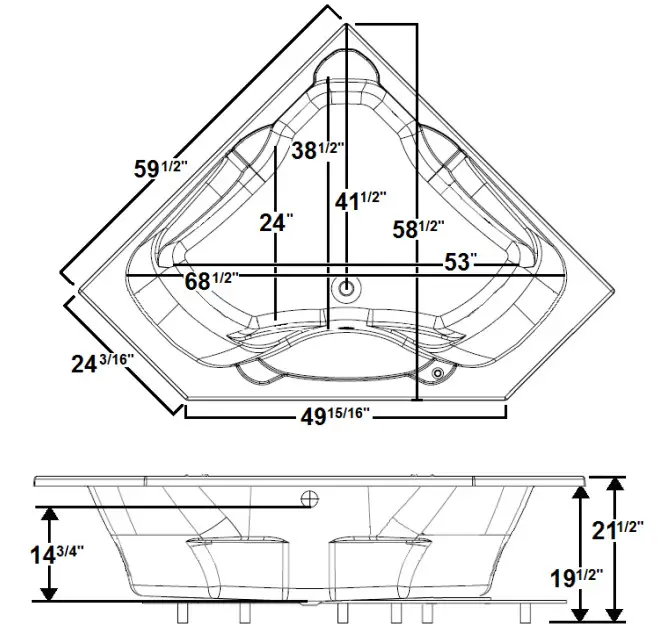

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Features
- Constructed of high-gloss durable acrylic
- Pillow included
- Pre-leveled base for easy installation
- Textured floor
- Heater available – LM305
- Mood light available – LM522
- Made in the USA
Technical Information
- Weight: 116 lbs.
- Water Depth to Overflow: 14 3/4”
- Water Capacity: 85 gal.
- Sump Dimension: 53” x 24”
Electrical Requirements.
- (Optional) LM305 Heater: 12.5 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM305 12.5 Amp Water Heater (120V) | LM522 Chromatherapy |
| LM301 Radiant Heat | LM525 Music. Lights. Vibe |
Accessories
| LM200 Chrome | CABLE OPERATED DRAINS | |
| LM210 White | LM201 Brushed Nickel | LM202 Bronze |
| LM211 Biscuit |
Design/Construction
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
