5G Sub-6GHz External Whip Antenna
AEBC1101X
 | Request Samples | | Check Inventory |
115 x Ø19 mm
RoHS/RoHS II Compliant
MSL = N/A
Features
- 600 MHz ~ 6GHz
- Supports 5GNR, CBRS, Private LTE Bands
- Peak Gain of 3 dB
- Optimal Efficiency
- Easy installation with a built-in connector
- Customizable connector options
Applications
- IoT
- M2M
- Smart Grid
- Vending Machines
- Gateways & Routers
- Security / Remote Monitoring

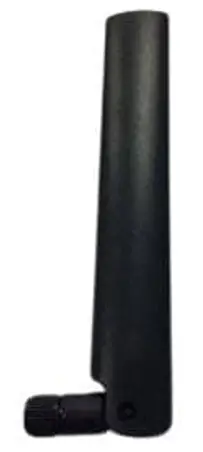

Product Image

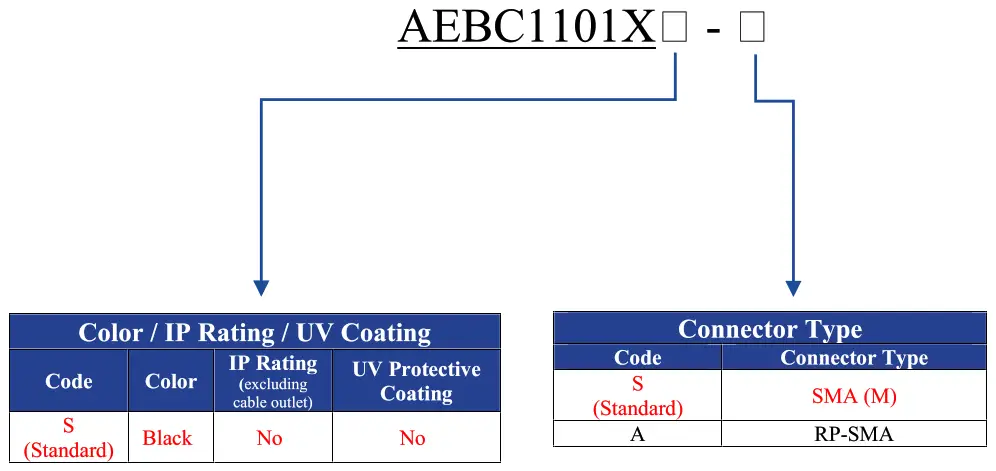

Part Number Builder
Example Configurations:
| Part Number | Color / IP Rating / UV Coating | Connector Type |
| AEBC1101XS-S | Black / No / No | SMA (M) (Standard) |
| AEBC1101XS-A | Black / No / No | RP-SMA |
Note:
- For the standard part number (AEBC1101XS-S), please refer to the packaging at the end of the document.
- For custom configurations (AEBC1101X-), MOQs, pricing, and packaging charges may apply.
Electrical Specification
Parameter | Specification | Unit | |||
| Min | Typ | Max | |||
| Operating Frequency | 600 | 6000 | MHz | ||
| VSWR | 3.0 | ||||
| Peak gain | 3.0 | dBi | |||
| Efficiency | (600-960 MHz) | 30 | 50 | % | |
| (1400-6000 MHz) | 45 | 60 | |||
| Impedance | 50 | Ω | |||
| Polarization | Linear | ||||
| Radiation Pattern (Azimuth) | Omni-directional | ||||
Mechanical Specification
| Parameter | Specification |
| Dimensions | 115 x Ø19 mm |
| Material | PC+PT / ABS |
| Color | Black |
| Antenna Type | Whip |
| RF Connector | SMA(M) |
| Connector Pull Force | >3.0 Kg |
Environmental Specification
| Parameter | Specification |
| Operating Temperature | -30℃ to +65℃ |
| Storage Temperature | -30℃ to +85℃ |
| ROHS Complaint | Yes RoHS 2011/65/EU with IEC 62321:2008 Method |
| MSL Level | N/A |

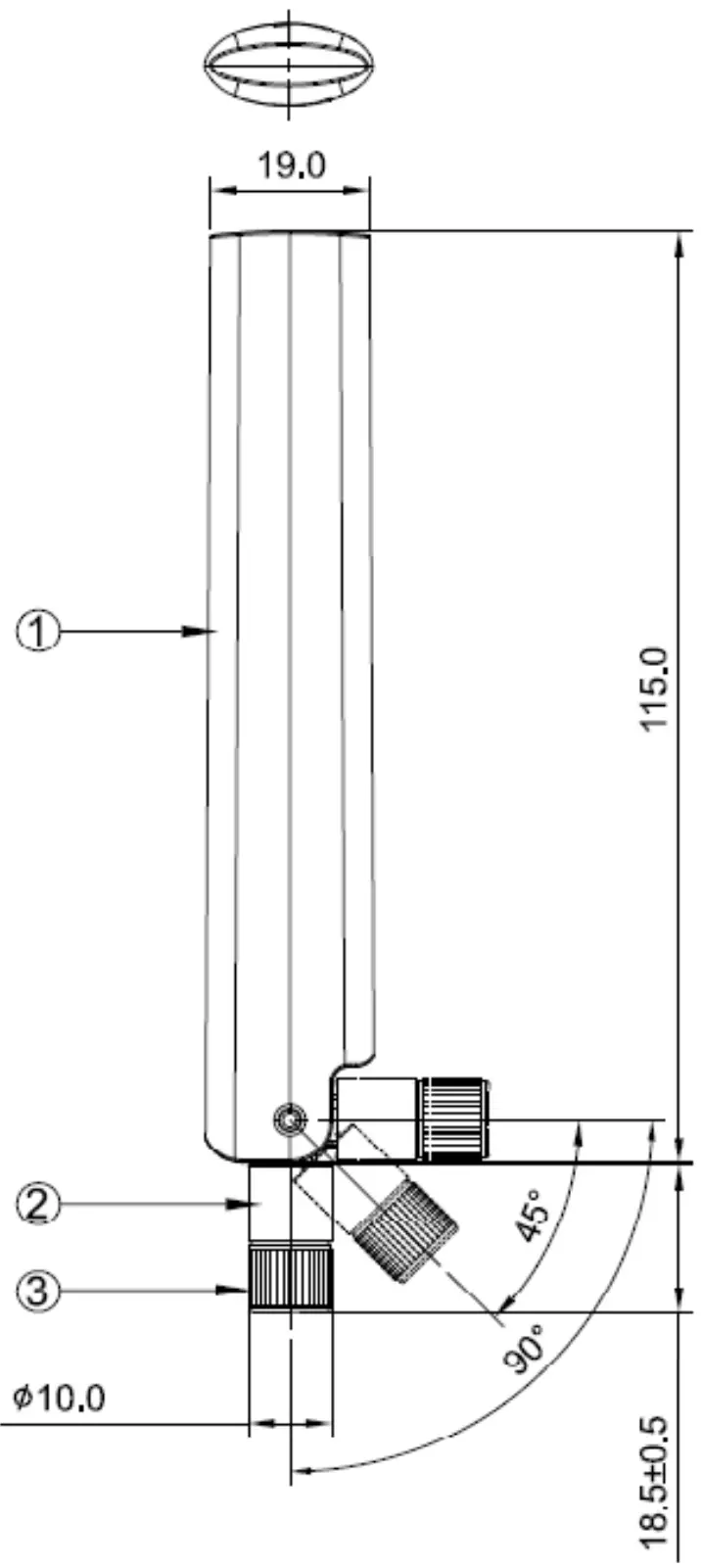

Product Dimension

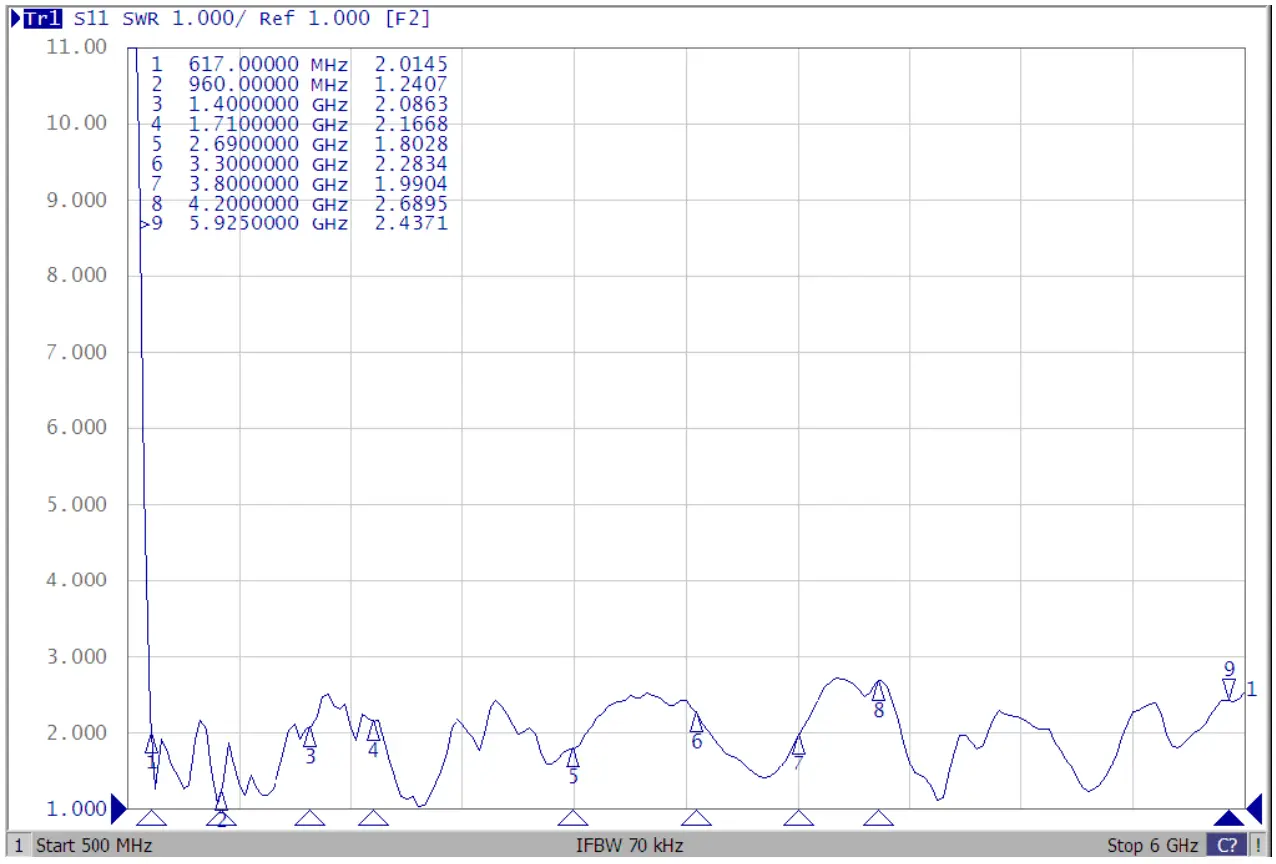

VSWR Measurement

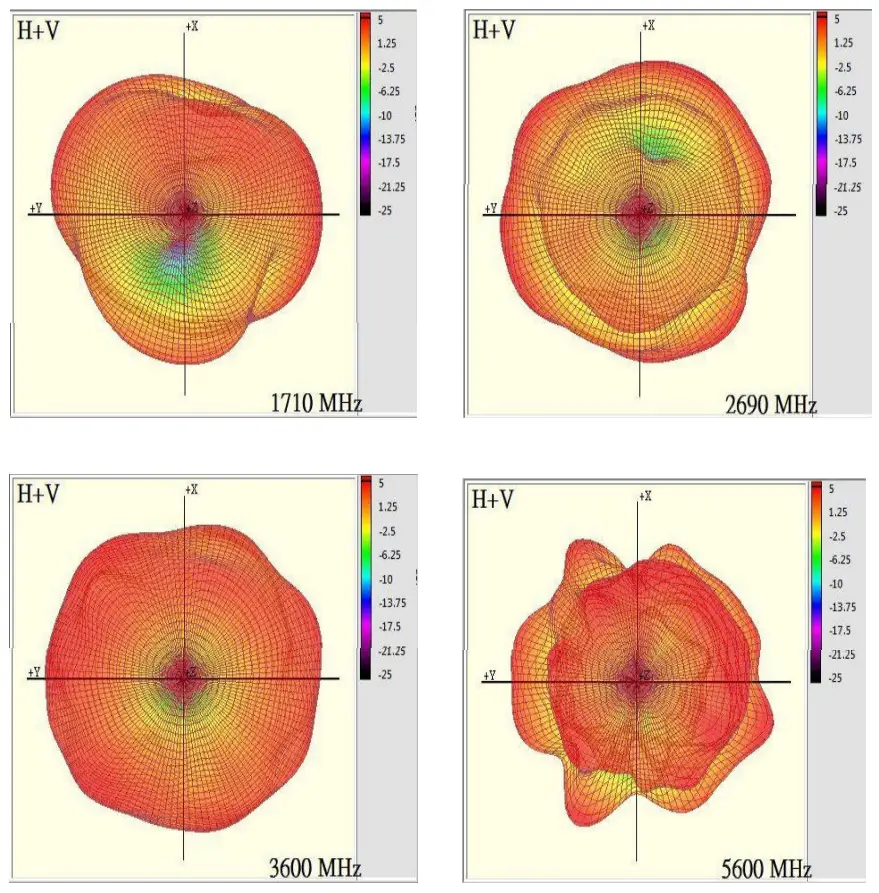

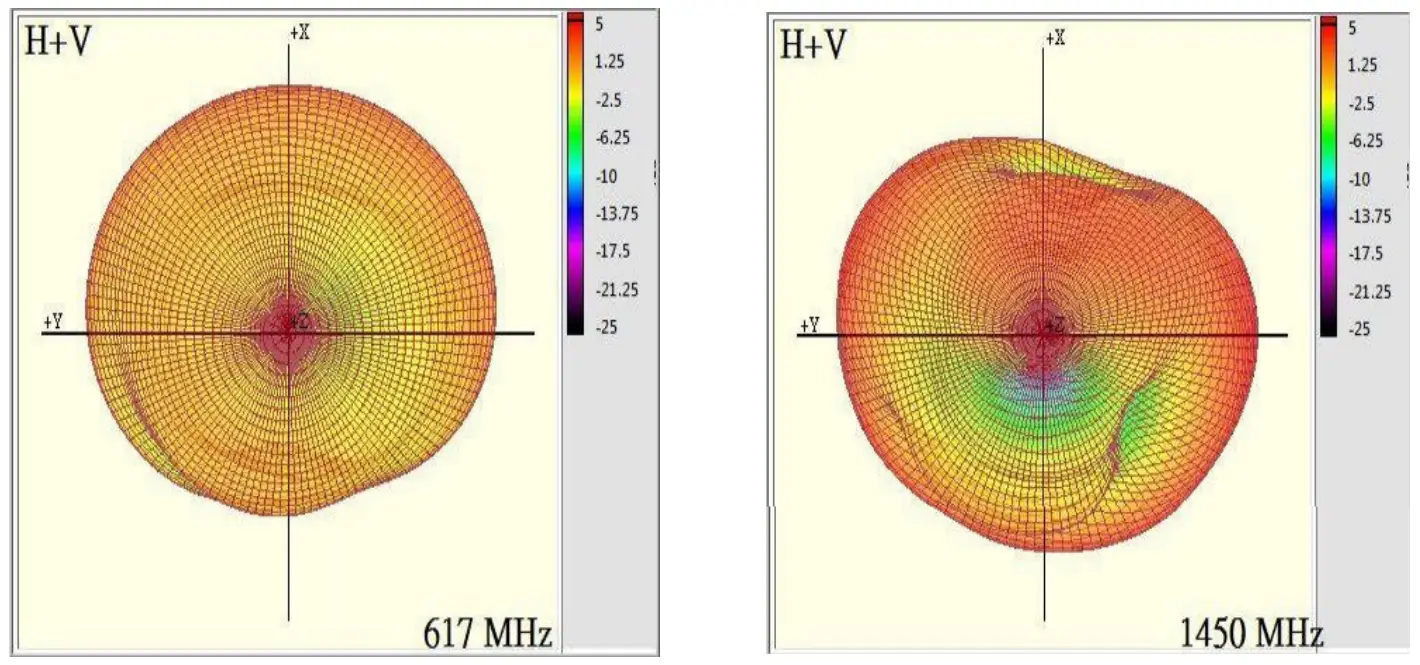

3D Radiation Pattern
Gain and Efficiency

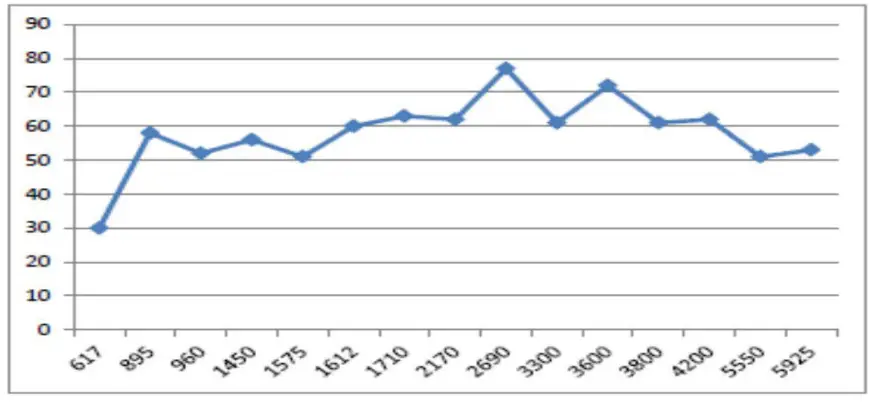

Efficiency
Gain
| Frequency (MHz) | 617 | 895 | 960 | 1450 | 1575 | 1612 | 1710 | 2170 | 2690 | 3300 | 3600 | 3800 | 4200 | 5550 | 5925 |
| Efficiency (%) | 30 | 58 | 52 | 56 | 51 | 60 | 63 | 62 | 77 | 61 | 72 | 61 | 62 | 51 | 53 |
| Peak Gain (dB) | -2.4 | 1.7 | 2 | 2.1 | 1.7 | 2.4 | 2.4 | 2.6 | 2.4 | 1.9 | 1.6 | 1.6 | 2.6 | 2.9 | 3 |

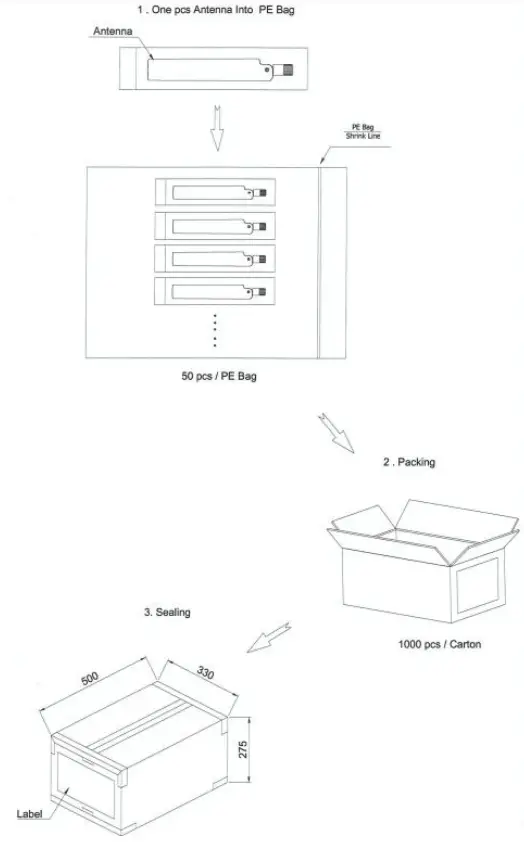

Packaging Information
Dimension of the Carton : 500 x 330 x 275 mm
No. of pieces/bag: 50 pcs
No. of bags/cartons: 20
Total no. of pieces/carton: 1000 pcs
ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial, and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications, or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.
Engineering/Process Change Notice
ECN/PCN No.: R0100
| For Manufacturer | ||
| Product Description: 5G Sub-6GHz External Whip Antenna | Abracon Part Number / Part Series: AEBC1101X | ☐ Documentation only ☒ Series ☒ ECN ☐ Part Number |
| Affected Revision: I.R. | New Revision: Rev A | Application: ☐ Safety ☒ Non-Safety |
Prior to Change:
115 x Ø19 mm
RoHS/RoHS II Compliant
MSL = 3
| Parameter | Specification |
| Operating Temperature | -30℃ to +65℃ |
| Storage Temperature | -30℃ to +85℃ |
| ROHS Complaint | Yes RoHS 2011/65/EU with IEC 62321:2008 Method |
| MSL Level | 3 |
After Change:
115 x Ø19 mm
RoHS/RoHS II Compliant
MSL = N/A
| Parameter | Specification |
| Operating Temperature | -30℃ to +65℃ |
| Storage Temperature | -30℃ to +85℃ |
| ROHS Complaint | Yes RoHS 2011/65/EU with IEC 62321:2008 Method |
| MSL Level | N/A |
Cause/Reason for Change:
Amend the Moisture Sensitivity Level from MSL 3 to MSL N/A according to the product requirements
| Change Plan | ||||
| Effective Date: 6/30/2022 | Additional Remarks: N/A | |||
| Change Declaration: Performance, form, and size are not affected | ||||
| Issued Date: 6/30/2022 | Issued By: Evgenii Filatov | Issued Department: Engineering | ||
| Approval: Syed Raza VP of Engineering | Approval: Reuben Quintanilla Quality Director | Approval: Ying Huang Purchasing Director | ||
| For Abracon EOL only | ||||
| Last Time Buy (if applicable): | Alternate Part Number / Part Series: | |||
| Additional Approval: | Additional Approval: | Additional Approval: | ||
| Customer Approval (If Applicable) | ||||
| Qualification Status: ☐ Approved ☐ Not accepted Note: It is considered approved if there is no feedback from the customer 1 month after ECN/PCN is released. | ||||
| Customer Part Number: | Customer Project: | |||
| Company Name: | Company Representative: | Representative Signature: | ||
| Customer Remarks: | ||||
