QUOIZEL LGR5026MBK Legare 5-Light Matte Black Chandelier

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read the instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off the electricity to the fixture before replacing the bulb(s).

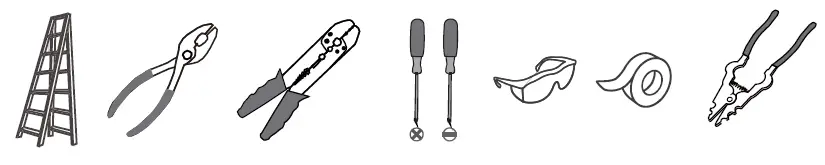

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

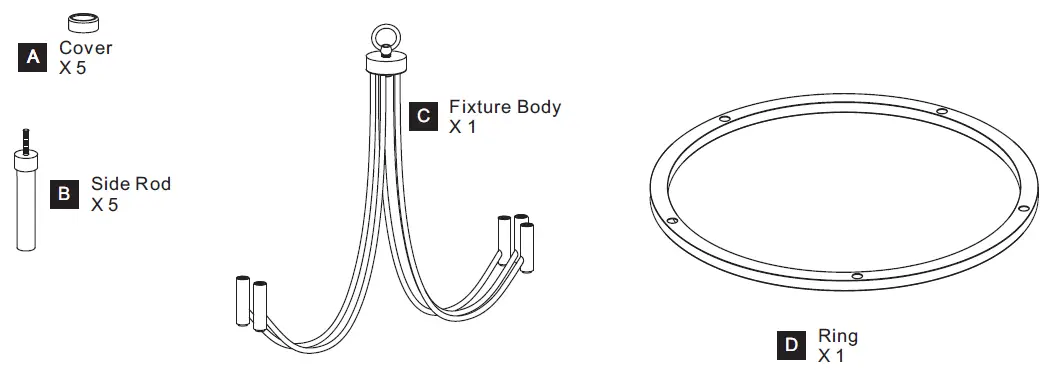

PACKAGE CONTENTS

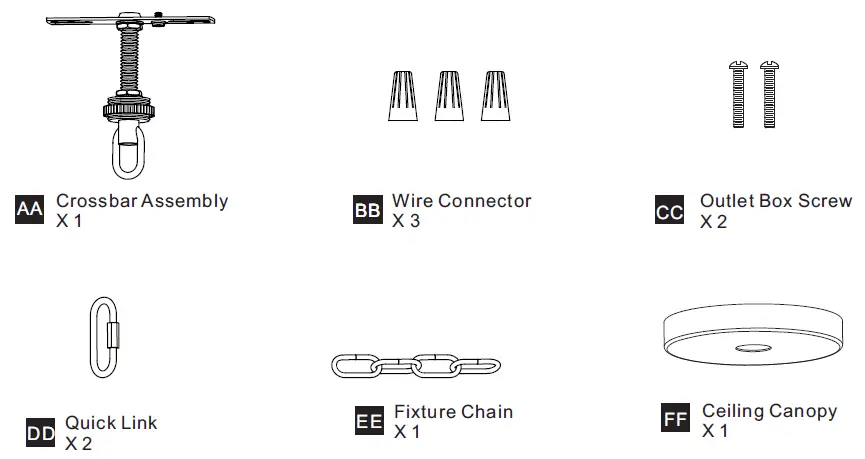

MOUNTING HARDWARE

INSTALLATION

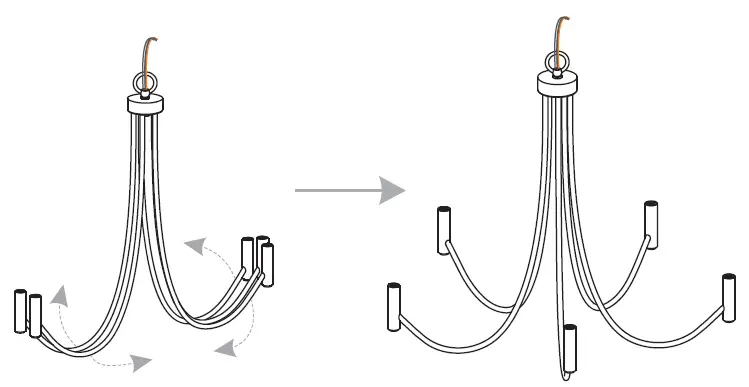

1. Unfold Support Arms
2. Install Fixture Body to Ring
3. Install Crossbar Assembly
4. Install Fixture Chain
   OPTIONAL: Adjust the Chain as desired, using pliers and a soft cloth (neither included).
   Suggested chain length for Ceiling height:
   • 8 feet ceiling: use 7 links of chain and 2 quick links
   • 9 feet ceiling: use 17 links of chain and 2 quick links
   • 10 feet ceiling: use 27 links of chain and 2 quick links.

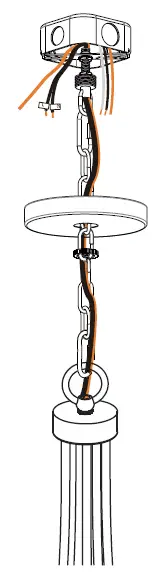

5. Pull Supply Wires
   Pull the supply wires with ground wire through the chain alternate links.

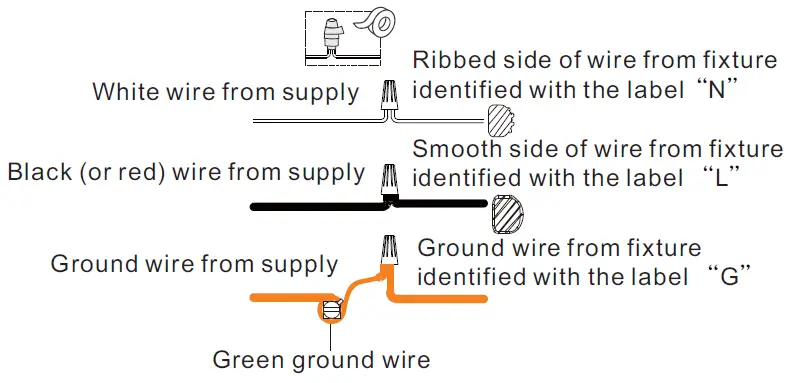

6. Wiring

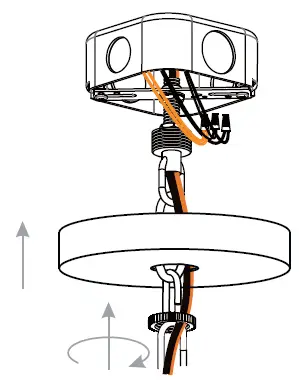

7. Install Ceiling Canopy
   The ceiling Canopy shape varies depending on the item purchased.

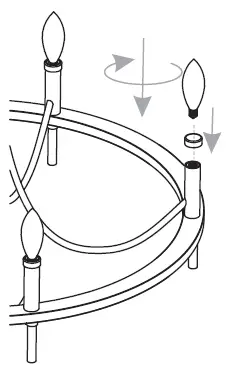

8. Install Bulbs
   Install five correct bulbs referring to fixture markings and/or labels for maximum wattage.

Recommended Bulb Type (not included):

Your installation is now complete! Restore electricity and save this sheet for future reference.
