Safety in system
Protection for man and machine
SAFETY FIELDBOX PN / EIP / EC
UNIVERSAL. SAFE.
COST EFFECTIVE.

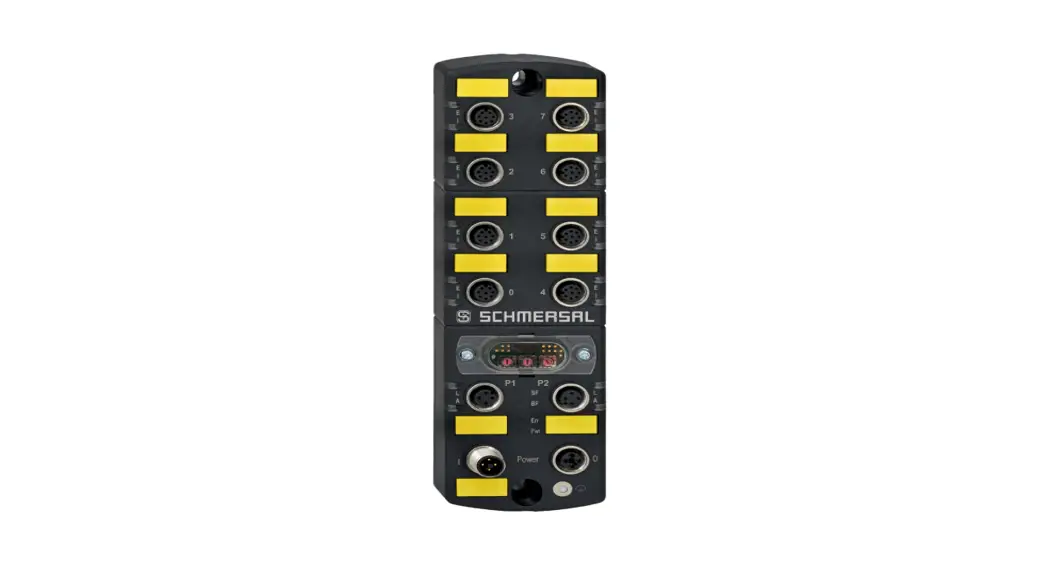

SAFETY FIELDBOX PN / EIP / EC
UNIVERSAL. SAFE. COST EFFECTIVE.
Flexible application options

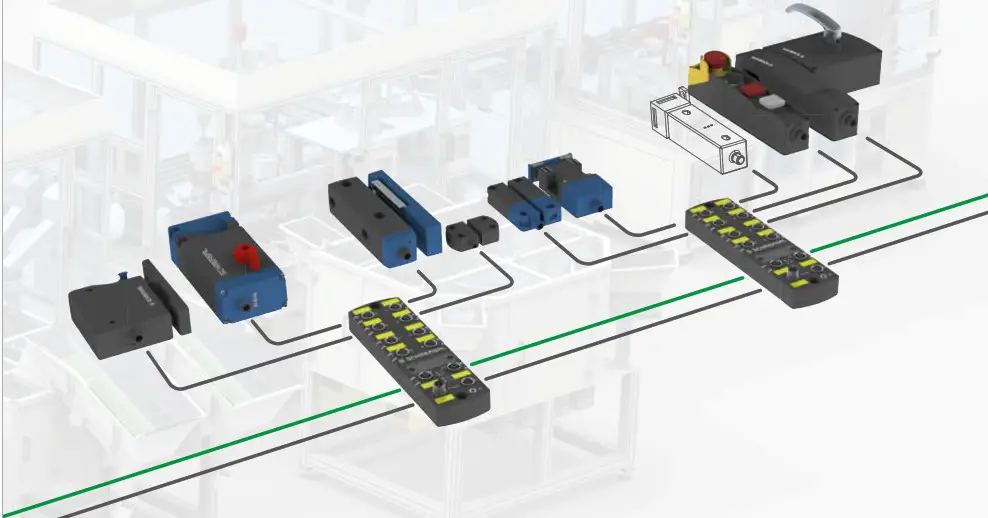

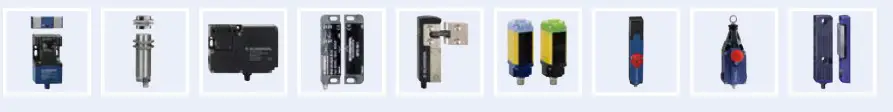

The safety fieldbox allows for simple connection of up to eight safety switchgear devices with Plug and Play. The universal device interfaces for 8-pole M12connectors allow for connection of a wide range of safety switchgear devices, including electronic and

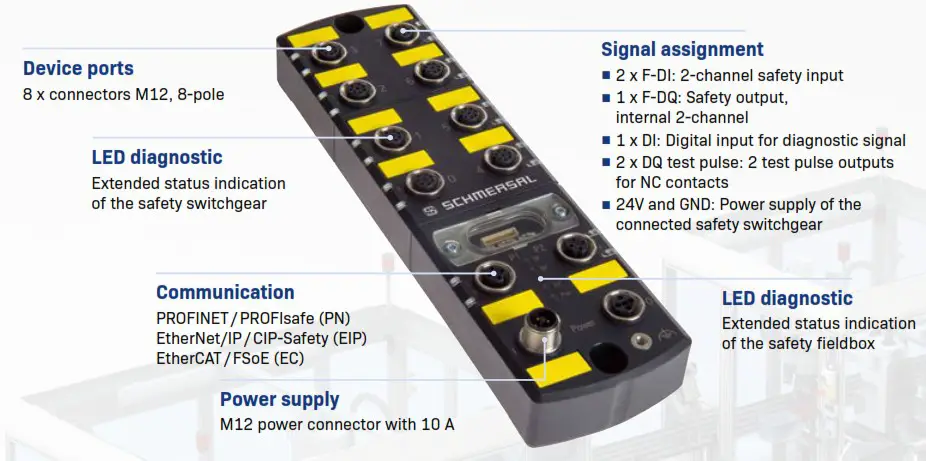

electromechanical solenoid interlocks, sensors, control panels, light curtains and switches. The version for 8-pole connectors enables connection of 2 safety inputs, 2 test pulse outputs, 1 safety output (internal 2-channel), 1 digital input for diagnostic signals as well as the power supply to connected safety switchgear devices.
This enables transmission of locking device activation signals on solenoid interlocks, alongside safety signals and diagnostic signals. The signals are transmittedfor evaluation to the safety controller via the safety fieldbus interface. This communication is safe against modifications, changes to the telegram sequence, transmission errors, etc. Parallel transmission of safety signals enables free evaluation of safety switchgear devices in the safety controller.
An additional integrated digital input on each 8-pin device portallows for evaluation of the diagnostic signals of all connectedsafety switchgear. The universal 8-pin device connection allows safety switchgear from other manufacturers to be connected with ease using, e.g. adapters.
The safety fieldbox is available with the three safety fieldbus protocols PROFINET with PROFIsafe, EtherNet/IP with CIPSafety and EtherCAT with FSoE, in order to be able to design the safety functions of a machine independently of the used control system.
Your benefits at a glance
- Universal 8-pole device ports

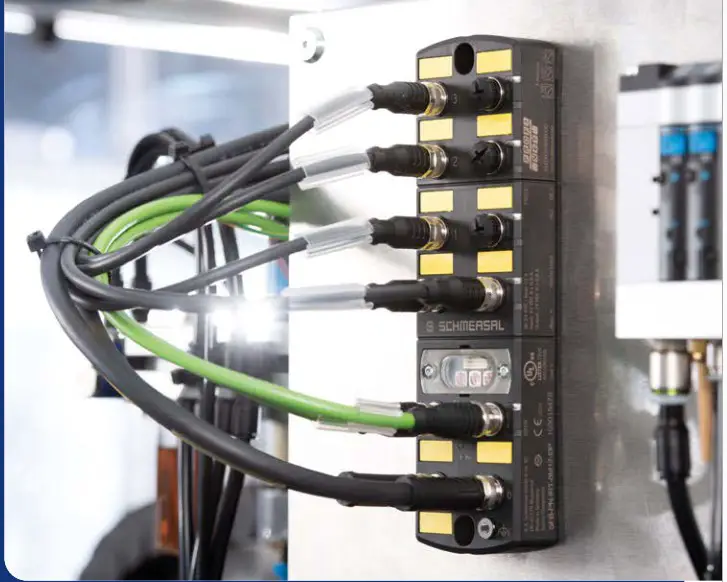

- Smooth and fail-safe installation
- Cost-effective machine wiring
- Rapid installation with Plug and Play
Technical highlights

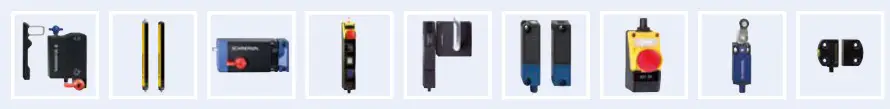

- 8 different safety switchgear connectable
- 4 control panels (with EMERGENCY STOP) connectable
- Power supply via M12 power plug connection with 10 A
- Fail-safe communication via the following fieldbuses:
SAFETY FIELDBOX PN / EIP / EC

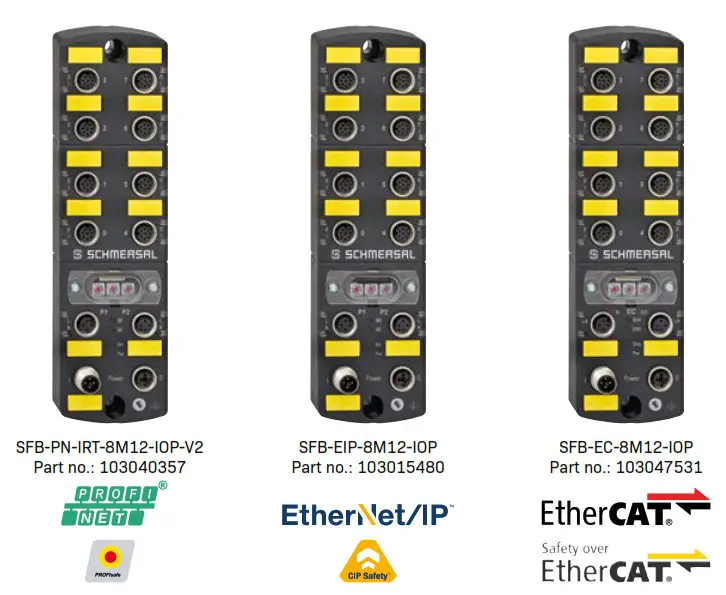

THREE VARIANTS FOR THREE FIELD BUS SYSTEMS
Technical features
| General technical data | |
| Standards | EN 61131-1, EN 61131-2, IEC 60947-5-3, ISO 13849-1, IEC 61508 |
| Ambient temperature | −20 °C … +55 °C |
| Degree of protection | IP67 / IP67 |
| Supply voltage UB | 24 VDC –15% / +10% |
| Operating current Ie | 10:00 AM |
| Field bus interface | |
| Integrated switch | Dual Port, 100 Mbit/s |
| Service interface | WEB-Interface HTTP |
| Safety values | |
| 2-channel safety inputs | PL e, Category 4, SIL 3 |
| 1-channel safety inputs | PL c, Category 1, SIL 1 |
| Safety outputs 1 cable | PL d, Category 3, SIL 2 |
| Safety outputs 2 cables | PL e, Category 4, SIL 3 |
x.000 / L+W / 06.2023 / Teile-Nr. 103035521 / EN / Ausgabe 04
