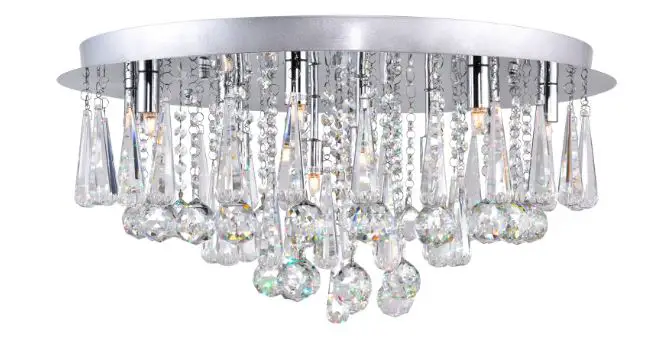

CWI LIGHTING 5035C24C Brianna 12 Light Flush Mount
Assembly Instruction
Sheet #IS-5035C24
For Style 5035C24
- Tools Required: Flathead screwdriver, Phillips screwdriver, plers, wire Cutters, wire strippers, electrical tape, satety glasses.
- Light Source: (12) G9 40W(Not lnclude).
- Estimated Assembly Time: 20-30 minutes
- Preparation: ldentify and inspect all parts before beginning instalation. Check package content list and diagrams below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture.
We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents

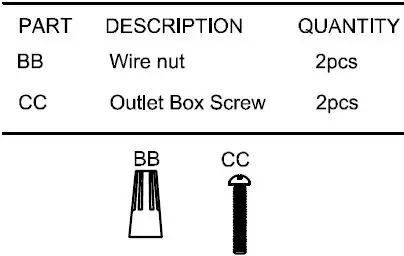

Hardware Contents
Instruction

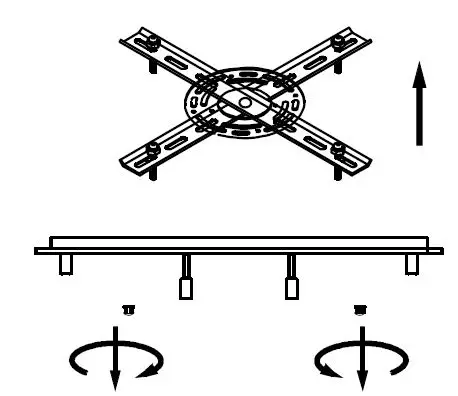

STEP 1- Release Mounting bracket from Ceiling Canopy.
Figure 1

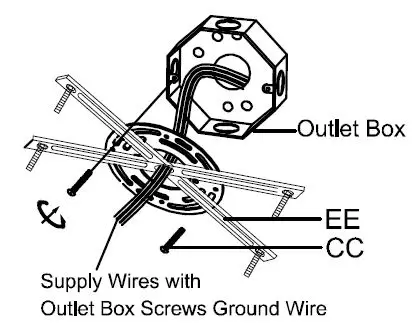

STEP 2 – Attach Mounting bracket to Outlet Box
- Pass the supply wires through the Mounting bracket (EE).
Attach the Mounting bracket (EE) to the Outlet Box with the head of the Green Ground Screw facing you.
Secure it with Outlet Box Screws.
Tighten until snug.
Figure 2

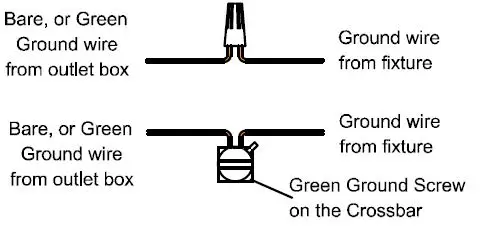

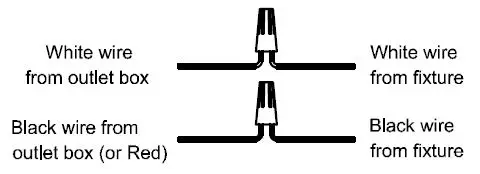

STEP 3– Wire Connections
- Use standard wire connectors to make all wire connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully stuff all the connected wires into the Outlet Box.
Figure 3

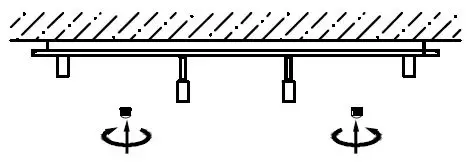

STEP 4-Install Ceiling Canopy to Ceiling
Figure 4

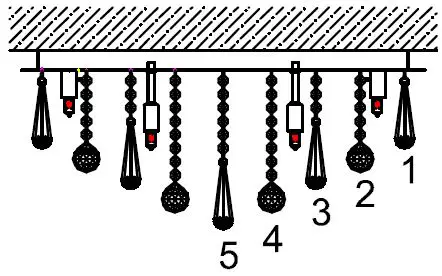

STEP 5 – Install Crystal and Bulbs.
Figure 5
