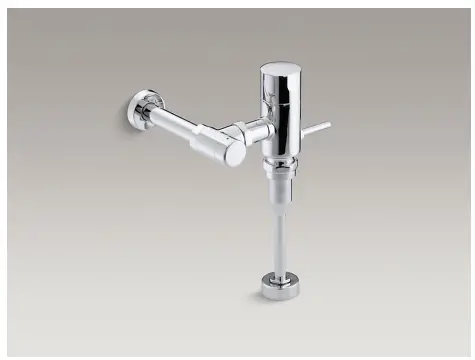

KOHLER K-13518-RF Manual Washdown Urinal
Features
- Fixture-mount design
- Retrofit models require a controlled stop and vacuum breaker
Material
- Brass
Technology
- Non-hold open piston technology for accurate activation
Installation
- Intended for urinal installations with 3/4″ (19 mm) spud coupling connection
Recommended Products/Accessories
- K-23723 Faucet cleaner
Codes/Standards
- ASME A112.18.1/CSA B125.1
- CSA B125.3
- CSA B64
- ASSE 1037/ASME A112.1037/CSA B125.37
- ADA
- ICC/ANSI A117.1
- CSA B651
- OBC
- KOHLER® One-Year Limited
Warranty
- See the website for detailed warranty information

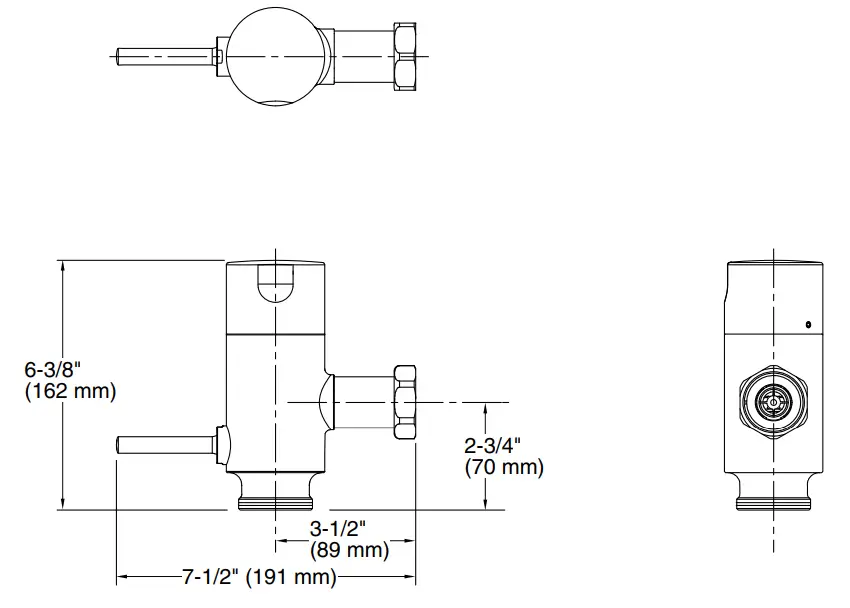

Dimension
Technical Information
- All product dimensions are nominal.
- Pressure/fixture Supply Requirements
- Fixture pressure max (static): 80 psi (551.6 kPa)
- Min flowing pressure: 25 psi (172.4 kPa)
- Min flow rate: 10 GPM (37.9 pm)
Notes
- Install this product according to the installation guide. ADA, OBC, and CSA B651 compliant when installed to the specific requirements of these regulations.
- 1-800-4KOHLER (1-800-456-4537)
- Kohler Co. reserves the right to make revisions without notice to product specifications.
- For the most current Specification Sheet, go to www.kohler.com.
- 1-8-2023 07:27 – US/CA
