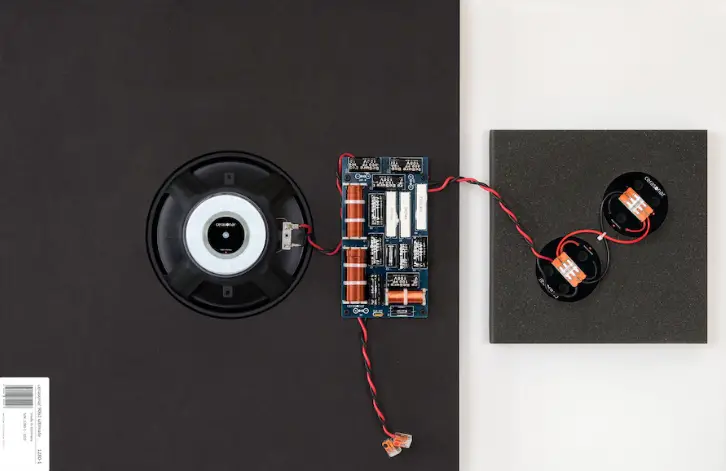

Cerasonar 4062 Sub Series Invisible Speaker
Installation instructions

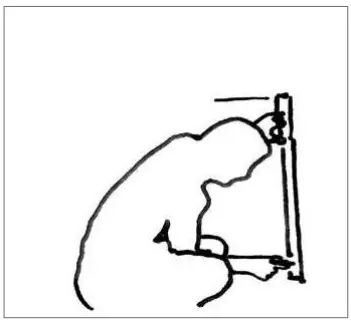

Check the construction for vibration noise, make sure the cavity has the proper insulation. Prepare the wall or ceiling to fit in the speaker.

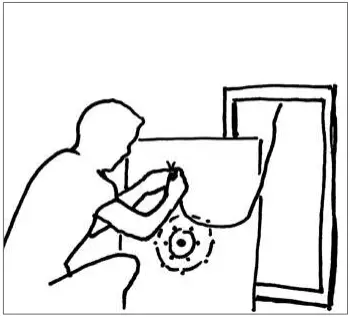

Strip the wire by 10 mm. Connect the speaker cable to the speaker, be aware of the polarity.

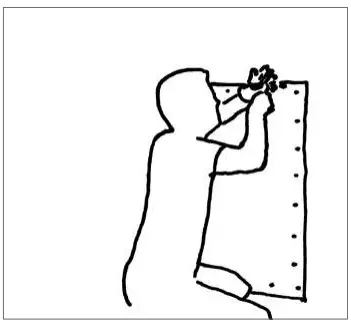

Insert the speaker, make sure there is no strain between the underlying insulation and speaker. Screw through all pre-drilled holes. The heads of the screws should penetrate about 1 mm into the panel material.

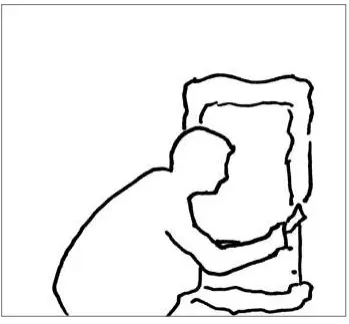

Fill in plaster, we HIGHLY recommand using a flexible filler, e.g. Knauf Unifl ott or Ardex 828.
Use mesh tape in the plastering process

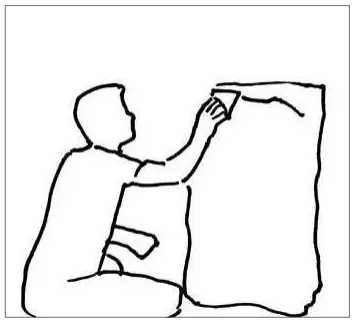

Up to 2mm of plaster can be applied, thus, Q3 and Q4 wall /ceiling quality levels are easily possible. ATTENTION: Before using the speaker, let the plaster dry off More information about the installation process is in our FAQ section.
