cerasonar 6062 Reference Series Invisible Speaker Instruction Manual
Installation instructions

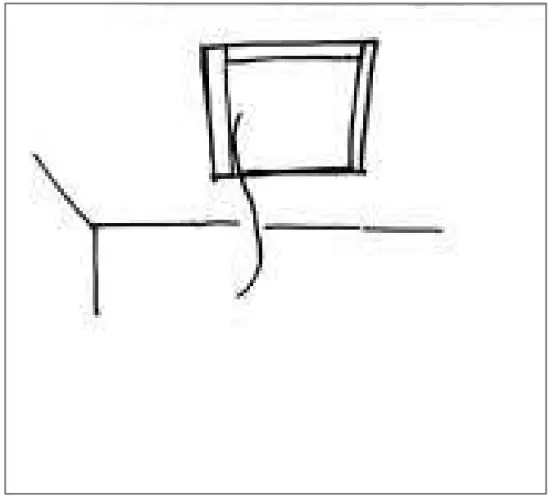

- Check the construction for vibration noise, make sure the cavity has proper insulation. Prepare the wall or ceiling to fit in the speaker.

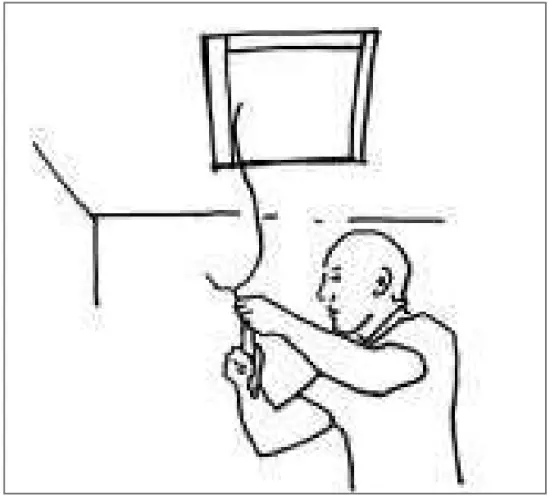

- Strip the wire by 10 mm.
- Connect the speaker cable to the speaker, be aware of the polarity.

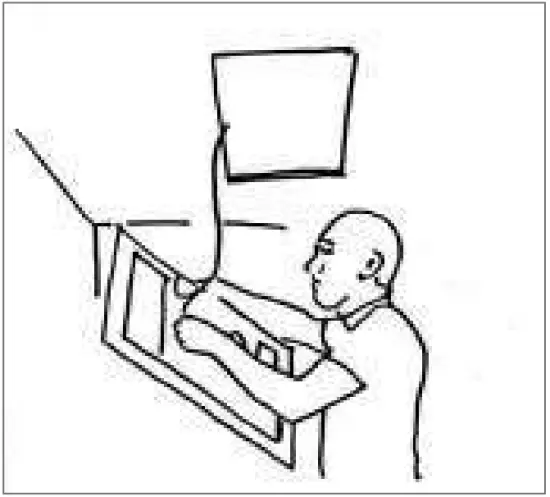

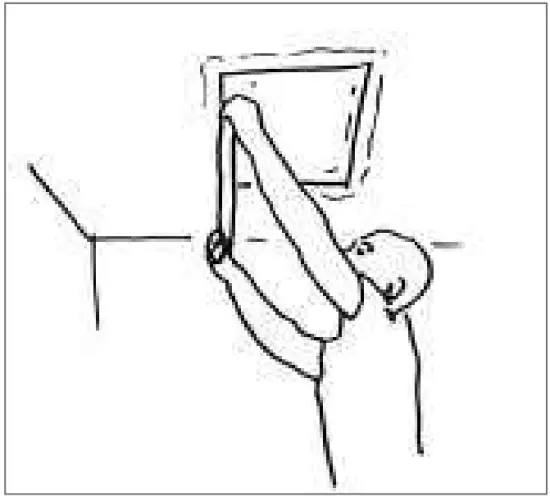

- Insert the speaker, make sure there is no strain between the underlying insulation and speaker. Screw through all pre-drilled holes. The heads of the screws should penetrate about 1 mm into the panel material.

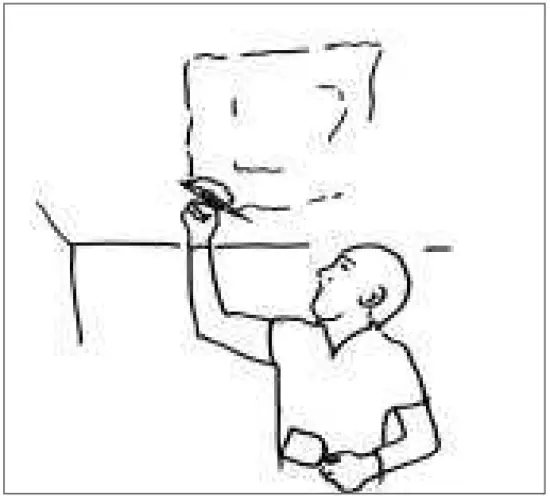

ATTENTION: Test the speaker - Fill in plaster, we recommand to use a flexible filler, e.g. Knauf Uniflott or Ardex 828

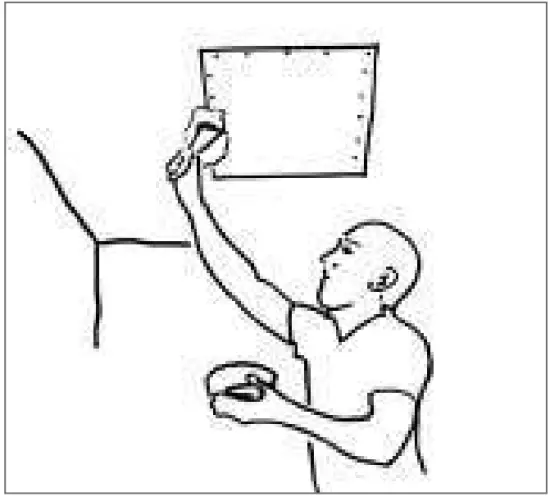

- Use mesh tape in the plastering process.
- Up to 2mm of plaster can be applied, thus, Q3 and Q4 wall / ceiling quality levels are easily possible.
ATTENTION: Before using the speaker, let the plaster dry off More information about the installation process in our FAQ section.

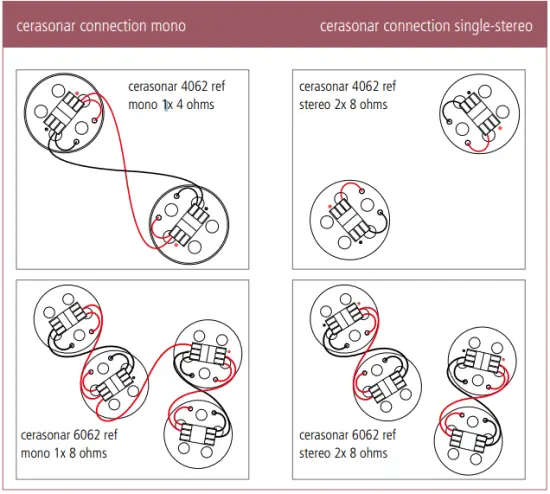

Connections
