Speaker System
Owner’s Manual

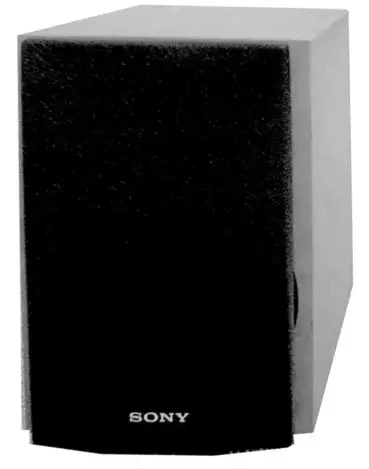

This set is the speaker system in CMT-EX1.
SPECIFICATIONS
| Speaker system | 2-way, bass-reflex type |
| Speaker units | |
| Woofer : | 9 cm (3 5 /8 in) dia., glass-fiber cone type |
| Tweeter : | 2 cm (3 13 /16 in) dia., balanced drive |
| impedance | 4 ohms |
| Dimensions | 130 x 216 x 183 mm (5 1 /8 x 8 5 /8 x 7 1 /4 in) (w / h / d incl. projecting parts and controls) |
| Mass | Approx 1.8 kg (3 lb 15oz.) net per speaker |
| 9-929-016-12 | Sony Corporation |
| 2002C0200-1 | Home Audio Company |
| © 2002. 03 | Published by Sony Engineering Corporation |
SS-CEX1
Ver 1.1 2002.03

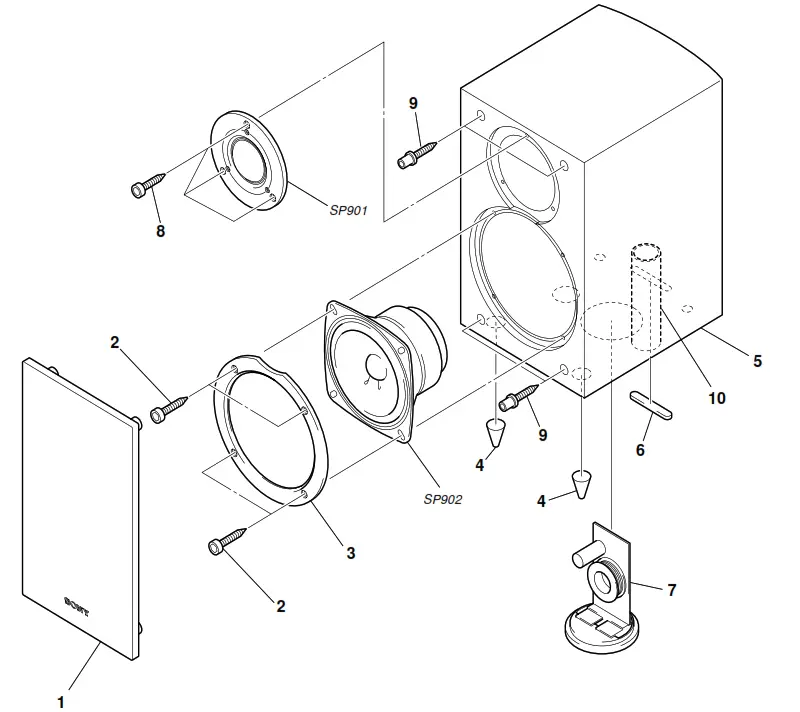

EXPLODED VIEW AND PARTS LIST
NOTE:
- Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
- Hardware (# mark) list and accessories and packing materials are given in the last of this parts list.
| Ref. No. | Part No. | Description | Remark |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| SP901 | |||
| SP902 |
