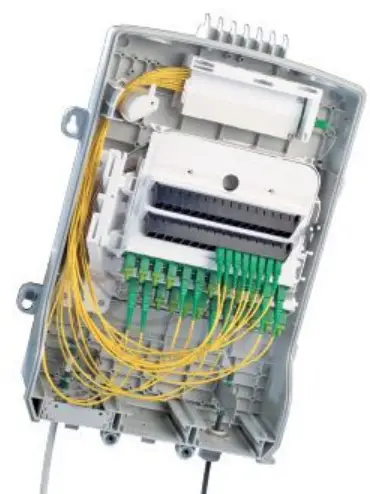

COMMSCOPE BUDI-R24JP0619A BUDI-R Terminal 24-Position SC or APC Indoor Plenum Cable
BUDI-R Terminal, 24-position, SC/APC, Indoor plenum cable, MPO at far end, 200 ft
- Designed to provide a quick and simple solution for installing fiber in small and medium sized MDU’s
- Incorporates a unique fiber cable spooling system that stores up fiber cable within the enclosure
- Removes the need for field termination and extensive site survey inspections
Product Classification
- Regional Availability Australia/New Zealand | Europe | North America
- Portfolio CommScope®
- Product Type Rapid distribution terminal
- Product Brand RapidReel®
- Product Series BUDI
Warranty For more information, please consult our Product Warranty guidelines
General Specifications
- Functionality Patching | Slack storage
- Adapters, quantity 24
- Cable Entry Location Bottom
- Cable Sealing Type Gasket/grommet configuration
- Cable Type Indoor – Stranded
- Color Gray
- Distribution Type 24 ports
- Interface, Input SC
- Interface Feature, Input APC
- Interface, Output Stub tail
- Interface, stub MPO
- Lock Type Security screw
- Mounting Wall mount
- Port, quantity 24
Dimensions
- Height 270 mm | 10.63 in
- Width 214 mm | 8.425 in
- Cable Length 61 m | 200.131 ft
- Enclosure Size Small
Material Specifications
- Material Type Polycarbonate ABS (PC-ABS)
Optical Specifications
- Fiber Mode Singlemode
- Fiber Type G.657.A2
Environmental Specifications
- Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
- Environmental Space Indoor/Outdoor
- Flammability Rating UL 94 V-0
- Qualification Standards IEC 61753-1 | UL
Packaging and Weights.
- Packaging quantity 1
- Packaging Type Carton
