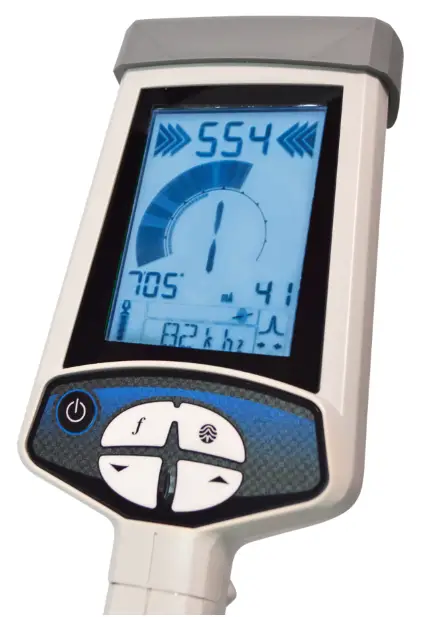

JAMESON 17-300R Cable and Pipe Precision Locating Receiver

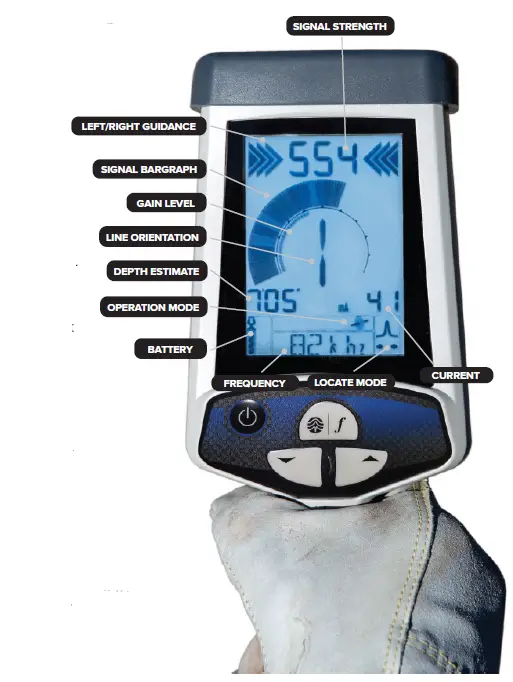

RECEIVER INTERFACE
Short press Button to turn unit ON or OFF
Long press ON/OFF(3 sec) to enter Program Mode and short press to exit
Short press the Frequency Key to scroll through the main menu
Short press the Mode Key to change(peak, null, auto, etc.,)

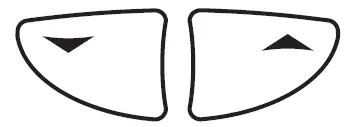

Press Gain Button up or down when applicable to enter or exit selector’s sub-menu
- Vol Select volume setting; low, medium, high and mute
- Light Turn on or off backlight
- Units Select metric or imperial measurement
- Orient Turn on or off line orientation indication
- Curnt Turn on or off constant current measurement
- Vibrtn Turn on or off haptic feedback
- P-Link Turn on or off PathLINK transmitter radio link
- batt Select battery profile; li-ion or alkaline
- OpMode Select locate modes for use during normal operation; Peak, pinpoint peak, null, and sonde
- Sonde Select available sonde frequencies for use during normal operation
- Line Select available line locate frequencies for use during normal operation
LINE LOCATE MODE
Peak Highest signal strength directly over conductor with gradual decline side to side. Receiver must be oriented perpendicular to conductor.
Pinpoint Peak Highest signal strength directly over conductor with sharp decline side to side. Receiver must be oriented perpendicular to conductor.
Null Lowest signal strength directly over conductor with sharp increase side to side. Receiver oriented not required.
Auto Left/Right Guidance Broken tone to left side of conductor with solid tone to right side of conductor. Receiver must be oriented perpendicular to conductor.
