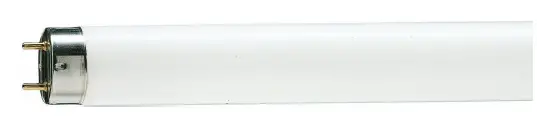

PHILIPS TL-D 18W TL-D Standard Colours Linear Fluorescent Tube
TL-D 18W/54-765 1SL/25
TL-D Standard Colors lamps (tube diameter of 26 mm) create atmospheres from warm white to cool daylight. Lamps with moderate efficacy and color rendering.
Warnings and Safety
A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
Product data
| General information | Voltage (Nom) | 59 V | ||
| Cap-Base | G13 [ Medium Bi-Pin Fluorescent] | |||
| Life To 10% Failures (Nom) | 10000 h | Controls and dimming | ||
| Life to 50% Failures (Nom) | 13000 h | Dimmable | Yes | |
| Light technical | Mechanical and housing | |||
| Color Code | 54-765 | Bulb Shape | T8 [ 26 mm (T8)] | |
| Luminous Flux (Nom) | 1050 lm | |||
| Color Designation | Cool Daylight | Approval and application | ||
| Lumen Maintenance 10000 h (Nom) | 75 % | Mercury (Hg) Content (Nom) | 8.0 mg | |
| Lumen Maintenance 2000 h (Nom) | 90 % | Energy Consumption kWh/1000 h | 22 kWh | |
| Lumen Maintenance 5000 h (Nom) | 80 % | |||
| Correlated Color Temperature (Nom) | 6200 K | Product data | ||
| Color Rendering Index (Nom) | 72 | Full product code | 871150095043740 | |
| Order product name | TL-D 18W/54-765 1SL/25 | |||
| Operating and electrical | EAN/UPC – Product | 8711500950437 | ||
| Power (Nom) | 18.0 W | Order code | 928048005422 | |
| Lamp Current (Nom) | 0.360 A | Numerator – Quantity Per Pack | 1 | |

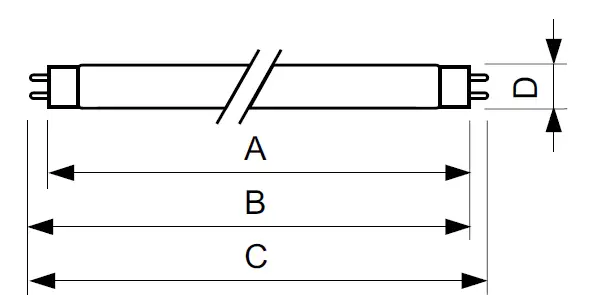

Dimensional drawing
TL-D 18W/54-765 1SL/25 28 mm 589.8 mm 596.9 mm 594.5 mm 604 mm

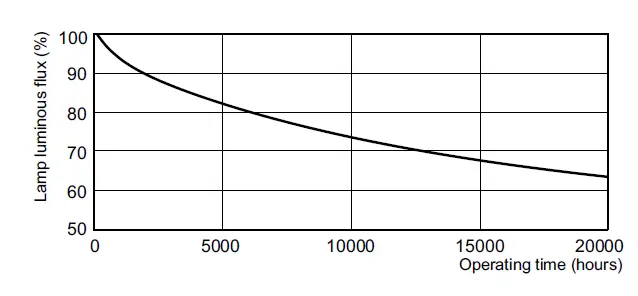

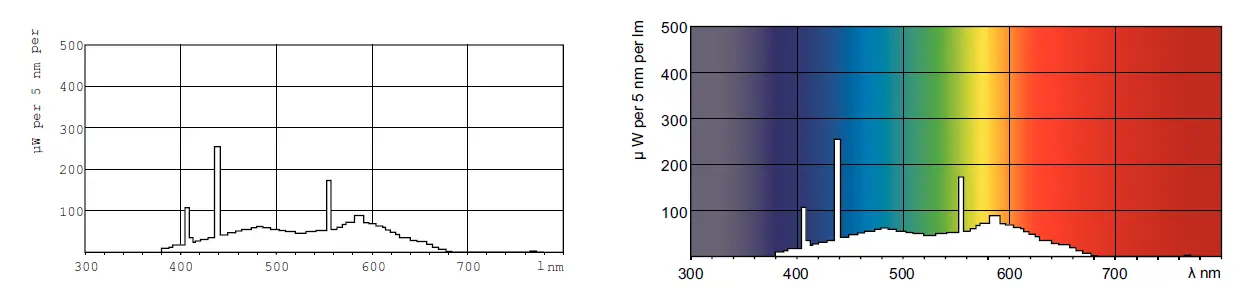

Photometric data

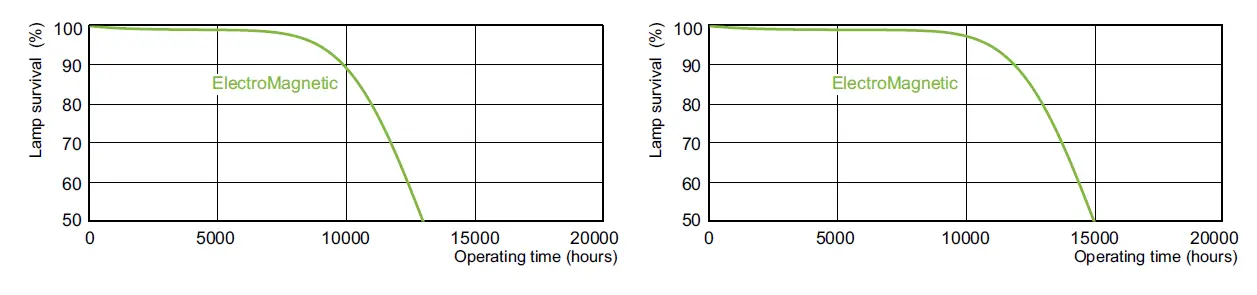

Lifetime
© 2022 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
www.lighting.philips.com 2022, January 14 – data subject to change
