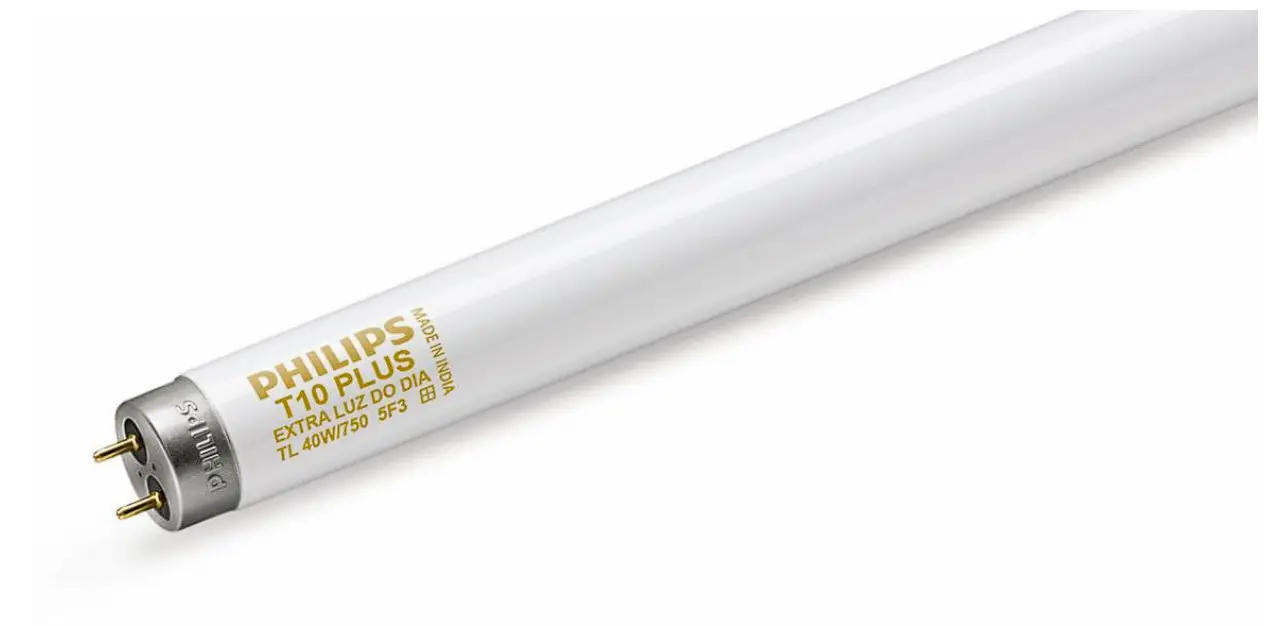

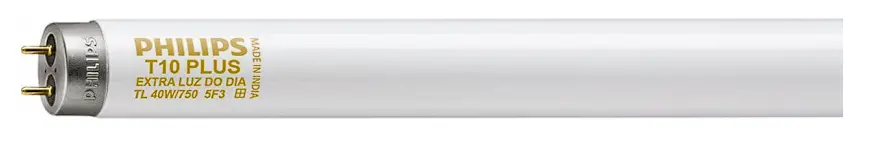

PHILIPS TL10 Plus Tubular Fluorescent Lamp Line
TL10 Plus
The T10 Plus tubular fluorescent lamp line is available in 20W and 40W and is suitable for new installations, as well as replacement in existing installations. They work in conjunction with electromagnetic ballasts (Conventional and Quick Start) and electronic ballasts. Recommended for all types of installations, they deliver the reliability and guarantee of Philips applications.
Versions
TL 10 G13

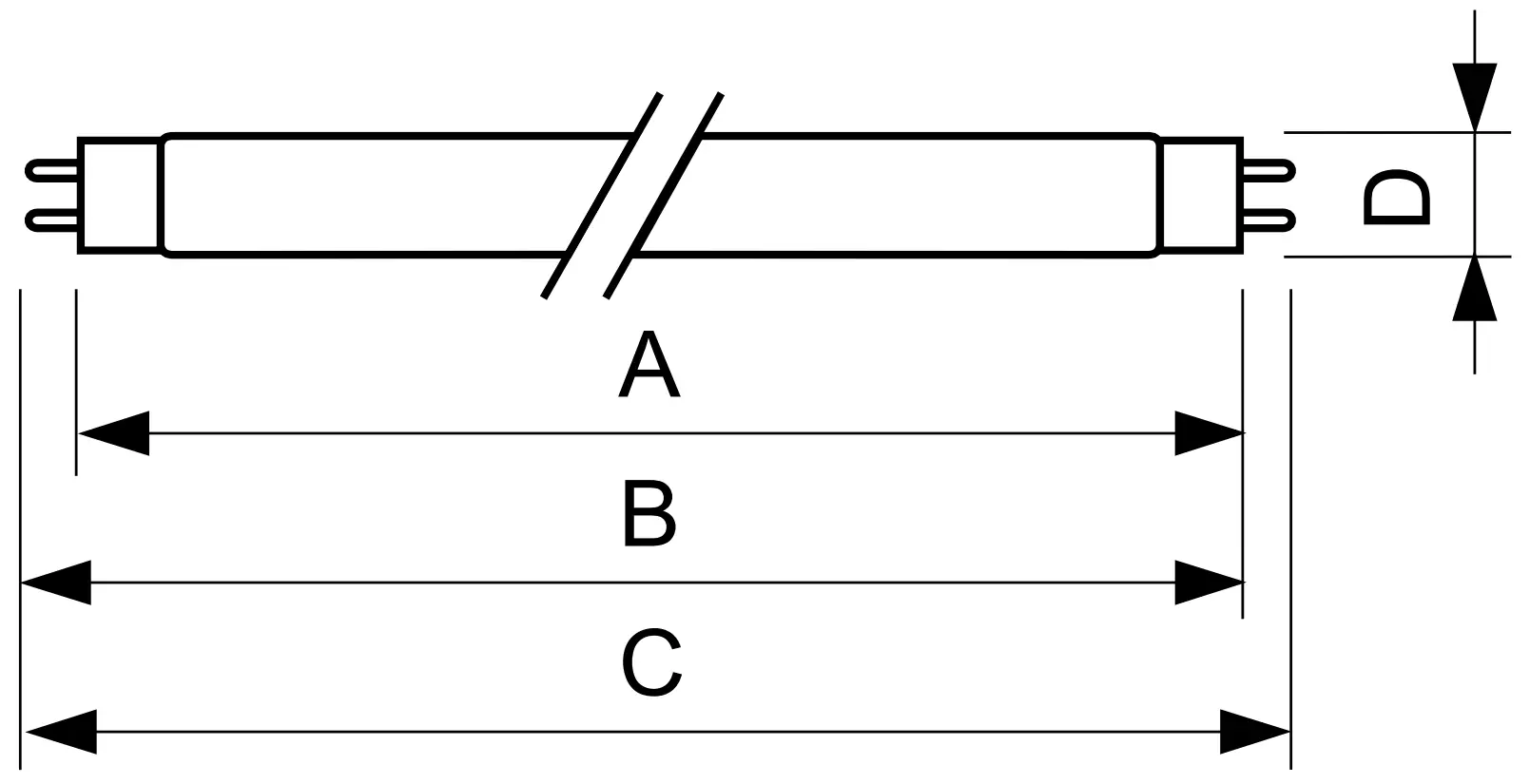

Dimensional drawing
| Product |
| T10 PLUS 20W/750 1SL/25 |
| T10 PLUS 40W/750 1SL/25 |
Technical Data
| Approval and application | |
| Mercury (Hg) Content (Nom) | 8.5 mg |
| Controls and dimming | |
| Dimmable | Yes |
| General information | |
| Cap-Base | G13 |
| Light technical | |
| Color Code | 750 |
| Color Designation | Cool White (CW) |
| Correlated Color Temperature (Nom) | 5000 K |
| Color Rendering Index (Nom) | 69 |
| Lumen Maintenance 2000 h (Nom) | 90 % |
| Mechanical and housing | |
| Bulb Shape | T10 |
Operating and electrical
| Order Code | Full Product Name | Lamp Current (Nom) | Voltage (Nom) | Power (Nom) |
| 928034607502 | T10 PLUS 20W/750 1SL/25 | 0.36 A | 62.0 V | 20 W |
| 928034707502 | T10 PLUS 40W/750 1SL/25 | 0.42 A | 112 V | 40 W |
General information
| Order Code | Full Product Name | Life To 50% Failures (Nom) |
| 928034607502 | T10 PLUS 20W/750 1SL/25 | 15000 h |
| Order Code | Full Product Name | Life To 50% Failures (Nom) |
| 928034607502 | T10 PLUS 20W/750 1SL/25 | 20000 h |
General information
| Order Code | Full Product Name | Lumen Maintenance 5000 h (Nom) | Luminous Flux (Nom) |
| 928034607502 | T10 PLUS 20W/750 1SL/25 | 83 % | 1060 lm |
| Order Code | Full Product Name | Lumen Maintenance 5000 h (Nom) | Luminous Flux (Nom) |
| 928034707502 | T10 PLUS 40W/750 1SL/25 | 82 % | 2700 lm |
© 2021 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial o‚er and does not form part of any quotation or contract, unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or theirrespective owners.
www.lighting.philips.com
2021, February 28 – data subject to change
