Kichler 49976bktled Ashbern 19-inch Textured Black Transitional Light Post Lantern Installation Guide

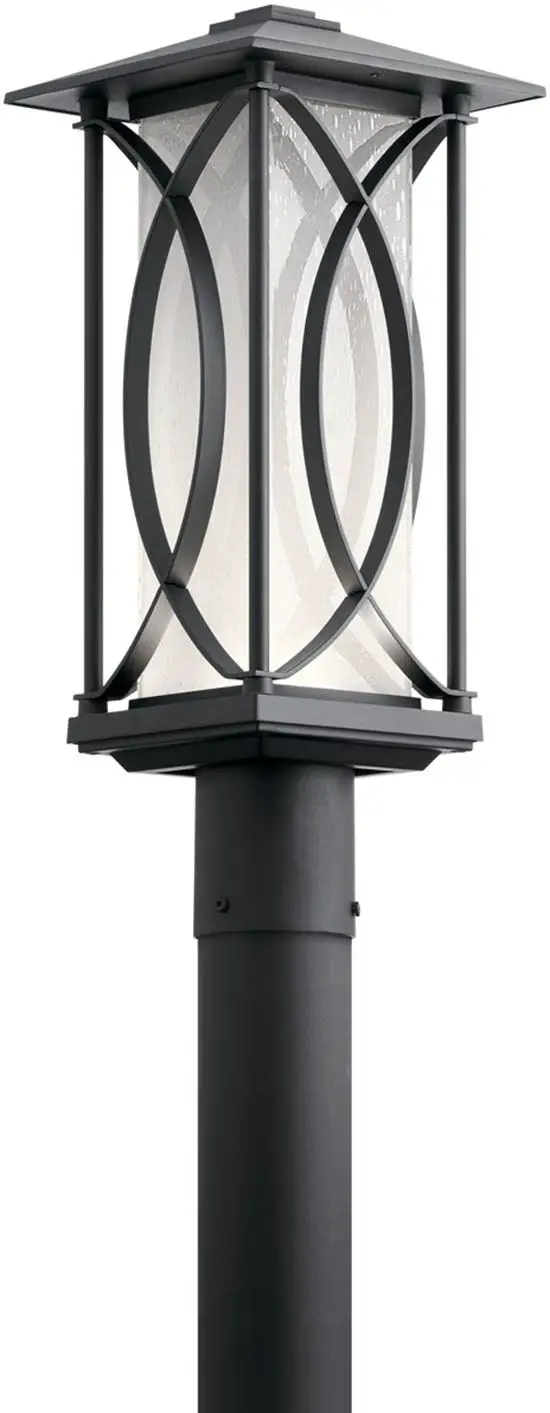

KICHLER 49976BKTLED Ashbern 19-Inch Textured Black Transitional Light Post Lantern

CAUTION – RISK OF SHOCK
Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation

OUTLET BOX

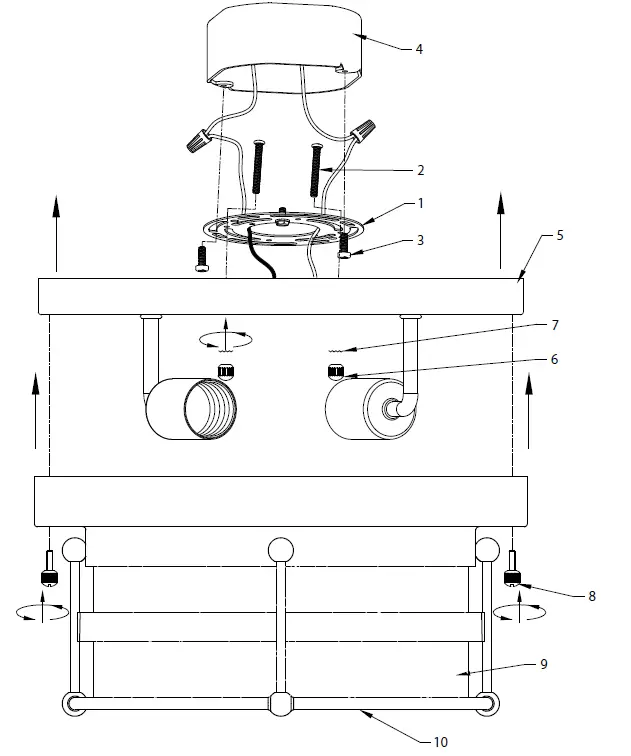

• Find the appropriate threaded holes on mounting strap[1]. Assemble mounting screws[2] into threaded holes.
• Attach mounting strap to outlet box[4] using strap mounting screws[3]. The mounting strap can be adjusted to suit position of fixture.

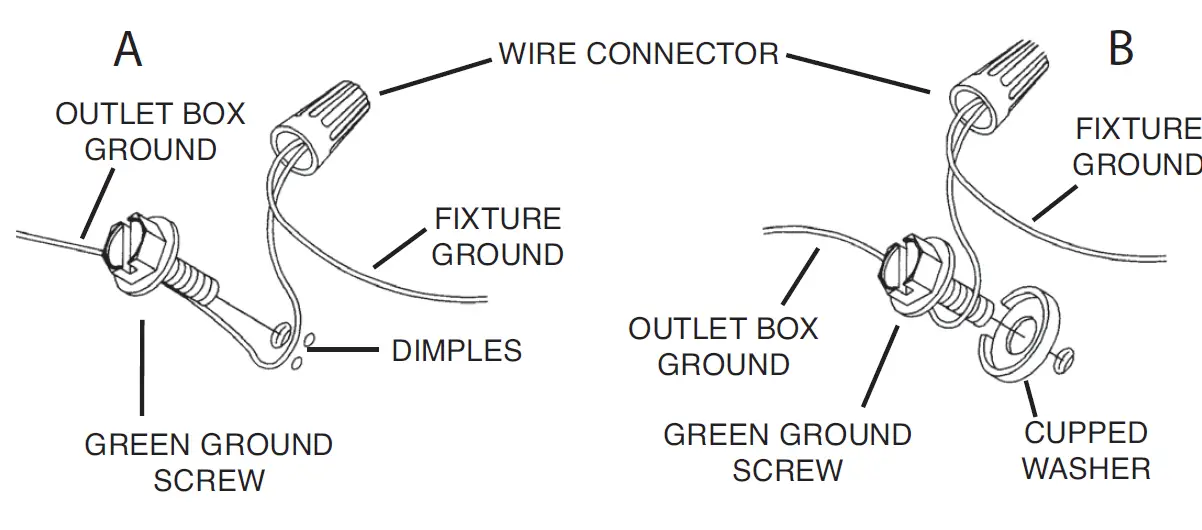

• Grounding instructions: (See Illus. A or B).
  • On fixtures where mounting strap is provided with a hole and two raised dimples. Wrap ground wire from outlet box around green ground screw, and thread into hole.
    On fixtures where a cupped washer is provided. Attach ground wire from outlet box under cupped washer andcgreen ground screw, and thread into mounting strap.
  • If fixture is provided with ground wire. Connect fixture ground wire to outlet box ground wire with wire connector (not provided.) after following the above steps. Never connect ground wire to black or white power supply wires.
• Make wire connections. Reference chart below for correct connections and wire accordingly.

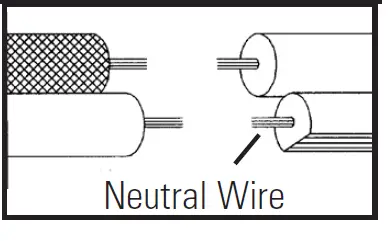

  Note: When parallel wires (SPT I & SPT II) are used. The neutral wire is square shaped or ridged and the other wire will be round in shape or smooth (see illus.)

  Connect Black or Red Supply Wire to:	Connect White Supply Wire to:
  Black	White
  *Parallel cord (round & smooth)	*Parallel cord (square & ridged)
  Clear, Brown, Gold or Black without tracer	Clear, Brown, Gold or Black with tracer
  Insulated wire (other than green) with copper conductor	Insulated wire (other than green) with silver conductor
  *Note: When parallel wires (SPT I & SPT II) are used. The neutral wire is square shaped or ridged and the other wire will be round in shape or smooth (see illus.)

• Push fixture to ceiling, carefully passing mounting screws
  through holes in canopy[5]. NOTE: Be certain wires do not get
  pinched between canopy and ceiling.
• Use knobs[6] and lockwashers[7] to secure canopy. Tighten to secure.
• Insert recommended bulbs.
• Lower the glass[9] into the bottom cage assembly[10].
  Raise the assembled bottom cage assembly up over the canopy and thread in the two (2) studded knobs[8]. Tighten securely.

Date Issued: 11/13/17
