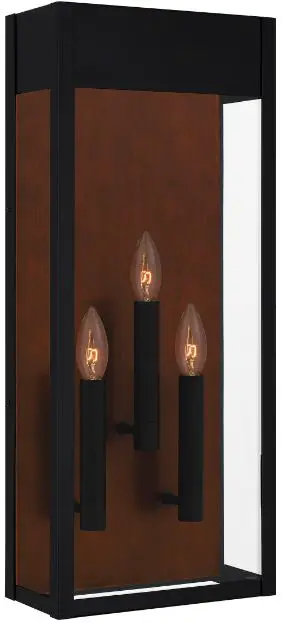

Quoizel Mae8410mbk Maren 3 Light 24 Inch Matte Black Outdoor Wall Lantern Installation Guide

QUOIZEL MAE8410MBK Maren 3 Light 24 Inch Matte Black Outdoor Wall Lantern

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

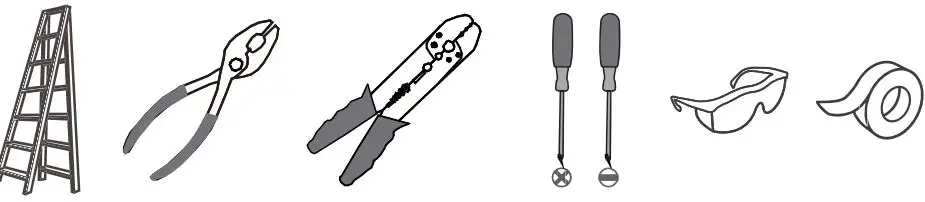

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

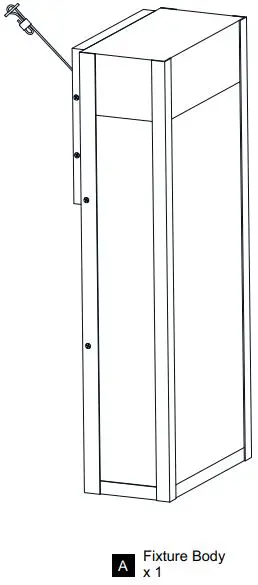

PACKAGE CONTENTS

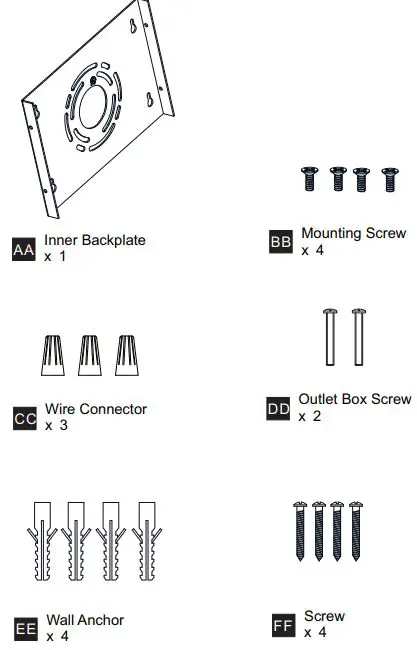

MOUNTING HARDWARE

INSTALLATION

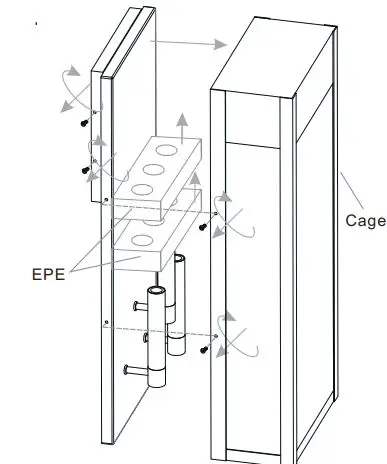

1. Remove Cage and EPE

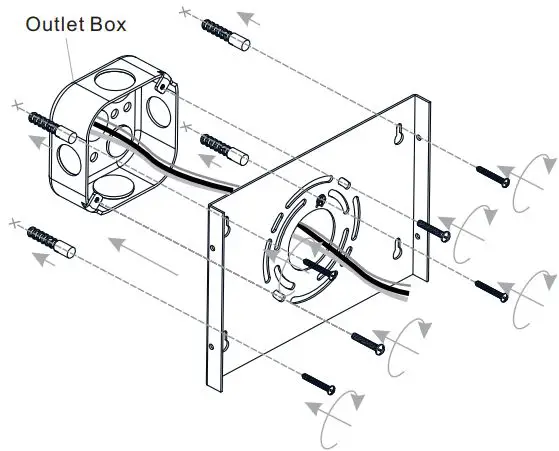

2. Install Inner Backplate




3. Wiring

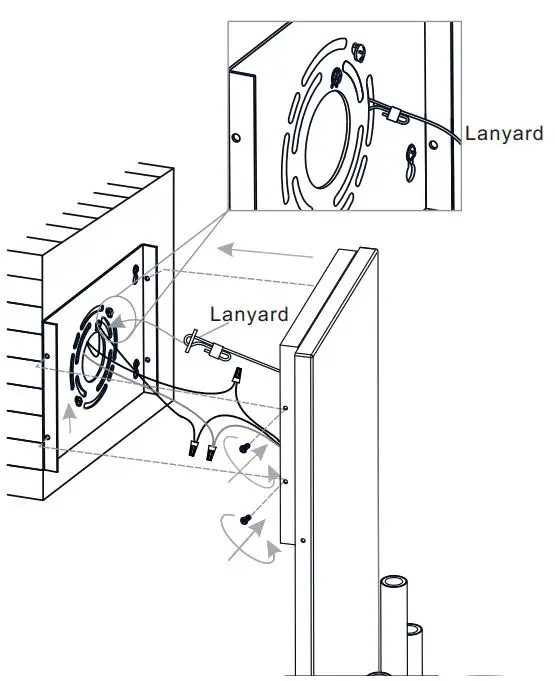

4. Install Lanyard and Fixture Body




5. Install Bulbs

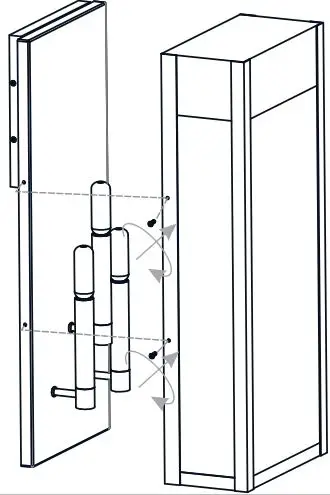

6. Install Cage




7. Apply Caulking
   * Note: Do NOT caulk the bottom of the backplate to allow moisture to escape.



HOW TO REPLACE GLASS SHADE

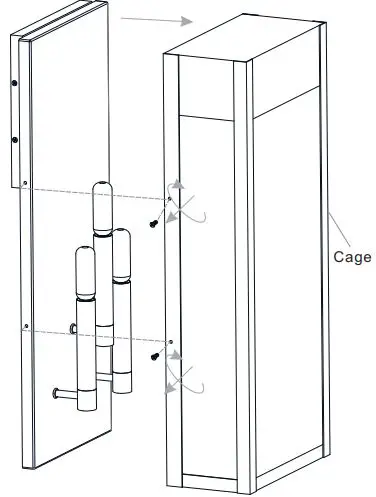

1. Remove Cage

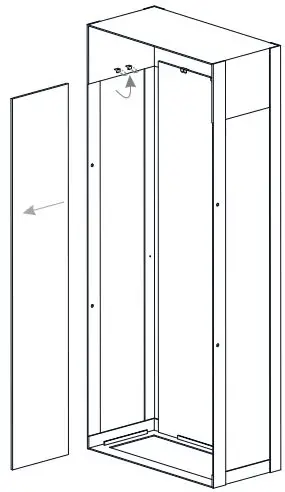

2. Remove Glass Panel


   Reverse above steps to reinstall the replacement Glass panels onto fixture.
