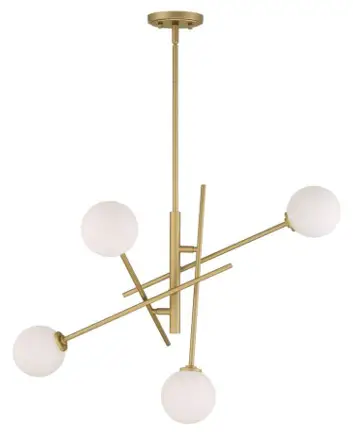

20114BD Brescia 4 Light Brass Dust Sputnik Chandelier
Instruction Manua
20114BD Brescia 4 Light Brass Dust Sputnik Chandelier
ITEM NO.: 20114BD
FIXTURE ASSEMBLY STEPS:
| DESCRIPTION | PICTURE | CODE | QTY |
| Mounting Plate |  | 8 / 11 | 1 SET |
| Mounting Box Screw |  | 9 | 2 PCS |
| P3 Wiring Cap |  | 10 | 3 PCS |
| Canopy |  | 6 | 1 PCS |
| Down Rod 3.35″+Hooke’s joint +Reinforce gasket + Nut |  | 5 | 1 SET |
| Down Rod 12″ |  | 2/3/4 | 3 PCS |
| Glass |  | 14 | 4 PCS |
| A few meters wrench |  | 12 | 1 PCS |
| Lamp Body |  | 1 | 1 SET |
 |
WARNING – if any Special Control Devices are used with this Fixture, Follow the instructions carefully to assure full compliance With N.E.C. requirements. if there are any questions, contact a Qualified Electrical Contractor
CAUTION – All glass is fragile, use with care when handling Glass component(s) and or Lamp(s). WARNING – This product contains chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm. Thoroughly wash hands after installing. handling. cleaning, or touching this product.

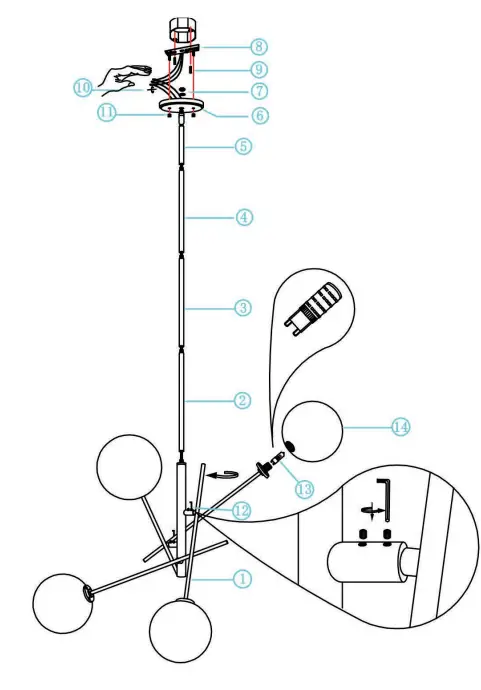

CANOPY MOUNTING & WIRE CONNECTION ASSEMBLY STEPS:
FIXTURE ASSEMBLY STEPS:
Attach(N), and (P) to achieve the overall desired length.
ITEM NO.:20114BD
110-120V I 60Hz
G9 4*MAX 20W Bulb or G9 4* MAX 4W LED Bulb (Do not contain light bulbs)
- AC110-120V,50-60Hz.The max lamp power is 20W Bulb.
- Avoid scratching the surface of lighting and the wires when installing.

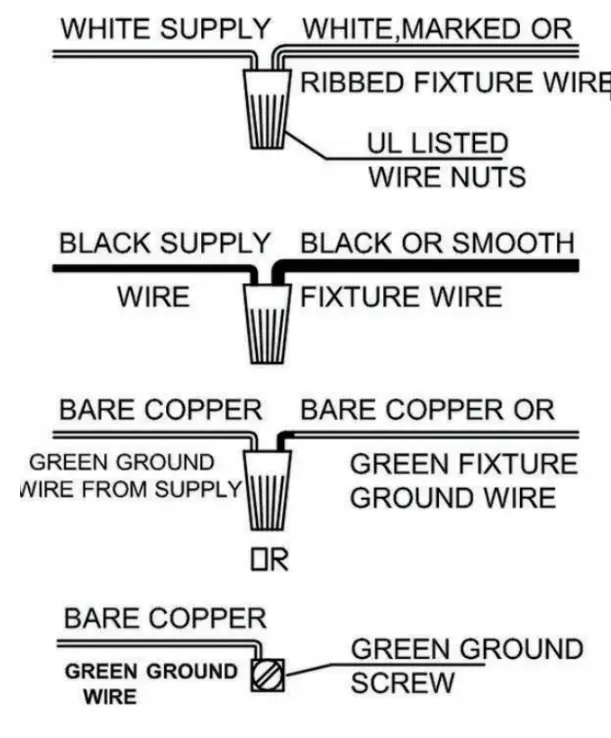

- Connect the live wire with the white wire, the neutral wire with the particolored one, and the earth one with the earth symbol (L-L, N-N).
- Don’t install it to the ceiling before it’s completely dry, the surrounding around must be ventilated and dry.
- Keep away from the acid, basicity objects, and gases, and clean with a soft cloth. Water washing is not allowed.
- Be careful when you install a glass lamp shade.
- The lighting must be installed by a professional electrician and used indoors only.
- Please make sure to cut off the power supply when installing, cleaning, and replacing the bulb.
