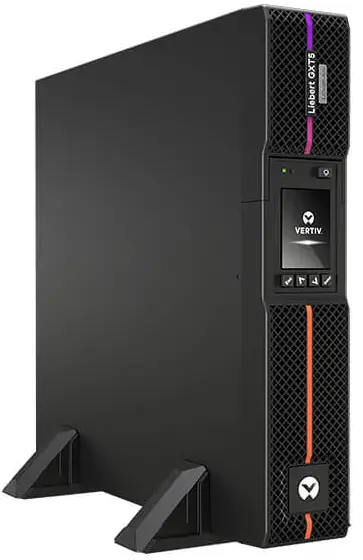

VERTIV Liebert GXT5 Lithium-Ion UPS
The Vertiv™ Liebert GXT5 Lithium-Ion UPS provides the highest level of power protection for your business-critical IT applications.
High-Performance Online Power Protection
The GXT5 Lithium-Ion double conversion online UPS provides both the highest level of power conditioning and battery backup for business-critical IT equipment such as business network gear and servers ensuring your mission-critical applications are protected in the event of an unanticipated loss of power or an unprecedented power surge.
The GXT5 Lithium-Ion UPS protects against the widest range of power fluctuations and automatically switches to battery backup when power loss is detected. With a 0.9 or better output power factor (PF) and no transfer time to operation on battery, you can ensure your most critical assets are protected.

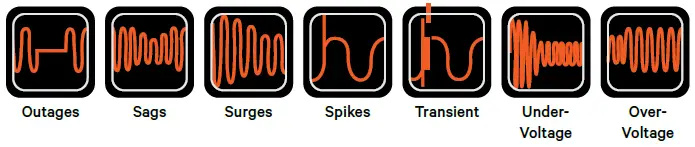

Protects Against
The rack/tower convertible design of the Vertiv Liebert GXT5 Lithium-Ion UPS makes it ideal for edge or distributed IT applications where floor space is at a premium. It is a true low-maintenance, set-it and forget-it solution ideal for remote locations with limited onsite technical resources.
Why should you choose Lithium-Ion Technology?
LONGER LIFE
LOWEST TCO
SMALLER AND LIGHTER
LONGER RUNTIME
ENVIRONMENTALLY FRIENDLY
FAST BATTERY RECHARGE
Vertiv Liebert GXT5 Lithium-Ion Overview
- 1000VA, 1500VA, 2000VA, & 3000VA UPSs in a rack/tower convertible form factor
- Standard 5-year warranty provides peace of mind that your investment is protected against potentially costly equipment failures
- Achieve the lowest total cost of ownership over the lifetime of the UPS with fewer battery replacements and up to 10 years of useable life
- Hot-swappable, user-replaceable batteries increase the useable life of the UPS by allowing you to easily replace the batteries without disrupting power to connected equipment
- Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss
- Lithium-Ion battery technology offers better performance in high-temperature environments, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries.
Lithium-Ion technology delivers up to 3 times the life expectancy of lead-acid batteries and lowers the total cost of ownership by nearly half
Lithium-Ion Outperforms VRLA when compared…
Battery Feature VRLA Battery Lithium-Ion Battery Lithium-Ion Benefit
| Standard battery life | 3-5 years | 8-10 years | Up to 3 times longer life |
| Typical cycle life | 200-260 | 2000 | Up to 10x more discharge/recharge cycles |
| Battery recharge time (@ 90%) | 3-6 hours | <2 hours | Fast recovery time safeguards your critical IT equipment in the event of multiple outages |
| Battery weight | 10.9 kg | 5.9 kg | 45% lighter making it ideal for small spaces and wall-mount racks |
| Warranty | 2 or 3 years | 5 years | Worry free operation so you can set-it and forget-it |
Visit the TCO calculator at vertiv.com -> Products & Services -> UPS -> GXT5 Lithium -> Models to calculate the cost savings for your installation.

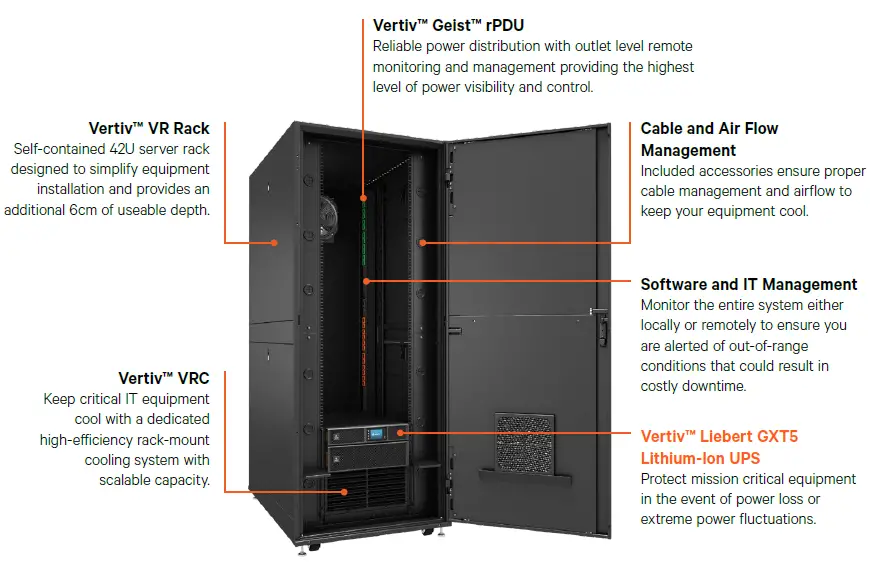

Build Your Total Infrastructure Solution with Vertiv
Discover expert-designed IT infrastructure solutions with proven success in diverse environments and countless applications.
Visit Vertiv.com or contact a Vertiv Sales Representative today to find out how Vertiv can help you configure an all-in-one infrastructure solution.
High Performance
0.9 (or Better) Output Power Factor (PF): Provides more useable power enabling you to connect more equipment saving you money and space.
Increased Runtime: Internal batteries offer up to 14 minutes of runtime at full load.
Programmable Outlet Group: Extend run time when on battery power by power-cycling connected equipment and shedding less critical loads.
Battery Backed Outlets: Up to 7 battery backed outlets ensuring critical equipment is protected.
Advanced Warning Status: Receive early audible and visual alarms warning you of system status to alert you to an input voltage, output overload, low battery, or battery replacement condition.
Wide Input Voltage Range: Prolong battery life by allowing the UPS to maximize the use of the utility power before transferring to battery.
Superior Battery Technology
Fewer Battery Replacements: Lithium-Ion batteries require fewer battery replacements and last on average up to 3 times as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (lower TCO).
More Discharge Cycles: Lithium-Ion batteries deliver up to 10 times more charge / discharge cycles than VRLA batteries.
Fast Recharge: Lithium-Ion batteries recharge twice as fast as traditional VRLA batteries getting you back to 90% in as little as 2 hours.
Hot-Swappable, User-Replaceable Batteries: Increase product life and reliability with batteries that can be easily replaced without disrupting power to connected equipment.
Safe and Reliable: Safest Lithium-Ion (LiFePO4) battery chemistry and integrated battery management system (BMS) ensure safe and reliable operation.
Enhanced Manageability
LCD Display: User-friendly full-color LCD interface with gravity sensing orientation simplified installation and configuration while also providing instant at-a-glance status and insights.
Free Power Management Software:
- Vertiv™ Power Insight – Add the Liebert® RDU101 card for web/SNMP manageability
- Vertiv™ Power Assist – Monitor UPS conditions through a local USB connection
- Vertiv™ Intelligence Director – Together with Vertiv™ Geist™ rPDU one single IP Address to monitor and manage up to 50 devices.
Remote Monitoring and Management: Add an optional Liebert® IntelliSlot RDU101 communication card to enable remote monitoring/management (web-based, SNMP, BACnet, MODBUS and relay contacts) and environmental monitoring via external sensors.
Remote Emergency Power Off: Remotely shutdown the UPS during an emergency.

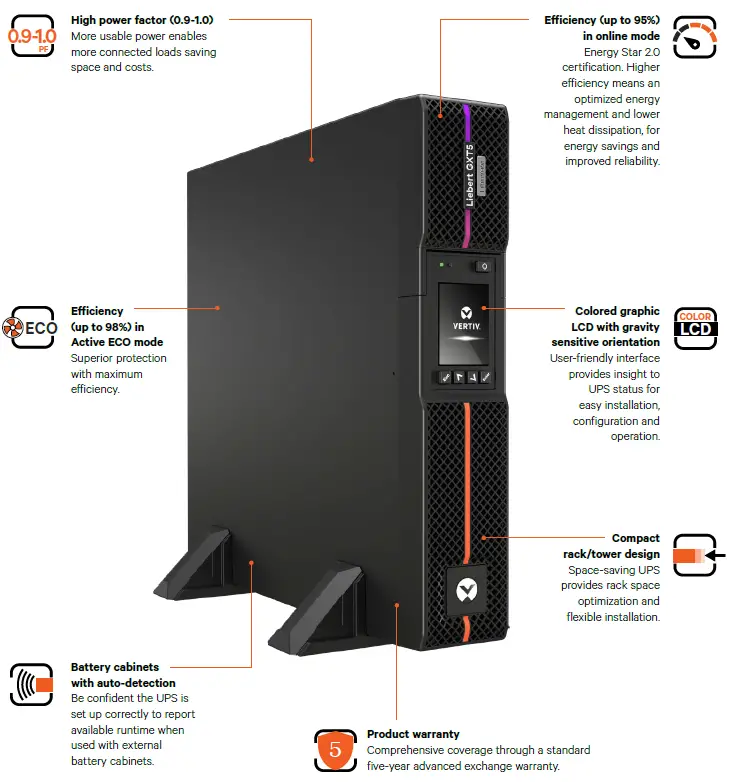

Vertiv™ Liebert® GXT5 Lithium-Ion Features

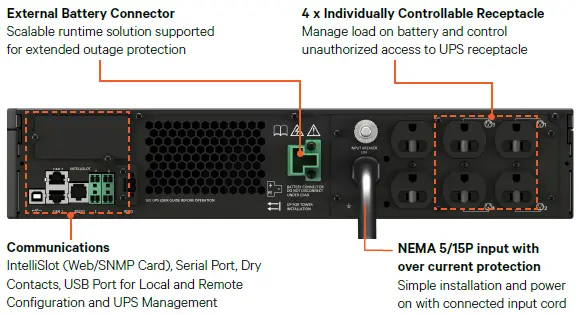

1000-1500VA – 120V Rack/Tower

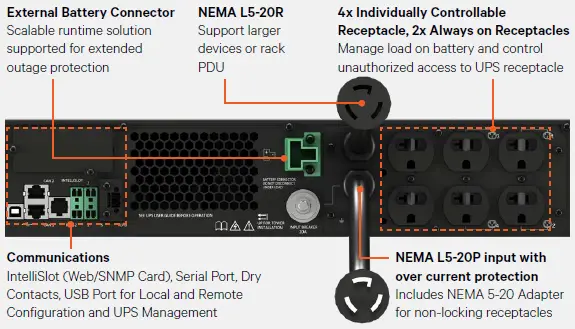

2000VA – 120V Rack/Tower

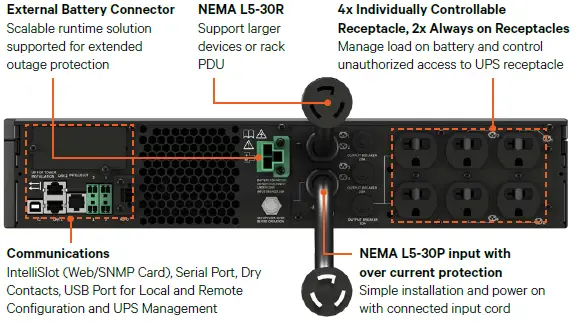

3000VA – 120V Rack/Tower
Technical Specifications
Standard Models GXT5LI-1000LVRT2UXL GXT5LI-1500LVRT2UXL GXT5LI-2000LVRT2UXL GXT5LI-3000LVRT2UXL
| Form Factor | 2U Rack/Tower | 2U Rack/Tower | 2U Rack/Tower | 2U Rack/Tower |
| Power Rating | 1000VA / 1000W | 1500VA / 1350W | 2000VA / 1800W | 3000VA / 2700W |
Dimensions, W X D X H, IN (MM)
| Unit | 16.9 x 17.3 x 3.4 (430 x 446 x 85) | 16.9 x 18.7 x 3.4 (430 x 476 x 85) | 16.9 x 18.7 x 3.4 (430 x 476 x 85) | 16.9 x 21.5 x 3.4 (430 x 546 x 85) |
| Shipping | 22.4 x 23.5 x 9.5 (570 x 597 x 242) | 22.4 x 23.5 x 9.5 (570 x 597 x 242) | 22.4 x 23.5 x 9.5 (570 x 597 x 242) | 22.4 x 28.2 x 9.5 (570 x 717 x 242) |
Weight, LB (KG)
| Unit | 37.5lbs (17kg) | 39.7lbs (18kg) | 39.7lbs (18kg) | 48.5lbs (22kg) |
| Shipping | 47.6lbs (21.6kg) | 52.9lbs (24kg) | 52.9lbs (24kg) | 59.7lbs (27.1kg) |
Input/Output AC Parameters
| Input Plug | NEMA 5-15P | NEMA 5-15P | NEMA L5-20P | NEMA L5-30P |
| Input Cord | 10ft (3m) Atttached | 10ft (3m) Attached) | 10ft (3m) Attached L5-20 To 5-20P Adapter | 10ft (3m Attached) |
| Total Receptacles | (6) NEMA 5-15R | (6) NEMA 5-15R | (1) NEMA L5-20R, (6) NEMA 5-15/20R | (1) NEMA L5-30R, (6) NEMA 5-15/20R |
| Programmable Receptacles | (4) NEMA 5-15R | (4) NEMA 5-15R | (4) NEMA 5-15/20R | (4) NEMA 5-15/20R |
| Nominal Voltage Setting | 120VAC Default; 100/110/115/120V/125VAC (User-Configurable); ±1% | 120VAC Default; 100/110/115/120V/125VAC (User-Configurable); ±1% | 120VAC Default; 100/110/115/120V/125VAC (User-Configurable); ±1% | 120VAC Default; 100/110/115/120V/125VAC (User-Configurable); ±1% |
| Voltage Range Without Battery Operation | Nominal (Full Load): 102 – 150 VAC; Maximum: 60 – 150 VAC | Nominal (Full Load): 102 – 150 VAC; Maximum: 60 – 150 VAC | Nominal (Full Load): 102 – 150 VAC; Maximum: 60 – 150 VAC | Nominal (Full Load): 102 – 150 VAC; Maximum: 60 – 150 VAC |
| Frequency Range | 40~70Hz | 40~70Hz | 40~70Hz | 40~70Hz |
| Surge Protection | ANSI C62.41, Category B | ANSI C62.41, Category B | ANSI C62.41, Category B | ANSI C62.41, Category B |
| Transfer Time | 0 ms | 0 ms | 0 ms | 0 ms |
| Battery Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Battery Parameters | ||||
| Type | Lithium-Ion (LiFePO4) | Lithium-Ion (LiFePO4) | Lithium-Ion (LiFePO4) | Lithium-Ion (LiFePO4) |
| Recharge Time (from full discharge) | < 2 hrs to 90% | < 2 hrs to 90% | < 2 hrs to 90% | < 2 hrs to 90% |
| Full-Load Runtime | 13 min | 14 min | 10.5 min | 6.5 min |
| Half-Load Runtime | 28 min | 28 min | 22.5 min | 15 min |
| External Battery Cabinet | VEBCLI-48VRT1U | VEBCLI-48VRT1U | VEBCLI-48VRT1U | VEBCLI-48VRT1U |
Environmental
| Operating Temperature,°F (°C) | 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C) | 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C) | 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C) | 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C) |
| Storage Temperature °F (°C) | -4° to 140° (-20° to 60°) | -4° to 140° (-20° to 60°) | -4° to 140° (-20° to 60°) | -4° to 140° (-20° to 60°) |
| Relative Humidity | 0% – 95%, non-condensing | 0% – 95%, non-condensing | 0% – 95%, non-condensing | 0% – 95%, non-condensing |
| Operating Altitude, ft (m) | 0 to 10,000 (0 to 3,000) w/o Derating (15% Derating at 4000m) | 0 to 10,000 (0 to 3,000) w/o Derating (15% Derating at 4000m) | 0 to 10,000 (0 to 3,000) w/o Derating (15% Derating at 4000m) | 0 to 10,000 (0 to 3,000) w/o Derating (15% Derating at 4000m) |
| Audible Noise | < 48 dB | < 48 dB | < 48 dB | < 48 dB |
Certifications
| Safety | UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3 | UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3 | UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3 | UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3 |
| Agency | UL 1778, c-UL, NOM, FCC Part 15, Class A | UL 1778, c-UL, NOM, FCC Part 15, Class A | UL 1778, c-UL, NOM, FCC Part 15, Class A | UL 1778, c-UL, NOM, FCC Part 15, Class A |
| Environmental | RoHS2 / REACH / WEEE | RoHS2 / REACH / WEEE | RoHS2 / REACH / WEEE | RoHS2 / REACH / WEEE |
| Network Surge | IEC 61000-4-5, ANSI C62.41, Category B | IEC 61000-4-5, ANSI C62.41, Category B | IEC 61000-4-5, ANSI C62.41, Category B | IEC 61000-4-5, ANSI C62.41, Category B |
| Transportation | ISTA Procedure 2A | ISTA Procedure 2A | ISTA Procedure 2A | ISTA Procedure 2A |
| Warranty | 5 years on UPS and Battery | 5 years on UPS and Battery | 5 years on UPS and Battery | 5 years on UPS and Battery |
| Equipment Protection Plan | Up To $500,000 (For Covered Equipment) | Up To $500,000 (For Covered Equipment) | Up To $500,000 (For Covered Equipment) | Up To $500,000 (For Covered Equipment) |
Optional Accessories
External battery cabinets and replacement battery kits
| UPS | External battery cabinets* | Internal Replacement Battery Kits |
| GXT5LI-1000LVRT2UXL | VEBCLI-48VRT1U | GXT5LI-48VBATKIT1 |
| GXT5LI-1500LVRT2UXL | VEBCLI-48VRT1U | GXT5LI-48VBATKIT2 |
| GXT5LI-2000LVRT2UXL | VEBCLI-48VRT1U | GXT5LI-48VBATKIT2 |
| GXT5LI-3000LVRT2UXL | VEBCLI-48VRT1U | GXT5LI-48VBATKIT2 |
*EBCs are hot-swappable, user-replaceble to allow for the full EBC to be replaced, as needed.
Network communications and environmental sensors

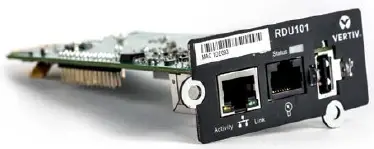

| Network Communications | RDU101 | Intellislot web card for SNMP and web management. Supports environmental sensors. |
| IS-RELAY | Intellislot Interface Kit for Relay Contacts | |
| Environmental Sensors | SN-Z01 | Integrated cable with single temperature sensor |
| SN-Z02 | Integrated cable with three temperature sensors | |
| SN-Z03 | Integrated cable with three temperature and one humidity sensors | |
| SN-T | Modular with single temperature sensor | |
| SN-TH | Modular with single temperature and single humidity sensor | |
| SN-2D | Modular with two door contact inputs | |
| SN-3C | Modular with three dry contact inputs | |
| SN-L20 | Modular leak zone sensor with 20 foot cable (Liebert RDU-S only) | |
| UPS manageability options | Vertiv™ Power Insight Software Management | Vertiv™ Power Insight is a complimentary web-based software designed to monitor up to 100 Vertiv™ UPSs and rPDUs |

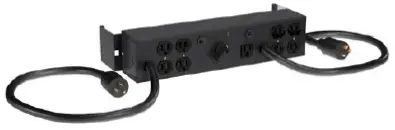

MicroPOD – Maintenance bypass and output distribution
The Vertiv™ Liebert® MicroPOD (Power Output Distribution) is a maintenance bypass option for UPS products, 3 kVA and below. It allows removal of the UPS without powering down the connected equipment. The 2U POD’s can be installed on the floor or mounted to a Liebert® GXT5 UPS using the included mounting brackets.
| UPS VA rating | POD model number | Output receptacles | Plug to utility |
| 500-1500VA UPS | MP2-115HW | Hard Wired | Hardwired |
| MP2-115A | 8 x 5-15R | 5-15P | |
| 2000VA UPS | MP2-120HW | Hard Wired | Hardwired |
| MP2-120C | 8 x 5-15/20R | 5-20P | |
| MP2-120E | 4 x 5-15/20R; 1 x L5-20R | 5-20P | |
| 3000VA UPS | MP2-130HW | Hard Wired | Hardwired |
| MP2-130C | 8 x 5-15/20R | L5-30P | |
| MP2-130E | 2 x 5-15/20R; 1 x L5-30R; 4 x 5-15/20R | L5-30P | |
| MP2-130P | 4 x 5-15R; 2 x L5-20R | L5-30P |

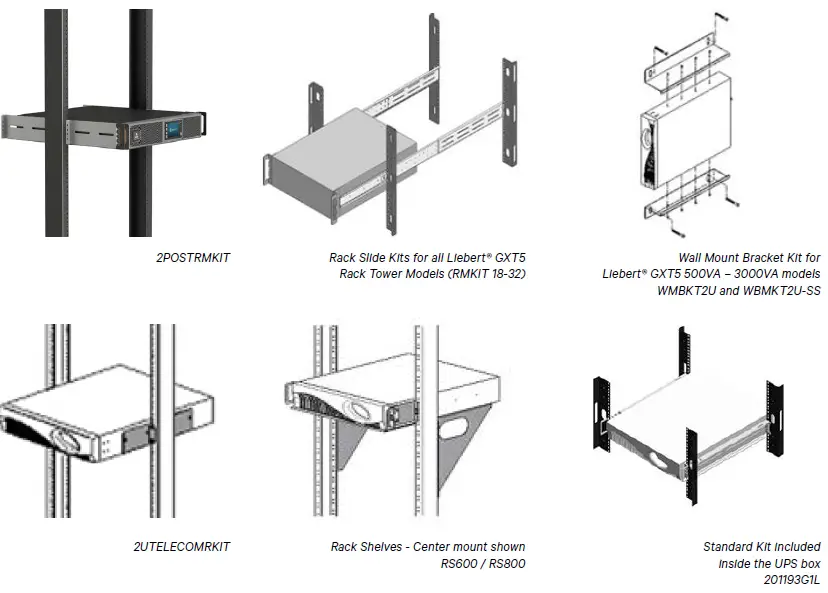

Mounting Kit Options
| Application | Model Supported | Style | Model | Description |
|
2 Post – Telecom Rack |
Entire Liebert GXT5 UPS family (500VA to 10kVA) | Shelf | RS500 | Flush-mount shelf for 19″ rack wide |
| Shelf | RS600 | Center-mount shelf for 19″ rack wide | ||
| Shelf | RS700 | Flush-mount shelf for 23″ rack wide | ||
| Shelf | RS800 | Center-mount shelf for 23″ rack wide | ||
| Liebert GXT5 up to 3kVA | Bracket | 2UTELECOMRKIT | Only center-mount bracket for 19″ rack wide | |
| Bracket | 2POSTRMKIT | Front flush/ center-mount bracket – 4-piece design | ||
| Wall Mount | Liebert GXT5 up to 3kVA | Bracket | WMBKT2U | Wall mount bracket holds (1) GXT5 2U or (1) PSI5 2U product, steel painted black |
| Bracket | WMBKT2USS | Wall mount bracket holds (1) GXT5 2U or (1) PSI5 2U product, stainless steel | ||
| 4 Post Rack | Entire GXT5 UPS family (500VA to 10kVA) | Bracket | RMKIT18-32 | Cabinet/racks with 18″ – 32″ deep support rails – Telescopic rail |
Note: RS600 and RS800 kits include adapter brackets for installation of up to (2) Liebert® GXT5 2U model
Power Assurance Package
Comprehensive Service Support for Critical Systems
- Five-year protection plan with 100% parts coverage and 24×7 emergency service
- On-site installation and startup of UPS and internal batteries (excludes hard-wired applications); configuration of new UPS and accessories; and if purchased, safe removal and disposal of legacy UPS and batteries
- On-site service support available 24×7 (within 150 miles of regional service center) and includes 100% labor and travel coverage
- 100% parts coverage for UPS includes POD (power output distribution), web card, and battery defects
- 24×7 access to customer resolution center and online access to Customer Services Network.
Key benefits:
- Hassle-free management of multi-site rollouts
- Frees up IT staff from maintaining and servicing UPS equipment reduces the worry of critical equipment downtime
- Ensures rapid recovery in the event of failure (within 24-48 hours)
- Frees you from the responsibility of handling and documenting the disposal of legacy UPS and batteries

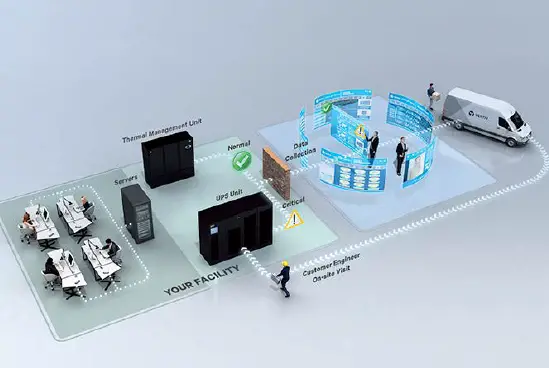

LIFE™ Remote Diagnostic Services for Rapid Response
Uptime assurance
- Continuous monitoring for early detection of trends and operating anomalies
- Analysis and interpretation of alarm and status messages
Rapid incident response
- Automatic transmission of data for analysis
- Concurrent diagnosis and dispatch of engineer to site
- Shipment of parts for corrective maintenance
Increased insight and ease of management
- Notification of operating conditions that may impact system health
- Periodic trend and analysis reports
- Integration of remote and on-site services to ensure business continuity
Liebert® GXT5 Lithium-Ion UPS – Power Assurance Services
Power Assurance Package
| Bundled Start-up Service AND 5-Year On-site Emergency Response | Standard | With LIFE™ Services | With Removal | With LIFE™ and Removal |
| Equipment Model / Type | Part Number | Part Number | Part Number | Part Number |
| Liebert® GXT5 LI UP TO 3 KVA | PAPGXTLI-1K3K | PAPGXTLI-1K3KLF | PAPGXTLI-1K3KRMV | PAPGXTLI-1K3KRLF |
| External Battery Cabinets (48V) | PAPGXTLI-48VBATT | N/A | PAPGXTLI-48VBATTRMV | N/A |
Power Startup Services
| Startup Service Only | Standard | With Removal |
| Equipment Model / Type | Part Number | Part Number |
| Liebert GXT5 LI UP TO 3 KVA | SUGXT-1K3K | SUGXT-1K3KRMV |
| External Battery Cabinet (48V) | SUGXT-EXTBTCB | SUGXT-EXTBTCBRMV |
Power Emergency Services
| 5-Year On-site Emergency Coverage – Only | Standard | With LIFE Services |
| Equipment Model / Type | Part Number | Part Number |
| Liebert® GXT5 LI 1-3 KVA | PEPGXTLI-1K3K5YR | PEPGXTLI-1K3KLF |
| Lithium-Ion External Battery Cabinet 48V | PEPGXTLI-48VBAT5YR | N/A |
Power Assurance Package – Summary
- Includes all below “Power Start-up Services” and “Power Emergency Services” support
- One Preventative Maintenance visit after 3rd year
Power Startup Services – Summary
- Installation includes mounting and start-up of new UPS or EBC (excludes hard-wired applications)
- Services performed by Vertiv factory trained technician
- Services performed 7 X 24, excluding national holidays within the 48 contiguous states and Hawaii
- Removal and disposal of existing UPS or EBC equipment, if selected
Power Emergency Services – Summary
- On Site Service Support
- Full-service five (5) year contract term commencing upon the start-up date
- 100% parts coverage, including POD, web card and battery defects
- 100% labor and travel coverage 7 days/week, 24 hours/day
- 24-Hour Customer Resolution Center via 1-800-LIEBERT
- Access to Customer Services Network portal
LIFE™ Services includes above plus:
- Continuous Monitoring, Alarm Notification, Expert Analysis, and Proactive Response
Note: LIFE Services requires an RDU101 card.
Please refer to the Scopes of Work for full and additional details.
Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA
© 2022 Vertiv Group Corp. All rights reserved. Vertiv™ and the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness here, Vertiv Group Corp. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications, rebates and other promotional offers are subject to change at Vertiv’s sole discretion upon notice.
SL-70925 (R03/22)
Vertiv - Official Web Site
