Eltako Dss65e German Socket (type F) In E-design65 Instructions

Eltako DSS65E German Socket (Type F) In E-Design65

Only skilled electricians may install this electrical equipment otherwise there is the risk of fire or electric shock!

INTRODUCTION

• Temperature at mounting location:
• -20°C up to +50°C.
• Storage temperature: -25°C up to +70°C. Relative humidity:
• annual average value <75%.

German Socket (Type F) DSS with socket outlet front and USB charging ports in E-Design65, 84×84 mm external dimensions. Pure white glossy.  With increased shock protection. The socket base has screw terminals. Installation depth 38 mm. Integrated USB power supply unit 5 V DC/2.1 A with short circuit and overload protection. Intelligent parallel use of both USB ports, 2 USB-A.

Typical connection

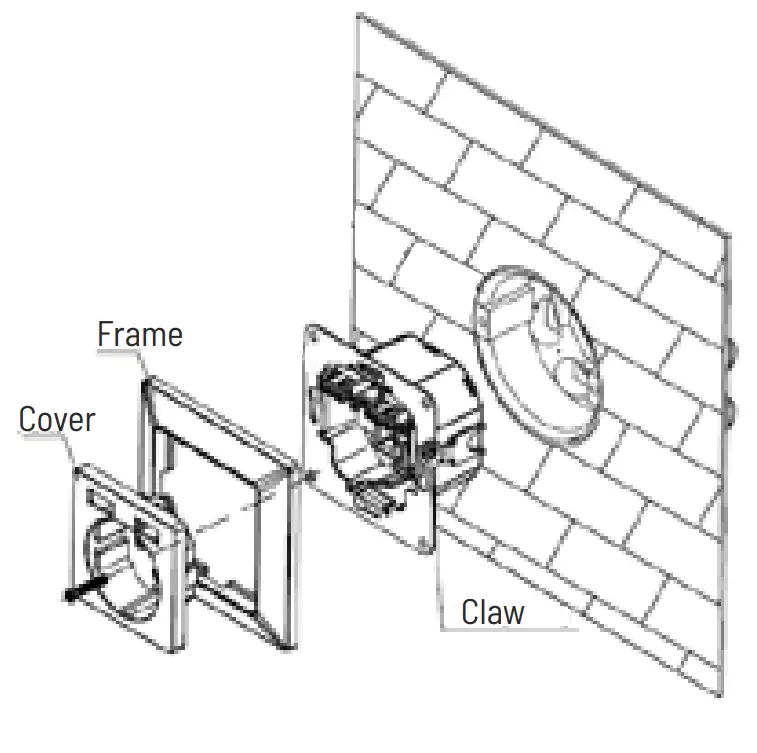

Mounting with screws

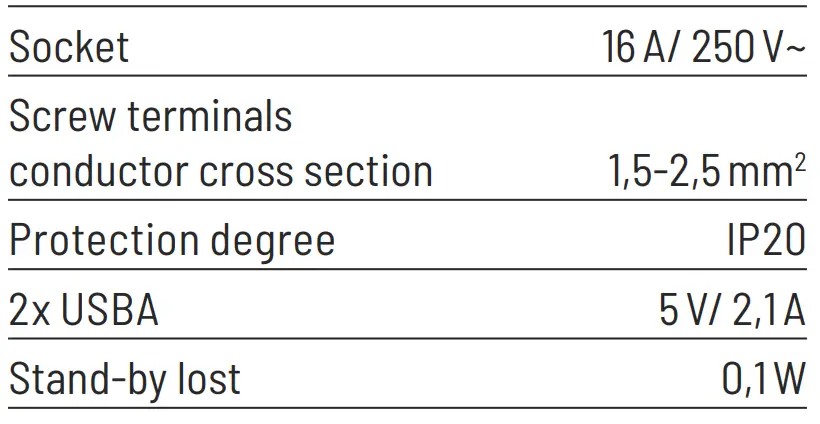

Technical data

Must be kept for later use!

Eltako GmbH
D-70736 Fellbach Technical Support English:
+49 711 94350025 [email protected]
eltako.com

38/2021 Subject to change without notice.
