Efapel 9014-002.01 French Socket For Charging Electric Vehicles Instructions

9014-002.01 French Socket for Charging Electric Vehicles
Instructions

9014-002.01 French Socket for Charging Electric Vehicles

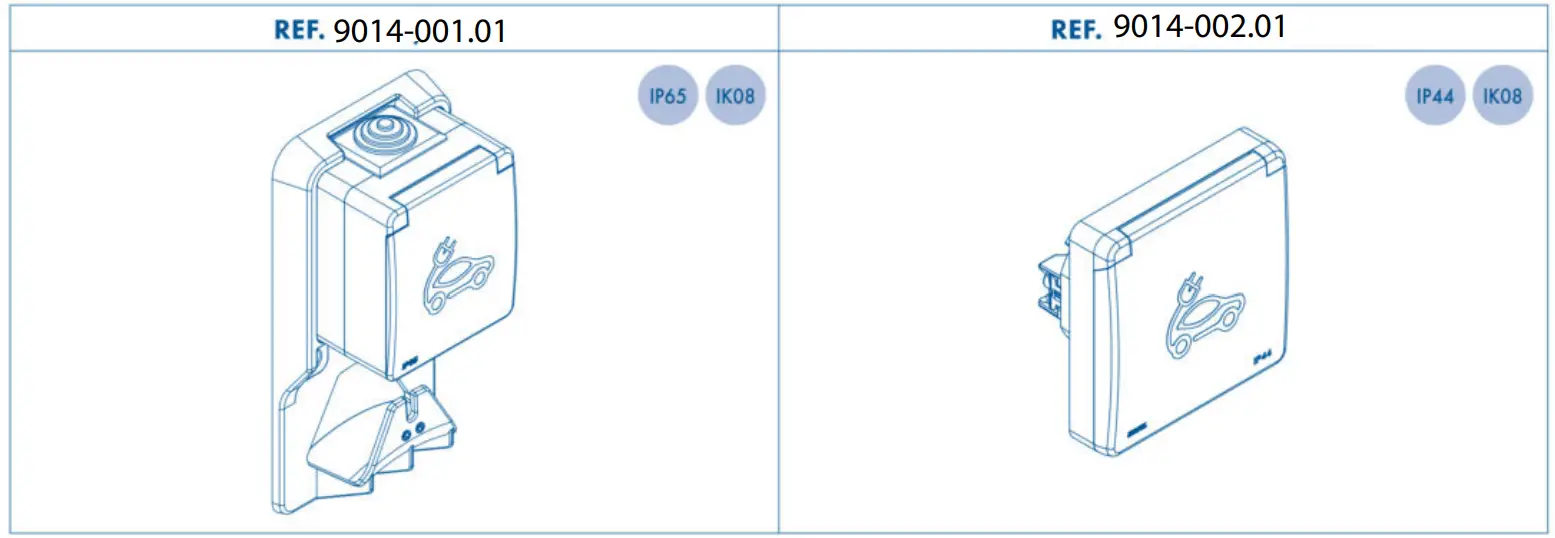

SCHUKO/FRENCH SOCKET FOR CHARGING ELECTRIC VEHICLES
CHARGING MODE

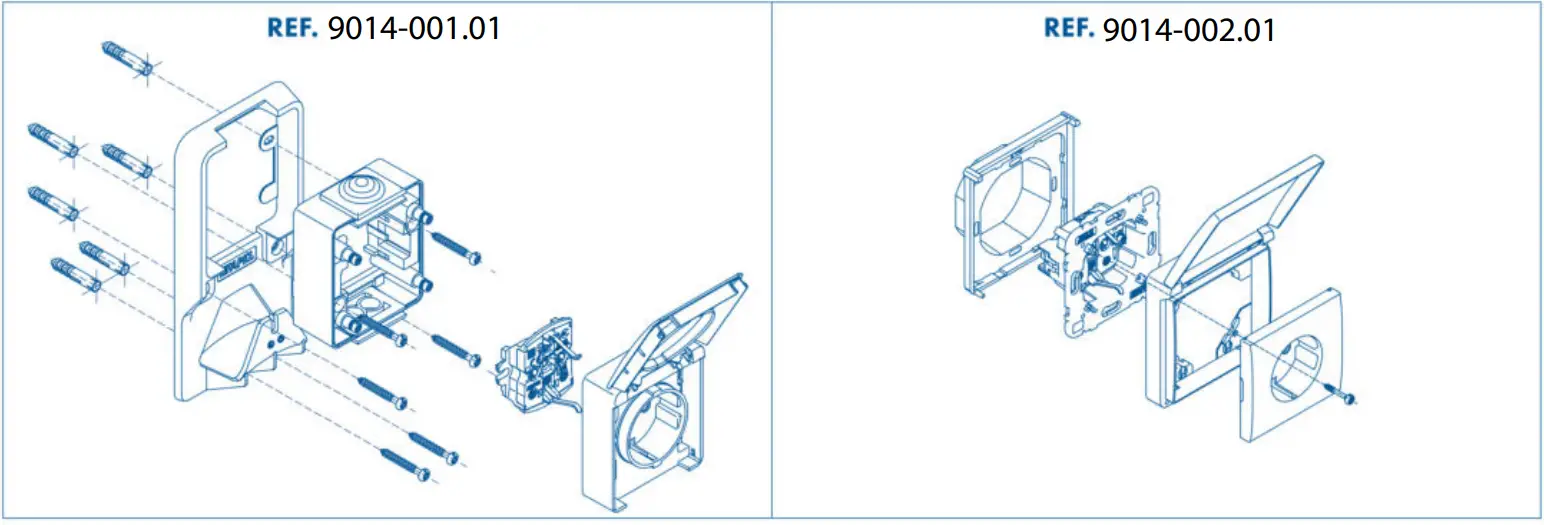

MOUNTING AND FIXING

DIMENSIONS

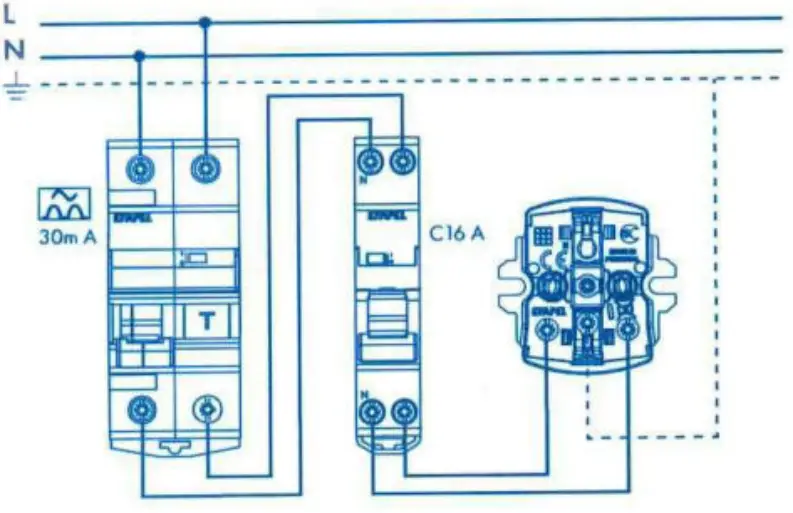

WARING DIAGRAM

– Socket for charging electric vehicles in mode 1 or mode 2.
– Reinforced socket: tested with load cycles of 8h of 230 V- 16 A.
– Socket supports currents up to 16 A, being the charging limited by the EV and by each country regulations (8 A So 16 A).
EFAPEL reserves the right to modify this document or the products contained in it without notice. If in doubt please contact EFAPEL.
