SU-850DA Digital Wireless Microphone System
Instructions
SU-850D SERIES I DIGITAL WIRELESS MICROPHONE SYSTEM
SU-EISODA Digital Wireless Microphones System 168CH
SU-850DA Digital Wireless Microphone System
Certifications : CE and RoHS / The SU-850D
Series conforms to standard
NBCT I EMI EN 300 422-1
301 489-9 , EN 62479
IEC 60950-1
FEATURES
- Digital UHF 694.4 – 702.7 MHz frequency range.
- Frequency response 30Hz – 20kHz t2d13
- Pre-Set 168CH (2’84CH) selectable frequencies.
- TFT display to indicate frequency. battery level. volume level. Channel and Menu Settings.
- AF / RF signal indicator LED light on receiver
- Up to 60 Meters line-of-sight range. / Output power 10mW
- Auto mute when lolling or told down.
- Unique digital 16 bits ID pilot technology, no crosstalk disturbance even some frequency.
- IR sync downloading the frequency from receiver.
- Wireless system adopts Intelligentized cryptographic hardware.
- An efficient battery energy design that allows the microphone to be used continuously for longer periods of time.
- Ideal for large and small stages, clubs music entertainment, conference, meeting. training, speeches and karaoke etc.
SPECIFICATIONS
SYSTEM
| Carrier frequency | UHF 694.4 – 702.7MHz |
| Available channels | I68CH (2 x 84CH) |
| Bandwidth | 8.4MHz |
| Dynamic range | 96dB |
| Total harmonic distortion | <0.3% |
| Frequency response | 30Hz — 20kHz t2dB |
| Demodulation mode | DOPSK |
| Sampling rate | 48 KHz |
| Audio output level | I x 6.3mm, 2 x XLR balance output |

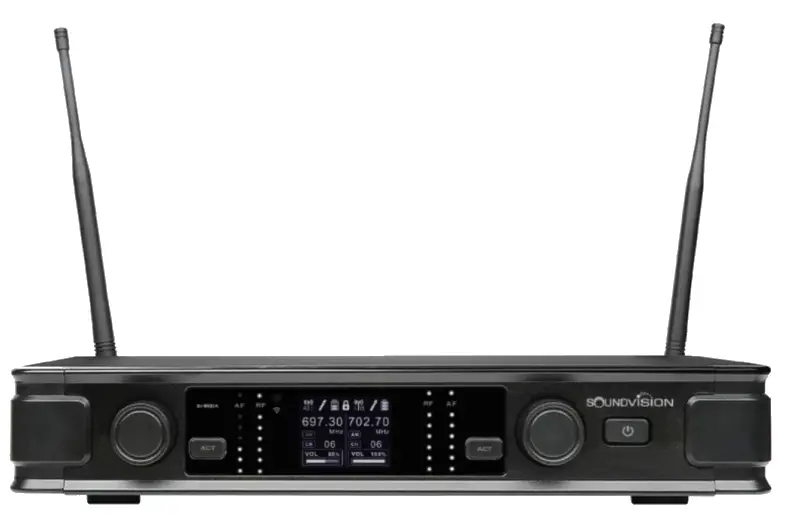

SU-850DA : RECEIVER
| Frequency response | 30Hz — 20kHz ±2dB |
| Power supply | DC 12V-18V 1A |
| Consumption power | 2 Watts |
| Signalfnoise ratio | 96dB |
| Receiving sensitivity | -95dBm |

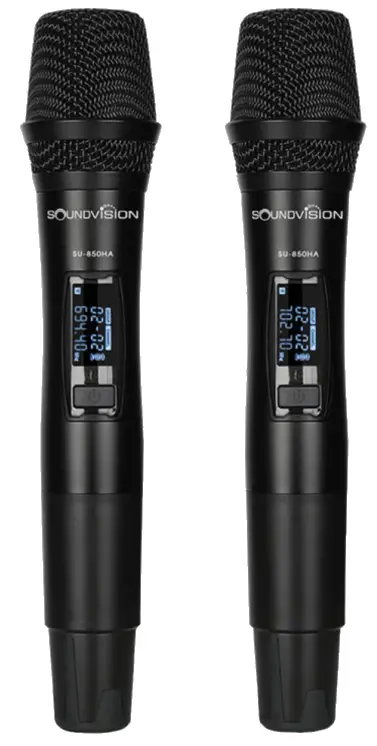

SU-850HA : HANDHELD TRANSM
| Carrier frequency | UHF 694.4 – 702.7MHz |
| Available channels | 168CH (2 x 84CH) |
| Bandwidth | 8.4MHz |
| Frequency switch | IR SYNC |
| Microphone type | Dynamic |
| Polar pattern | Cordiold Directional |
| Frequency response | 50Hz – 15kHz ±5d8 |
| Impedance | 580Ω ±15% @lkHz |
| Sensitivity | -52dB ±2dB (0d13=1V/Po @lkHz) |
| Output power | 10mW |
| Harmonic radiation | <-50dBc |
| Battery | 3V (2 x 1.5V AA Battery) |
| Battery life | approx. 8 hours (Alkaline Type) |
ORDERING INFORMATION
SU-850DA/HA Dual Handheld Transmitter
– Model : SU-850DA/HA Dual Handheld wireless microphone set.
Specifications are subject to change without prior notification.
SOUNDVISIONPRO.COM
SU-850DA DIGITAL UHF WIRELESS MICROPHONES SYSTEM 168CH
